Intelsat 7/10 at 68.5°E : Technical data

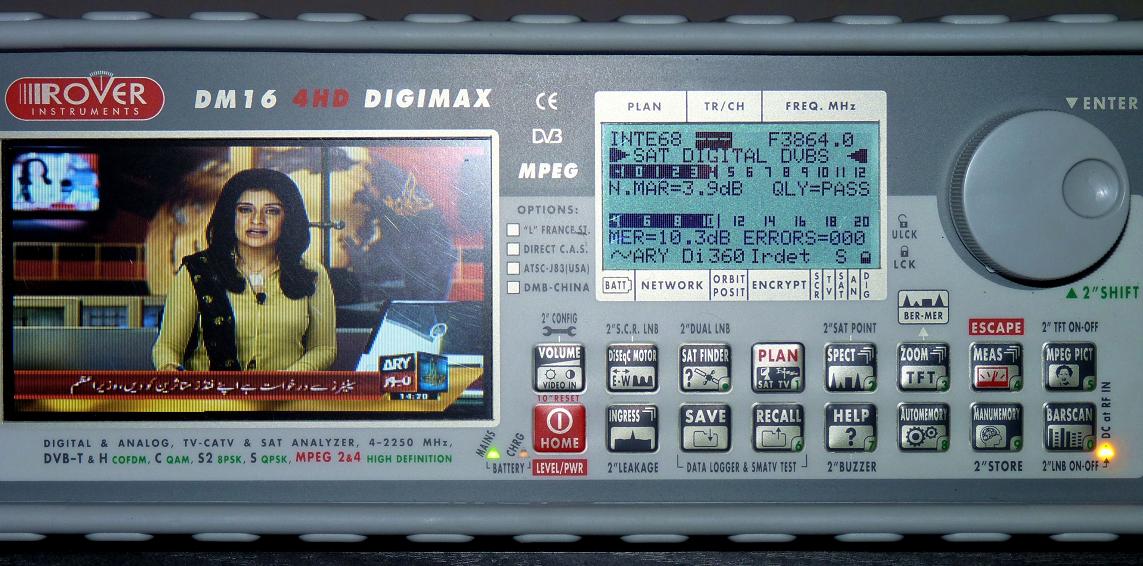

IS 10 at 68.5°E-global footprint in C band : 3 864 H ARY News Asia - qualitative peak MER=10.3 dB
Satellite : Intelsat 10 - Orbit : 68.5°E - TP : 24 C/24 KU - Lifetime : from 15.5.2001 - 15 years

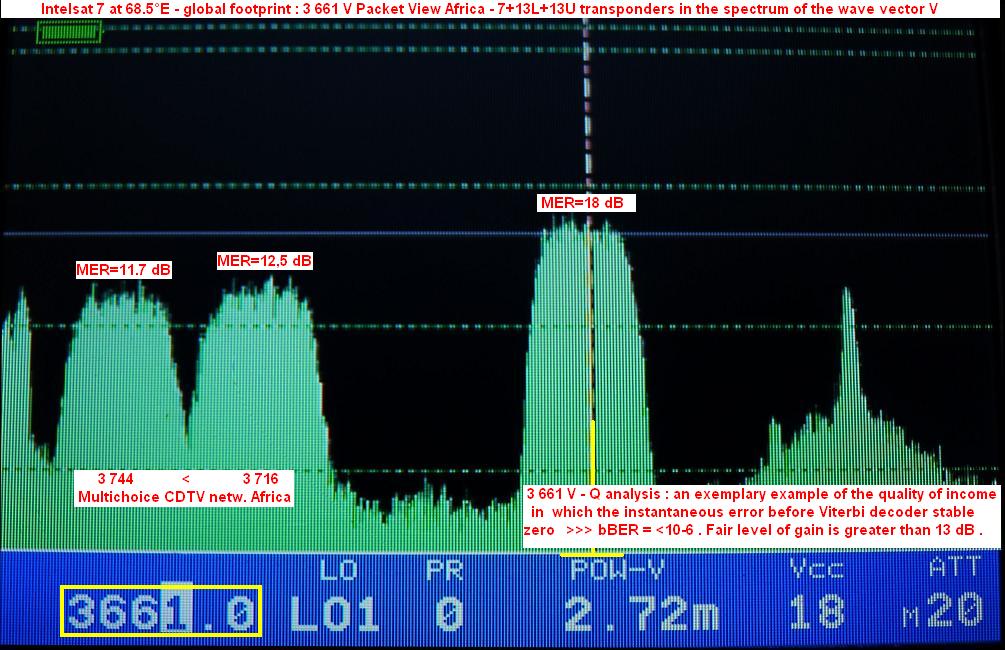

Intelsat 10 at 68.5°E - global footprint in C band : spectral analysis and measuremet results
Intelsat 10 at 68.5°E - global footprint : measurements at the center Lučenec_central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°

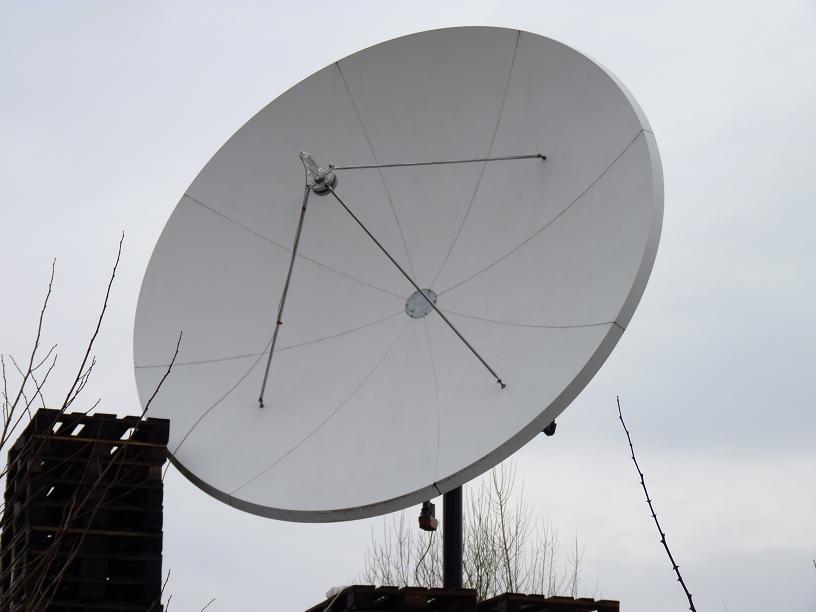

measurement results are derived from the 3.7 m diameter antenna
date of measurement : 11.9.2010
elevation angle : 18.0°
.
Intelsat 10 footprint : global Intelsat 10 : installed system Intelsat 10 : research point
reception option is guaranteed in areas Prodelin 3.7 m,LNB Norsat 8215 town Lučenec / Slovak republic
Australia , Asia , ME , Europe , Africa 48.33° _ 19.72°
--- IS 10 at 68.5°E : 4 064 H Packet PanamSat & spectrum analysis of transponders TP 7 > 8 > 9 >10 / H ---
click for enlarge
- time of measurement : 11.9.2010 -
- defining the status of reception -
4 064 H-Packet PanamSat > I measured the qualitative status & PF 370 cm : stable level of gain margin of about MER=8 dB
with almost zero error rate bBER guarantees the stability of reception from the antenna with a diameter of 180+ cm
--- measurement results ---
Intelsat 7/10 at 68.5°E - global footprint : 3 740 H NHK World HDTV
IF data Q data NIT data
Intelsat 7/10 at 68.5°E - global footprint : 3 774 H HUM TV
IF data Q data NIT data

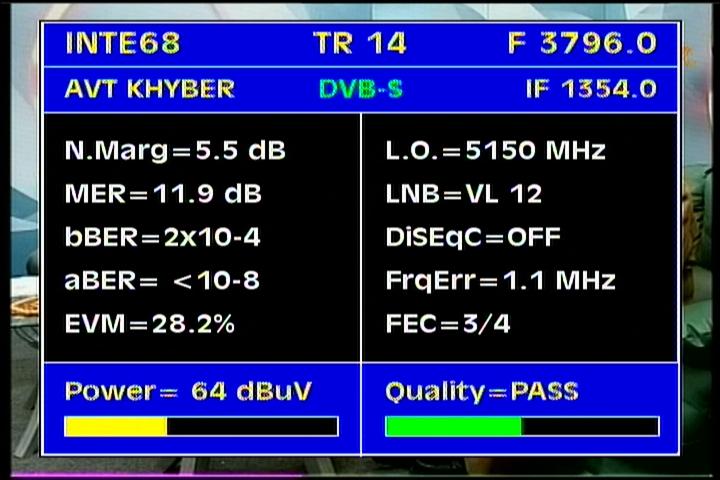

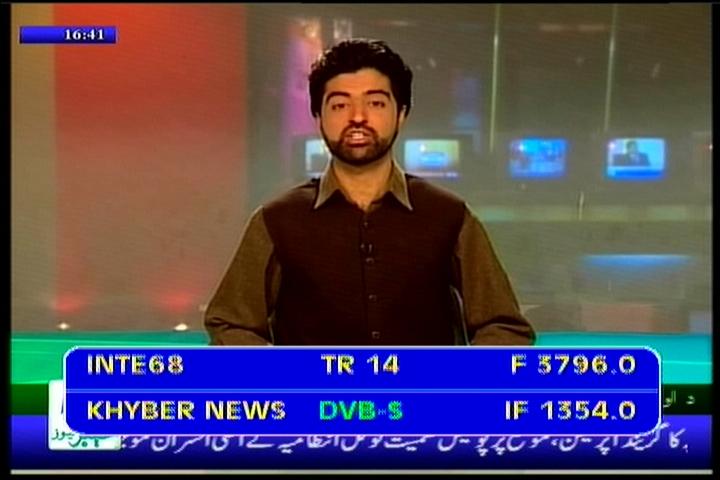

Intelsat 7/10 at 68.5°E - global footprint : 3 796 V Khyber network
IF data Q data NIT data
Intelsat 7/10 at 68.5°E - global footprint : 3 802 H Unn. network
IF data Q data NIT data

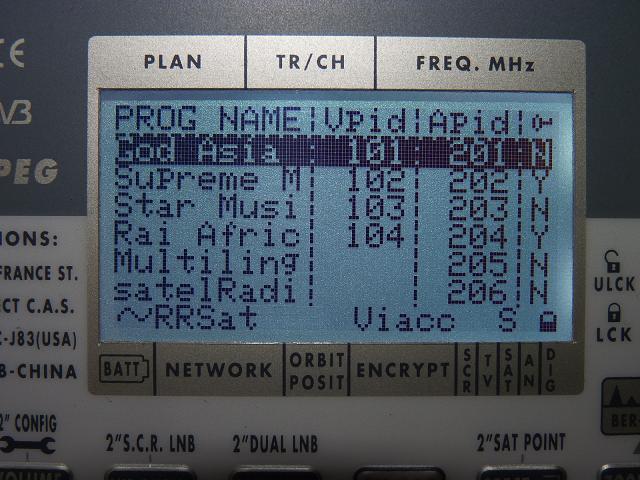

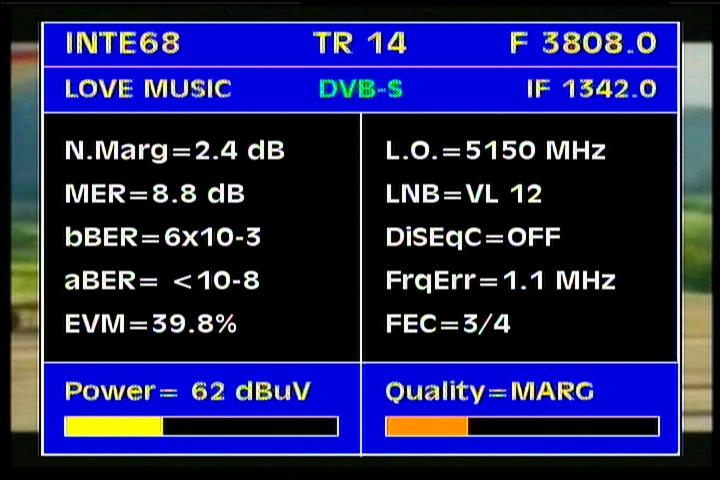

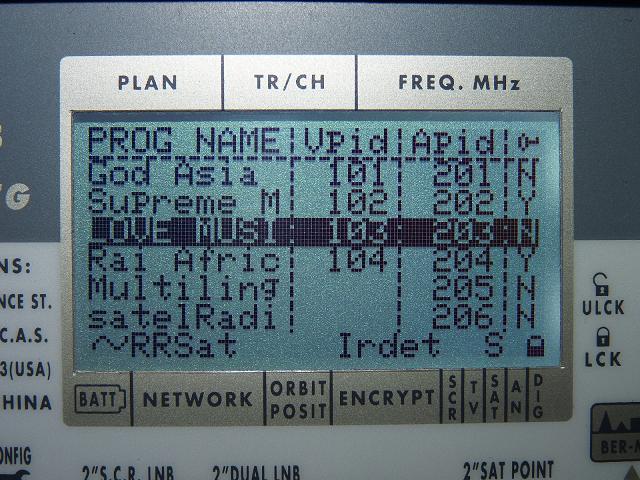

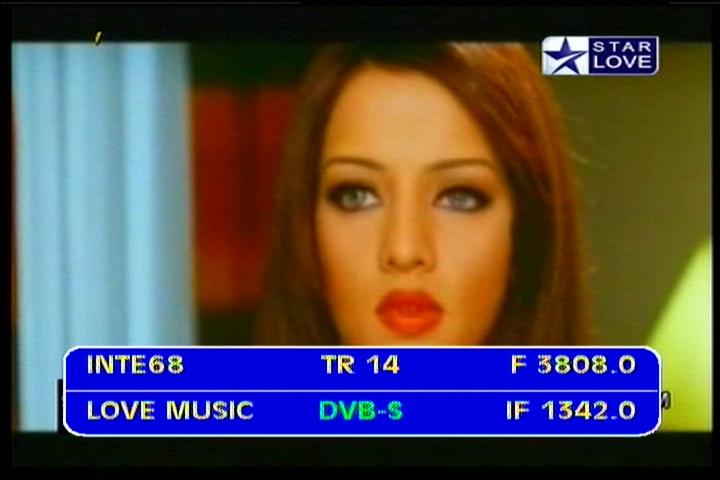

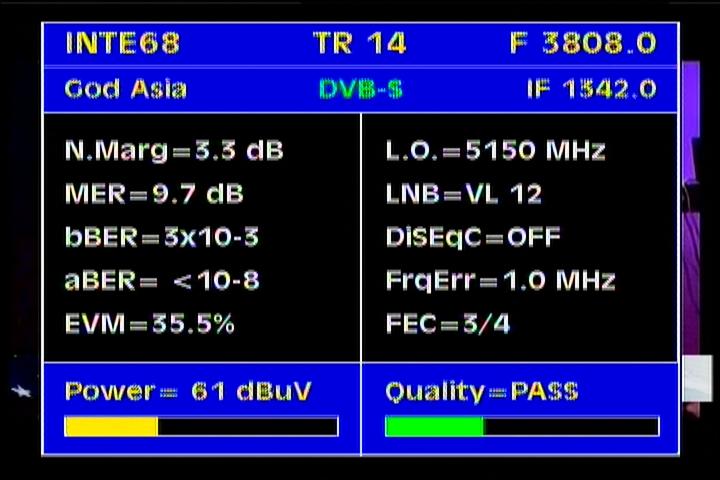

Intelsat 7/10 at 68.5°E - global footprint : 3 808 V RRSat Global network
IF data Q data NIT data

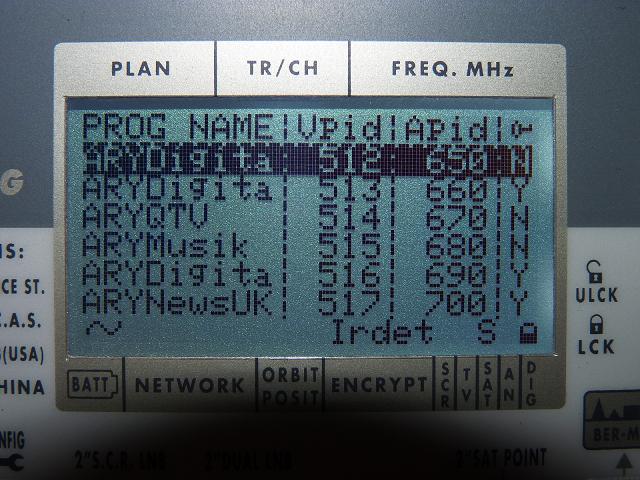

Intelsat 7/10 at 68.5°E - global footprint : 3 863 H ARY Digital
IF data Q data NIT data
Intelsat 7 / 10 at 68.5°E - global footprint : 3 870 V ZNBC
IF data Q data NIT data
Intelsat 7/10 at 68.5°E - global footprint : 3 913 V ONSE network
IF data Q data NIT data

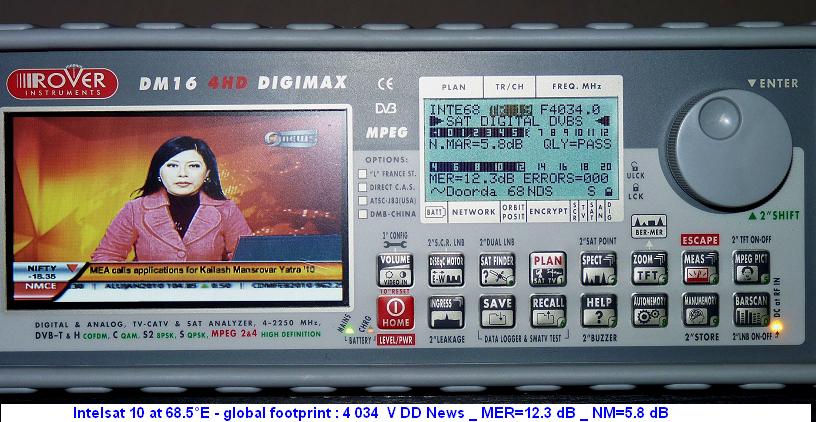

Intelsat 7/10 at 68.5°E - global footprint : 4 034 V DD Doordarshan network
IF data Q data NIT data
Intelsat 7/10 at 68.5°E - global footprint : 4 064 V Sanskar network
IF data Q data NIT data
Intelsat 7/10 at 68.5°E - global footprint : 4 064 H PanamSat network
IF data Q data NIT data

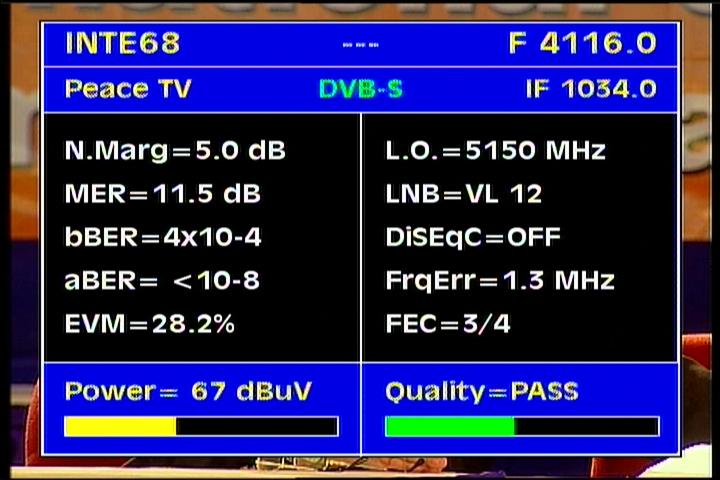

Intelsat 7/10 at 68.5°E - global footprint : 4 116 V Peace TV
IF data Q data NIT data

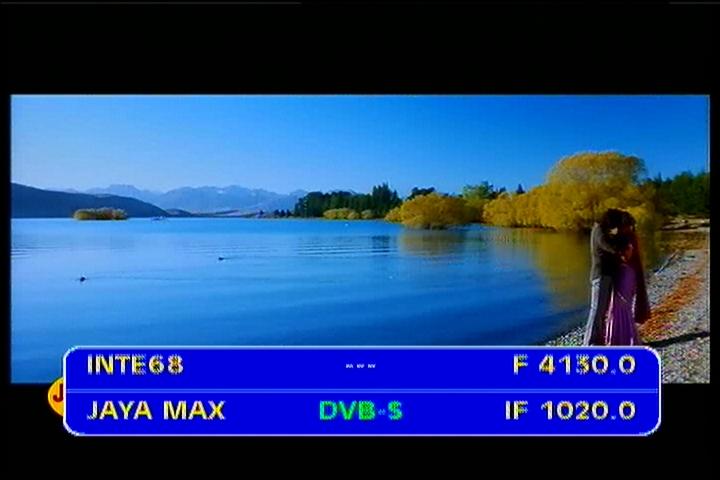

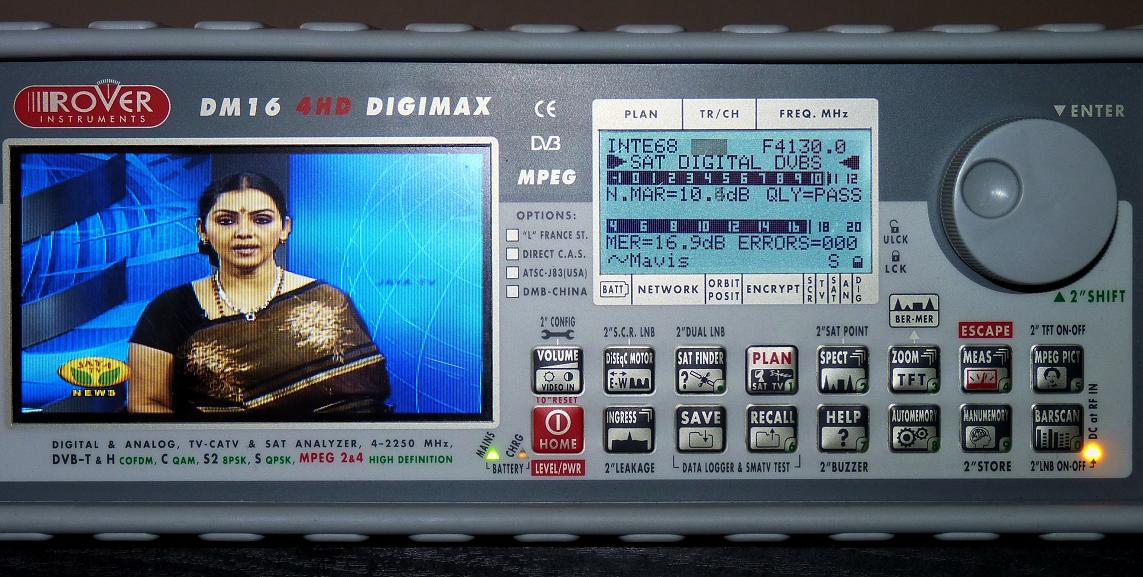

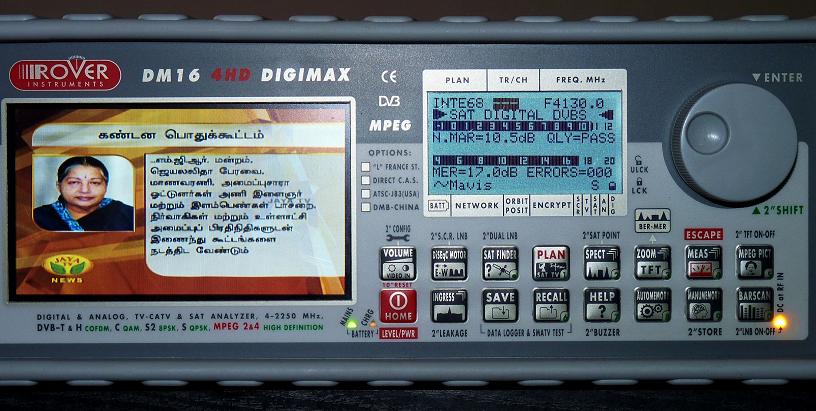

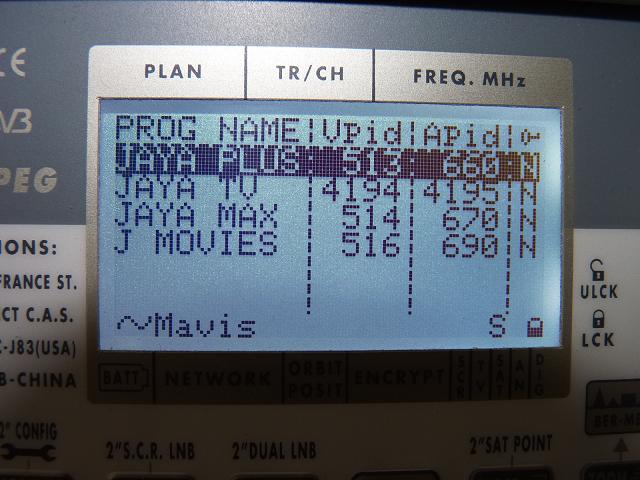

Intelsat 7/10 at 68.5°E - global footprint : 4 130 V Jaya TV
IF data Q data NIT data
Intelsat 7/10 at 68.5°E - global footprint : 4 150 H Dunya network
IF data Q data NIT data
Intelsat 7/10 at 68.5°E : TV List
---Frequency---
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---Video/Encryption--- | |
|
3 564 -H-tp 11 |
feeds ASBU ... | 6 111 | 3/4 | Int.7 C | 180-300+ cm | FTA/Biss/4:2:2 | |
|
3 709 -V- tp 13 |
Arqiva |
7 119 | 3/4 | Global C | 180+ cm |
DVB-S2/8PSK/MPEG-4 |
|
| PLTV / Premiere League TV | CA system Tandberg | ||||||
|
3 712 -H- tp 1L |
Ten Sports network | 14 454 | 3/4 | Global C | 140-240+ cm | DVB-S2/8PSK | |
| Ten Sports India / Ten SI | MPEG-4/Irdeto 2 | ||||||
| Ten Sports Pakistan / TEN SP | MPEG-4/Irdeto 2 | ||||||
| Ten Sports Middle East / TEN ME | MPEG-4/Irdeto 2 | ||||||
| Goal TV1 | MPEG-4/Irdeto 2 | ||||||
| Goal TV2 | MPEG-4/Irdeto 2 | ||||||
| Zee Sports | MPEG-4/Irdeto 2 | ||||||
| Ten Cricket | MPEG-4/Irdeto 2 | ||||||
|
3 722 -V- tp 13 |
feeds No name |
14 269 | 3/4 | Global C | 180+ cm | DVB-S2/8PSK/MPEG-4 Biss |
|
|
3 736 -V- tp 13 |
feeds GCA |
6 111 | 3/4 | Global C | 180+ cm | DVB-S / Biss | |
|
3 739 -H- tp 1U |
NHK World | 26 590 | 1/2 | Global C | 140-180+ cm | DVB | |
| NHK World / 625 English+Japanese | FTA | ||||||
| NHK Premium | PowerVu | ||||||
NHK World HD _1080-50i English/Jp |
MPEG-4/Full HD/FTA | ||||||
|
3 765 -V- tp 14 |
MGM Channel Asia | 2 950 | 3/4 | Global C | 180-240+ cm | Irdeto 2 | |
|
3 768 -H- tp 2 |
ZEE Sports | 6 500 | 3/4 | Global C | 180-240+ cm | DVB | |
| ZEE Sports | Conax | ||||||
| ZEE Sports USA | Conax | ||||||
|
3 774 -H- tp 2 |
Hum TV USA |
3 300 | 2/3 | Global C | 180-240+ cm | DVB FTA | |
|
3 774 -V- tp 14 |
Aastha tv | 2 940 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
3 777 -V- tp 14 |
Aastha Bhajan | 2 940 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
3 782 -V- tp 14 |
CGN TV | 2 965 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
3 782 -H- tp 2 |
6 988 | 3/4 | Global C | 180-240+ cm | DVB-S2 / QPSK | ||
| Willow Cricket | MPEG-4/Irdeto 2 | ||||||
| Ten Spare service | MPEG-4/Irdeto 2 | ||||||
| Zee Sports America | MPEG-4/Irdeto 2 | ||||||
|
3 788 -V- tp 14 |
India-Australia Network | 3 617 | 3/4 | Global C | 180-240+ cm | Irdeto 2 | |
|
3 797 -V- tp 14 |
Khyber Network | 7 300 | 3/4 | Global C | 180-240+ cm | DVB | |
| AVT Khyber | FTA | ||||||
| Khyber News | FTA | ||||||
| K2 Pakistan channel | FTA | ||||||
|
3 802 -H- tp 2 |
Unnamed Network |
10 000 | 3/4 | Global C | 180-240+ cm | DVB | |
| Times Now | Irdeto 2 | ||||||
| Zoom | Irdeto 2 | ||||||
| ET News Now | Irdeto 2 | ||||||
|
3 808 -V- tp 14 |
RRSat Global Communications | 10 340 | 3/4 | Global C | 180-240+ cm | DVB | |
| K2 | FTA | ||||||
| Supreme Master | FTA | ||||||
| Star Music | FTA | ||||||
| Holy Quran Channel | FTA | ||||||
| Hidayat TV | FTA | ||||||
| Noor TV | FTA | ||||||
| AKS TV | FTA | ||||||
|
3 810 -H- tp 2 |
CNBC Pakistan |
3 312 | 2/3 | Global C | 180-240+ cm | DVB FTA | |
|
3 837 -H- tp 3L |
TV Today Nework | 19 850 | 3/4 | Global C | 180-240+ cm | DVB | |
| Aajtak | Irdeto 2 | ||||||
| Headlines Today | Irdeto 2 | ||||||
| Aajtak Tez | Irdeto 2 | ||||||
| Delhi Aajtak | Irdeto 2 | ||||||
| AT-INT | MPEG-4/Irdeto 2 | ||||||
| HT-INT | MPEG-4/Irdeto 2 | ||||||
| AT-UK | MPEG-4/Irdeto 2 | ||||||
|
3 842 -V- tp 15 |
Multichoice CDTV Network Africa | 28 500 | 2/3 | Global C | 180-240+ cm | DVB | |
| SuperSport 3 / No Name | Irdeto 2 | ||||||
| SuperSport 2 / No Name | Irdeto 2 | ||||||
| SuperSport 6 / No Name | Irdeto 2 | ||||||
| SuperSport 1 / No Name | Irdeto 2 | ||||||
| SuperSport 5 / No Name | Irdeto 2 | ||||||
| Fashion TV / The History Channel | Irdeto 2 | ||||||
| SuperSport 7 / No Name | Irdeto 2 | ||||||
|
3 864 -H- tp 3U |
ARY Digital | 19 890 | 3/4 | Global C | 180-240+ cm | DVB | |
| ARY Digital Asia | FTA | ||||||
| ARY Digital UK | Irdeto 2 | ||||||
| ARY QTV | FTA | ||||||
| ARY Music |
FTA | ||||||
| ARY Digital Middle East | Irdeto 2 | ||||||
| ARY News UK & USA | Irdeto 2 | ||||||
| ARY News Asia | FTA | ||||||
| HBO Pakistan | Irdeto 2 | ||||||
| ARY Digital USA | Irdeto 2 | ||||||
|
3 865 -V- tp 15 |
2 315 | 3/4 | Global C | 180-240+ cm | DVB/Biss | ||
|
3 868 -V- tp 15 |
ZNBC / No Name |
2 315 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
3 872 -V- tp 15 |
2 315 | 3/4 | Global C | 180-240+ cm | DVB/Biss | ||
|
3 893 -V- tp 15 |
3 003 | 2/3 | Global C | 180-240+ cm | DVB FTA | ||
|
3 901 -V- tp 16 |
Neo Sports | 10 368 | 3/4 | Global C | 180-240+ cm | DVB | |
| Neo Cricket / Nimbus 1 | Irdeto 2 | ||||||
| Neo Sports / Nimbus 2 | Irdeto 2 | ||||||
|
3 914 -V- tp 16 |
Unnamed Network | 6 510 | 3/4 | Global C | 180-240+ cm | DVB | |
| KBS World P | XCrypt | ||||||
| YTN P |
FTA | ||||||
|
3 922 -V- tp 16 |
7 000 | 5/6 | Global C | 180-240+ cm | DVB-S2/MPEG-4 Irdeto 2 |
||
|
3 927 -H- tp 4U |
PowerVu Plus Network | 26 500 | 5/6 | Global C | 180-240+ cm | DVB | |
| SET Max India | PowerVu | ||||||
| SET International | PowerVu | ||||||
| SET Encrypted | PowerVu | ||||||
| SAB TV | PowerVu | ||||||
| MAX Middle East | PowerVu | ||||||
| MAX International | PowerVu | ||||||
| MAX UK | PowerVu | ||||||
| Pix | PowerVu | ||||||
| SAB INTL | PowerVu | ||||||
| MAX Middle East | PowerVu | ||||||
| SET Trai | PowerVu | ||||||
| MAX Trai |
PowerVu | ||||||
|
3 975 -H- tp 5 |
Zee Turner | 19 500 | 3/4 | Global C | 180-240+ cm | DVB | |
| WB India | Conax | ||||||
| WB Pakistan | Conax | ||||||
| HBO Asia | PowerVu | ||||||
| Pogo | Conax | ||||||
| CNN India | PowerVu | ||||||
| Cartoon Network Pakistan | Conax | ||||||
| Cartoon India H_E_T | Conax | ||||||
| Real | Conax | ||||||
|
3 975 -V- tp 17 |
Discovery India | 19 850 | 3/4 | Global C | 180-240+ cm | DVB | |
| Discovery India | PowerVu | ||||||
| Discovery Tamil Nadu | MPEG-4/PowerVu | ||||||
| TLC India | PowerVu | ||||||
| APL India_Animal Planet India | PowerVu | ||||||
| Discovery Science India | MPEG-4/PowerVu | ||||||
| Turbo Asia | MPEG-4/PowerVu | ||||||
| BBC World News | PowerVu | ||||||
|
4 003 -H- tp 6 |
WAQT News TV | 2 965 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
4 013 -V- tp 18 |
Spirit World | 1 680 | 3/4 | Global C | 180-240+ cm | DVB-S2/MPEG-2/QPSK | |
|
4 034 -H- tp 7 |
TV 18 | 20 500 | 2/3 | Global C | 180-240+ cm | DVB | |
| MTV India | Cryptoworks /Irdeto 2 | ||||||
| VH1 India | Cryptoworks/Irdeto 2 | ||||||
| Colors | Cryptoworks/Irdeto 2 | ||||||
| Nickelodeon India | Cryptoworks/Irdeto 2 | ||||||
|
4 034 -V- tp 19 |
Doordarshan Network India | 19 559 | 3/4 | Global C | 180-240+ cm | DVB | |
| DD Bharati | FTA | ||||||
| DD Sports | FTA | ||||||
| DD India | FTA | ||||||
| DD Feeds CPC | FTA/Biss/4:2:2 | ||||||
| DD News |
FTA | ||||||
|
4 054 -V- tp 20 |
Arirang World | 4 400 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
4 059 -V- tp 20 |
CTS | 3 529 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
4 064 -H- tp 8 |
Unnamed Network | 19 850 | 7/8 | Global C | 180-240+ cm | DVB | |
| Al Jazeera English |
FTA | ||||||
| Discovery India | PowerVu | ||||||
| CCTV 9 | FTA | ||||||
| EWTN Africa | FTA | ||||||
| SIS Digital | PowerVu | ||||||
|
4 064 -V- tp 20 |
4 400 | 3/4 | Global C | 180-240+ cm | DVB | ||
| Sanskar TV | FTA | ||||||
| Satsang TV | FTA | ||||||
|
4 070 -V- tp 20 |
Hope Ch. Int. | 3 003 | 2/3 | Global C | 180-240+ cm | DVB FTA | |
|
4 075 -V- tp 20 |
Hungama TV | 4 000 | 2/3 | Global C | 180-240+ cm | Irdeto 2 | |
|
4 085 -V- tp 21 |
China Radio Int. | 3 428 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|

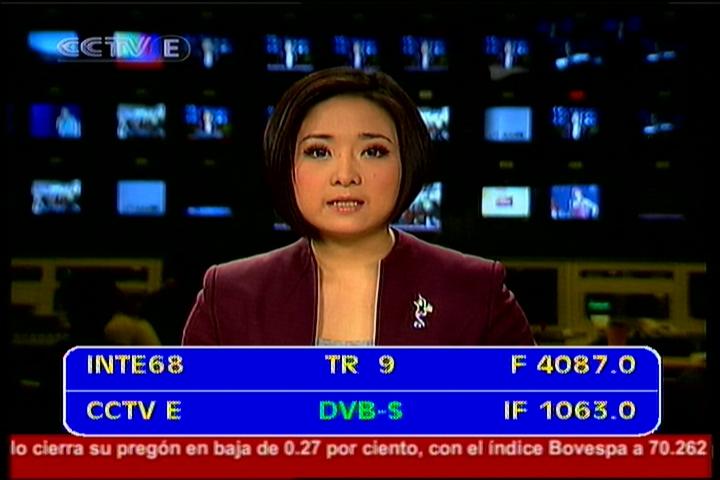

4 087 -H- tp 9 |
left | --- | --- | --- | |||
|
4 103 -H- tp 9 |
CNBC TV 18 Network | 5 720 | 3/4 | Global C | 180-240+ cm | DVB | |
| IBN | Conax | ||||||
| SAW | Conax | ||||||
|
4 116 -V- tp 22 |
Peace TV |
8 145 | 3/4 | Global C | 180-240+ cm | DVB | |
| Peace Tv Urdu | FTA | ||||||
| Peace Tv English | FTA | ||||||
|
4 117 -H- tp 10 |
Samaa TV | 3 333 | 2/3 | Global C | 180-240+ cm | DVB FTA | |
|
4 126 -H- tp 10 |
DAWN News | 3 255 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
4 131 -V- tp 22 |
11 850 | 3/4 | Global C | 180-240+ cm | FTA | ||
| Jaya Plus | FTA | ||||||
| Jaya TV |
FTA | ||||||
| Jaya Max | FTA | ||||||
| J Movies test | FTA | ||||||
|
4 143 -H- tp 11 |
Rohi TV | 3 306 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
4 150 -H- tp 11 |
Dunya | 6 600 | 3/4 | Global C | 180-240+ cm | DVB | |
| Dunya News | FTA | ||||||
| Dunya promo | FTA | ||||||
|
4 158 -H- tp 11 |
Express News | 6 511 | 3/4 | Global C | 180-240+ cm | DVB | |
| Express Urdu | FTA | ||||||
| Express 24/7 | FTA | ||||||
|
4 160 -V- tp 23 |
feeds Jammu |
3 800 | 3/4 | Global C | 180-240+ cm | DVB FTA | |
|
4 174 -V- tp 24 |
left |
||||||
|
4 185 -H- tp 12 |
NDTV | 20 000 | 3/4 | Global C | 180-240+ cm | DVB | |
| NDTV 24/7 | Irdeto 2 | ||||||
| NDTV India | Irdeto 2 | ||||||
| NDTV Profit | Irdeto 2 | ||||||
| ChenM | FTA | ||||||
| NDTV good times | Irdeto 2 | ||||||
| NDTV Metro | Irdeto 2 | ||||||
| test 3 | Irdeto 2 | ||||||
| NDTV Imagine | Irdeto 2 | ||||||
|
4 189 -V- tp 24 |
NDTV | 12 210 | 2/3 | Global C | 180-240+ cm | DVB | |
| test 2 | Irdeto 2 | ||||||
| NDTV Imagine | Irdeto 2 | ||||||
| NDTV ShowBiz | Irdeto 2 | ||||||
| NDTV Lumiere | Irdeto 2 | ||||||
Intelsat 7/10 at 68.5°E : relative quality
Intelsat 7/10 at 68.5°E : video presentations
Go to video section :
Intelsat 7/10 at 68.5°E: Update drawn up
CZECH & SLOVAK DX SATELLITE CLUB
international professional portal
think-tank
Roman Dávid - author & founder
mail : roman.david@dxsatcs.com
Intelsat 7/10 at 68.5°E footprint : Global
Intelsat 10 footprint Intelsat 7 footprint
Intelsat 7/10 at 68.5°E : snapshots
