Intelsat 7/10 at 68.5°E : Technical data
IS 10 at 68.5°E-europe & africa beam : 12 522 H My TV Africa promo-qualitative peak MER=16+ dB-FEC=1/2
Satellite : Intelsat 10 - Orbit : 68.5°E - TP : 24 C/24 KU - Lifetime : from 15.5.2001 - 15 years
Intelsat 10 at 68.5°E - Europe & Africa beam : spectral analysis and measuremet results

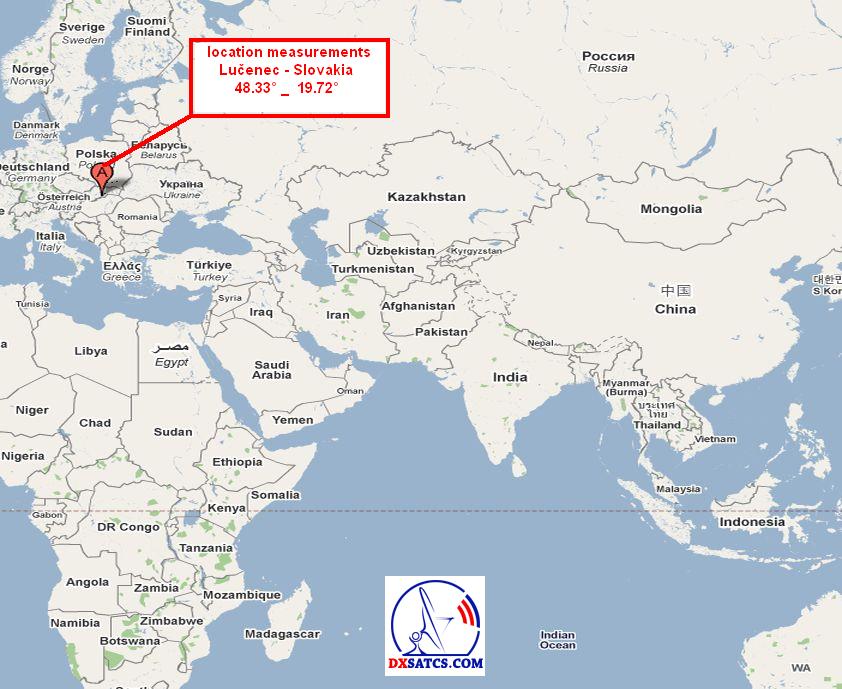

Intelsat 10 at 68.5°E - Europe & Africa beam : measurements at the center Lučenec_central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°

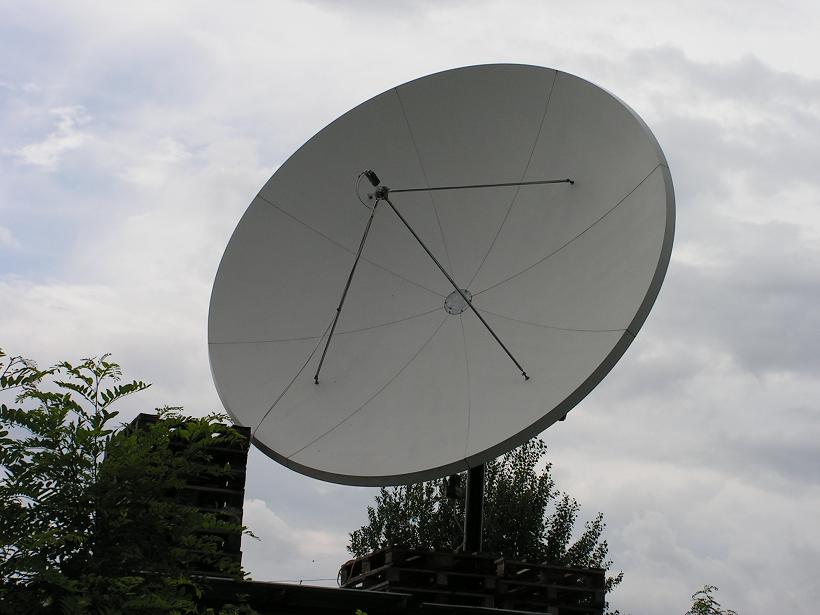

measurement results are derived from the 3.7 m diameter antenna
date of measurement : 12.9.2010
elevation angle : 18.0°

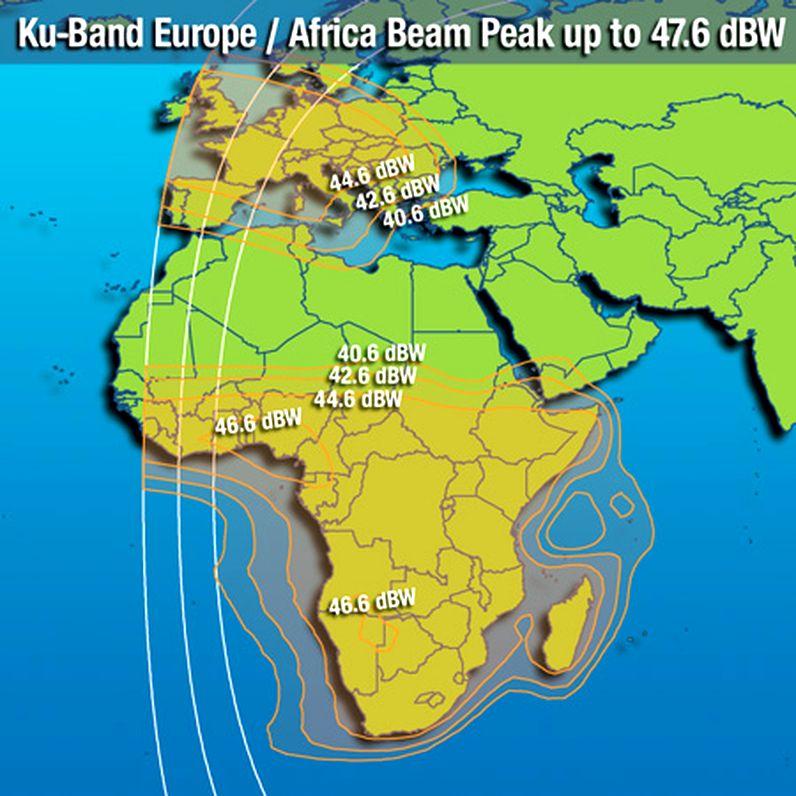

Intelsat 10 footprint : global Intelsat 10 : installed system Intelsat 10 : research point

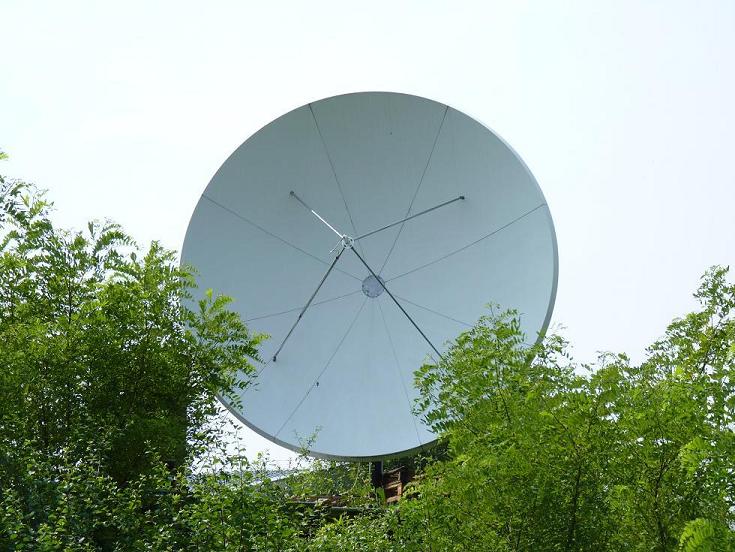

reception option is guaranteed in areas Prodelin 3.7 m town Lučenec / Slovak republic
Europe , Africa , Madagascar ... dxsatcs waveguide line+Norsat 4206 BF 48.33° _ 19.72°
--- IS 10 at 68.5°E : spectral and QPSK constellation analysis ---

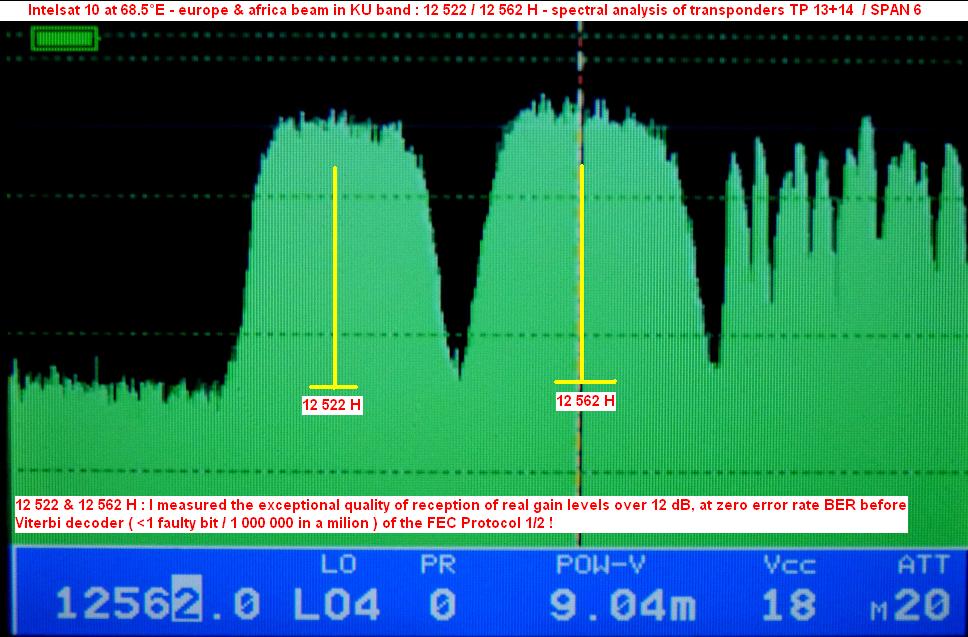

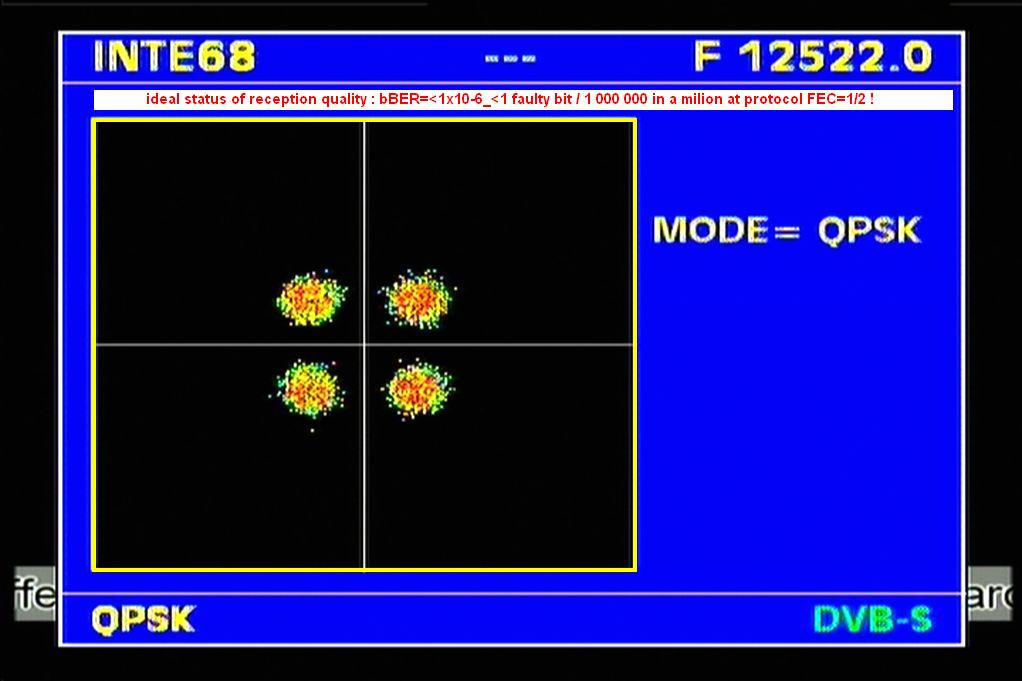

12 522 & 12 562 H : spectral anaylsis 12 522 H : QPSK constellation analysis
- time of measurement : 12.9.2010 -
- defining the status of reception -
12 522 & 12 562 H : I measured the exceptional quality of reception of real gain levels over MER=12 dB, at zero error rate BER
before Viterbi decoder ( <1 faulty bit / 1 000 000 in a milion ) of the FEC Protocol 1/2 !
--- measurement results ---

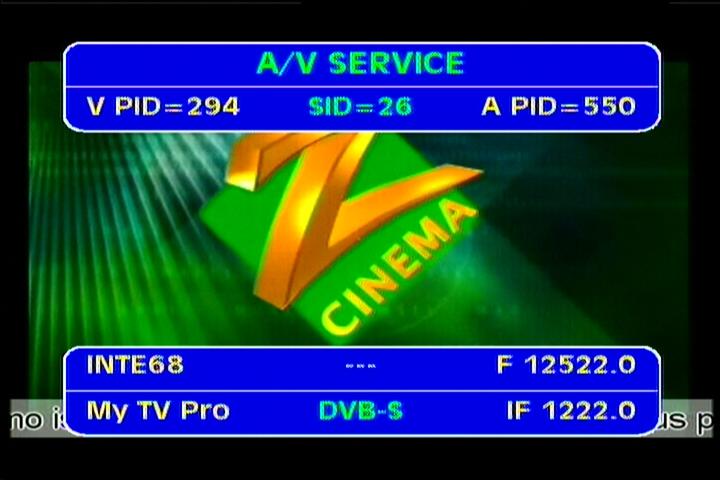

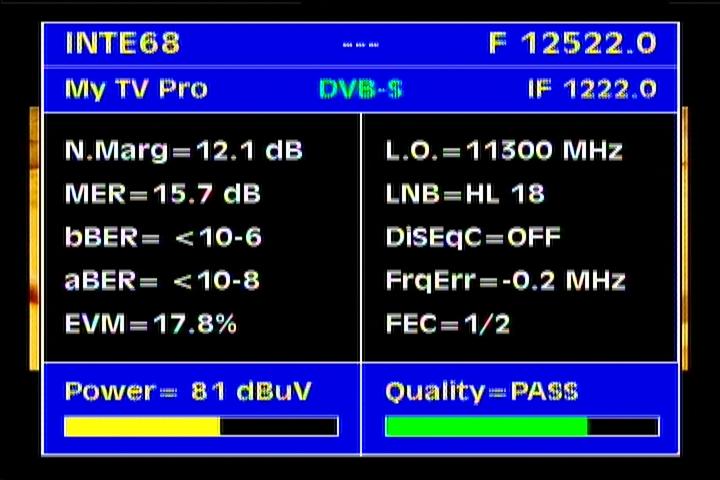

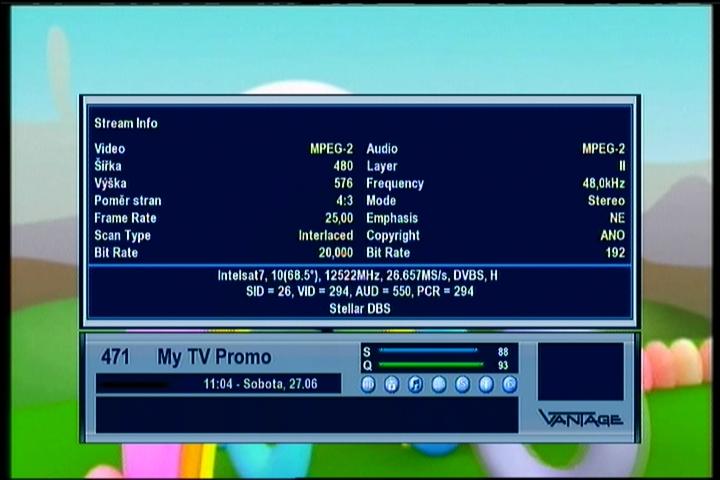

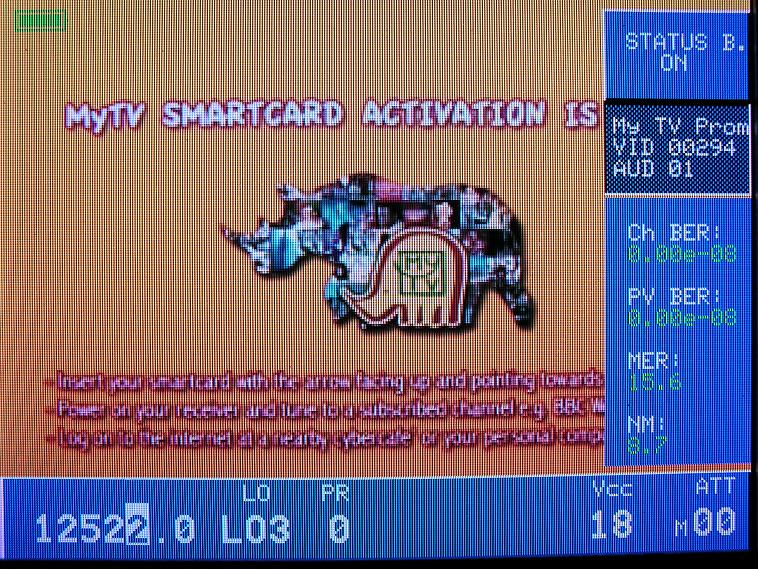

Intelsat 10 at 68.5°E - europe & africa footprint : 12 522 H packet My TV Africa
IF data Q data NIT data

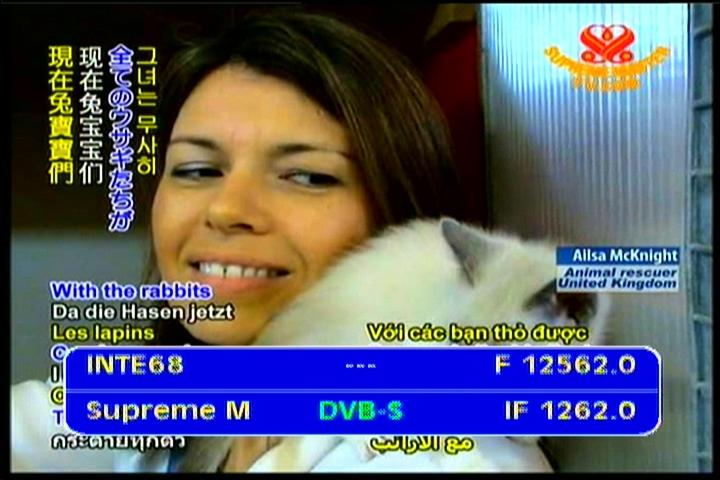

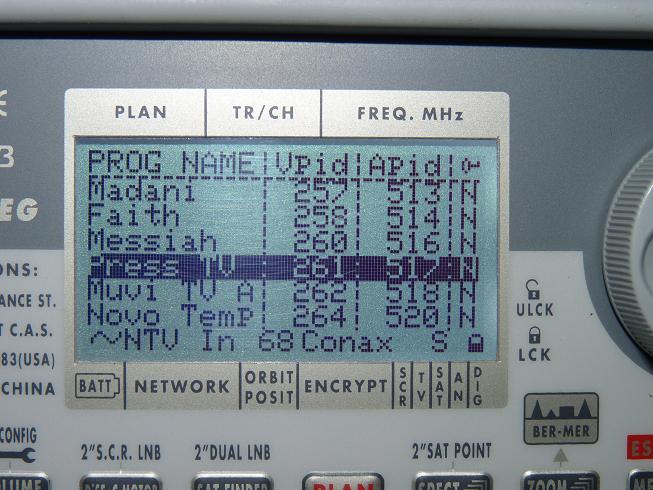

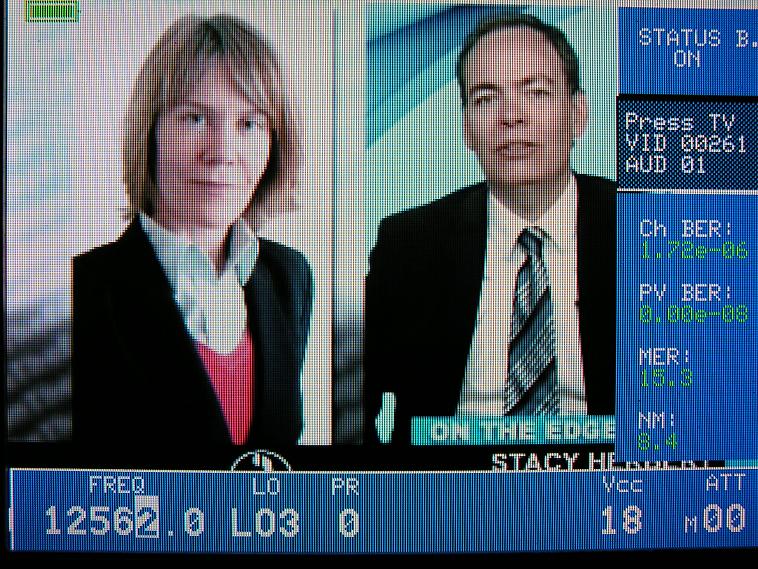

Intelsat 10 at 68.5°E - europe & africa footprint : 12 562 H packet NTV
IF data Q data NIT data

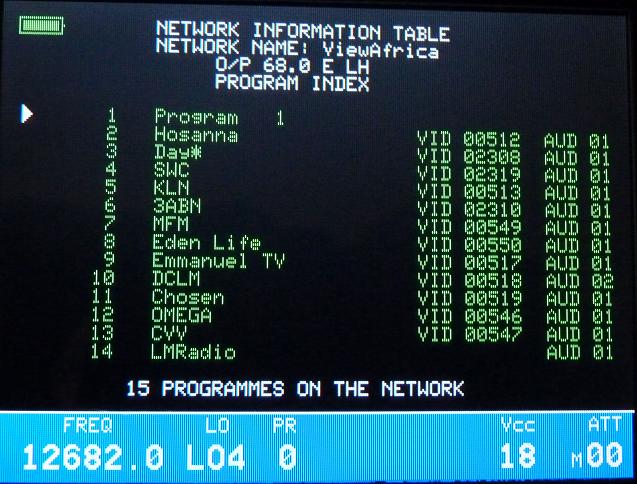

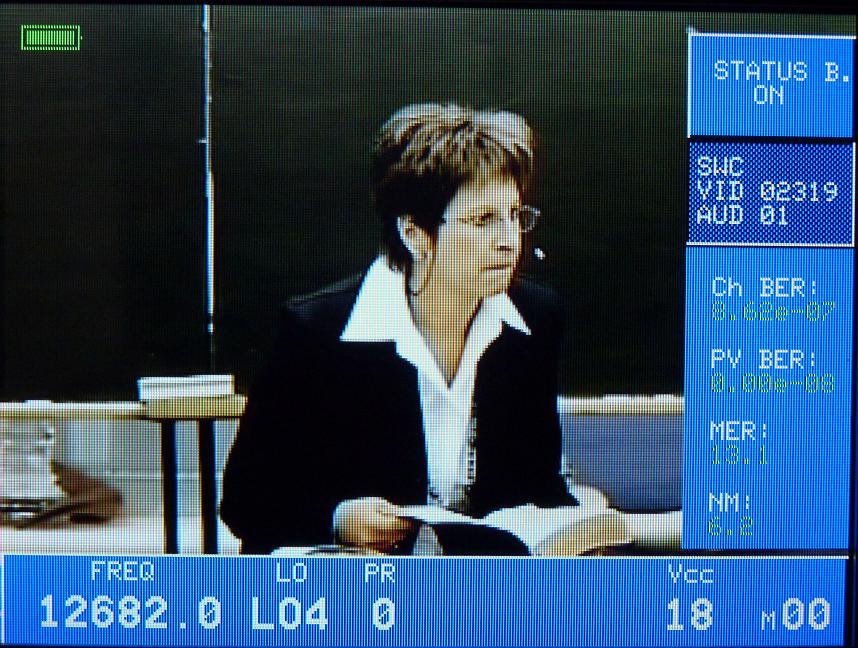

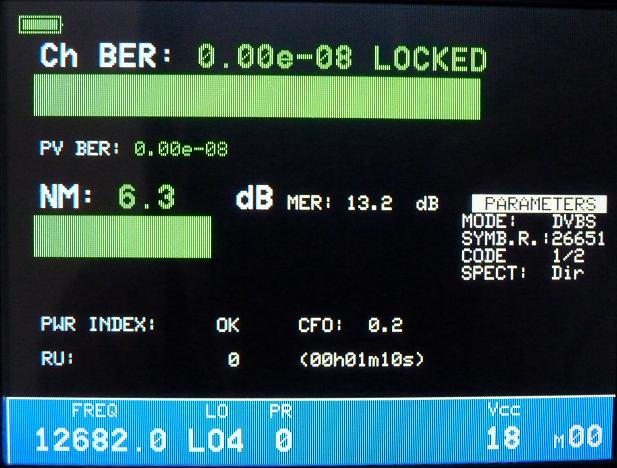

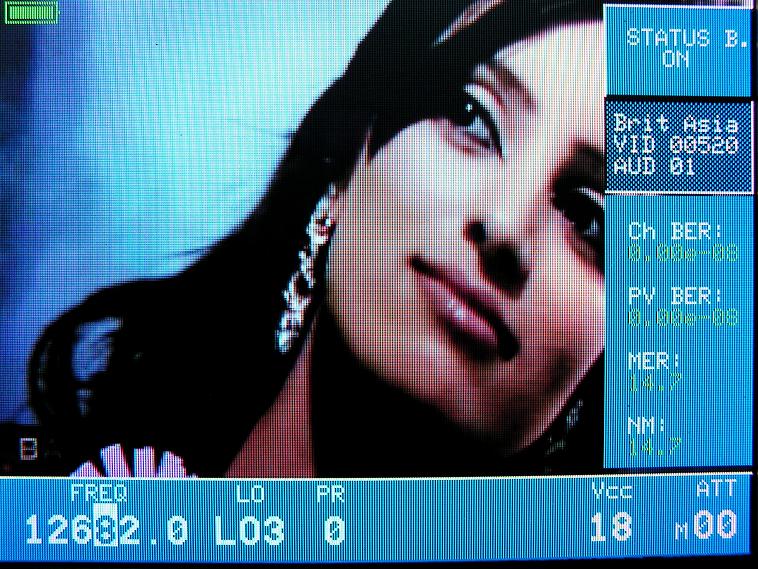

Intelsat 10 at 68.5°E - europe & africa footprint : 12 682 H packet View TV Africa
IF data Q data NIT data

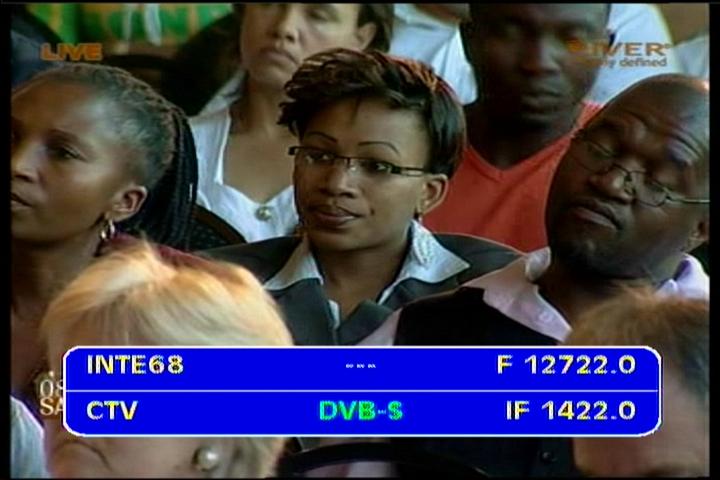

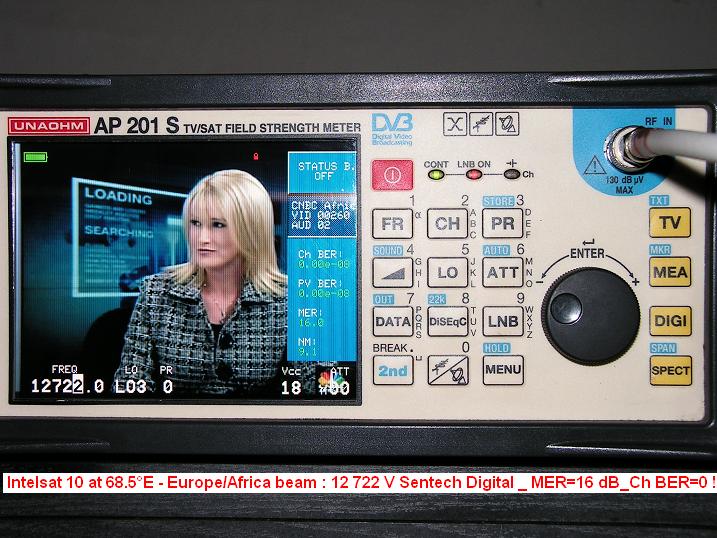

Intelsat 10 at 68.5°E - europe & africa footprint : 12 722 V packet Sentech Digital Africa
IF data Q data NIT data
Intelsat 7/10 at 68.5°E : TV List
-Frequency-
|
----------Provider/Channel----------
|
--SR-- | --FEC-- | ---Footprint--- | ---Antenna--- | ---DVB/Encryption--- |
|
12 522 -H- tp 13 |
My TV | 26 657 | 1/2 | Africa/Europe | 60-80+ cm | Conax |
|
Big TV |
Conax |
|||||
| FLN | Conax | |||||
| NTA Plus | Conax | |||||
| Al Jazeera International | Conax | |||||
| Zee Cinema | Conax | |||||
| Eurosport News | Conax | |||||
| My TV Promo | FTA | |||||
| E! | Conax | |||||
| KidsCo | Conax | |||||
| Silverbird | Conax | |||||
|

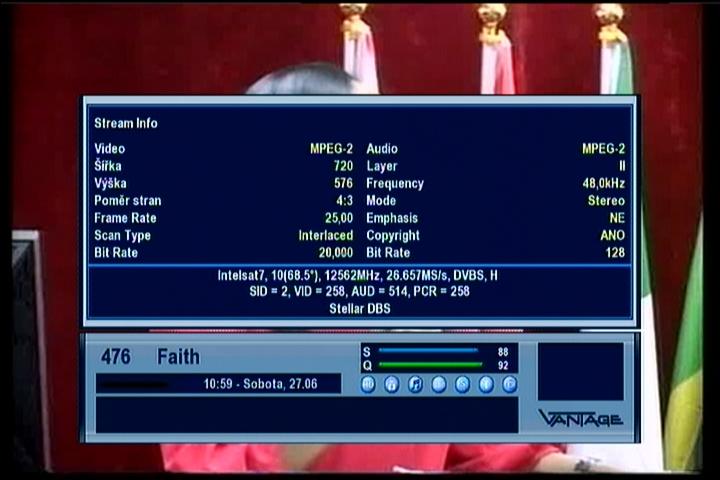

12 562 -H- tp 14 |
NTV International | 26 657 | 1/2 | Africa/Europe | 60-80+ cm | DVB |
| Madani | FTA | |||||
| Faith | FTA | |||||
| Messiah | FTA | |||||
| Press TV | FTA | |||||
| Muvi TV Africa | FTA | |||||
| Novo Tempo | FTA | |||||
| Supreme Master | FTA | |||||
| ACBN | FTA | |||||
| Muvi TV | Conax | |||||
| ABN | FTA | |||||
| KICC | FTA | |||||
| Ahlulbayt | FTA | |||||
|
12 575 -V- tp 20 |
no service / 12.9.2010 | |||||
|

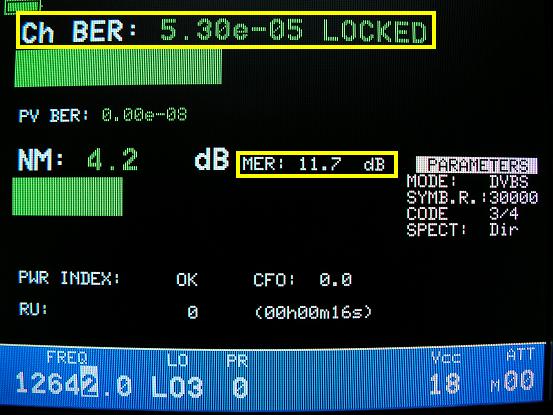

12 642 -V- tp 22 |
PlanetSky data |
30 000 | 3/4 | Africa/Europe | 80-120+ cm | data service |
|

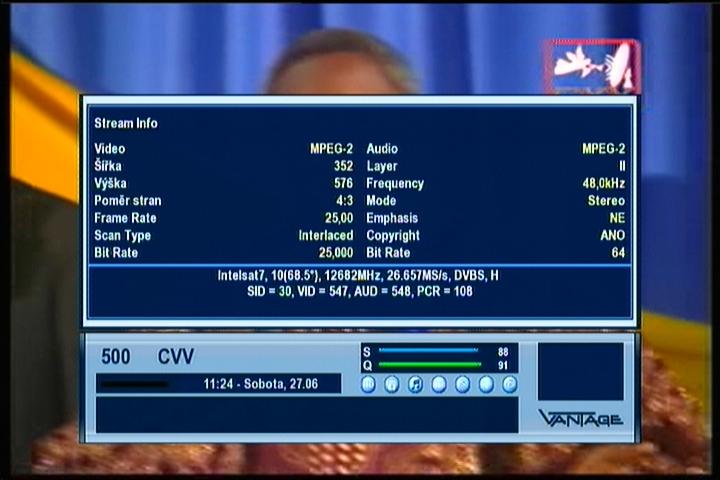

12 682 -H- tp 17 |
NTV International | 26 657 | 1/2 | Africa/Europe | 80-120+ cm | DVB |
| Hosana TV | FTA | |||||
| Daystar TV | FTA | |||||
| SWC | FTA | |||||
| KLN / Kingdom Life Network | FTA | |||||
| 3ABN International | FTA | |||||
| MFM | FTA | |||||
| Eden Life | FTA | |||||
| Emmanuel TV | FTA | |||||
| DCLM | FTA | |||||
| Chosen TV | FTA | |||||
| Omega TV | FTA | |||||
| CVV | FTA | |||||
|

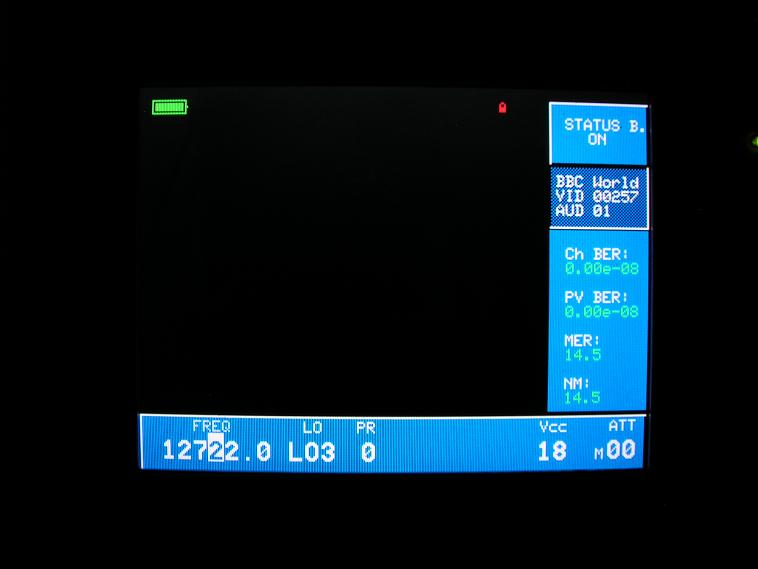

12 722 -H- tp 18 |
My TV | 26 657 | 1/2 | Africa/Europe | 60-80+ cm | Conax |
| BBC World | Conax | |||||
| FOX | Conax | |||||
| My Tv More | Conax | |||||
| Trace Tropical | Conax | |||||
| Trace TV | Conax | |||||
| Baby TV | Conax | |||||
| NG Adventures | Conax | |||||
| Setanta Africa | Conax | |||||
| AIT | Conax | |||||
| My TV Africa | Conax | |||||
|
12 722 -V- tp 24 |
Sentech Digital Satellite | 26 657 | 1/2 | Africa/Europe | 60-80+ cm | DVB |

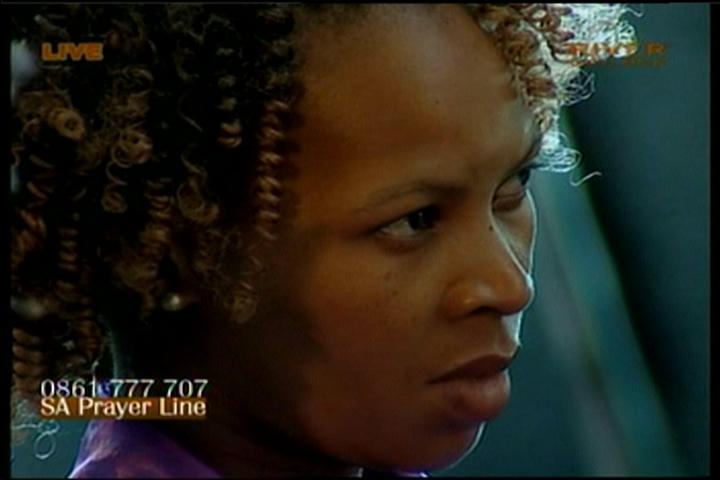

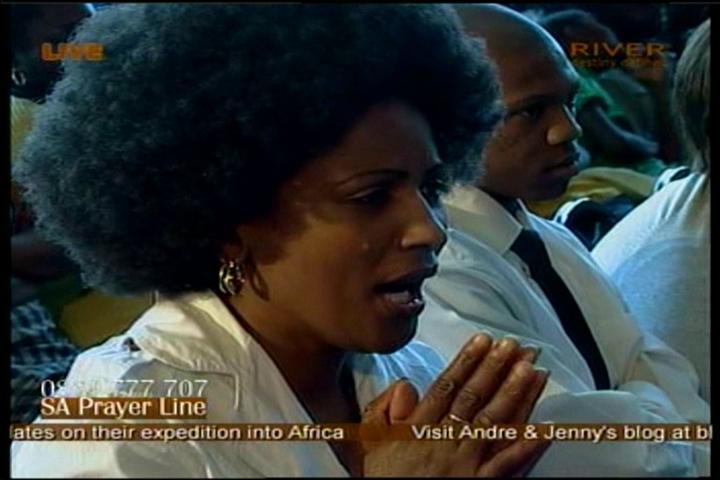

| CTV | FTA | |||||
| E TV | Nagravison 3 | |||||
| HOPE Channel | FTA | |||||
| WRS / World Restoration Service | FTA |
Intelsat 10 at 68.5°E : relative quality
Intelsat 10 at 68.5°E : Video presentation
