Intelsat 805 at 55.5°W

By Roman Dávid. ,

Intelsat 805 at 55.5°W : Technical data

                                                                                    click for higher quality

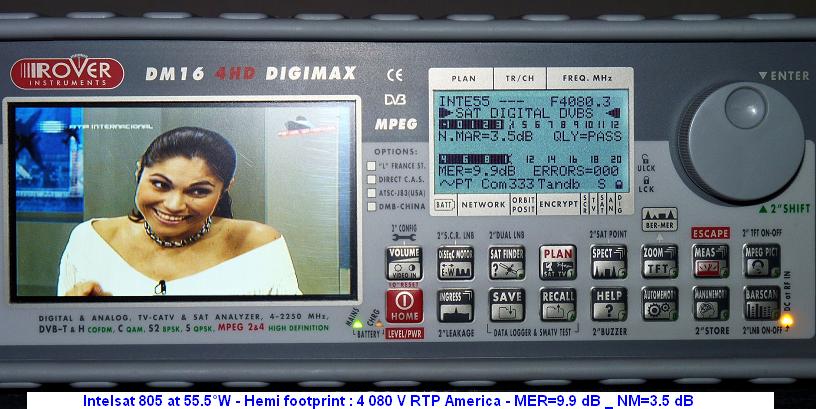

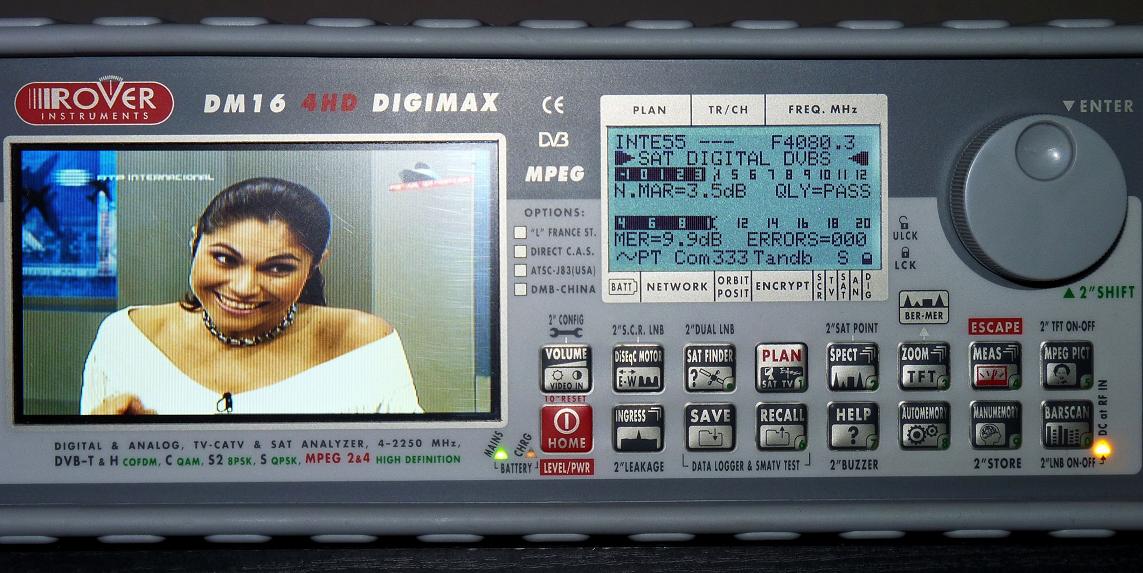

Intelsat 805 at 55.5 w _ c band _ hemi footprint_first snap 002

              satellite : Intelsat 805 - orbit : 55.5°W - TP : 28 C/4 KU - lifetime : from 18.6.1998 - 15 years

Update - Intelsat 805 at 55.5°W - Hemi footprint : spectral analysis & footprint & measuring quality

 .

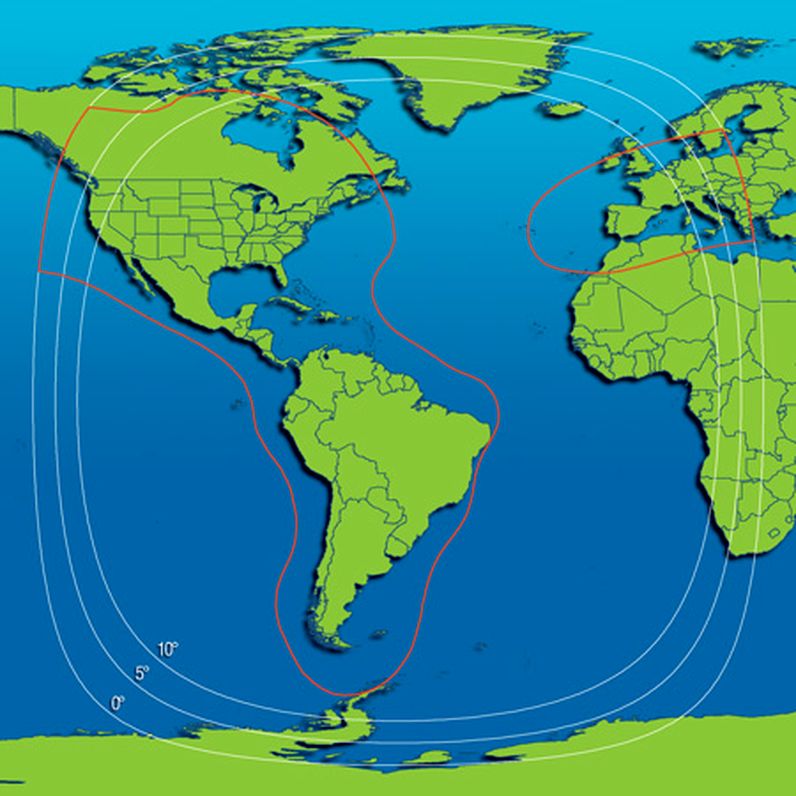

   Intelsat 805 at 55.5°W - Americas/Europe footprint : measurements results at intake Lučenec_central Slovakia
                                       measurement results are derived from the 3.7 m diameter antenna
                                          geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                                                         elevation angle  : 1.0°

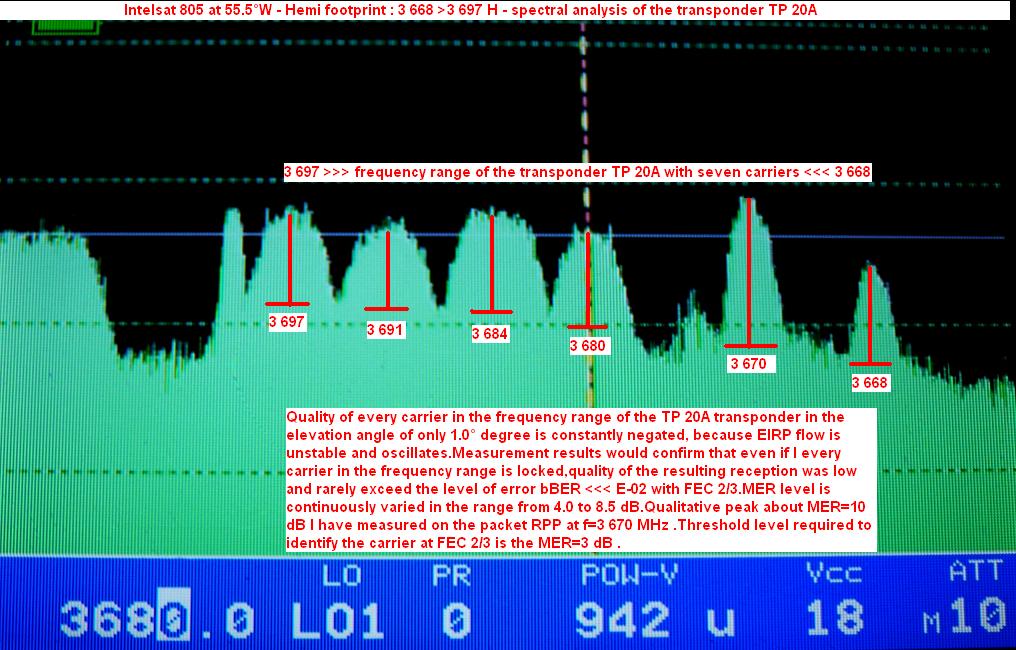

                                  Intelsat 805 spectral analysis                         Intelsat 805 footprint_Hemi
                                     TP 20A _ wave vector H                         combined diagram and coverage area
                                         3 668  > 3 697 MHz                              North & South America & Europe ...
                           Intelsat 805 at 55.5 w _ c band _ hemi footprint_spectral analysis          Intelsat 805 at 55.5 w _ Hemi footprint
                                                                   - time of measurement : 27.3.2010 -
                                                                        - defining the status of income -

 --- Intelsat 805 at 55.5°W - Hemi footprint : measuring the quality of the carrier in the spectrum of the transponder TP 20A ---

Quality of every carrier in the frequency range of the TP 20A transponder in the elevation angle of only 1.0° degree is
constantly negated, because EIRP flow is unstable and oscillates.Measurement results would confirm that even if I every carrier
in the frequency range is locked,quality of the resulting reception was low and rarely exceed the level of error bBER <<< E-02
with FEC 2/3.MER level is continuously varied in the range from 4.0 to 8.5 dB.Qualitative peak about MER = 10 dB I have measured
on the packet RPP at f=3 670 MHz .Threshold level required to identify the carrier at FEC 2/3 is the MER=3 dB .

                             Intelsat 805 at 55.5°W - Americas/Europe footprint : quality analysis of reception

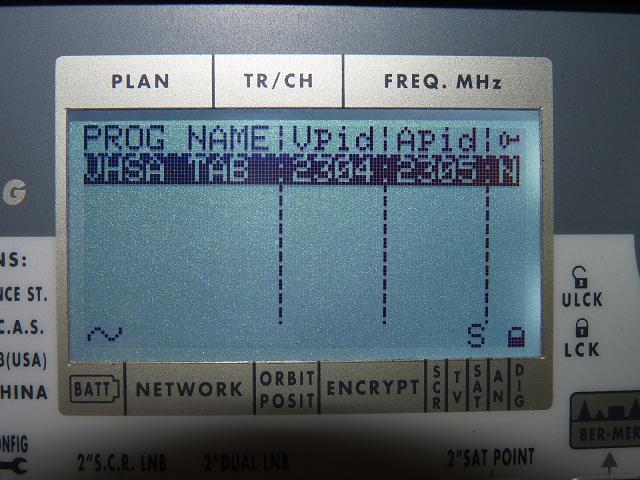

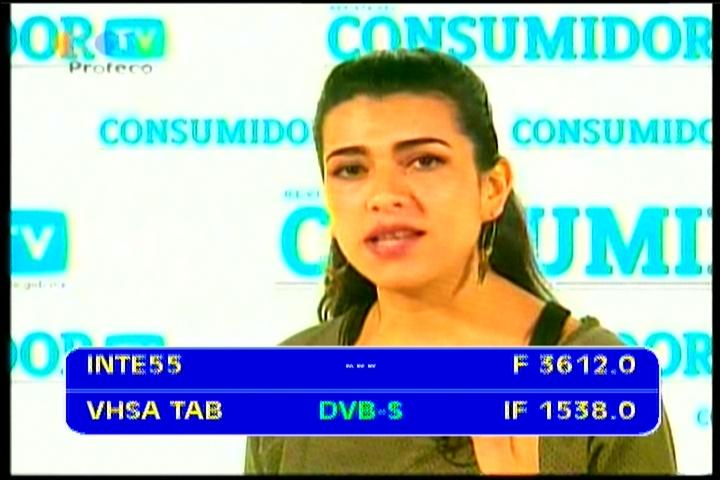

                                       Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 612 V Canal 9
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 612 V Canal 9 _IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 612 V Canal 9 _Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 612 V Canal 9 _NIT data

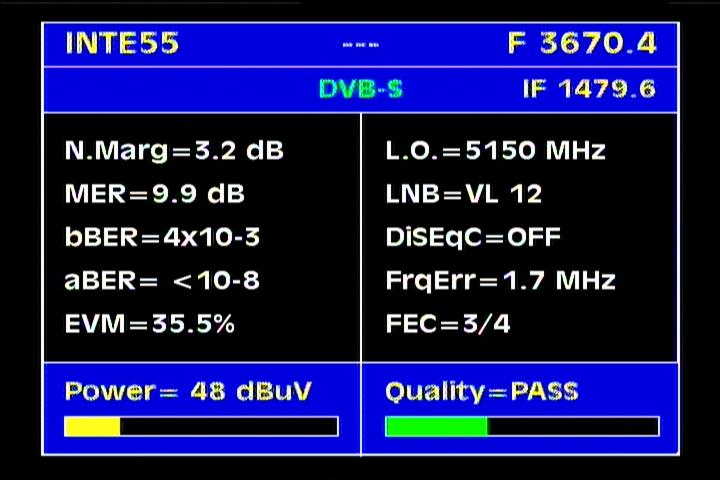

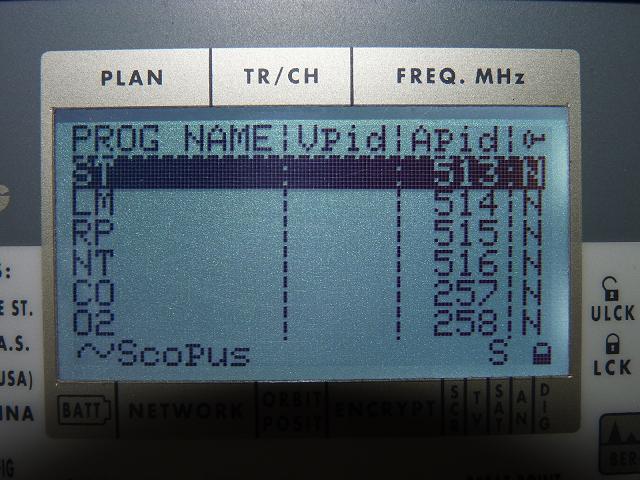

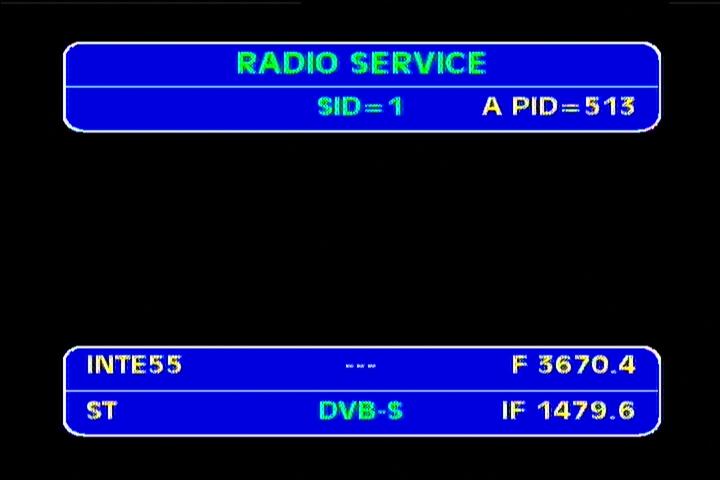

                               Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 670 H RPP Radio netw.
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 670 H radio packet RPP_IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 670 H radio packet RPP_Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 670 H radio packet RPP_NIT data

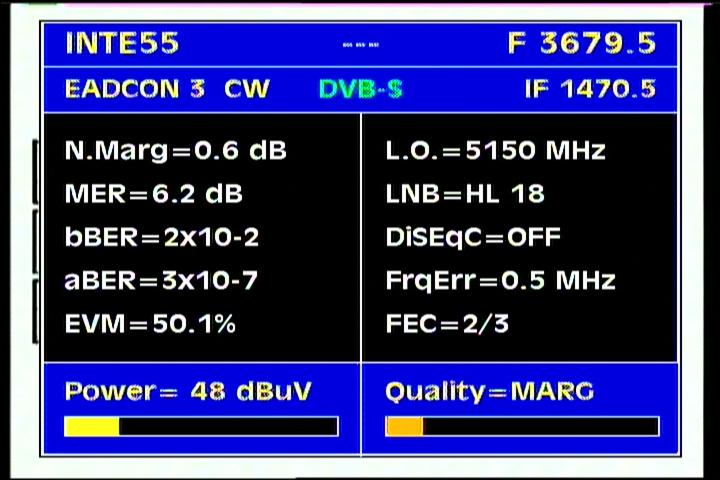

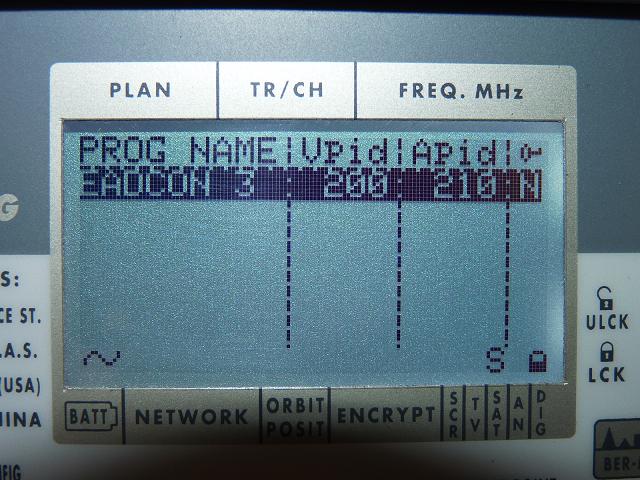

                                  Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 679 H Eadcon 3 CW
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 679 H Eadcon 3 CW_IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 679 H Eadcon 3 CW_Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 679 H Eadcon 3 CW_NIT data

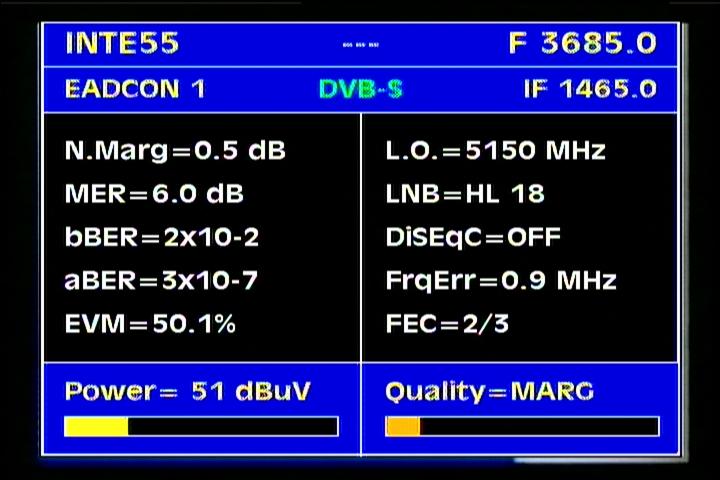

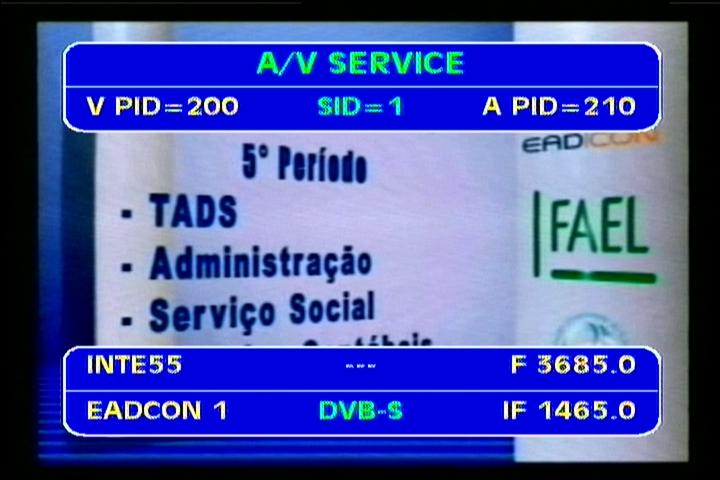

                                     Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 685 H Eadcon 1
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 685 H Eadcon 1_IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 685 H Eadcon 1_Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 685 H Eadcon 1_NIT data

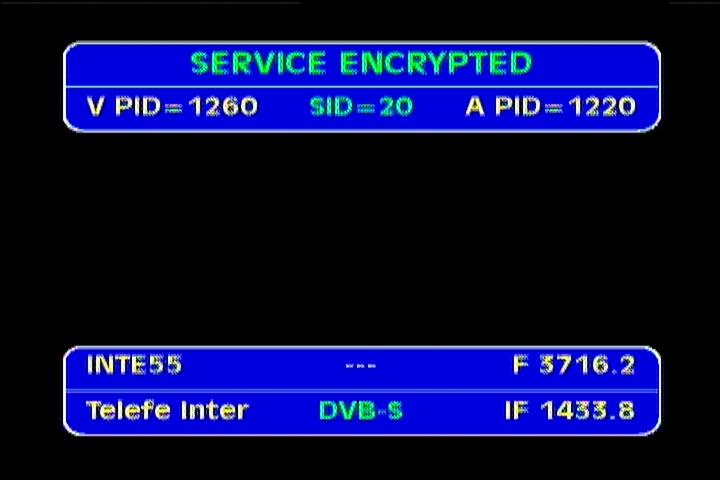

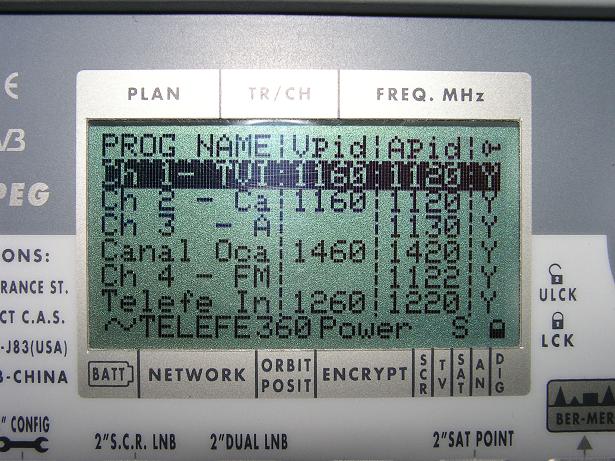

                                Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 716 H Telefe Network
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ Hemi footprint_3 716 H Telefe_VA pids dataIntelsat 805 at 55.5 w _ Hemi footprint_3 716 H Telefe_Q dataIntelsat 805 at 55.5 w _ Hemi footprint_3 716 H Telefe_NIT data

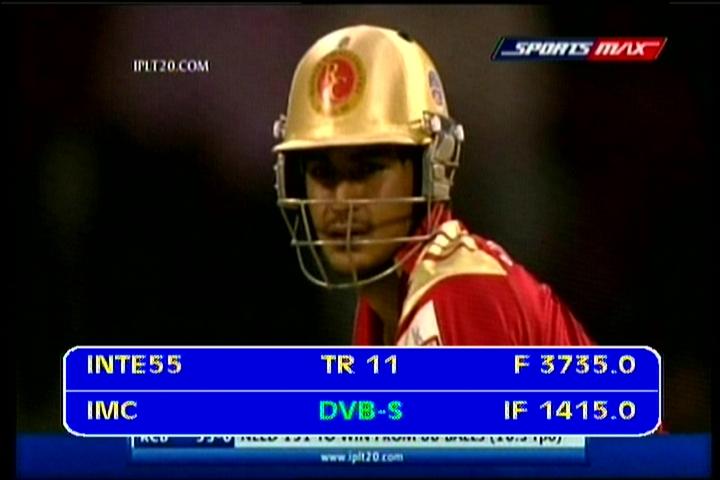

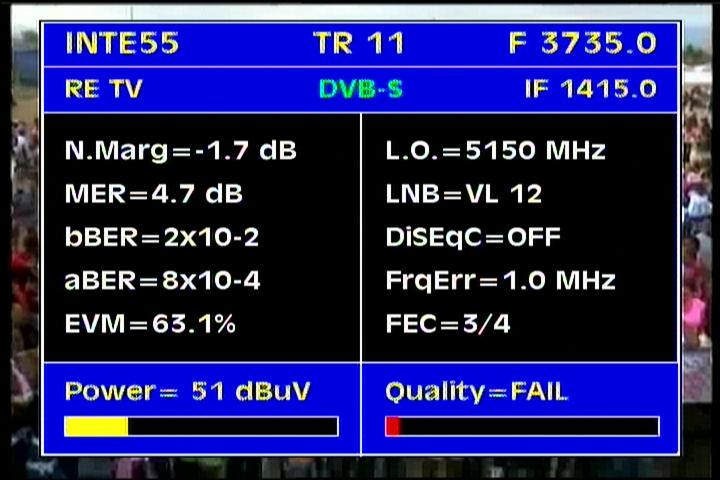

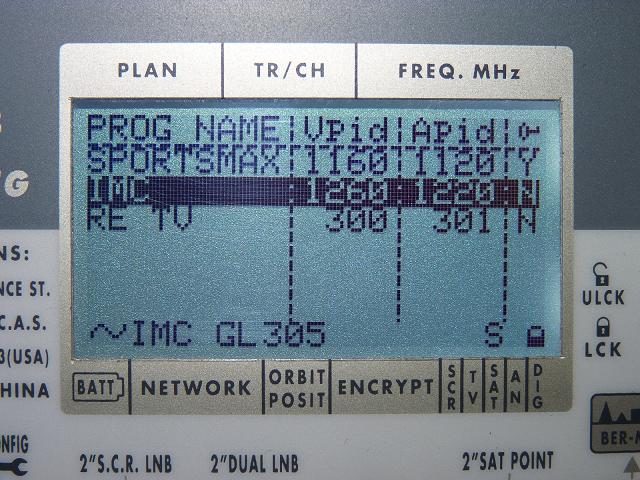

                                 Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 735 V IMC network
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 735 V SportsMax feed _IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 735 V SportsMax feed _Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 735 V SportsMax feed _NIT data

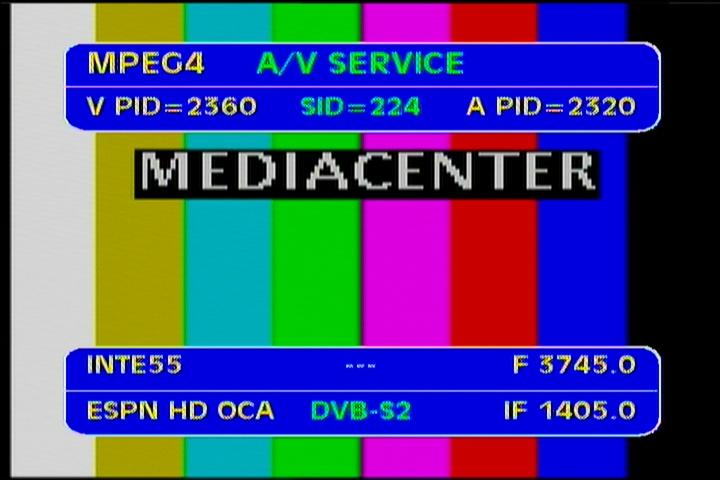

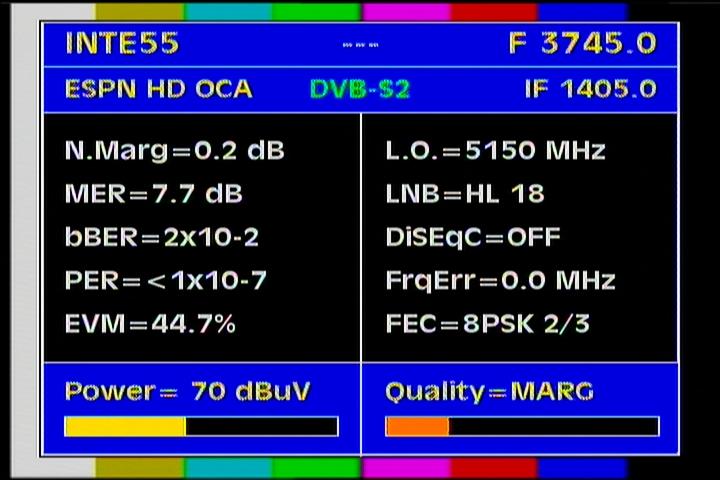

                       Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 745 H DVB-S2/8PSK Packet TIBA
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ Hemi footprint_3 745 H DVB S2 Packet TIBA_VA pids dataIntelsat 805 at 55.5 w _ Hemi footprint_3 745 H DVB S2 Packet TIBA_Q dataIntelsat 805 at 55.5 w _ Hemi footprint_3 745 H DVB S2 Packet TIBA_NIT data

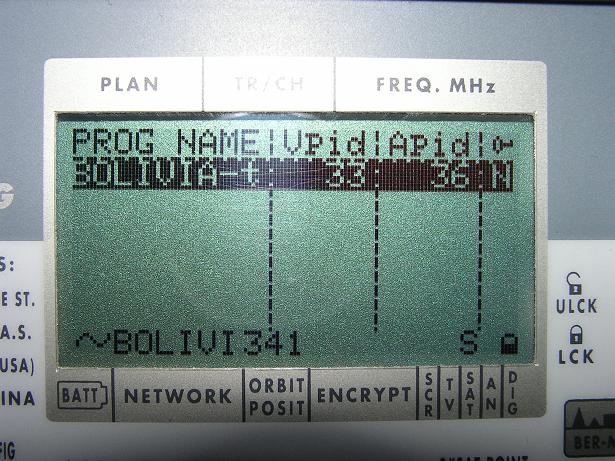

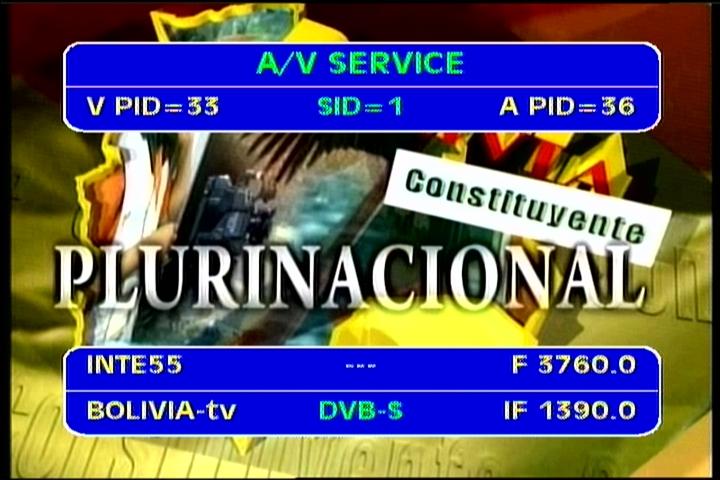

                                    Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 760 H Bolivia TV
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ Hemi footprint_3 760 H Bolivia TV_VA pids dataIntelsat 805 at 55.5 w _ Hemi footprint_3 760 H Bolivia TV_Q dataIntelsat 805 at 55.5 w _ Hemi footprint_3 760 H Bolivia TV_NIT data

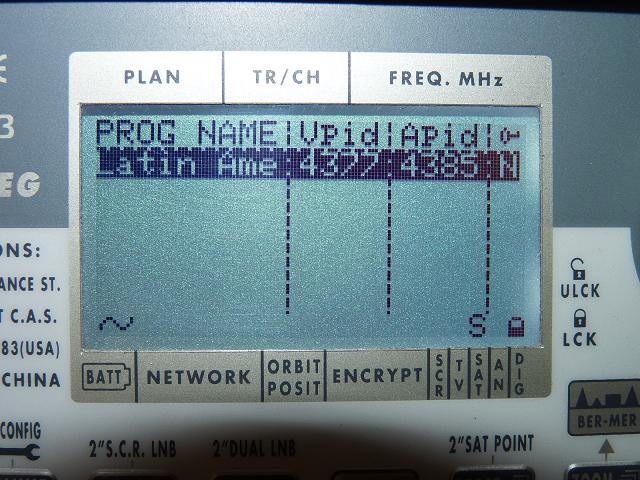

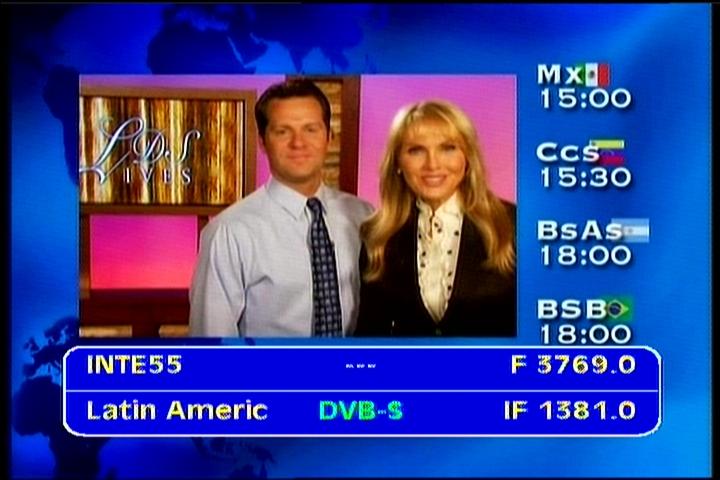

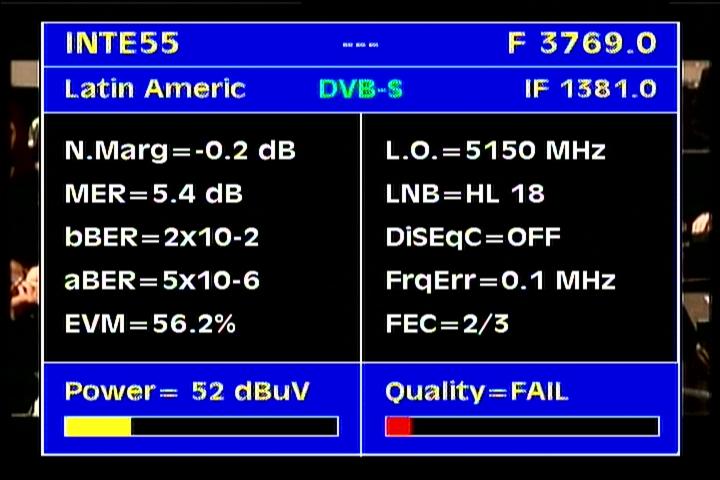

                                      Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 769 H BYU TV
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 769 H BYU TV_IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 769 H BYU TV_Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 769 H BYU TV_NIT data

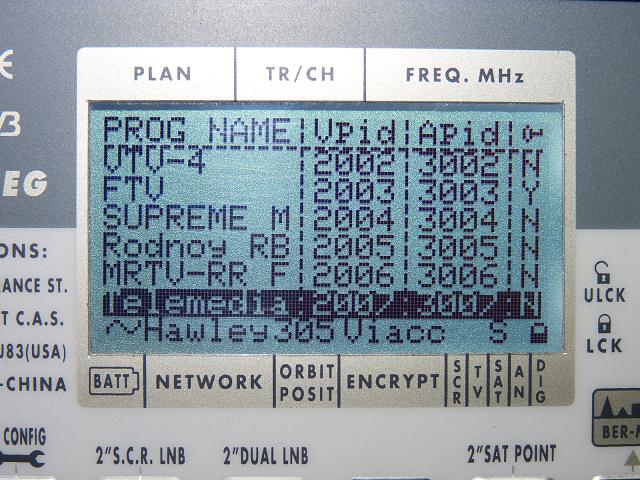

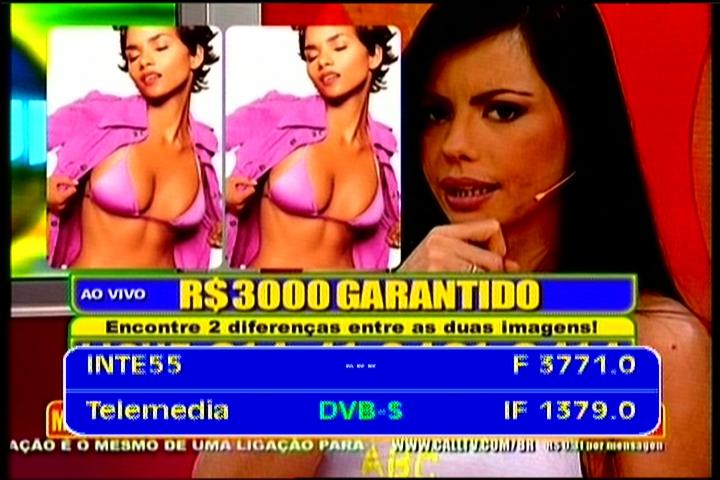

                           Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 771 V RRSat Global network.
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 771 V packet RRSat _IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 771 V packet RRSat _Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 771 V packet RRSat _NIT data

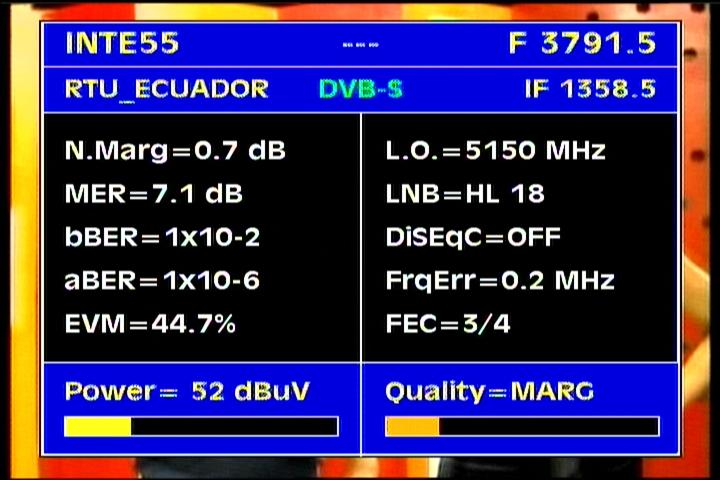

                                 Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 792 H RTU Ecuador
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 792 H RTU _IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 792 H RTU _Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 792 H RTU _NIT data

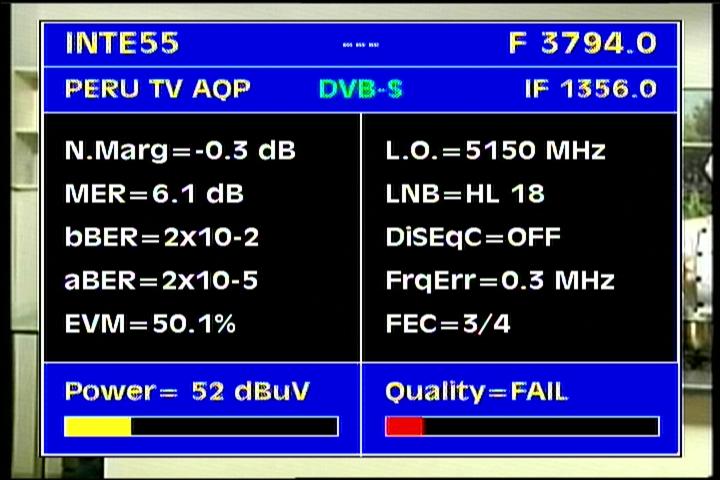

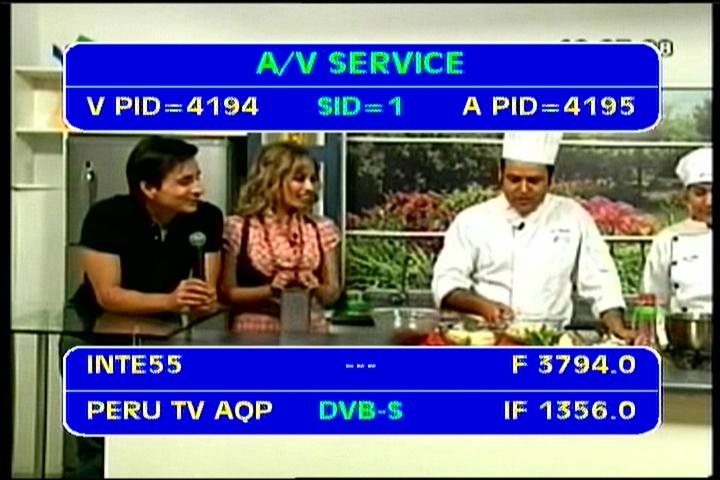

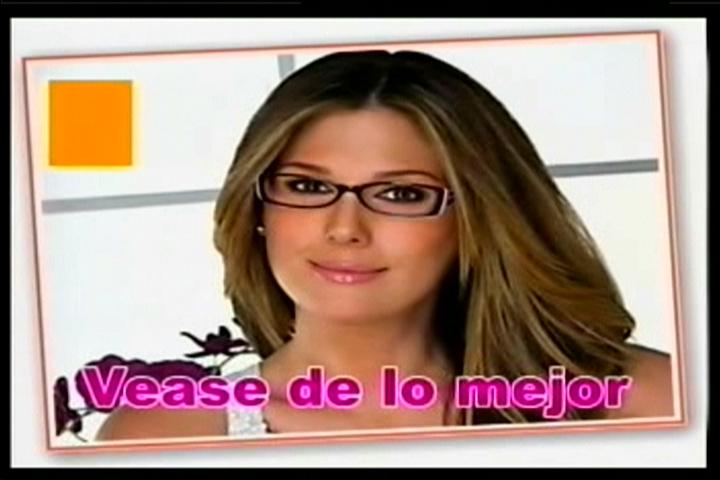

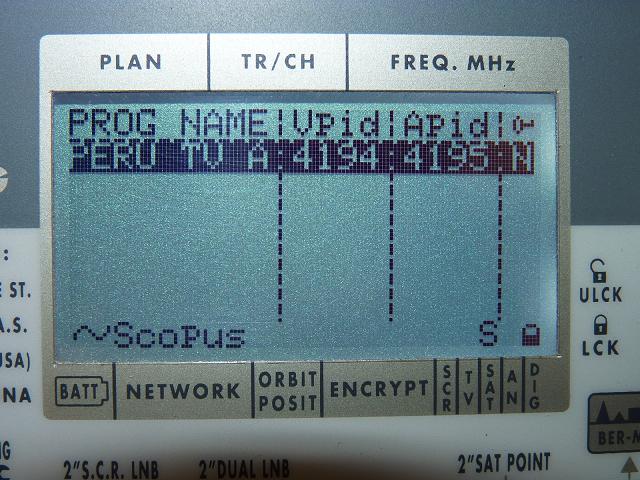

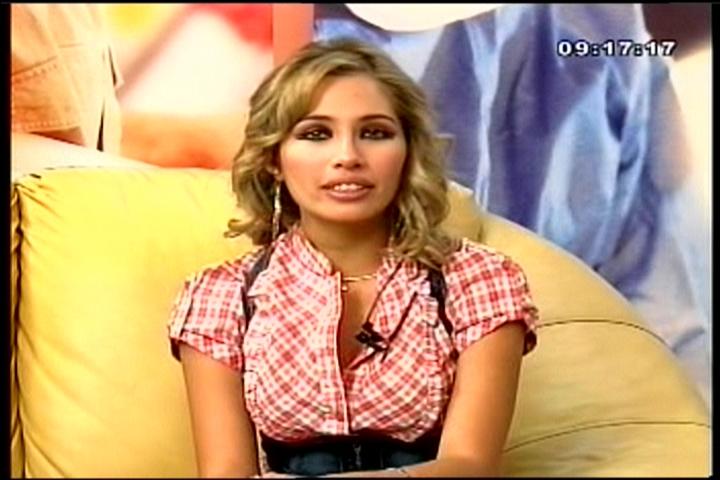

                                        Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 794 H Peru TV
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 794 H Peru TV _IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 794 H Peru TV _Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 794 H Peru TV _NIT data

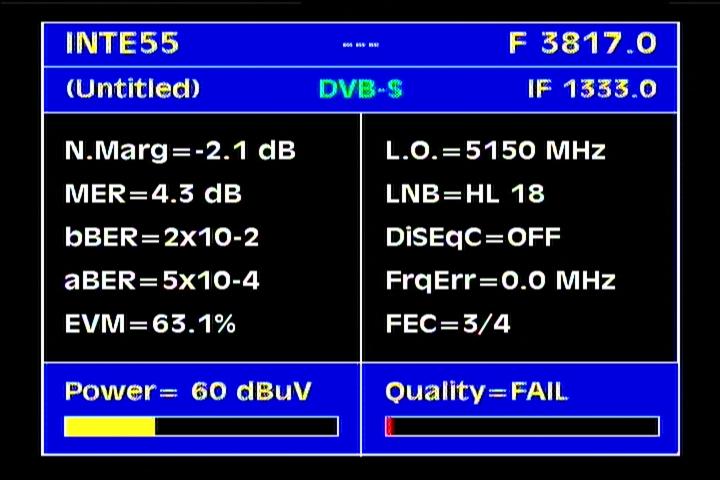

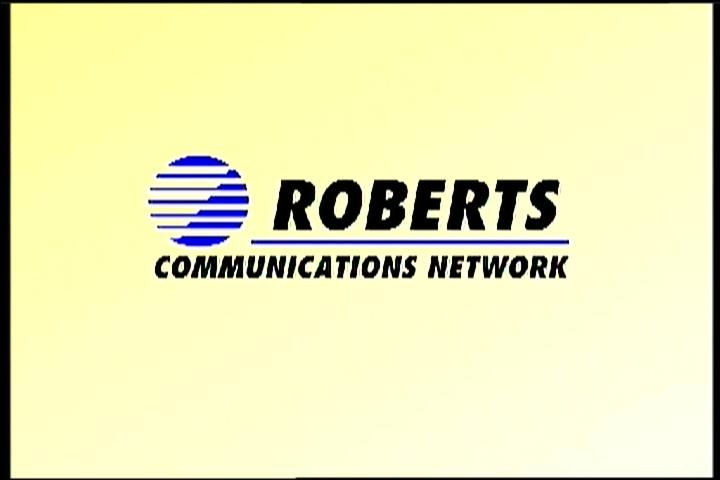

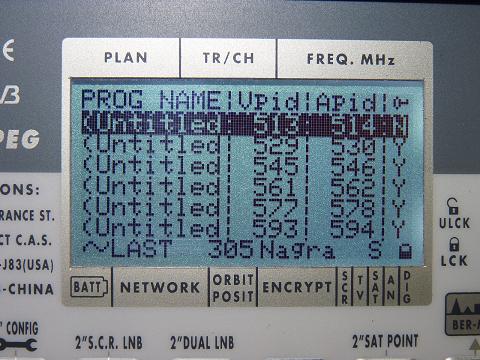

                 Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 818 H Roberts Communications network
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 818 H Roberts communications netw._IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 818 H Roberts communications netw._Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 818 H Roberts communications netw._NIT data

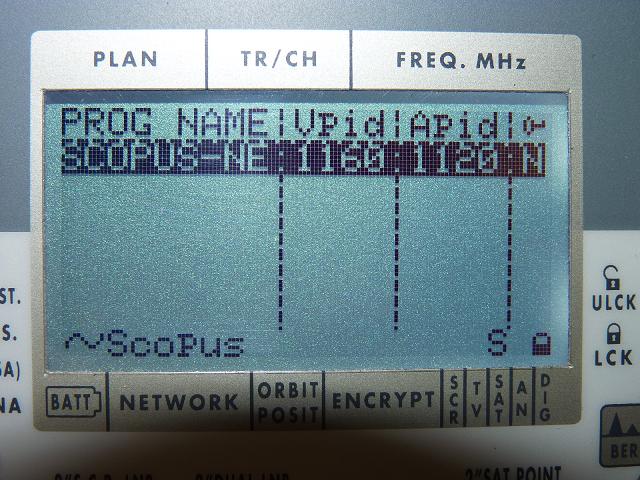

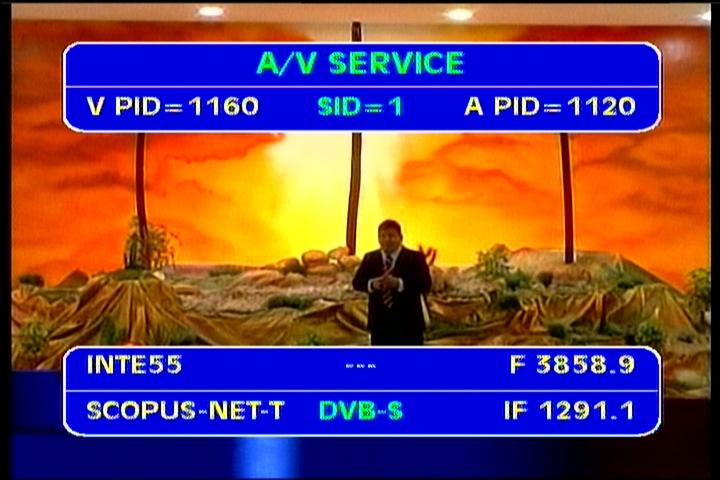

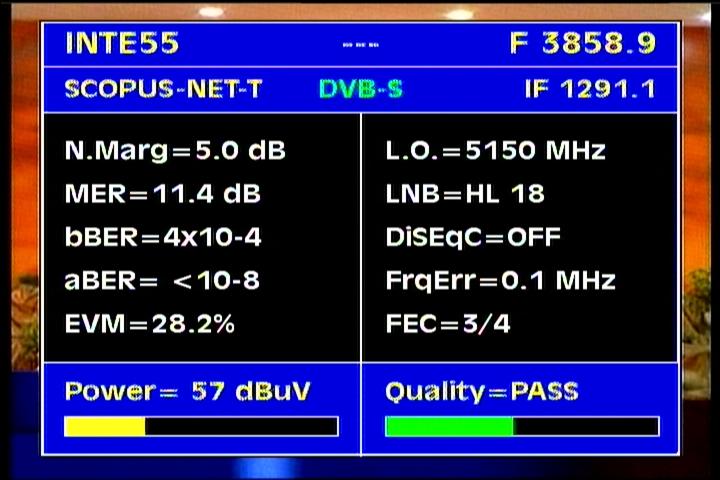

                                 Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 858 H Panamericana TV
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_3 858 H Panamericana TV _IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 858 H Panamericana TV _Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_3 858 H Panamericana TV _NIT data

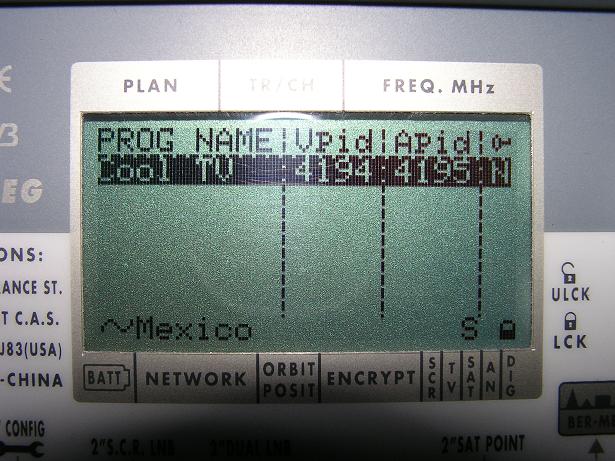

                                       Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 940 H MTCH
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ Hemi footprint_3 940 H MTCH _IF dataIntelsat 805 at 55.5 w _ Hemi footprint_3 940 H MTCH _Q dataIntelsat 805 at 55.5 w _ Hemi footprint_3 940 H MTCH _NIT data

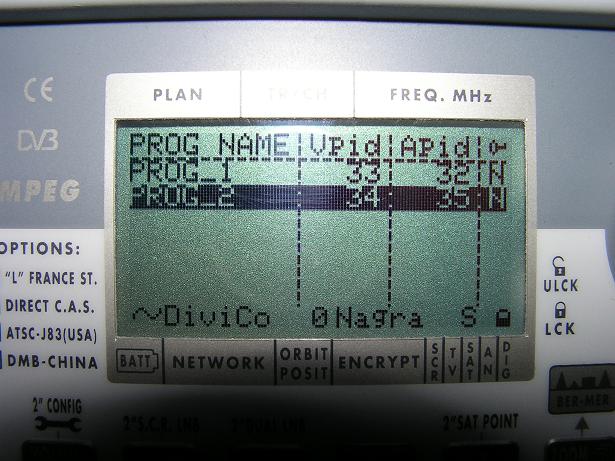

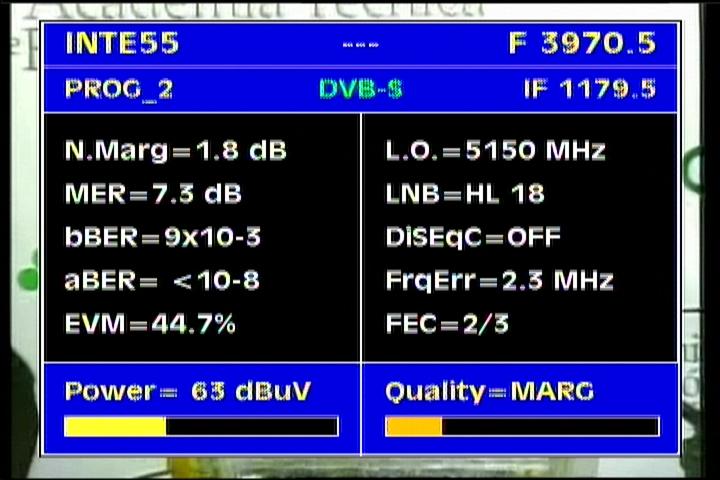

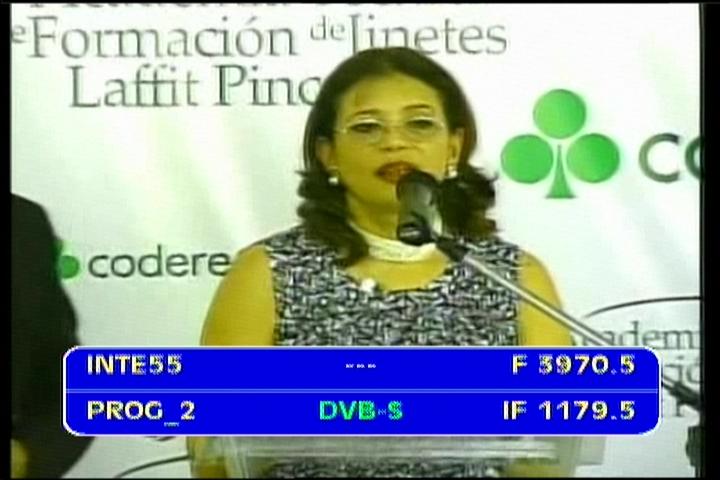

                                    Intelsat 805 at 55.5°W - Americas/Europe footprint : 3 970 V Packet HPR
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ Hemi footprint_3 970 V HPR _IF dataIntelsat 805 at 55.5 w _ Hemi footprint_3 970 V HPR _Q dataIntelsat 805 at 55.5 w _ Hemi footprint_3 970 V HPR _NIT data

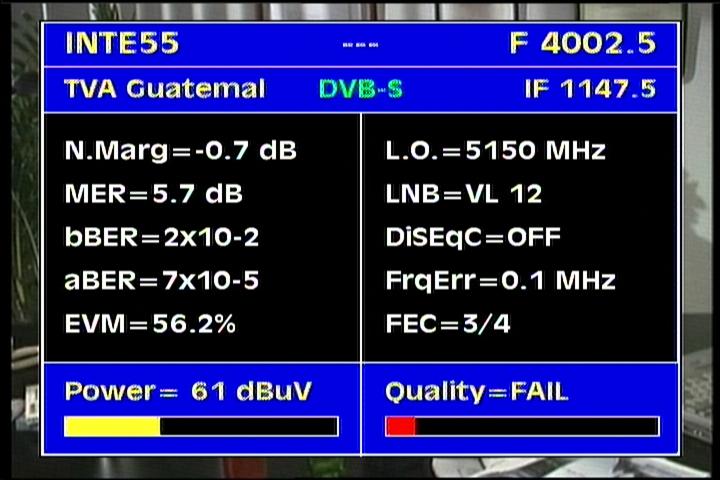

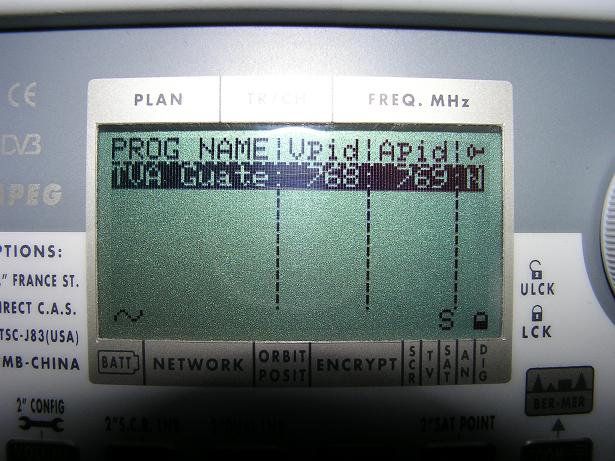

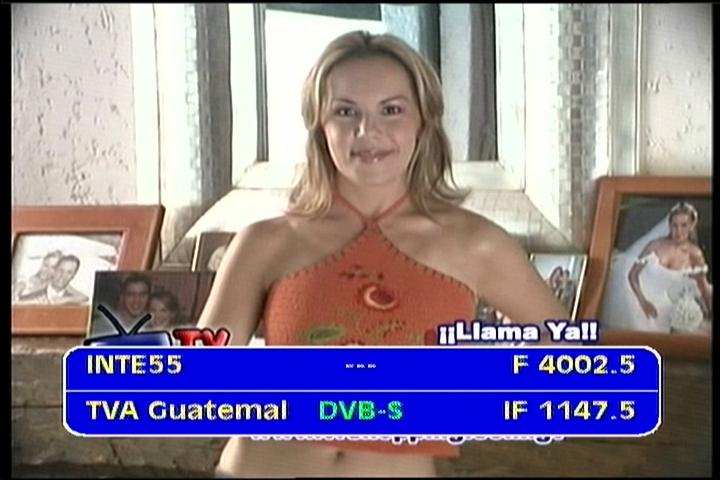

                                Intelsat 805 at 55.5°W - Americas/Europe footprint : 4 002 V  TVA Guatemala
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ Hemi footprint_4 002 V Azteca TV Guatemala _IF dataIntelsat 805 at 55.5 w _ Hemi footprint_4 002 V Azteca TV Guatemala _Q dataIntelsat 805 at 55.5 w _ Hemi footprint_4 002 V Azteca TV Guatemala _NIT data

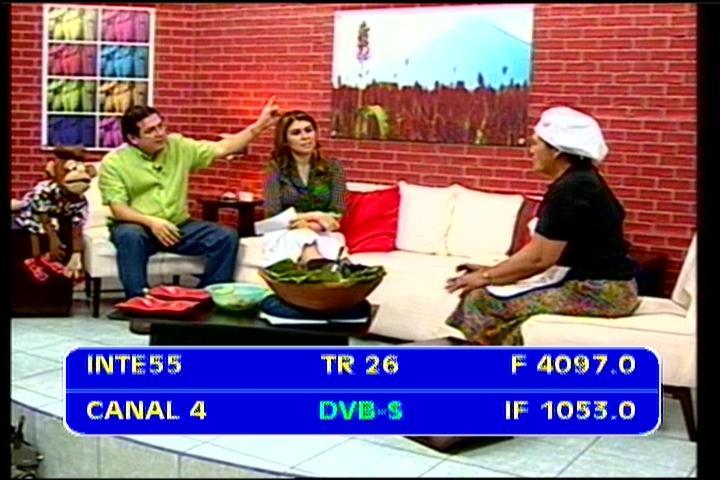

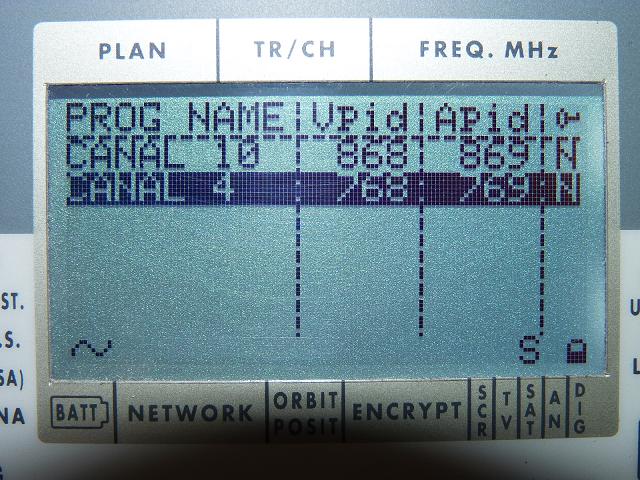

                                   Intelsat 805 at 55.5°W - Americas/Europe footprint : 4 097 H Canal 4/10
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ c band _ hemi footprint_4 097 H Canal 4 _IF dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_4 097 H Canal 4 _Q dataIntelsat 805 at 55.5 w _ c band _ hemi footprint_4 097 H Canal 4 _NIT data

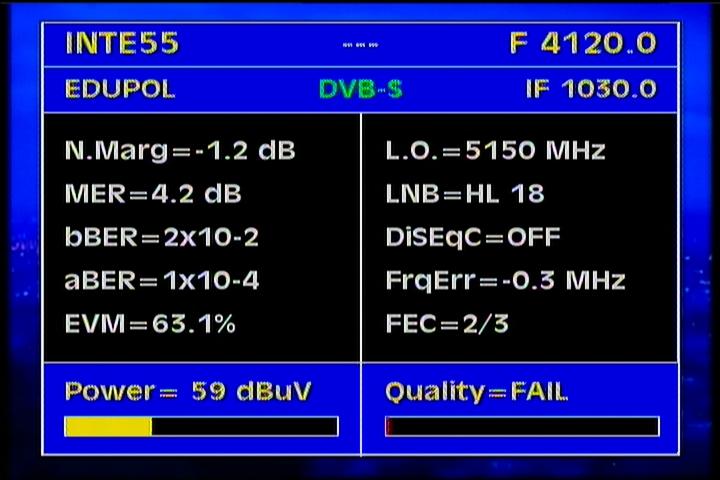

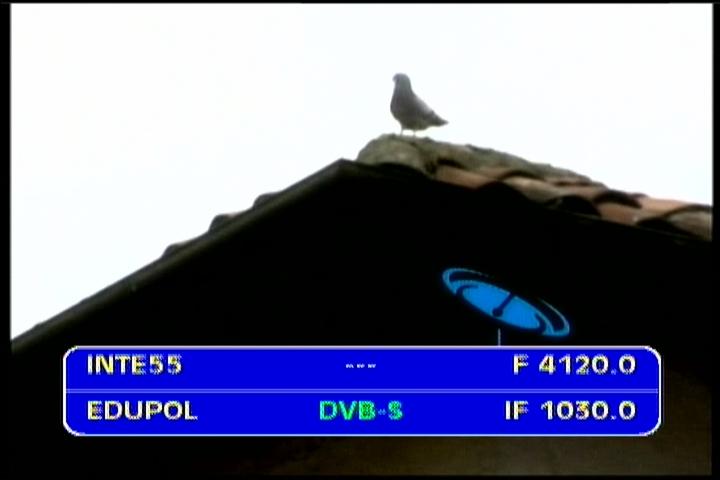

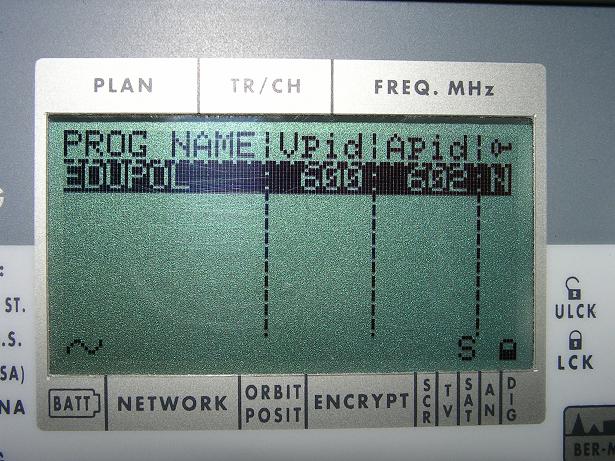

                                       Intelsat 805 at 55.5°W - Americas/Europe footprint : 4 120 H Edupol
                          IF data                                                       Q data                                                   NIT data
Intelsat 805 at 55.5 w _ Hemi footprint_4 120 H Edupol _IF dataIntelsat 805 at 55.5 w _ Hemi footprint_4 120 H Edupol _Q dataIntelsat 805 at 55.5 w _ Hemi footprint_4 120 H Edupol _NIT data

Intelsat 805 at 55.5°W : TV List

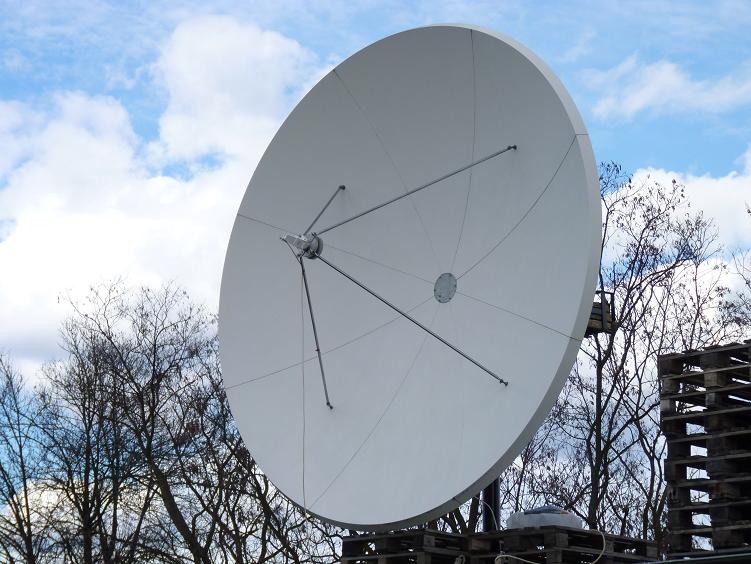

  Intelsat 805 at 55.5 w _ c band _ hemi footprint_PF Prodelin 3.7 m


---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 603 -V- tp 11A

 IMC 6 655 3/4 Hemi 180+ cm DVB
  FSC Jamaica         PowerVu
  IMC Test Ch. / WC2010 test Ch. V.p1060       FTA

3 612 -V- tp 11A

XHTVL Canal 9 / VHSA TAB

 3 798 3/4 Hemi 180+ cm DVB FTA

3 668 -H- tp 20A

 EADCON 3 300 3/4 Hemi 180+ cm DVB FTA

3 670 -H- tp 20A

 RADIO packet RPP Peru 1 374 3/4 Hemi 180+ cm DVB
  ST         radio stream
  LM         radio stream
  RP         radio stream
  NT         radio stream
  CO         radio stream
  O2         radio stream
  KB         radio stream
  LL         radio stream

3 675 -H- tp 20A

EADCON 5

 3 200 2/3 Hemi 180+ cm DVB FTA

3 679 -H- tp 20A

 EADCON 3 CWB 3 100 2/3 Hemi 180+ cm DVB FTA

3 685 -H- tp 20A

 EADCON network 4 444 2/3 Hemi 180+ cm DVB
  Eadcon 1         FTA
  Eadcon 2         FTA

3 691 -H- tp 20A

 EADCON network 4 500 2/3 Hemi 180+ cm DVB
  Eadcon 6 _ not broadcast         FTA
  Eadcon 7_ not broadcast         FTA

3 696 -H- tp 20A

 Perú Mágico 4 231 3/4 Hemi 180+ cm Nagravision 2

3 716 -H- tp 21

 Telefe Argentina 8 890 3/4 Hemi 180+ cm DVB
  Telefe / Ch1-TV1 Abier         PowerVu
  Telefe International / Ch2-Cables 1         PowerVu
  feeds Canal ocasional         FTA/Biss/4:2:2

3 717 -V- tp 11

 Zee Network 11 574 3/4 Hemi 180+ cm DVB
  Zee Cinema USA         Conax
  ETC Alpha Punjabi         Conax
  Zee TV USA         Conax
  test 1         MPEG-4/FTA
  test 2         MPEG-4/FTA

3 728 -V- tp 11

 feeds Telemedia 5 200 3/4 Hemi 180+ cm DVB

3 735 -V- tp 11

 IMC GL 305 8 681 3/4 Hemi 180+ cm DVB
  SportsMax         PowerVu
  feeds SportsMax / IMC         FTA
  RE TV         FTA

3 745 -H- tp 21

 TIBA S Network / 27.3.10_without lock 21 700 2/3 Hemi 180+ cm DVB-S2/8PSK
  Managemen TV Brasil V-1960 A-1920     MPEG-2/FTA
  FOX HD Latin America V-2160 A-2120     MPEG-4/HD/PowerVu
  ESPN Latin America V-2260 A-2220     MPEG-4/HD/PowerVu
  test card MEDIACENTER V-2360 A-2320     MPEG-4/HD/FTA
  Disney Channel Latin America         MPEG-2/FTA

3 750 -V- tp11

 feeds APTN3 +442074 ... 5 632 3/4 Hemi 180+ cm FTA/Biss/4:2:2

3 760 -V- tp 11

 TV Meio Norte 3 350 3/4 Hemi 180+ cm DVB FTA

3 760 -H- tp 21

TV Boliviana

 2 963 3/4 Hemi 180+ cm DVB FTA

3 768 -H- tp 21

 BYU Int. / Latin America 4 427 2/3 Hemi 180+ cm DVB FTA

3 771 -V- tp 11

RRSat Global Network

 13 333 5/6 Hemi 180+ cm DVB
  TGN / Thai Global Network   watch video         FTA
  VTV 4         FTA
  Fashion TV America         Viaccess
  Supreme Master         FTA
  Rodnoy RBN         FTA
  promo RRSat Global / MRTV - RR feed         FTA
  feeds Telemedia / test card         FTA

3 776 -H- tp 21

 unn. service 7 400 3/4 Hemi 180+ cm DVB
  ATV         Irdeto
  Global TV         Irdeto
  LaTele TV         Irdeto

3 791 -H- tp 22

 RTU Ecuador     watch video 2 244 3/4 Hemi 180+ cm DVB FTA

3 794 -H- tp 22

 Perú TV  watch video  watch video 1 447 3/4 Hemi 180+ cm DVB FTA

3 817 -H- tp 22

 feeds RCN Roberts Communications 26 666 3/4 Hemi 180+ cm DVB/MPEG-4
  test card Roberts communications         MPEG-4 /FTA
  ---         MPEG-4 /Nagravision
  ---         MPEG-4 /Nagravision
  ---         MPEG-4 /Nagravision
  ---         MPEG-4 /Nagravision
  ---         MPEG-4 /Nagravision

3 843 -V- tp 12

Fox Sports

 26 000 3/4 Hemi 180+ cm DVB
  Fox Sports Latin America FS Cono         PowerVu
  Fox Sports Latin America FS Cono         PowerVu
  Fox Sports Latin America HD         MPEG-4/HD/PowerVu
  feeds Fox Sports         MPEG-2
  feeds Alternativo H.264         MPEG-4
  feeds ENC 1 P4 H.264         MPEG-4
  feeds ENC 1 P7 H.264         MPEG-4

3 849 -H- tp 22

Canal 1 Ecuador

 3 000 3/4 Hemi 180+ cm PowerVu

3 853 -H- tp 22

Canal 1 International

 3 000 3/4 Hemi 180+ cm DVB FTA

3 858 -H- tp 22

 Panamericana TV     watch video 4 444 3/4 Hemi 180+ cm DVB FTA

3 879 -H- tp 23

 Tele Amazonas 5 860 3/4 Hemi 180+ cm DVB
  Tele Amazonas         Biss
  Tele Amazonas International         MPEG-4/Biss

3 894 -H- tp 23

 SIS Carribbean / MPEG-2 test service 3 617 3/4 Hemi 180+ cm PowerVu

3 907 -H- tp 23

Capixaba TV Brazil

 3 255 3/4 Hemi 180+ cm DVB FTA

3 912 -V- tp 13

UEA

 1 809 3/4 Hemi 180+ cm DVB FTA

3 930 -H- tp 23

 Unsión 2 941 3/4 Hemi 180+ cm DVB FTA

3 936 -H- tp 23

 BBC World Service 3 255 2/3 Hemi 180+ cm DVB
  BBC English         radio stream
  BBC English New         radio stream
  BBC Arabic         radio stream
  BBC Brazil         radio stream
  BBC Spanish         radio stream
  BBC Amer Feed         radio stream
  BBC Amer Feed         radio stream
  BBC Amer Feed         radio stream
  BBC Amer Feed         radio stream

3 940 -H- tp 23

 Mexico Travel Channel / Cool TV watch video 2 578 7/8 Hemi 180+ cm DVB FTA

3 963 -V- tp 14

feed Maranata

 3 617 3/4 Hemi 180+ cm FTA

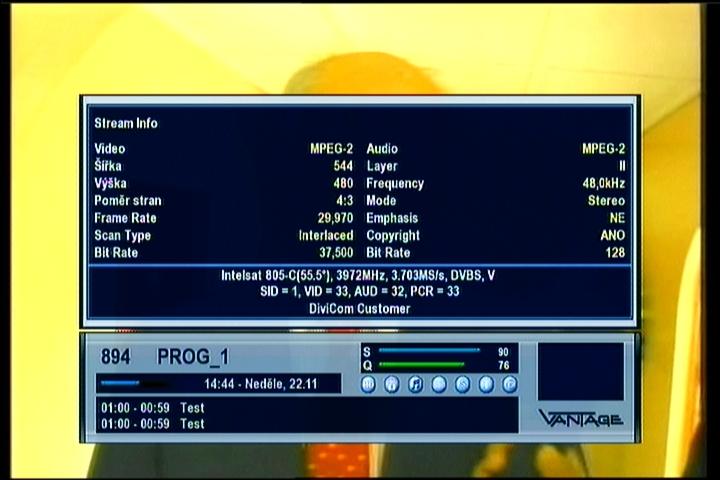

3 970 -V- tp 14

 Hipódromo Presidente Remón 3 703 2/3 Hemi 180+ cm DVB
  Hipódromo Presidente Remón Prog1         FTA
  Hipódromo Presidente Remón Prog2         FTA

4 001 -V- tp 14

 Azteca TV Guatemala / TVA Guatemala
 watch video		 3 000 3/4 Hemi 180+ cm DVB FTA

4 011 -V- tp 14		 APTN Global / AP GVW 8 889 2/3 Hemi 180+ cm DVB-S2/8PSK
BetaCrypt

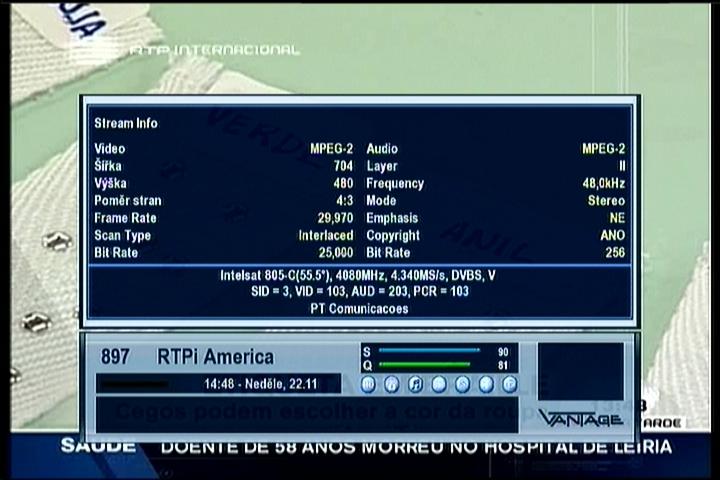

4 081 -V- tp 16

 RTPi America   watch video  watch video 4 340 3/4 Hemi 180+ cm DVB FTA

4 085 -H- tp 26

 Guatemala MUX 10 318 3/4 Hemi 180+ cm DVB
  CANAL 3 Guatemala         Biss
  TELEVISIETE         Biss
  TELE-ONCE         Biss
  TRECEVISION         Biss
  feeds Guatemala         FTA/Biss/4:2:2

4 088 -V- tp 16

 RF Rede Fuso 6 510 3/4 Hemi 180+ cm DVB/Biss

4 093 -H- tp 26

test RTS / white screen

 1 840 3/5 Hemi 180+ cm DVB-S2/8PSK/MPEG-4

4 097 -H- tp 26

 Nicaraguan MUX 5 247 3/4 Hemi 180+ cm DVB
  Canal 4     watch video         FTA
  Canal 10   watch video  watch video         FTA
4 105 -H- tp 26
 		 left

4 111 -H- tp 26

 Repretel 4 000 3/5 Hemi 180+ cm DVB-S2/8PSK
  Canal 4         MPEG-4/Irdeto
  Canal 6         MPEG-4/Irdeto
  Canal 11         MPEG-4/Irdeto

4 120 -H- tp 27

Edupol

 3 100 2/3 Hemi 180+ cm DVB FTA

4 135 -H- tp 27

 GLOBO TV Int. 6 111 3/4 Hemi 180+ cm FTA/PowerVu

4 140 -V- tp 17

 Frecuencia Latina 4 700 5/6 Hemi 180+ cm FTA/PowerVu

4 153 -V- tp17

 feeds FLYAWAY ... 3 500 3/4 Hemi 180-300+ cm FTA/Biss/4:2:2

4 177 -V- tp 18

 Viacom Latin America 27 690 5/6 Hemi 180+ cm DVB
  Nickelodeon latino Central         PowerVu
  VH1 Latino         PowerVu
  MTV North         PowerVu
  MTV Central         PowerVu
  MTV South         PowerVu
  MTV Central         PowerVu
  Nickelodeon North         PowerVu
  Nickelodeon South         PowerVu
  Nickelodeon Brazil         PowerVu
  MTVN HD         MPEG-4/HD/PowerVu
  VH1 LB         PowerVu
  MTV J         PowerVu
  VH1 SL         PowerVu
  MTV H         PowerVu
  VH1 Latino South         PowerVu
  VH1 Latino Central         PowerVu
  Nickelodeon JR Lat         PowerVu
  VH1 CLSLA         PowerVu

Intelsat 805 at 55.5°W : relative q

percent Q 01percent Q 02percent Q 03

 Intelsat 805 at 55.5°W : Video presentations

   Go to Video Section:
video button

 Intelsat 805 at 55.5°W footprint : Americas / Europe


                                                       Intelsat 805 footprint
                                          Intelsat 805 at 55.5 w _ Hemi footprint


Intelsat 805 at 55.5°W : snapshots

RTP America 02Peru TV 02Peru TV 08
Canal 10 07VTV 4 07Canal 10 06

All rights reserved © 2025 DXsatcs.com
|
Developed by BRAINSUM
