Intelsat 902 at 62.0°E

 Intelsat 902 at 62.0°E : Technical data

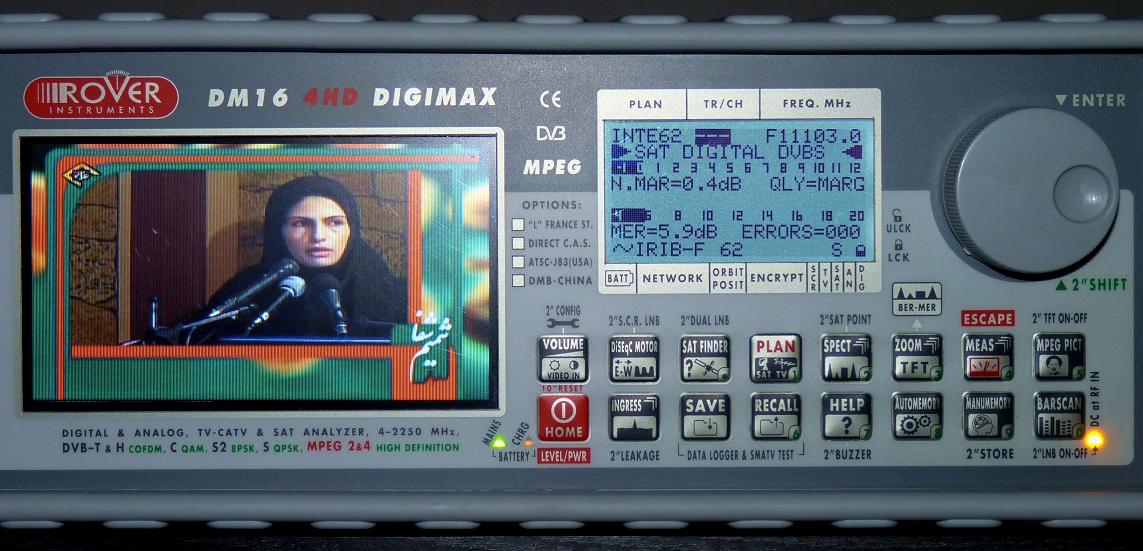

         IS 902 at 62.0°E-Middle East beam : 11 103 V packet IRIB / stable lock with a gain margin 2.5+ dB at FEC 2/3
Intelsat 902 at 62.0 e_ Middle East beam _11 103 V Fars TV -01 n

                          Intelsat 902 - Orbit : 62.0°E - TP : 16 C/12 KU - start 30.8.2001-lifetime 13 years


Intelsat 902 at 62.0°E - SPOT 1 Middle East beam : spectral analysis & measurement results

.

   Intelsat 902 at 62.0°E - Middle East footprint : measurements taken in the town of Lučenec / central Slovakia
                                     geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                                          date of measurement : 18.9.2010
                                                                    elevation angle : 21.0°
.


       Intelsat 902 : installed system            Intelsat 902 beam : Middle East              Intelsat 902 : research point
dxsatcs waveguide line+Norsat 4206CF                  coverage area                           town Lučenec / Slovak republic

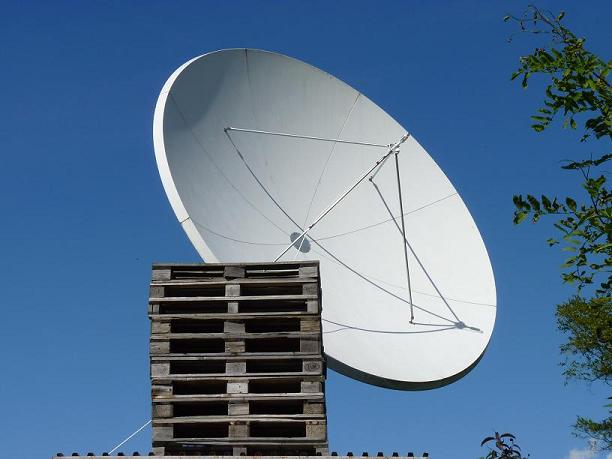

                  Prodelin 3.7 m                            Middle East , Europe , West Asia ...                   48.33° _ 19.72°
Intelsat 902 at 62.0 e_ Middle East beam_PF Prodelin 3.7 mIntelsat 902 at 62.0 e_ Middle East beamIntelsat 902 at 62.0 e_ Middle East beam _reception point at lucenec slovakia

        --- broadcaster to guarantee the reception of broadcasting in the Middle East area with a diameter antenna to 140 cm ---
                                                                                  click for enlarge
               Intelsat 902 at 62.0 e_ Middle East beam
                                                                 - time of measurement :18.9.2010 -
                                                                    - defining the status of reception -


                                                                         --- TRANSPONDER TP 61 ---

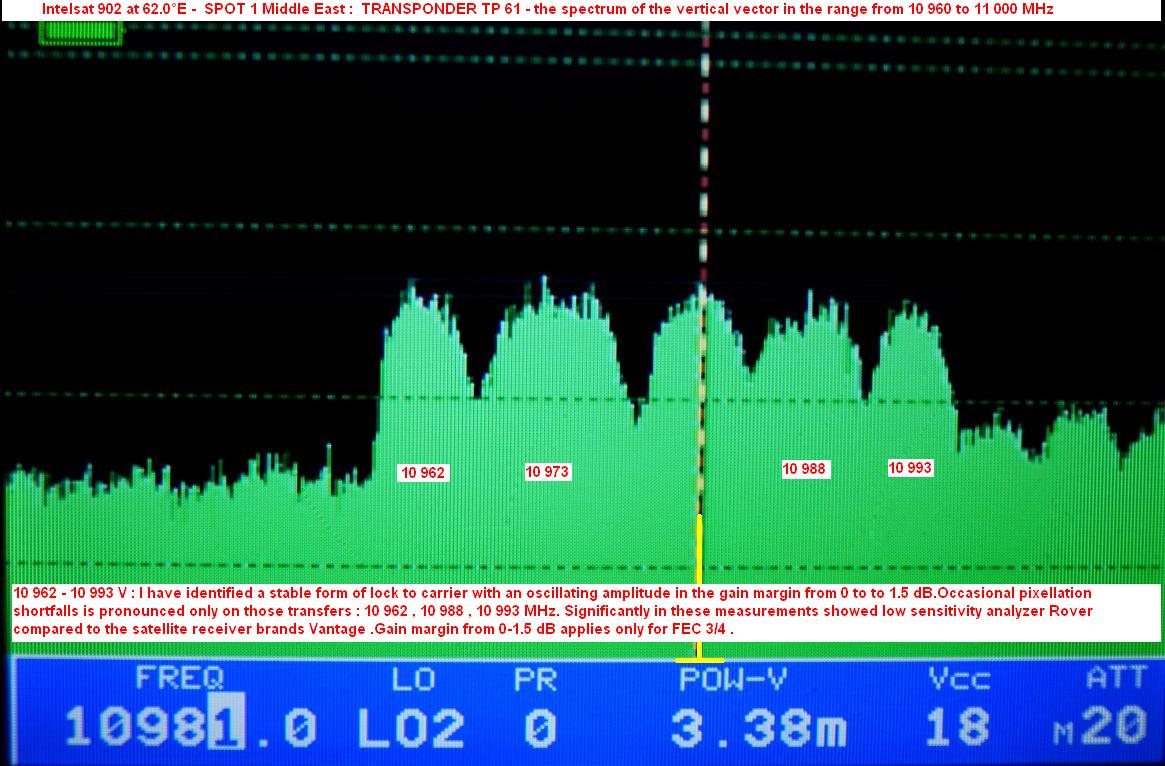

                           --- IS 902 - Middle East beam : spectral analysis nr.1 / 10 960 > 11 000  MHz ---
                                                                                 click for enlarge
                     Intelsat 902 at 62.0 e_ Middle East beam-spectral analysis 01-n
10 962 - 10 993 V : I have identified a stable form of lock to carrier with an oscillating amplitude in the gain margin from
0 to to 1.5 dB.Occasional pixellation shortfalls is pronounced only on those transfers : 10 962 , 10 988 , 10 993 MHz.
Significantly in these measurements showed low sensitivity analyzer Rover compared to the satellite receiver brands Vantage.
Gain margin from 0-1.5 dB applies only for FEC 3/4 .

                                                                         --- TRANSPONDER TP 62 ---

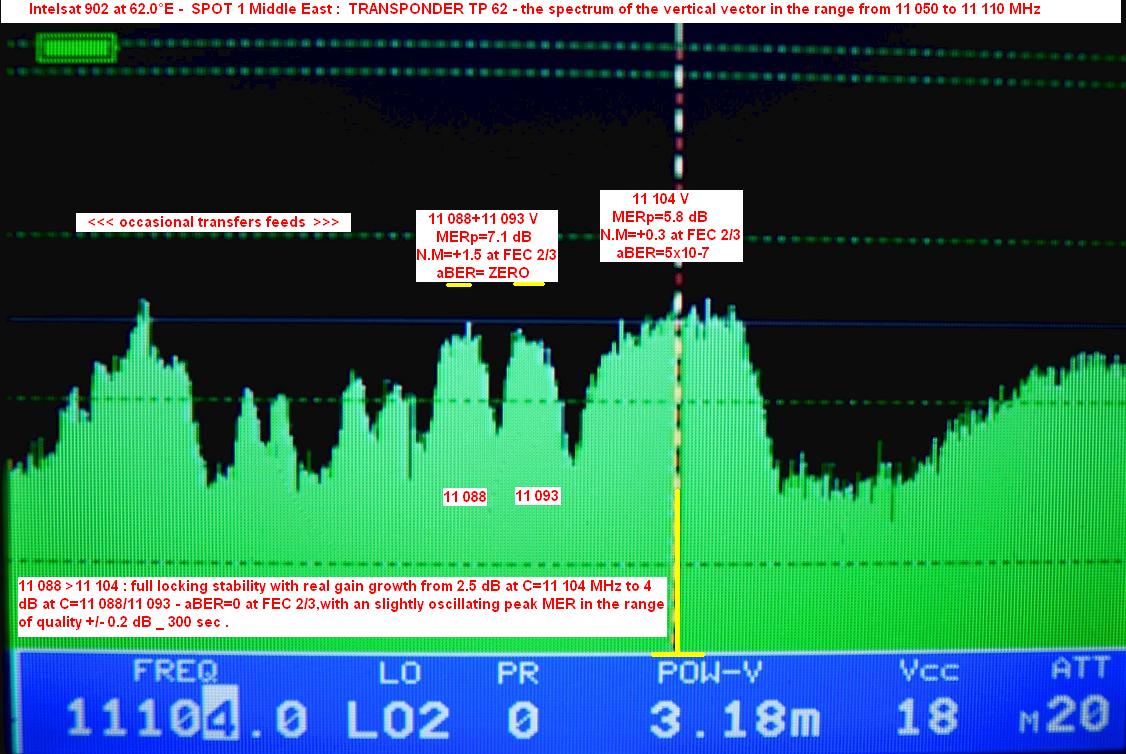

                            --- IS 902 - Middle East beam : spectral analysis nr.2 / 11 088 > 11 104  MHz ---
                                                                                 click for enlarge
                        Intelsat 902 at 62.0 e_ Middle East beam-spectral analysis 02-n
11 088 >11 104 : full locking stability with real gain growth from 2.5 dB at C=11 104 MHz to 4 dB at C=11 088/11 093
- aBER=0 at FEC 2/3,with an slightly oscillating peak MER in the range of quality +/- 0.2 dB _ 300 sec .

                                                                      --- TRANSPONDER TP 65 ---
                             --- IS 902 - Middle East beam : spectral analysis nr.2 / 11 510 > 11 555  MHz ---
                                                                             click for enlarge
                        Intelsat 902 at 62.0 e_ Middle East beam-spectral analysis 03-n
                                        --- 11 510 V - Shiraz data _ 11 555 V unknown transmission format ---

                                                      ---  Intelsat 902 - Middle East : measurement results ---

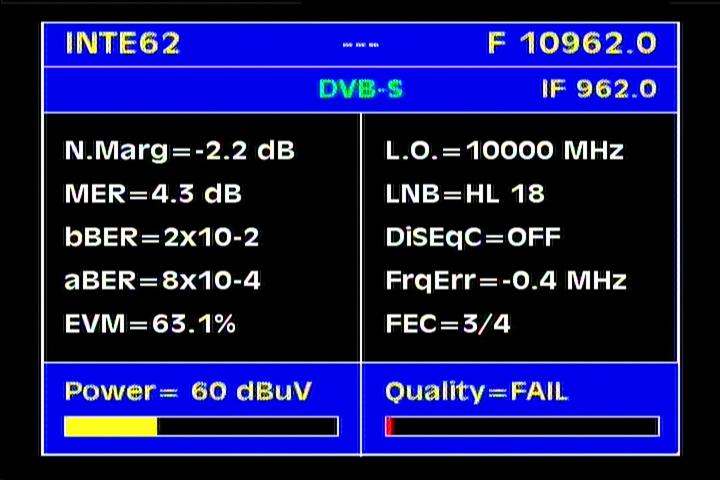

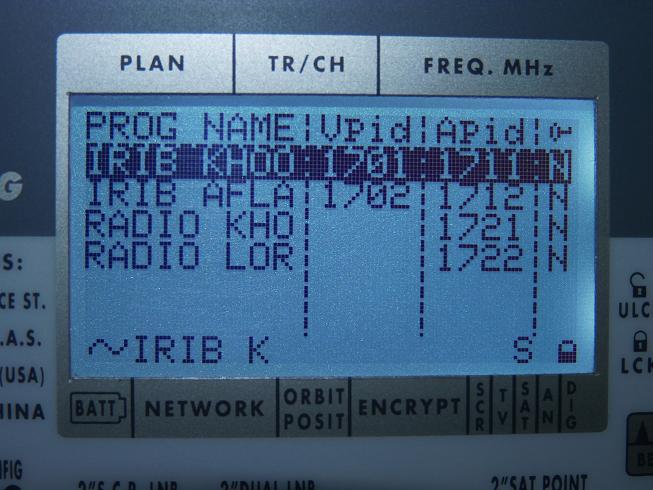

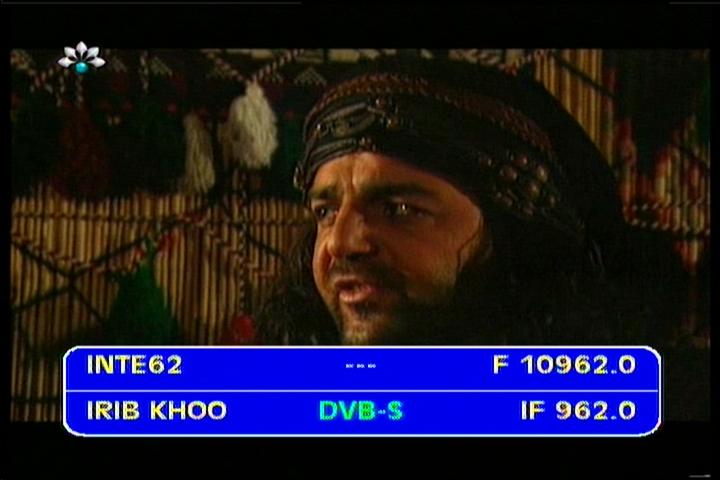

                                   Intelsat 902 at 62.0°E - SPOT 1 Middle East : 10 962 V  IRIB Network Iran
                         VA pids                                                         Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _10 962 V IRIB network Iran-IF dataIntelsat 902 at 62.0 e_ Middle East beam _10 962 V IRIB network Iran-Q dataIntelsat 902 at 62.0 e_ Middle East beam _10 962 V IRIB network Iran-NIT data

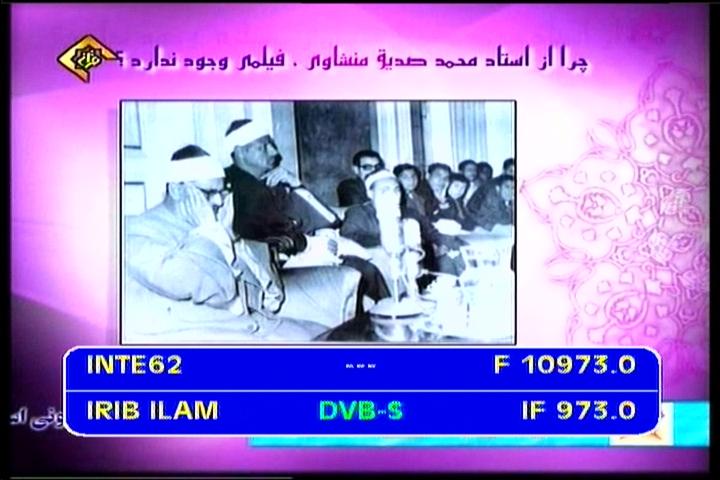

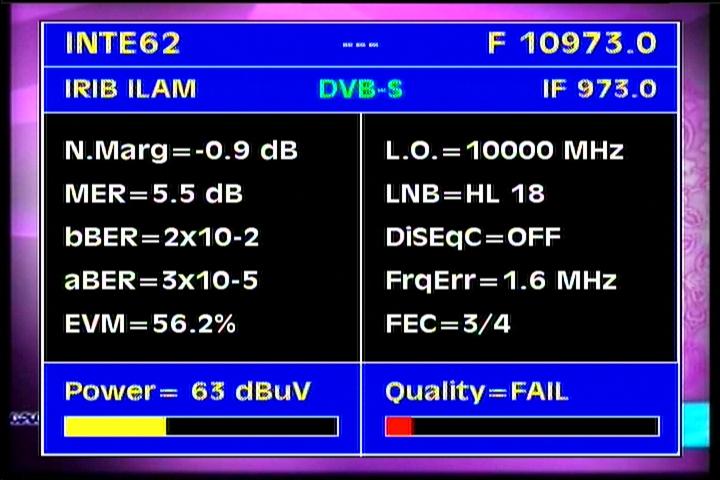

                                   Intelsat 902 at 62.0°E - SPOT 1 Middle East : 10 973 V  IRIB Network Iran
                         VA pids                                                         Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _10 973 V IRIB network Iran-IF dataIntelsat 902 at 62.0 e_ Middle East beam _10 973 V IRIB network Iran-Q dataIntelsat 902 at 62.0 e_ Middle East beam _10 973 V IRIB network Iran-NIT data

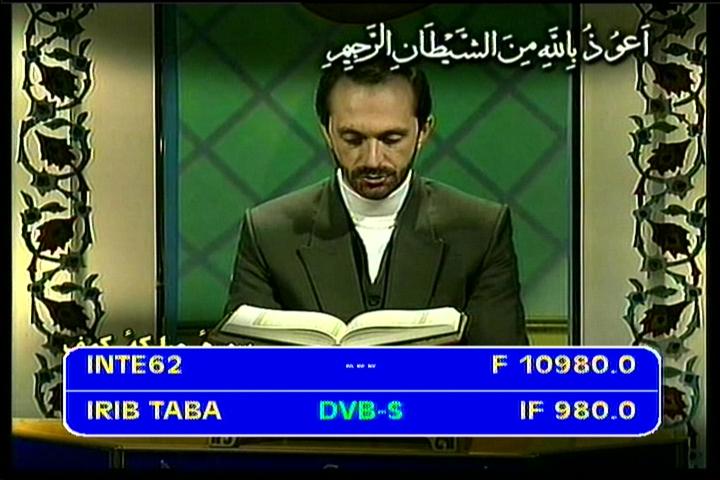

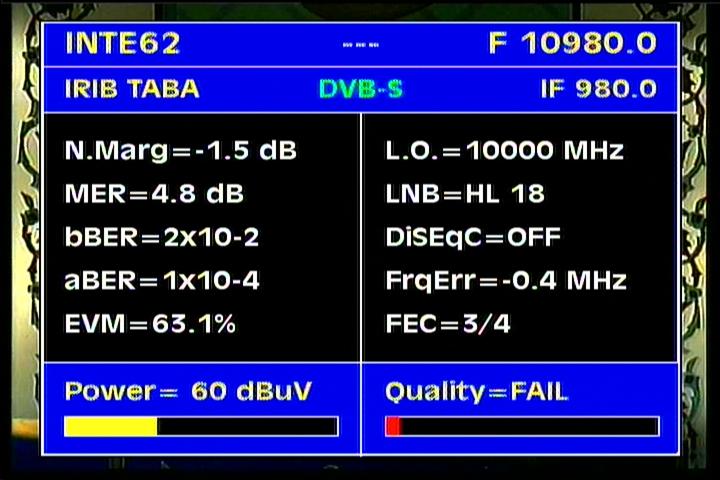

                                   Intelsat 902 at 62.0°E - SPOT 1 Middle East : 10 980 V  IRIB Network Iran
                         VA pids                                                         Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _10 980 V IRIB network Iran-IF dataIntelsat 902 at 62.0 e_ Middle East beam _10 980 V IRIB network Iran-Q dataIntelsat 902 at 62.0 e_ Middle East beam _10 980 V IRIB network Iran-NIT data

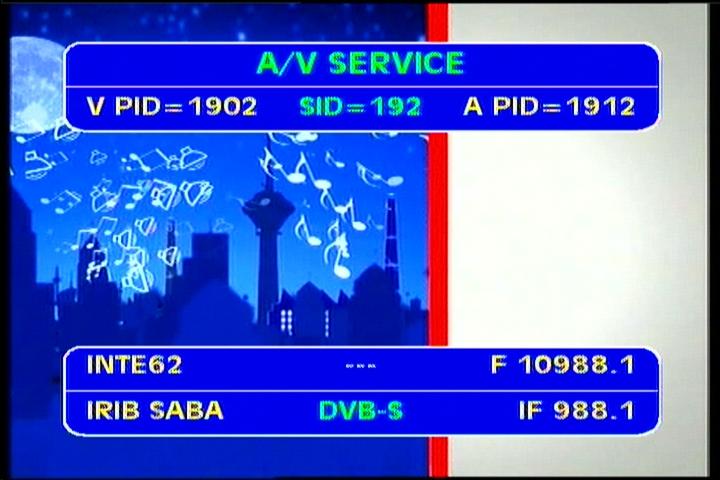

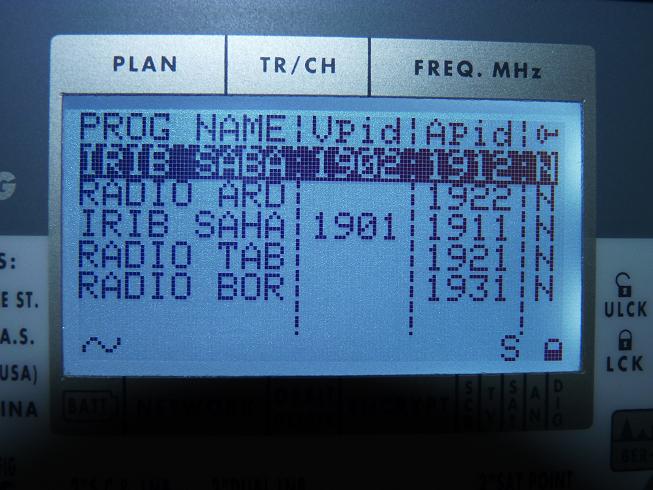

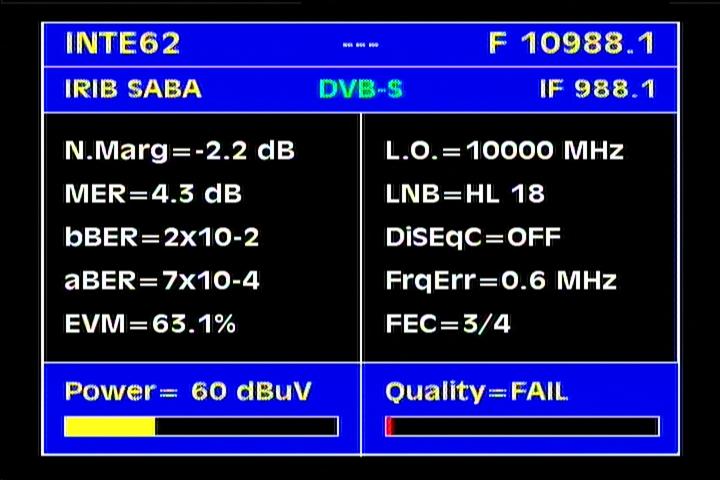

                                   Intelsat 902 at 62.0°E - SPOT 1 Middle East : 10 988 V  IRIB Network Iran
                         VA pids                                                         Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _10 988 V IRIB network Iran-IF dataIntelsat 902 at 62.0 e_ Middle East beam _10 988 V IRIB network Iran-Q dataIntelsat 902 at 62.0 e_ Middle East beam _10 988 V IRIB network Iran-NIT data

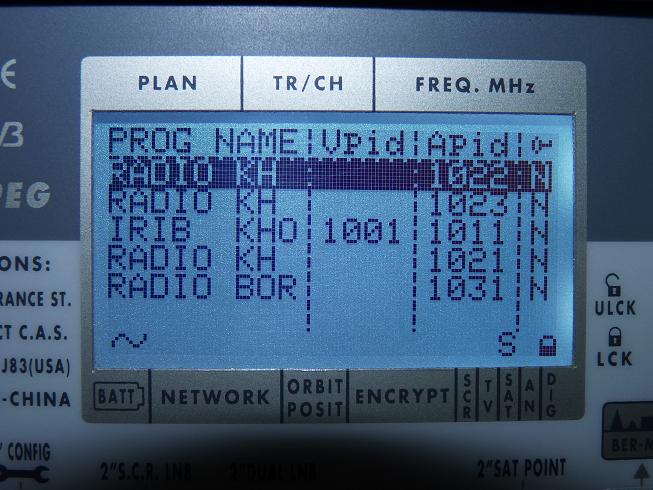

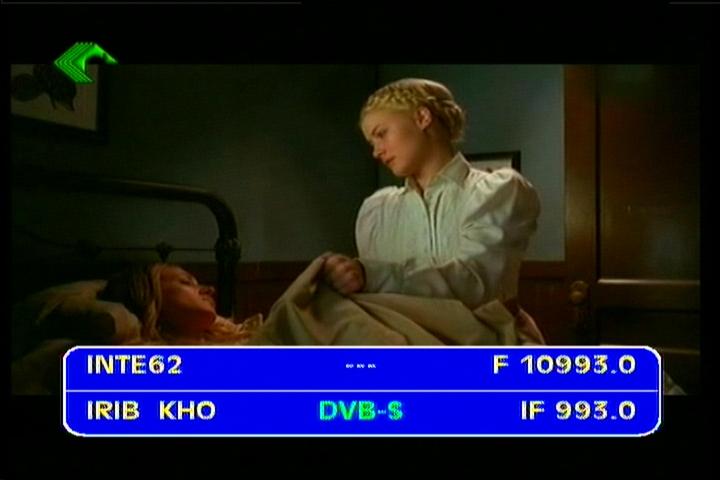

                                    Intelsat 902 at 62.0°E - SPOT 1 Middle East : 10 993 V  Khorasan TV Iran
                         VA pids                                                         Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _10 993 V Khorasan TV Iran-IF dataIntelsat 902 at 62.0 e_ Middle East beam _10 993 V Khorasan TV Iran-Q dataIntelsat 902 at 62.0 e_ Middle East beam _10 993 V Khorasan TV Iran-NIT data

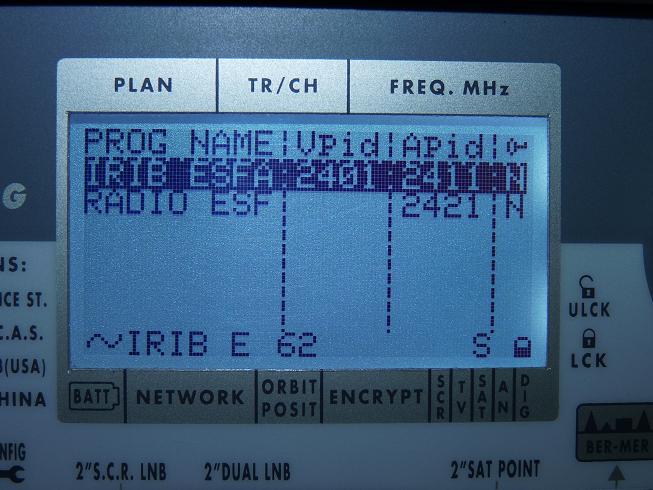

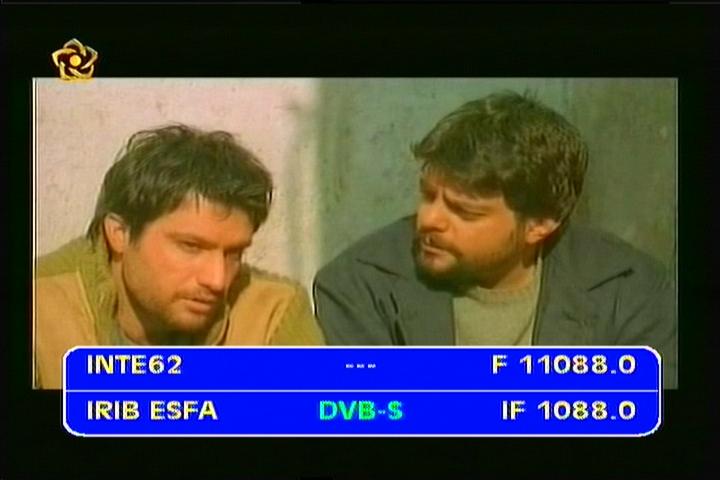

                                   Intelsat 902 at 62.0°E - SPOT 1 Middle East : 11 088 V  Isfahan TV Iran
                         VA pids                                                         Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _11 088 V Isfahan TV Iran-IF dataIntelsat 902 at 62.0 e_ Middle East beam _11 088 V Isfahan TV Iran-Q dataIntelsat 902 at 62.0 e_ Middle East beam _11 088 V Isfahan TV Iran-NIT data

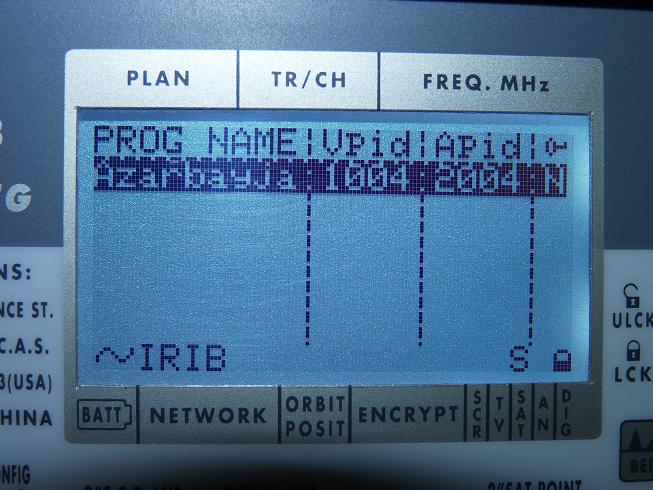

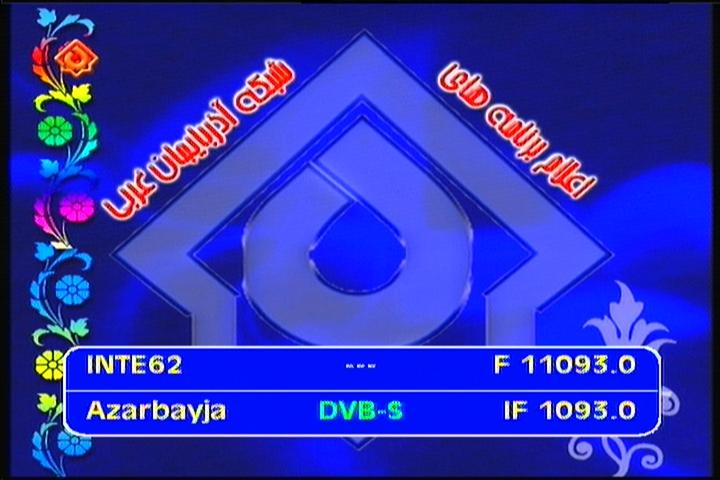

                              Intelsat 902 at 62.0°E - SPOT 1 Middle East : 11 093 V  Azarbayjan e Grabi TV Iran
                         VA pids                                                         Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _11 093 V Azarbayjan TV Iran-IF dataIntelsat 902 at 62.0 e_ Middle East beam _11 093 V Azarbayjan TV Iran-Q dataIntelsat 902 at 62.0 e_ Middle East beam _11 093 V Azarbayjan TV Iran-NIT data

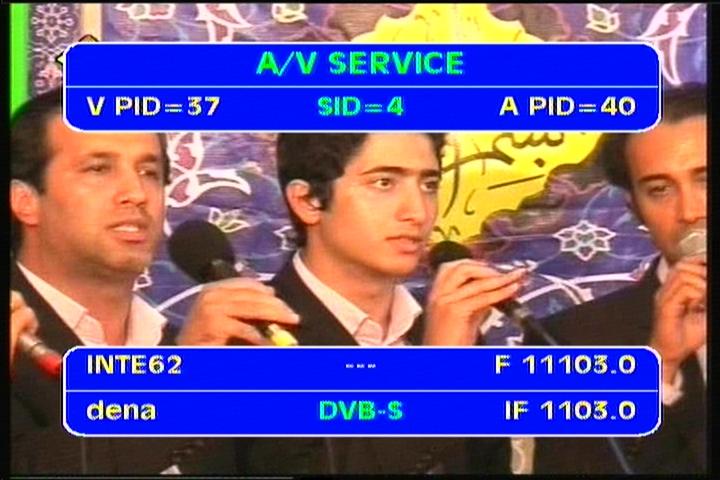

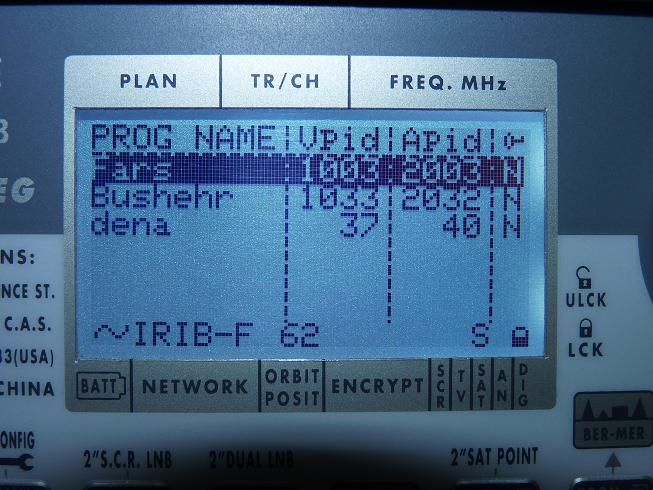

                                Intelsat 902 at 62.0°E - SPOT 1 Middle East : 11 103 V  IRIB Network Iran
                         VA pids                                                         Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _11 103 V IRIB network Iran-IF dataIntelsat 902 at 62.0 e_ Middle East beam _11 103 V IRIB network Iran-Q dataIntelsat 902 at 62.0 e_ Middle East beam _11 103 V IRIB network Iran-NIT data

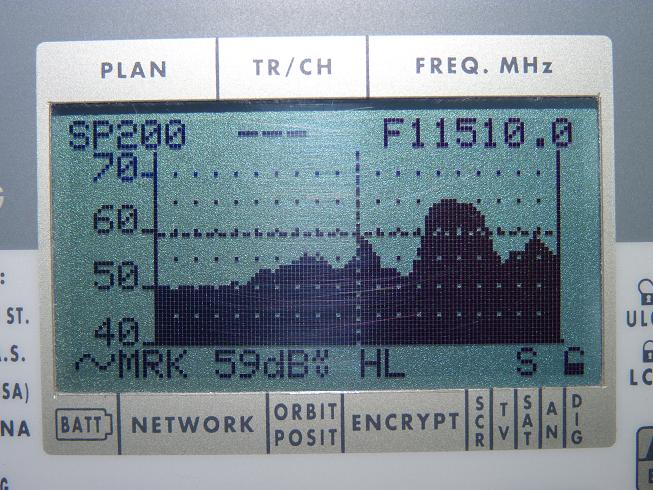

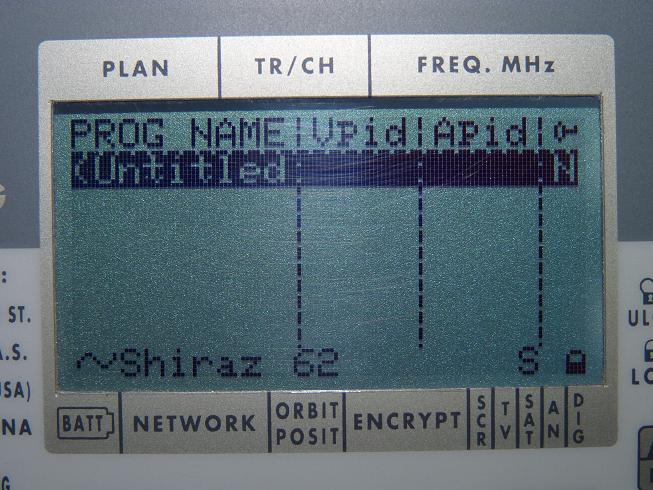

                                        Intelsat 902 at 62.0°E - SPOT 1 Middle East : 11 510 V  Shiraz data
                         spectral analysis                                       Q data                                                    NIT data

Intelsat 902 at 62.0 e_ Middle East beam _11 510 V Shiraz data-sp analysisIntelsat 902 at 62.0 e_ Middle East beam _11 510 V Shiraz data-Q analysisIntelsat 902 at 62.0 e_ Middle East beam _11 510 V Shiraz data-NIT data

Intelsat 902 at 62.0°E : TV List

            Intelsat 902 at 62.0 e_ Middle East beam_PF Prodelin 3.7 m-02


-Frequency-


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---DVB/Encryption---

10 962 -V- tp 61

IRIB Network 5 300 3/4 SPOT 1 Middle East 240-500+ cm DVB
  IRIB Khoozestan   watch video         FTA
  IRIB Aflak TV             FTA

10 973 -V- tp 61

IRIB Network 8 150 3/4 SPOT 1 Middle East 240-500+ cm DVB
  IRIB Ilam    watch video            FTA
  IRIB Kordestan         FTA
  IRIB Kermanshah   watch video         FTA

10 981 -V- tp 61

IRIB Network 5 300 3/4 SPOT 1 Middle East 240-500+ cm DVB
  IRIB Tabarestan   watch video         FTA
  IRIB Golestan         FTA

10 988 -V- tp 61

IRIB Network 5 300 3/4 SPOT 1 Middle East 240-500+ cm DVB
  IRIB Sahand         FTA
  IRIB Sabalan   watch video         FTA

10 993 -V- tp 61

IRIB Khorasan   watch video 3 600 2/3 SPOT 1 Middle East 240-500+ cm DVB FTA

11 003 -V- tp 62

feeds IRIB

 3 300
 3 100
 3 600
 3/4 SPOT 1 Middle East 240-500+ cm DVB FTA

11 007 -V- tp 62

feeds IRIB

 3 100
 3 600
 3 300
3/4 SPOT 1 Middle East 240-500+ cm DVB FTA

11 012 -V- tp 62

feeds IRIB

 3 300
 3 100
 3 600
3/4 SPOT 1 Middle East 240-500+ cm DVB FTA

11 088 -V- tp 62

IRIB Esfahan   watch video 3 600 2/3 SPOT 1 Middle East 240-500+ cm DVB FTA

11 093 -V- tp 62

IRIB Azarbayan   watch video 3 600 2/3 SPOT 1 Middle East 240-500+ cm DVB FTA

11 103 -V- tp 62

IRIB Network 10 000 2/3 SPOT 1 Middle East 240-500+ cm DVB
  Fars TV  watch video         FTA
  Bushehr TV         FTA
  Dena TV             FTA

11 510 -V- tp 64

Data Shiraz

3 328 7/8 SPOT 1 Middle East 240-500+ cm MPEG-2/data

11 555 -V- tp 65

no lock / unknown format

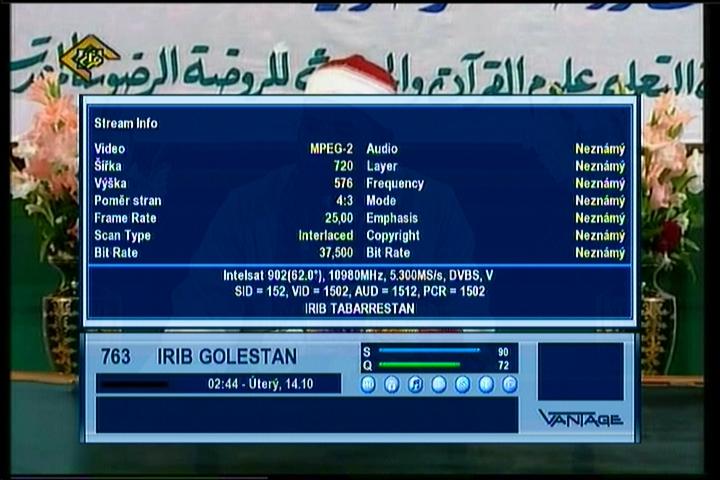

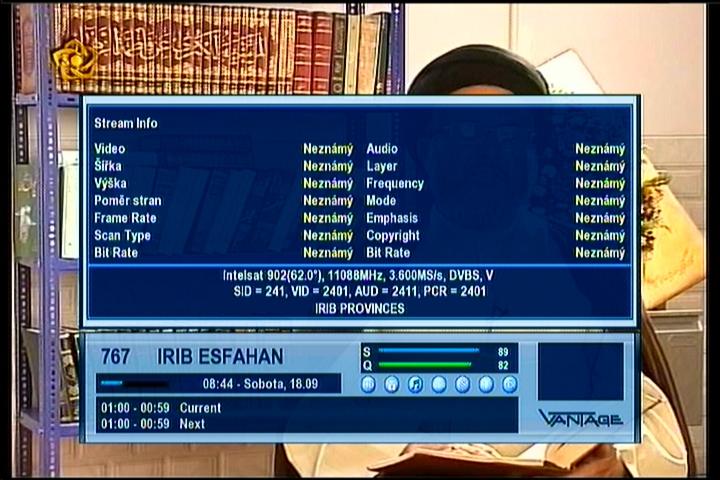

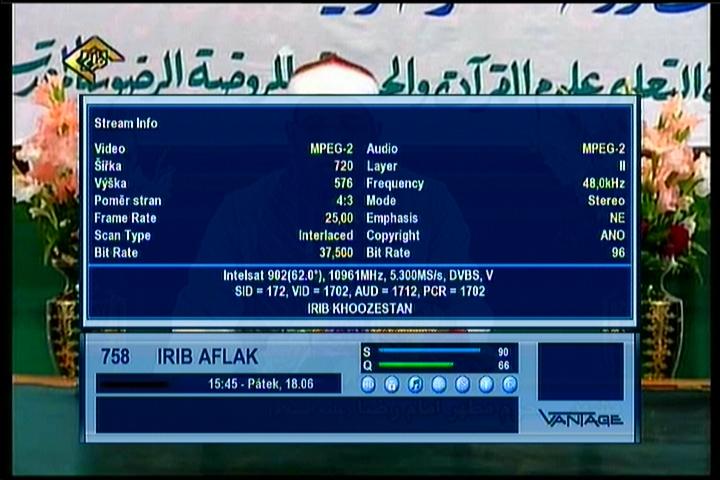

Intelsat 902 at 62.0°E : Stream & NIT data & relative quality

relative q 01relative q 02relative q 03

Intelsat 902 at 62.0°E : Video presentations_Middle East beam


  Go to Video Section:
button



Intelsat 902 at 62.0°E : Update prepare

             dxsatcs logo
                   CZECH & SLOVAK DX SATELLITE CLUB

international professional portal
                                        think-tank
                        Roman Dávid - author & founder
                        mail :
roman.david@dxsatcs.com

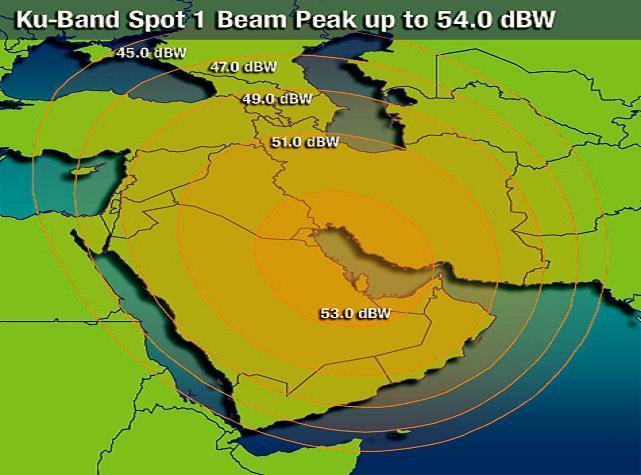

Intelsat 902 at 62.0°E : European and Middle East beam
