Intelsat 904 at 60.0°E

Intelsat 904 at 60.0°E : Technical data

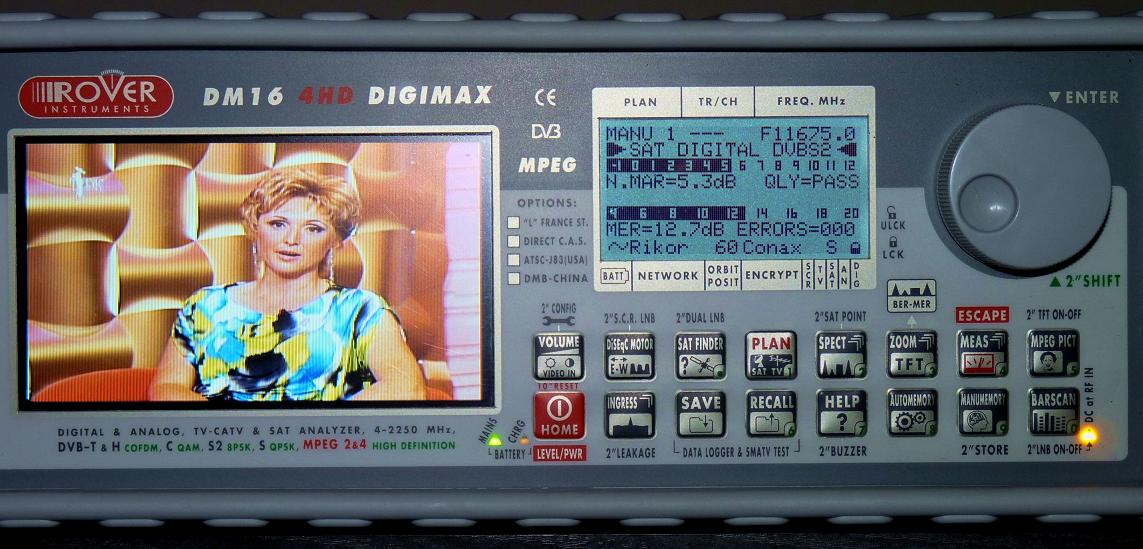

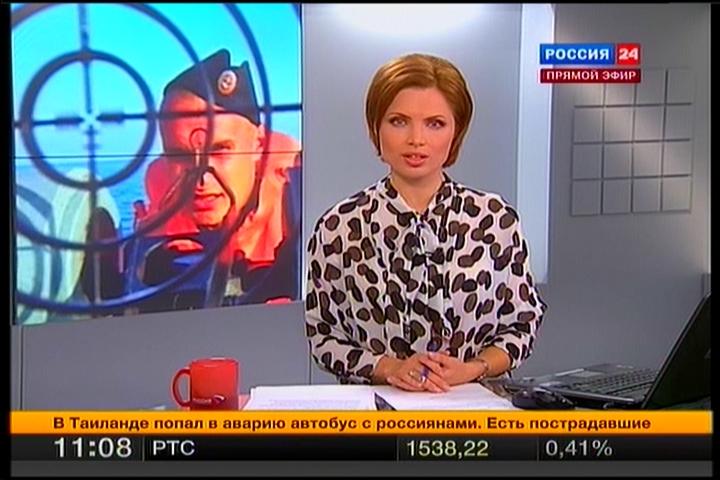

                 IS 904 at 60.0°E - SPOT 1 Russia : 11 675 V DVB-S2/FTA Rossiya 24 - qualitative peak MER=12.7 dB

                  Satellite : Intelsat 904 - Orbit : 60.0°E - TP : 72 C/22 KU - Lifetime : from 23.2.2002 - 13 years

Intelsat 904 at 60.0°E - SPOT 1 Russia : spectral analysis and measuremet results

  Intelsat 904 at 60.0°E - SPOT 1 Russian beam : measurements at the center Lučenec_central Slovakia

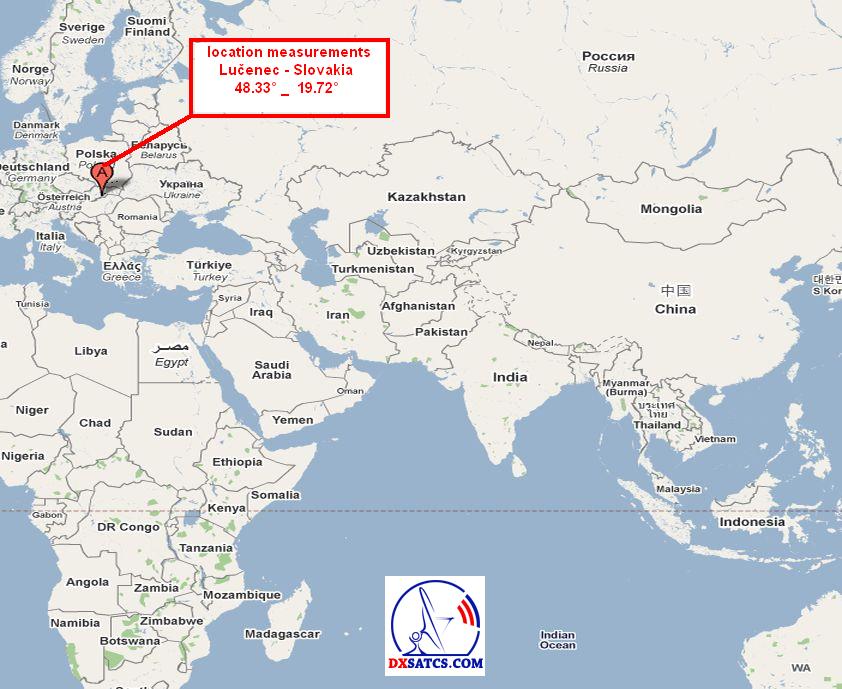

                                            geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                       measurement results are derived from the 3.7 m diameter antenna
                                                                     date of measurement : 3.10.2010
                                                                              elevation angle  : 22.5°

.

       Intelsat 904 footprint : russian              Intelsat 904 : installed system              Intelsat 904 : research point

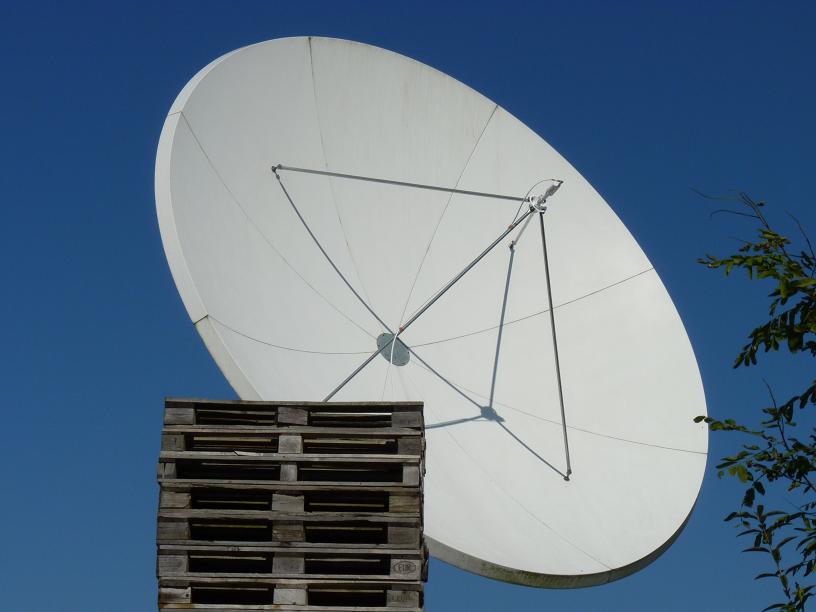

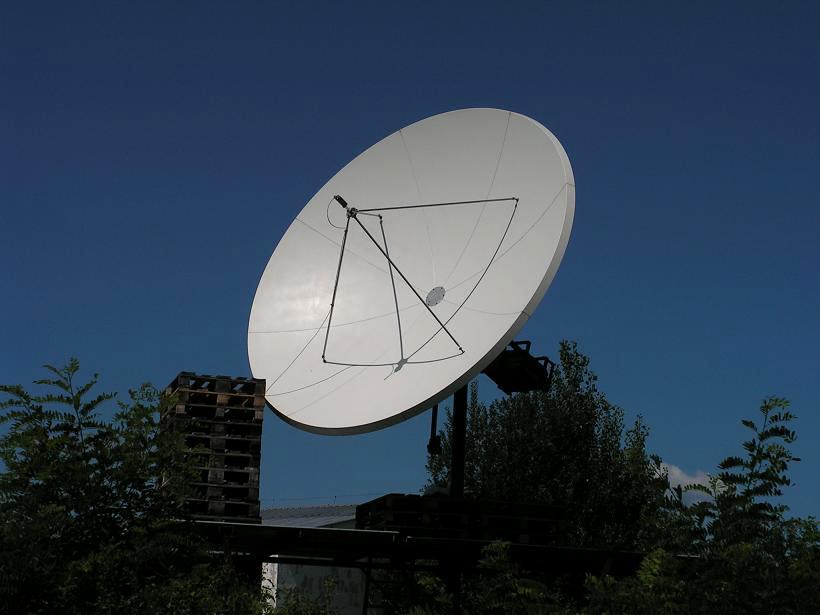

 reception option is guaranteed in areas                    Prodelin 3.7 m                          town Lučenec / Slovak republic
                Europe , West Asia ...              dxsatcs waveguide line+Norsat 4206 BF                48.33° _ 19.72°

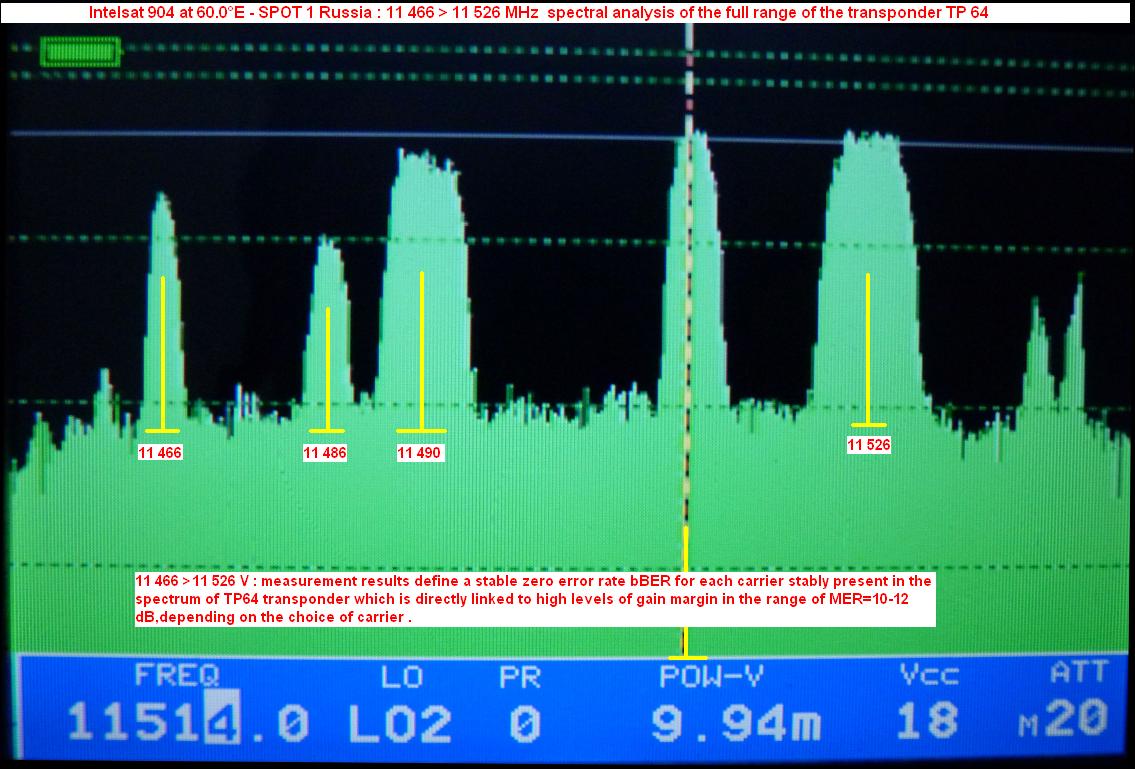

                    --- IS 904 at 60.0°E-SPOT 1 Russia : spectral analysis of the full range of the transponder TP 64 ---

        >>> 3.10.2010 at at 9:40 o'clock I'm in the frequency range of V vector of TP64 identified these transfers : >>>
             11 466/ACC Back Intelsat > 11 486/feeds > 11 490/NTK Kuban > 11 512/Nika TV > 11 526/Data

                                                                                 click for enlarge

                                                                   - time of measurement : 3.10.2010 -
                                                                      - defining the status of reception -

11 466 >11 526 V-TP64 : measurement results define a stable zero error rate bBER for each carrier stably present in the
spectrum of TP64 transponder which is directly linked to high levels of gain margin in the range of MER=10-12 dB,depending
on the choice of carrier .

                                                                      --- IS 904 measuremet results ---

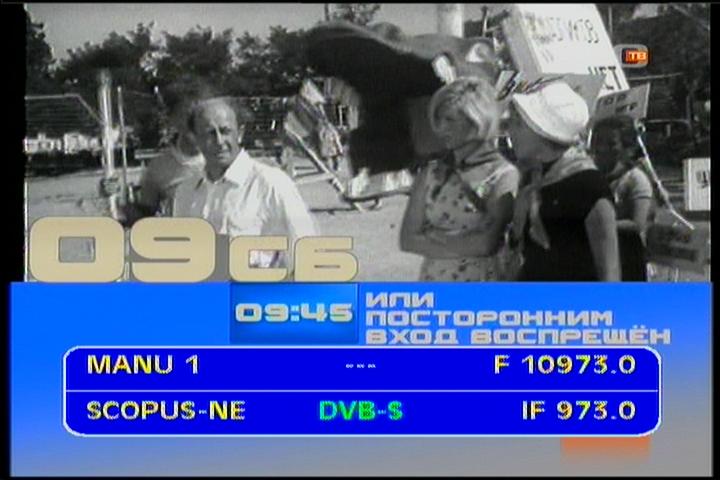

                                              Intelsat 904 at 60.0°E - SPOT 1 Russia : 10 973 V 100 TV
                          IF data                                                     Q data                                                  NIT data

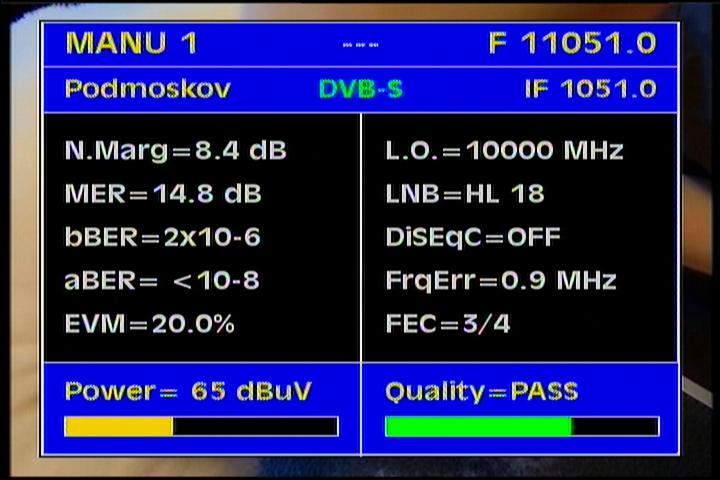

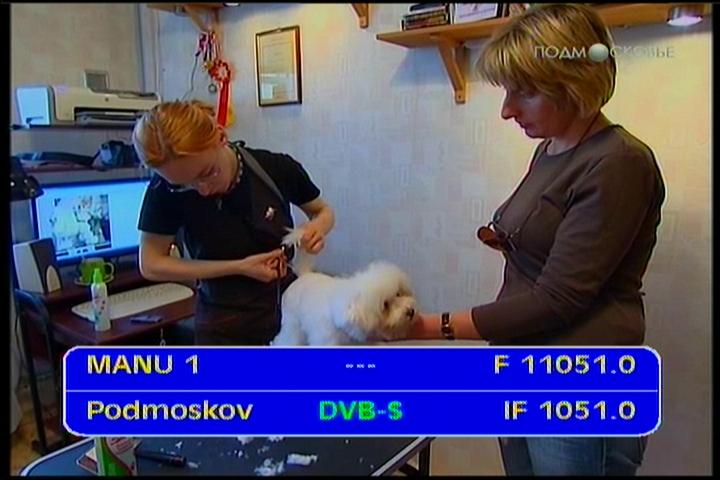

                                        Intelsat 904 at 60.0°E - SPOT 1 Russia : 11 051 V Podmoskove
                          IF data                                                     Q data                                                  NIT data

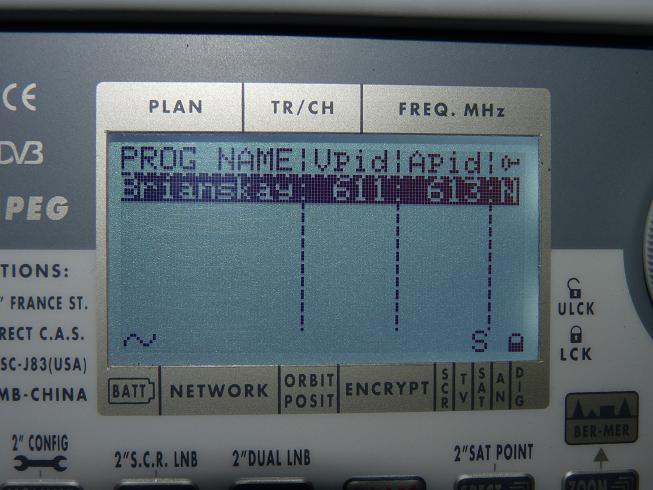

                                  Intelsat 904 at 60.0°E - SPOT 1 Russia : 11 097 V Bryanskaya Gubernia
                          IF data                                                     Q data                                                  NIT data

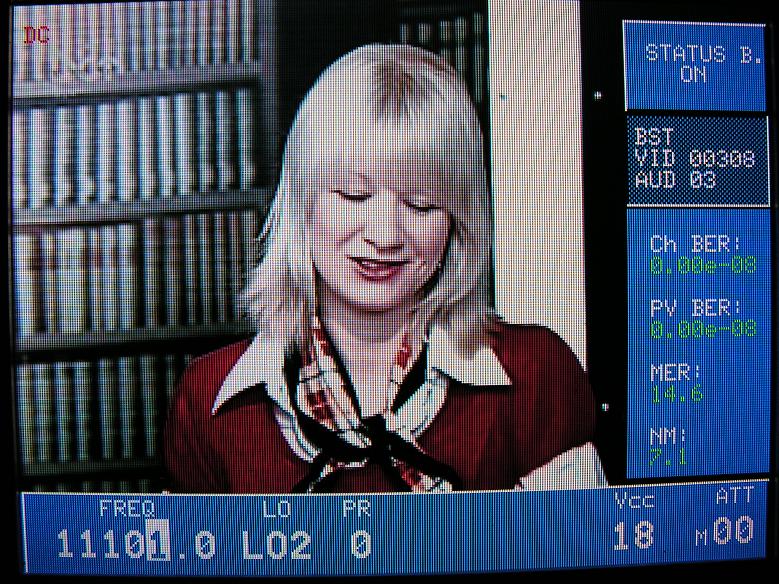

                                                Intelsat 904 at 60.0°E - SPOT 1 Russia : 11 101 V BST
                          IF data                                                     Q data                                                  NIT data

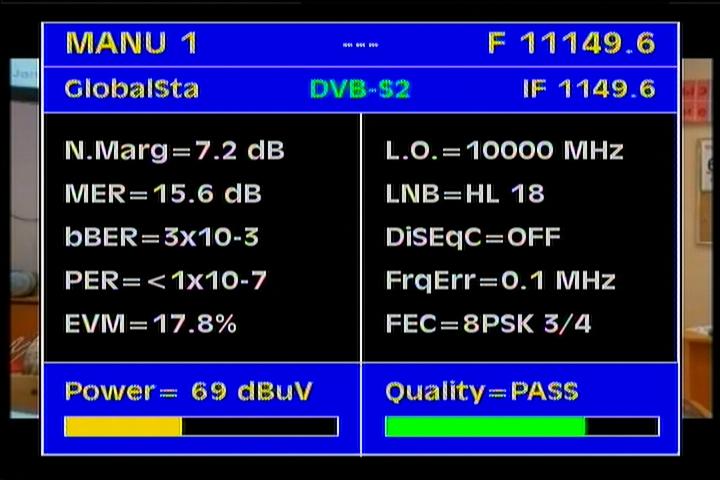

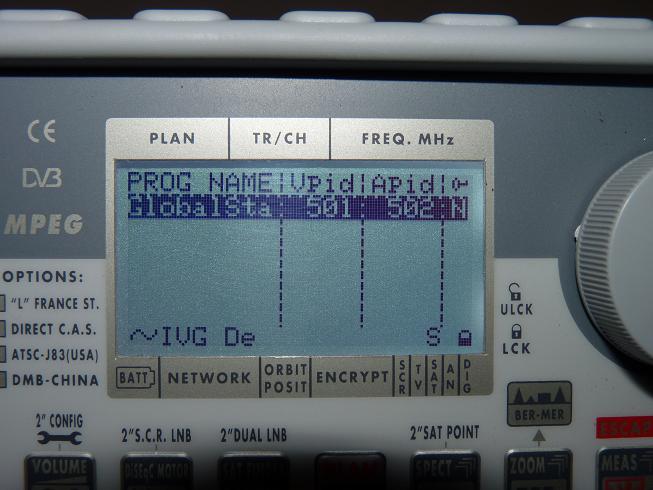

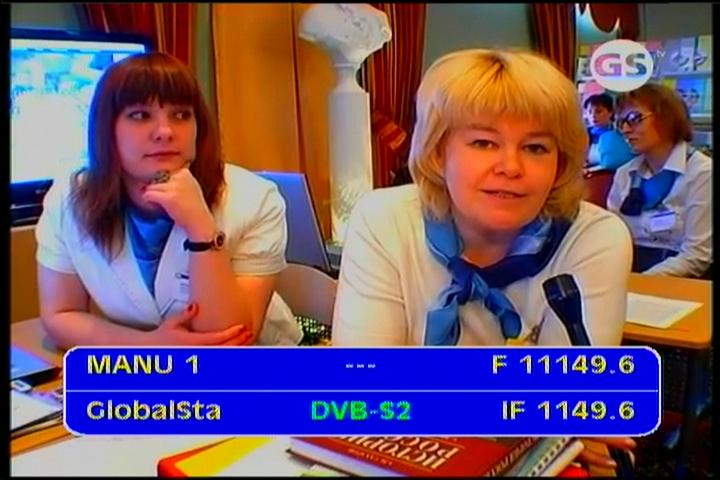

                                            Intelsat 904 at 60.0°E - SPOT 1 Russia : 11 149 V GlobalStar
                          IF data                                                     Q data                                                  NIT data

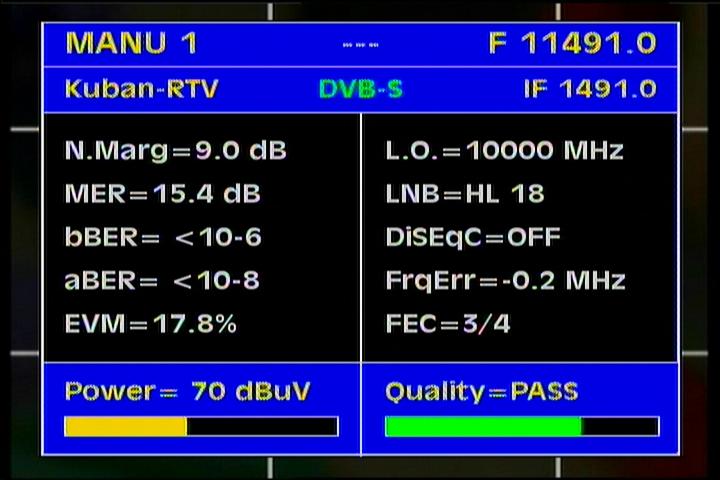

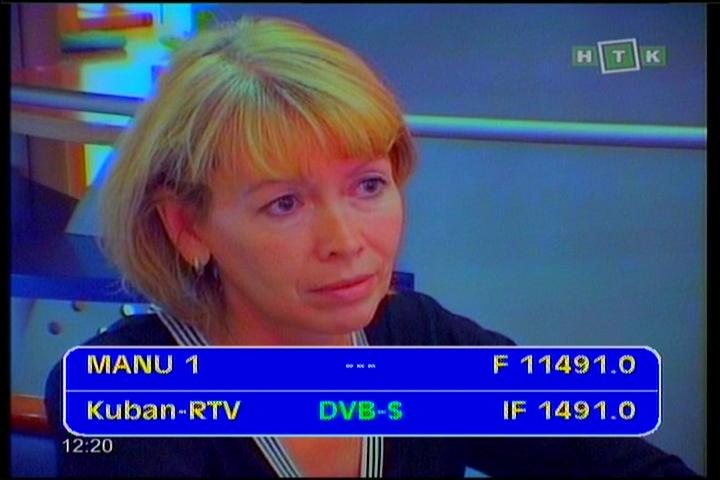

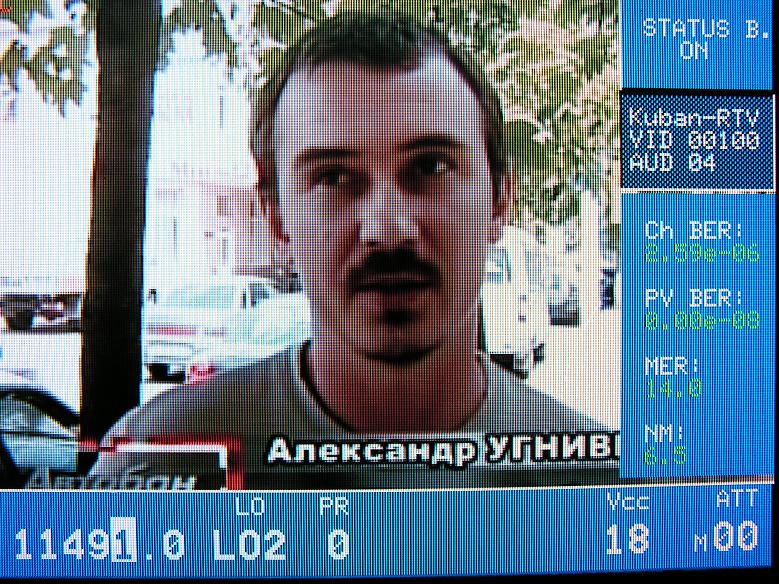

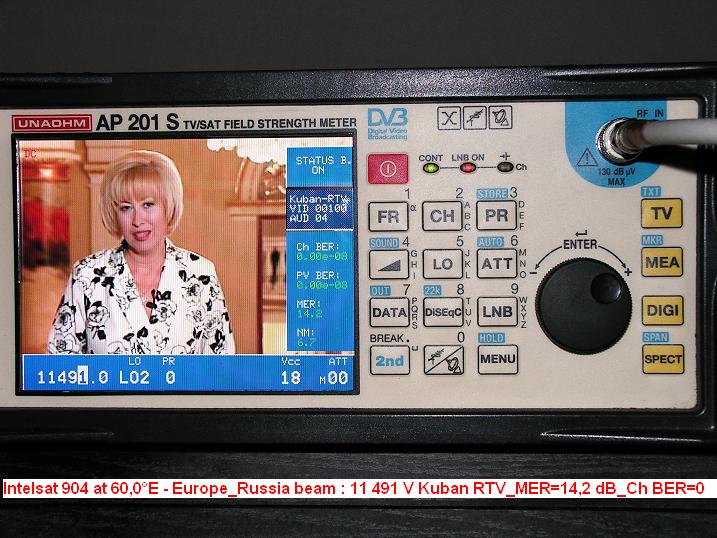

                                           Intelsat 904 at 60.0°E - SPOT 1 Russia : 11 491 V Kuban RTV
                          IF data                                                     Q data                                                  NIT data

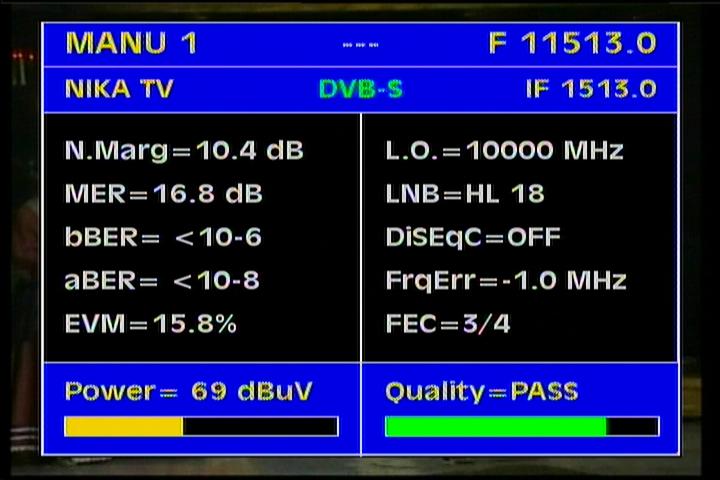

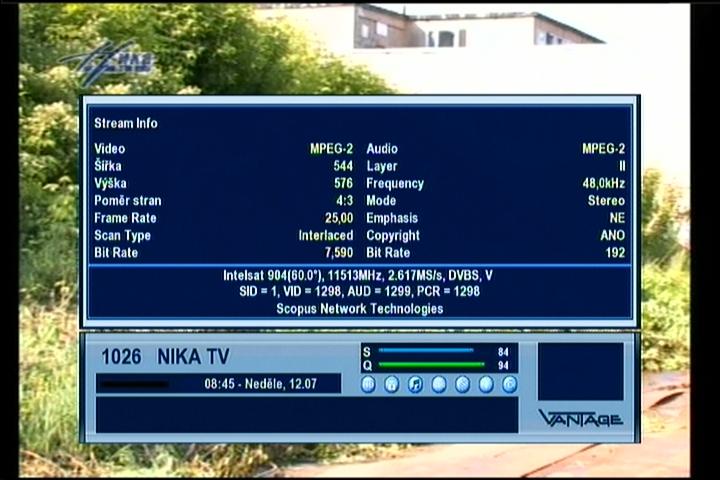

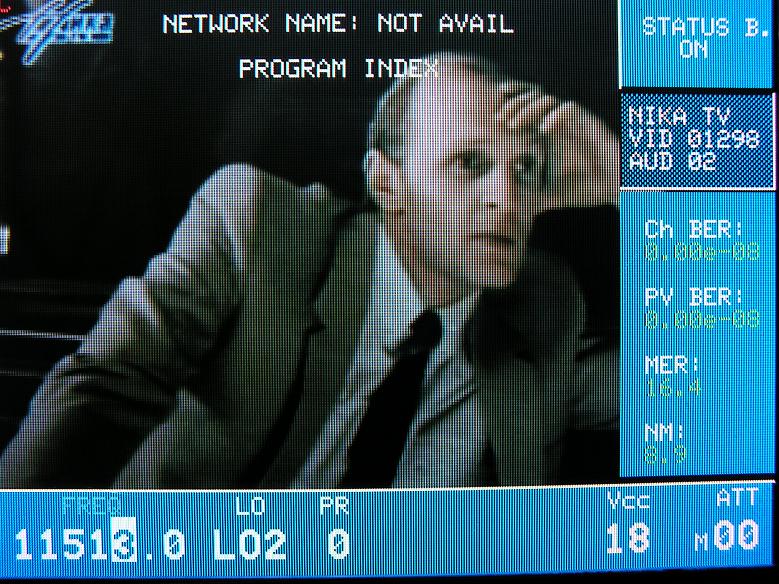

                                            Intelsat 904 at 60.0°E - SPOT 1 Russia : 11 513 V NIKA TV
                          IF data                                                     Q data                                                  NIT data

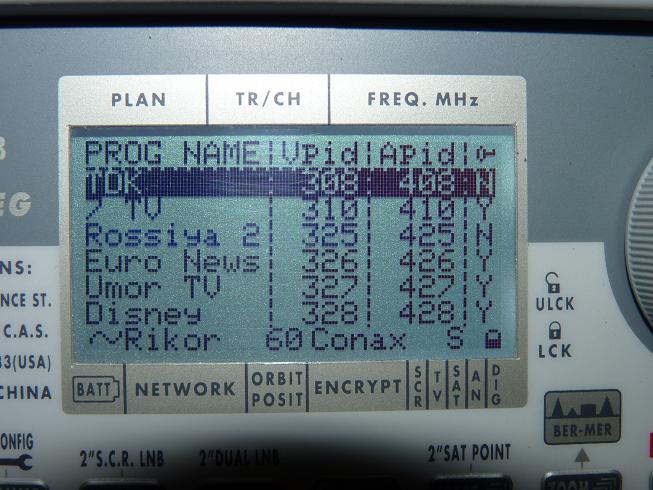

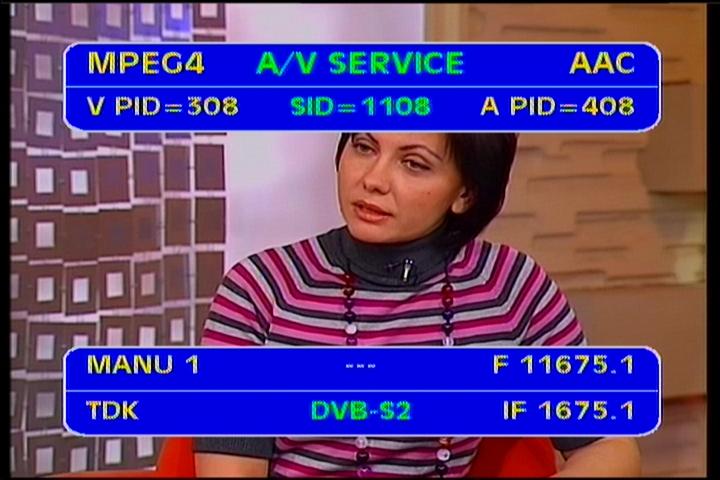

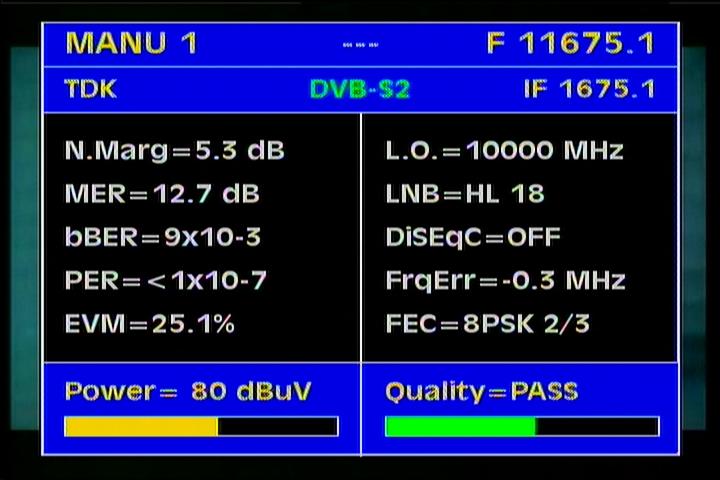

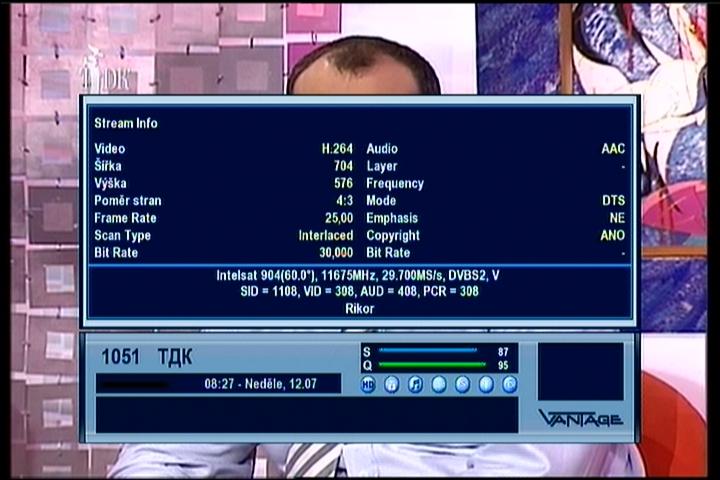

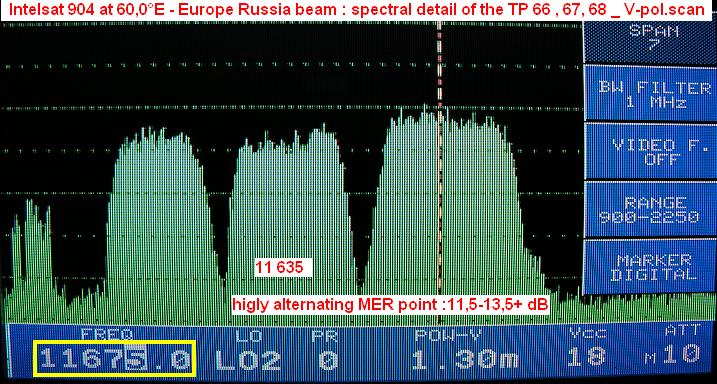

                                       Intelsat 904 at 60.0°E - SPOT 1 Russia : 11 675 V packet Rikor TV
                          IF data                                                     Q data                                                  NIT data



Intelsat 904 at 60.0°E : TV List

.

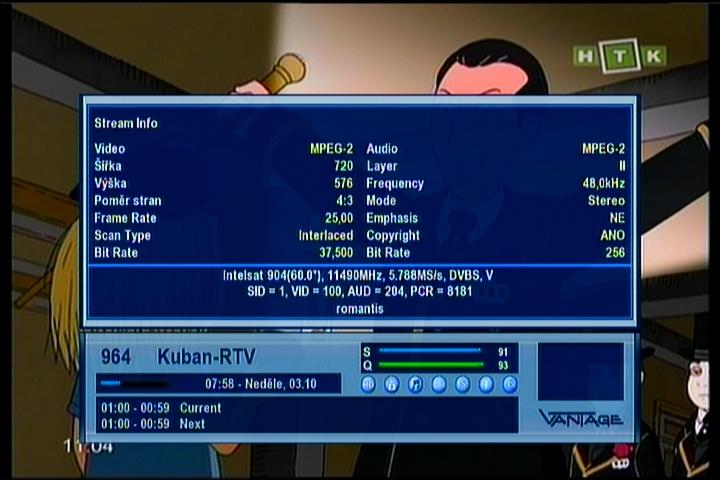

Intelsat 904 at 60.0°E : relative quality

Intelsat 904 at 60.0°E : Video presentations


     Go to Video section :                    Go to video section :

              Feeds                                            regular

Intelsat 904 at 60.0°E : Update prepare



             CZECH & SLOVAK DX SATELLITE CLUB
                  international professional portal
                               think-tank
                  Roman Dávid - author & founder
                 mail : roman.david@dxsatcs.com

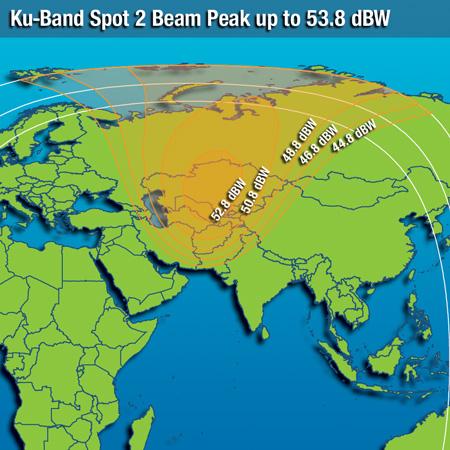

Intelsat 904 at 60.0°E : S1-Russia/Europe beam + S2-West Asia beam
