Intelsat 906 at 64.2°E

By Roman Dávid. ,

Intelsat 906 at 64.2°E : Technical data

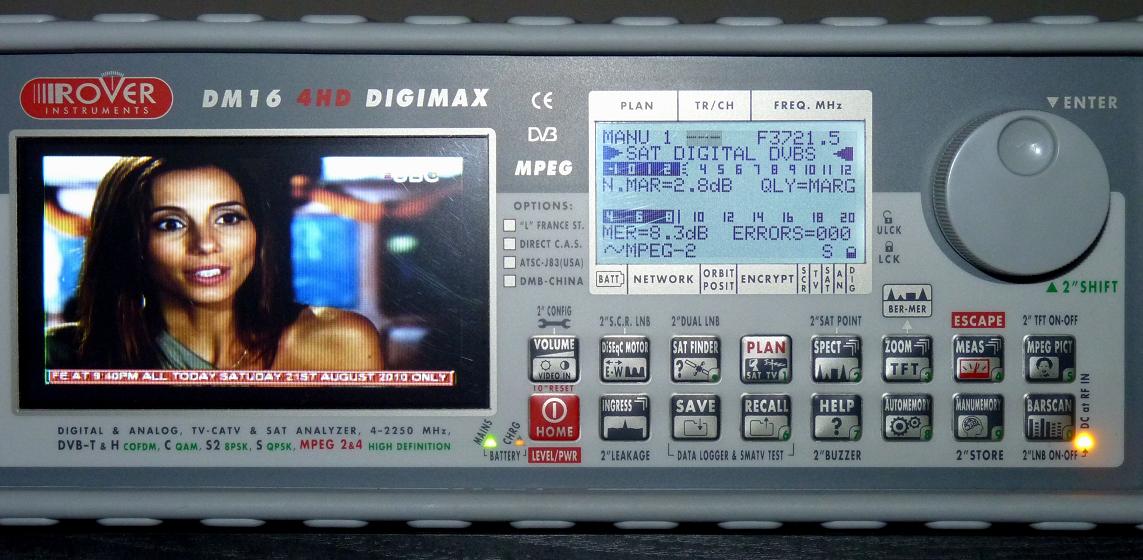

                    Intelsat 906 at 64.2°E-footprint > west hemisphere : 3 721 R UBC Uganda _qualitative peak MER=8.4 dB

Intelsat 906 at 64.2 e-footprint west hemi-3 721 uvod 02 n
                        Satellite : Intelsat 906 - Orbit : 64.2°E - TP : 72 C/22 KU - Lifetime : from 6.9.2002 - 13 years




Intelsat 906 at 64.2°E-global+west hemi footprint : spectrum analysis and measurement of quality

      Intelsat 906 at 64.2°E - global+west hemi footprint :  measurements at the center Lučenec_central Slovakia
                                            geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                        measurement results are derived from the 3.7 m diameter antenna
                                                                 date of measurement : 21.8. 2010
                                                                              elevation angle  : 20°

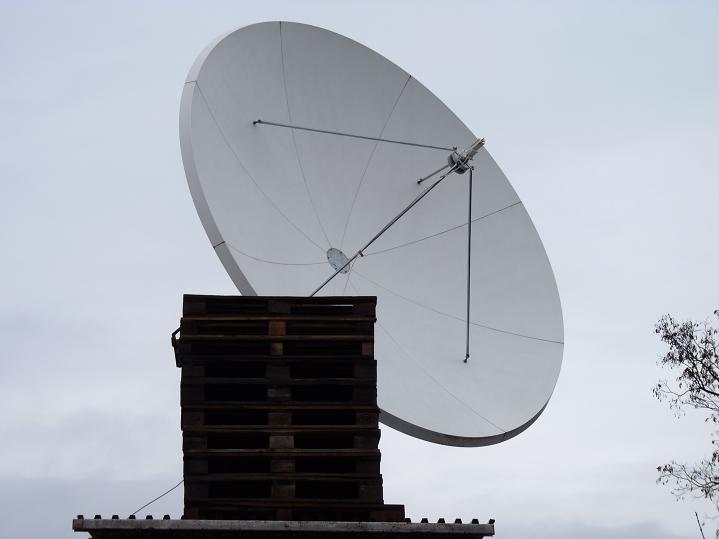

                Intelsat 906 footprint                  Intelsat 906 : installed system             Intelsat 906 : measurement point
    measurements in these diagrams >         PF Prodelin 3.7 m+Norsat 8215              town Lučenec / Slovak republic
        >  Global & West Hemisphere                                                                                                48.33° _ 19.72°
Intelsat 906 at 64.2 e-footprintIntelsat 906 at 64.2 e-PF Prodelin 3.7 mIntelsat 906 at 64.2 E-C band footprint-measurement point

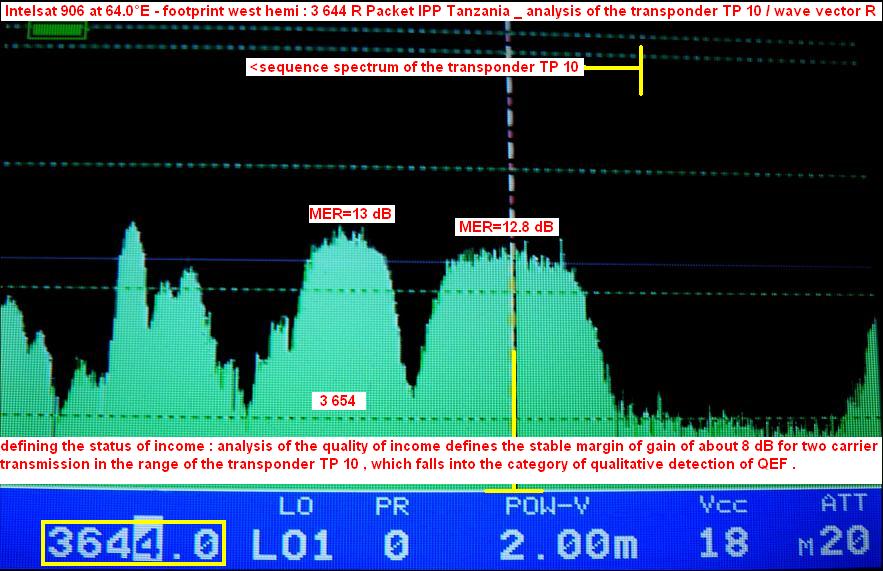

                                             --- Intelsat 906 at 64.2°- west hemisphere : spectral analysis ---

                                                                 3 644 R / TP 10 : IPP Tanzania netw.
                                                                 3 654 R / TP 10 : Unnamed netw.
                 Intelsat 906 at 64.2 e _ west hemi footprint_spectral analysis n
                                                                  - time of measurement : 21.8.2010 -
                                                                     - defining the status of reception -

Intelsat 906 at 64.2°E - West hemi footprint : analysis of the quality of income defines the stable margin of gain
of about 8 dB for two carrier transmission in the range of the transponder TP 10 , which falls into the category of
qualitative detection of QEF .

                                                         --- Intelsat 906 at 64.2°E :  measurement results ---

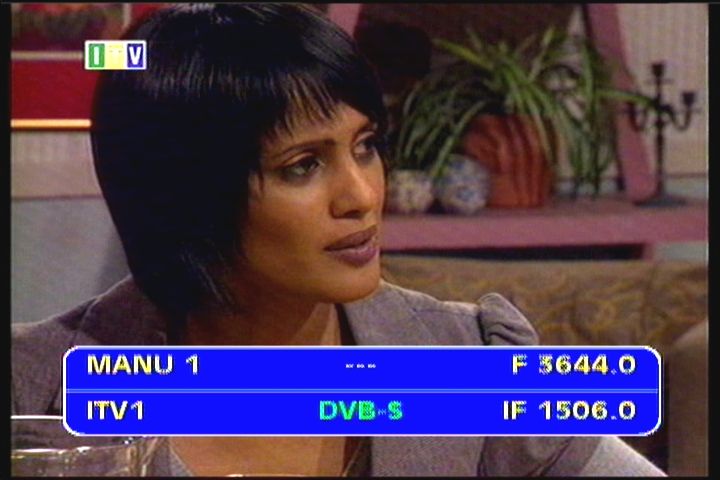

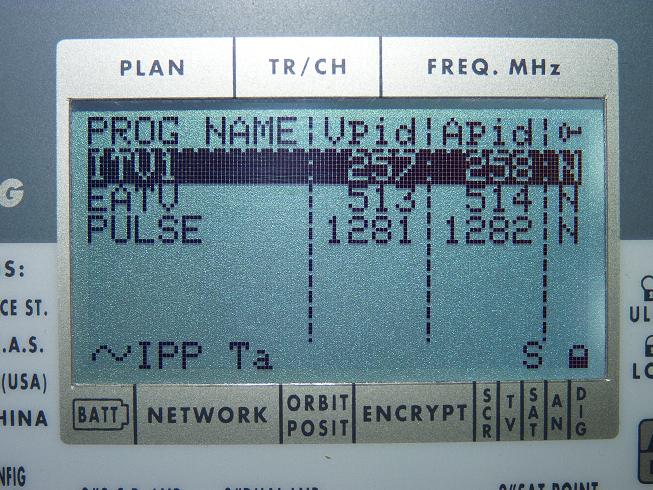

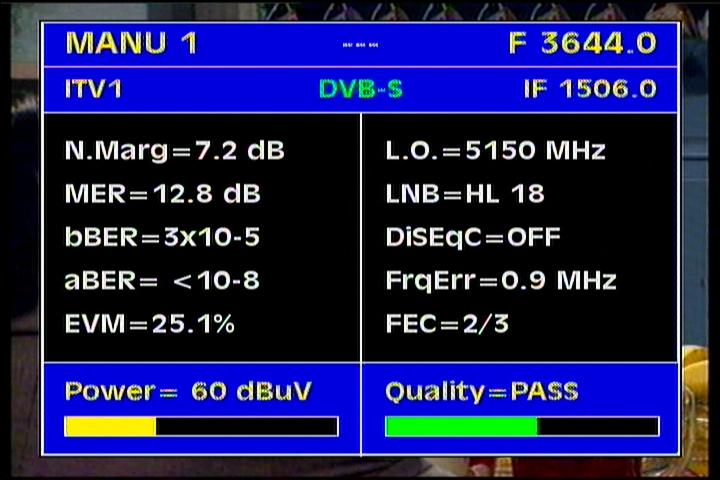

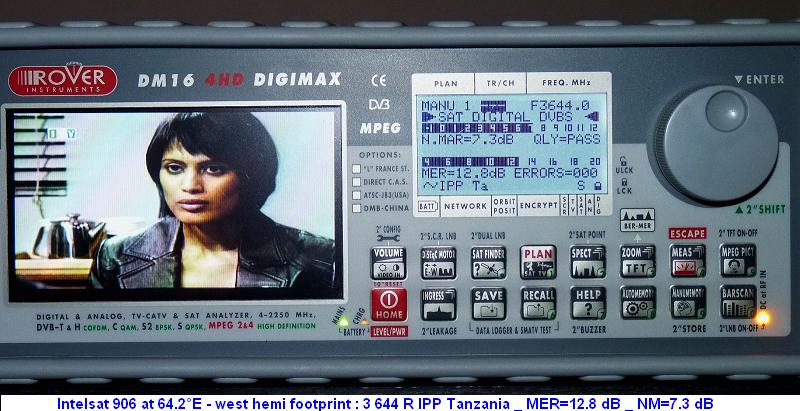

                                   Intelsat 906 at 64.2°E - West Hemisphere : 3 642 R IPP Tanzania network
                         VA pids                                                      Q data                                                     NIT data
Intelsat 906 at 64.2 e _ west hemi footprint_3 644 R IPP Tanzania netw._IF dataIntelsat 906 at 64.2 e _ west hemi footprint_3 644 R IPP Tanzania netw._Q dataIntelsat 906 at 64.2 e _ west hemi footprint_3 644 R IPP Tanzania netw._NIT data

                                   Intelsat 906 at 64.2°E - West Hemisphere : 3 654 R Unnamed network
                         VA pids                                                      Q data                                                     NIT data
Intelsat 906 at 64.2 e _ west hemi footprint_3 654 R Unn netw._IF dataIntelsat 906 at 64.2 e _ west hemi footprint_3 654 R Unn netw._Q dataIntelsat 906 at 64.2 e _ west hemi footprint_3 654 R Unn netw._NIT data

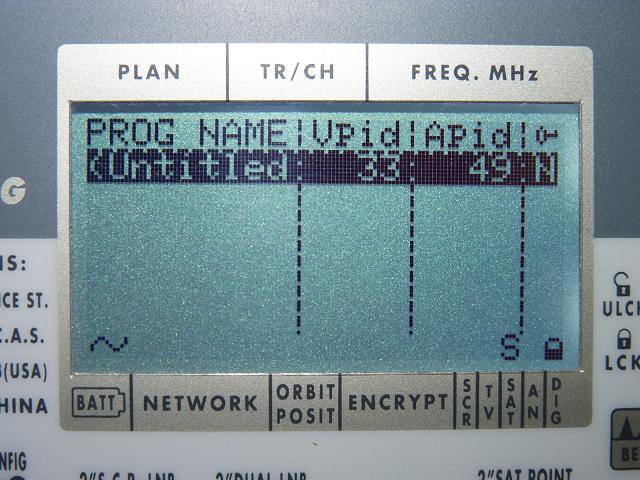

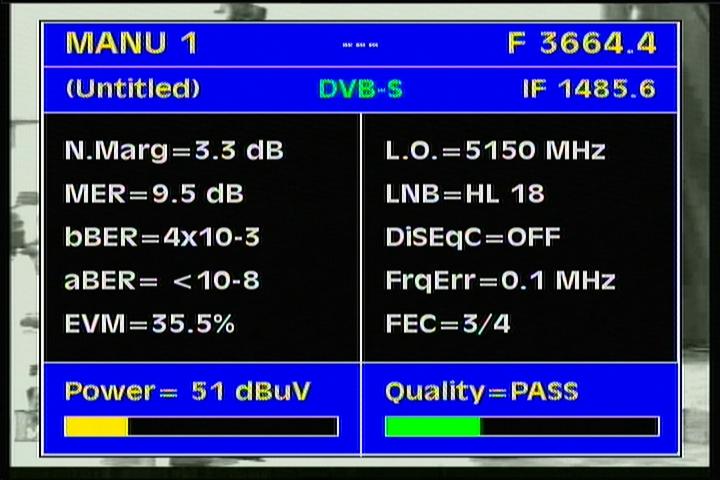

                                         Intelsat 906 at 64.2°E - North West zone : 3 663 LC ACBN Nigeria
                         VA pids                                                      Q data                                                     NIT data
Intelsat 906 at 64.2 e _ west hemi footprint_3 664 L ACBN_IF dataIntelsat 906 at 64.2 e _ west hemi footprint_3 664 L ACBN_Q dataIntelsat 906 at 64.2 e _ west hemi footprint_3 664 L ACBN_NIT data

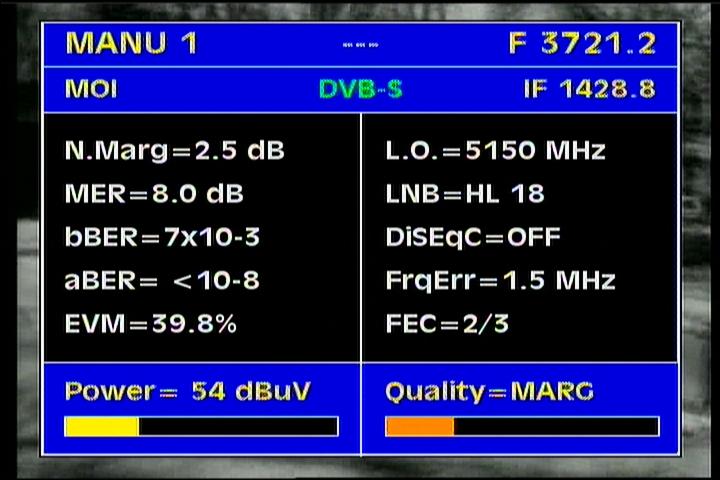

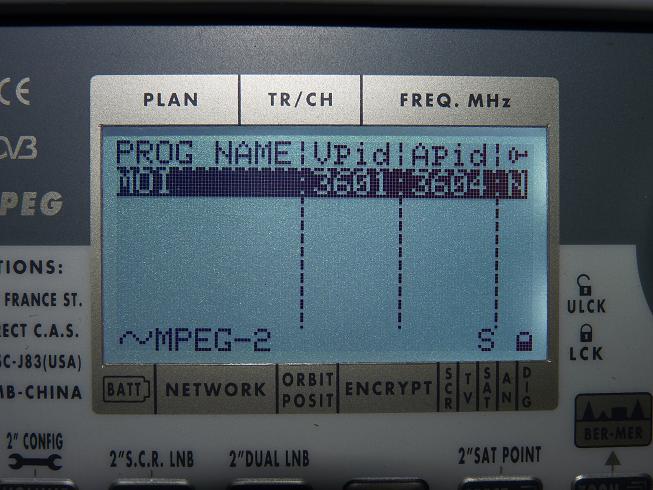

                                     Intelsat 906 at 64.2°E - West Hemisphere : 3 722 R UBC / Uganda TV
                         VA pids                                                      Q data                                                     NIT data
Intelsat 906 at 64.2 e _ west hemi footprint_3 721 R UBC Uganda_IF dataIntelsat 906 at 64.2 e _ west hemi footprint_3 721 R UBC Uganda_Q dataIntelsat 906 at 64.2 e _ west hemi footprint_3 721 R UBC Uganda_NIT data

                                         Intelsat 906 at 64.2°E - West Hemisphere : 3 764 R Al Alamia test
                         VA pids                                                      Q data                                                     NIT data
Intelsat 906 at 64.2 e-footprint west hemi-3 764 R Al Alamia test-IF dataIntelsat 906 at 64.2 e-footprint west hemi-3 764 R Al Alamia test-Q dataIntelsat 906 at 64.2 e-footprint west hemi-3 764 R Al Alamia test-NIT data

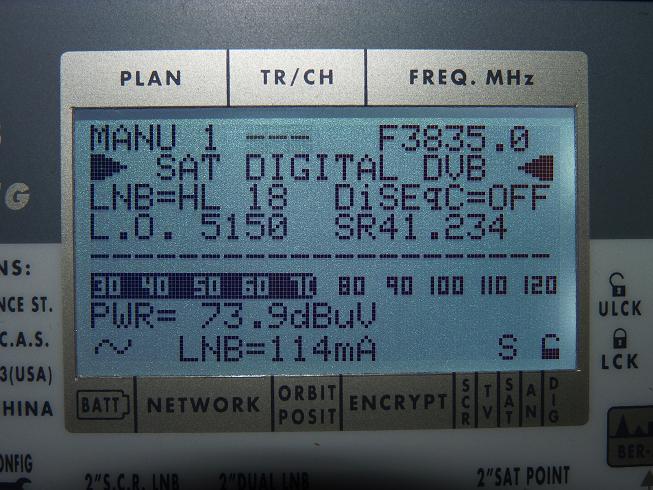

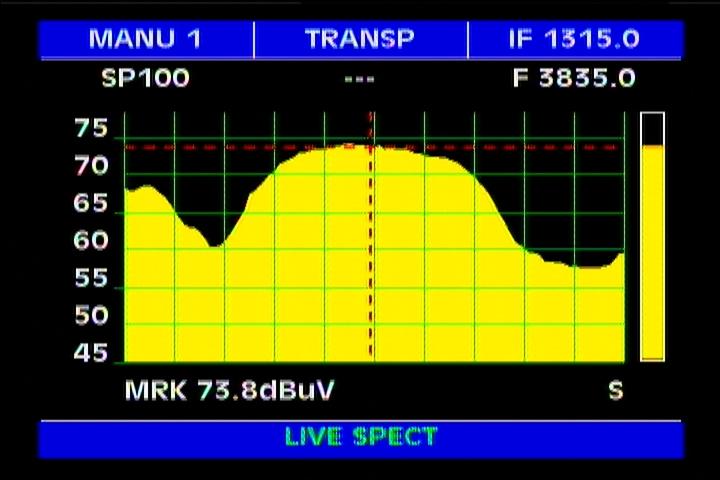

                                      Intelsat 906 at 64.2°E - West Hemisphere : 3 835 R DVB-S Data network
                         sp. analysis                                              Q data                                                     NIT data
Intelsat 906 at 64.2 e _ west hemi footprint_3 835 R DVB S Data network_spectral analysisIntelsat 906 at 64.2 e _ west hemi footprint_3 835 R DVB S Data network_Q dataIntelsat 906 at 64.2 e _ west hemi footprint_3 835 R DVB S Data network_SR data

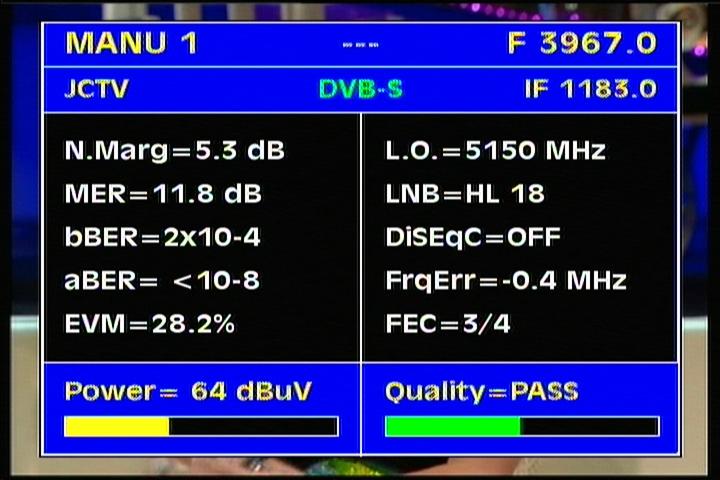

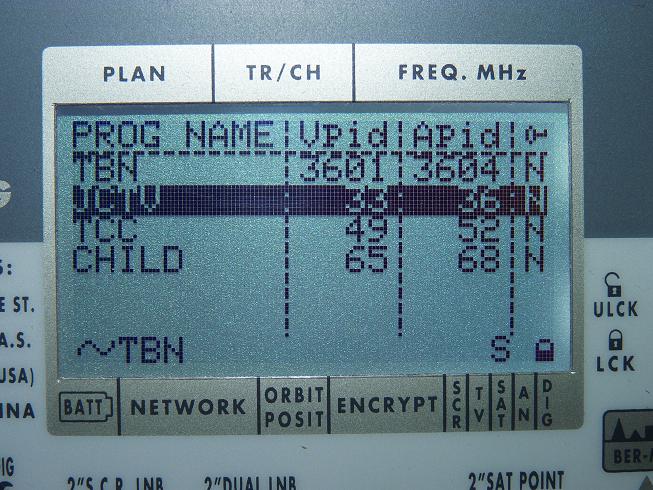

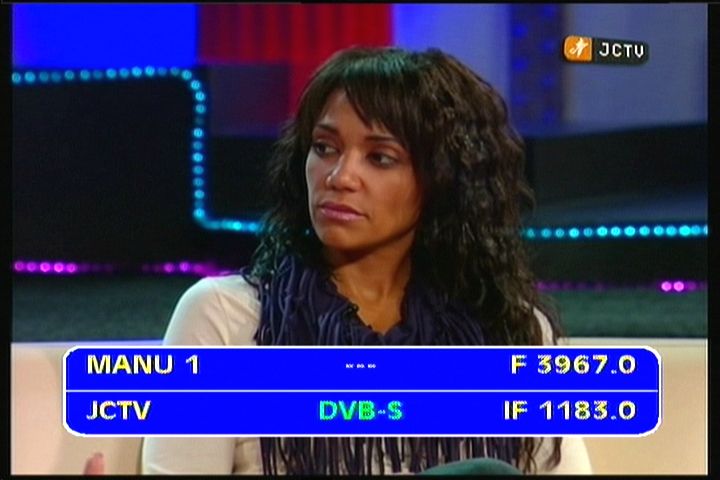

                                        Intelsat 906 at 64.2°E - West Hemisphere : 3 965 R TBN  Network
                         VA pids                                                      Q data                                                     NIT data
Intelsat 906 at 64.2 e _ west hemi footprint_3 967 R TBN netw._IF dataIntelsat 906 at 64.2 e _ west hemi footprint_3 967 R TBN netw._Q dataIntelsat 906 at 64.2 e _ west hemi footprint_3 967 R TBN netw._NIT data

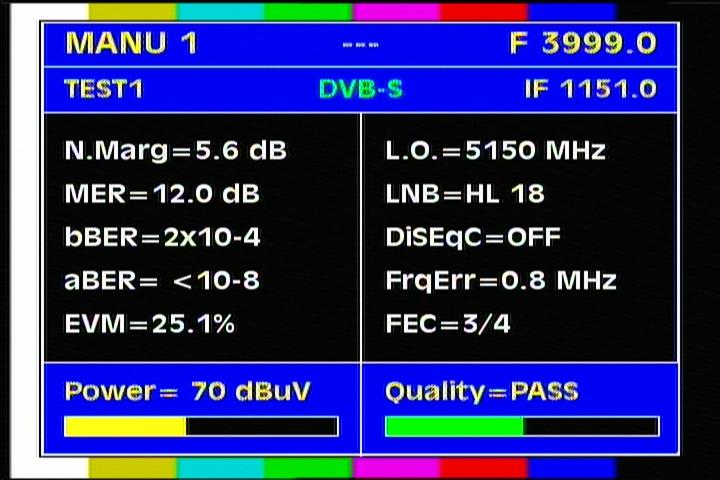

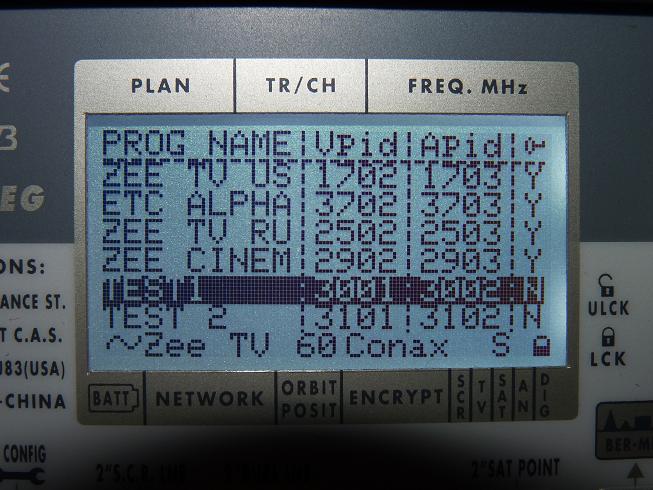

                                      Intelsat 906 at 64.2°E - West Hemisphere : 3 998 R ZEE TV Network
                         VA pids                                                      Q data                                                     NIT data
Intelsat 906 at 64.2 e _ west hemi footprint_3 999 R Zee netw._IF dataIntelsat 906 at 64.2 e _ west hemi footprint_3 999 R Zee netw._Q dataIntelsat 906 at 64.2 e _ west hemi footprint_3 999 R Zee netw._NIT data

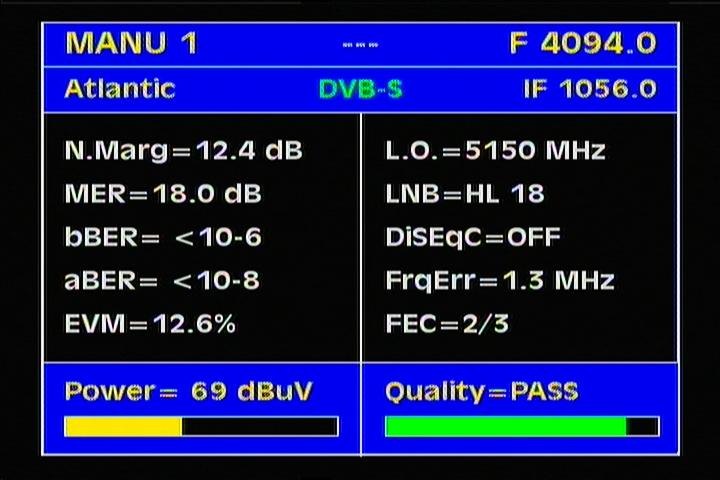

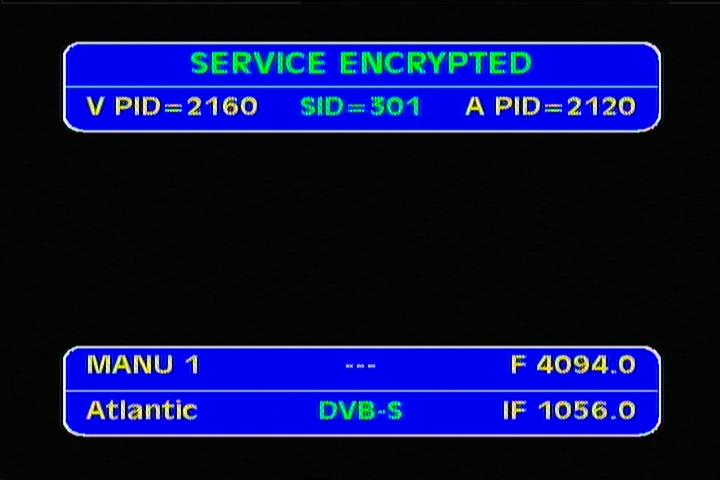

                                          Intelsat 906 at 64.2°E - Global footprint : 4 094 L AFN Network
                         VA pids ...                                            Q data ...                                                    NIT data ...
Intelsat 906 at 64.2 e _ west hemi footprint_4 094 L AFN Network_IF dataIntelsat 906 at 64.2 e _ west hemi footprint_4 094 L AFN Network_Q dataIntelsat 906 at 64.2 e _ west hemi footprint_4 094 L AFN Network_NIT data

Intelsat 906 at 64.2°E : TV List

Intelsat 906 at 64.2 e _ west hemi footprint_PF Prodelin 3.7 m


---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 642 -R- tp 10

 IPP Tanzania Network 8 545 2/3 West hemi 150-180+ cm DVB
  ITV 1   watch video         FTA
  EATV         FTA
  Pulse/Capital    watch video         FTA

3 655 -R- tp 10

 Unn. Network / Tandberg 5 632 3/4 West hemi 150-180+ cm DVB

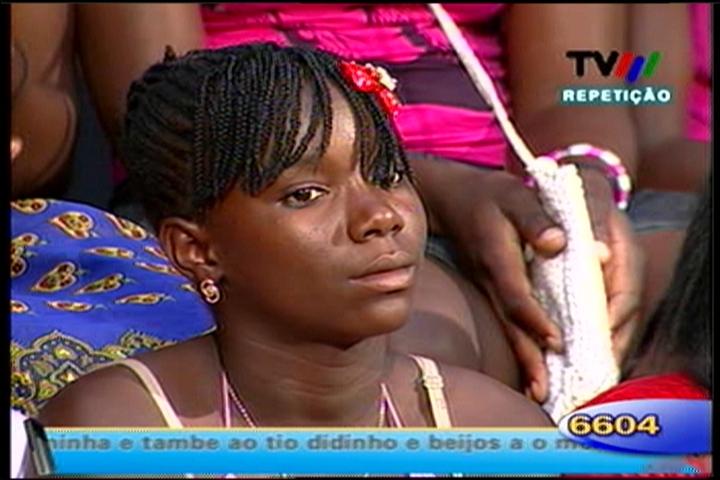

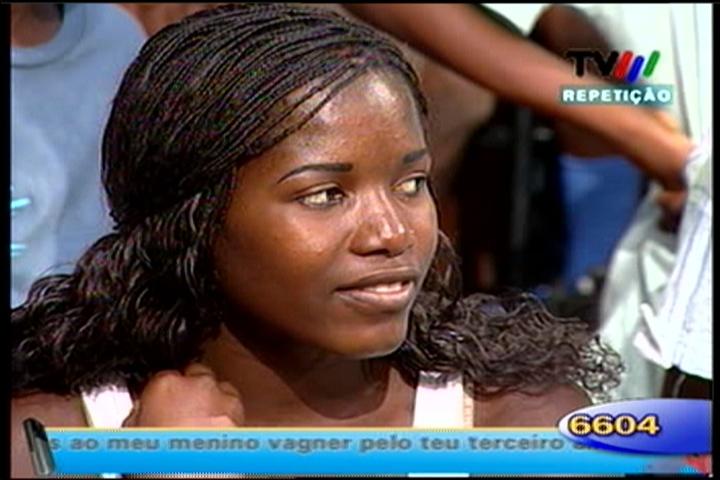

  TV Mozambique   watch video         FTA
  TIM Mozambique         FTA
  TPA 1 Angola         FTA

3 663 -L- tp 40

ACBN Nigeria   watch video

 2 170 3/4 NW Zone 180-240+ cm DVB FTA

3 722 -R-tp 11

 MOI_UBC TV Uganda   watch video 4 882 2/3 West hemi 220-270+ cm DVB FTA

3 764 -R- tp

Al Alamia test_BT5 test watch wideo

 3 255 3/4 West hemi 180+ cm DVB FTA

3 835 -R- tp ?

 Data network
 		 41 234 3/4 West hemi 180+ cm DVB-S data

3 884 -L- tp 93

 STAR TV Tanzania 3 271 3/4 SW zone 400-500+ cm DVB FTA

3 893 -L- tp 93

 TBC 1 Tanzania 4 440 1/2 SW zone 400-500+ cm DVB FTA

3 900 -L- tp 93

 Agape TV Network 3 800 1/2 SW Zone 400-500+ cm DVB FTA

3 905 -L- tp 53

Mongolian Mux

 27 700 1/2 NE Zone 450-600+ cm DVB
  Education TV         FTA
  9 TV         FTA
  Channel 25         FTA
  MNB TV         FTA

3 906 -L- tp 93

 Channel Ten 2 844 2/3 SW Zone 400-500+ cm DVB FTA

3 966 -R- tp 14

 TBN Network 10 166 3/4 West hemi 150-180+ cm DVB
  TBN         FTA
  JCTV   watch video         FTA
  TCC /unnamed         FTA
  Smile of a Child TV   watch video         FTA

3 998 -R- tp 14

 Zee TV Network UK 27 500 3/4 West hemi 220+ cm DVB
  Zee TV South Africa         Conax
  Zee Gujrati USA         Conax
  Zee Cinema UK         Conax
  ETC Alpha Punjabi         Conax
  Zee TV UK         Conax
  Zee Music UK         Conax
  Zee TV USA         Conax
  Zee Gujrati UK         Conax
  ETC Alpha Punjabi         Conax
  Zee TV Russia         Conax
  Zee Cinema USA         Conax
  TEST 1   watch video         MPEG-4/FTA
  TEST 2   watch video         MPEG-4/FTA
  test UK         Conax

4 094 -L- tp 86

 AFN Network 3 680 2/3 Global 120+ cm DVB
  AFN Sports         PowerVu
  AFN Atlantic         PowerVu
  AFN News         PowerVu

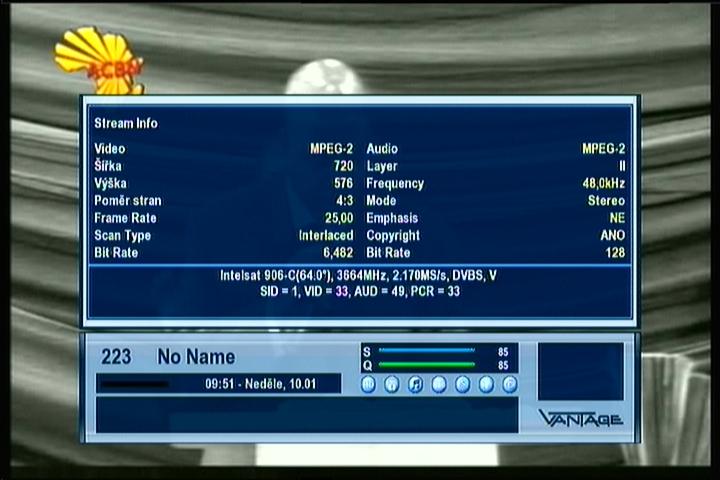

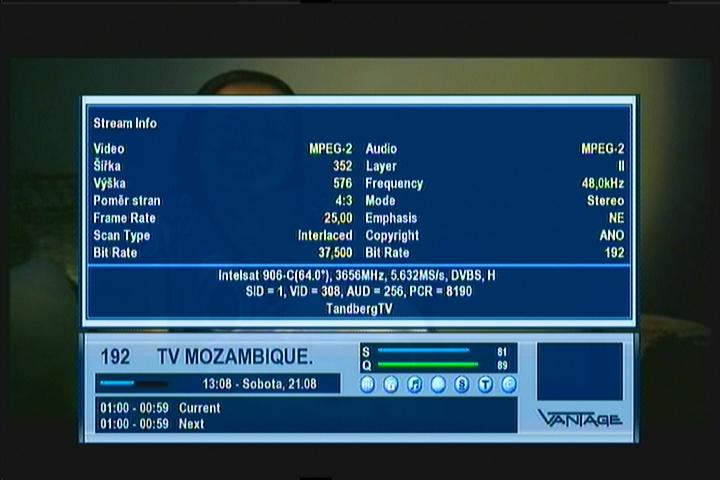

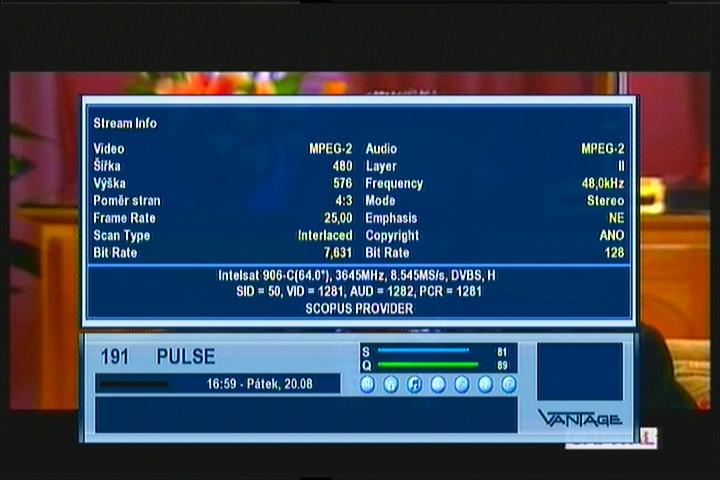

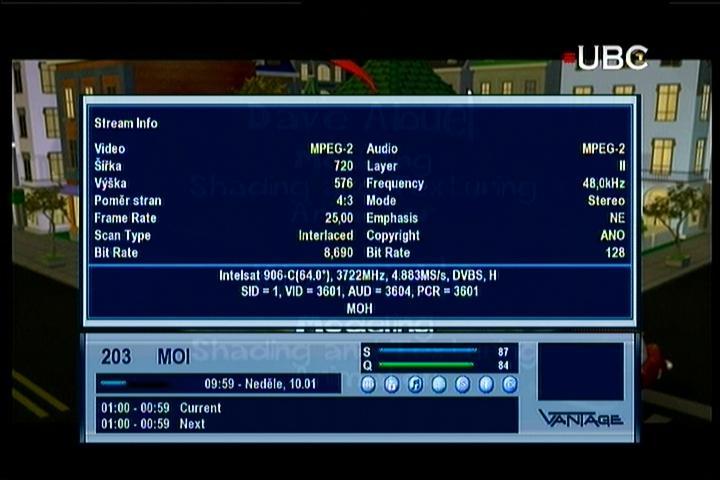

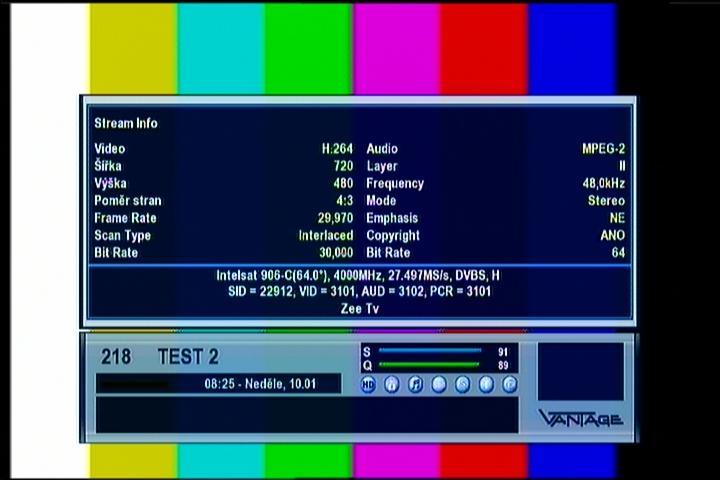

Intelsat 906 at 64.2°E : relative quality & stream info


relative q 01relative q 02relative q 03

Intelsat 906 at 64.2°E: video presentations



  Go to Video Section:
button

Intelsat 906 at 64.2°E : Update prepare

                   dxsatcs logo
               CZECH & SLOVAK DX SATELLITE CLUB
                    international professional portal
                                    think-tank
                    Roman Dávid - author & founder
                    mail : roman.david@dxsatcs.com

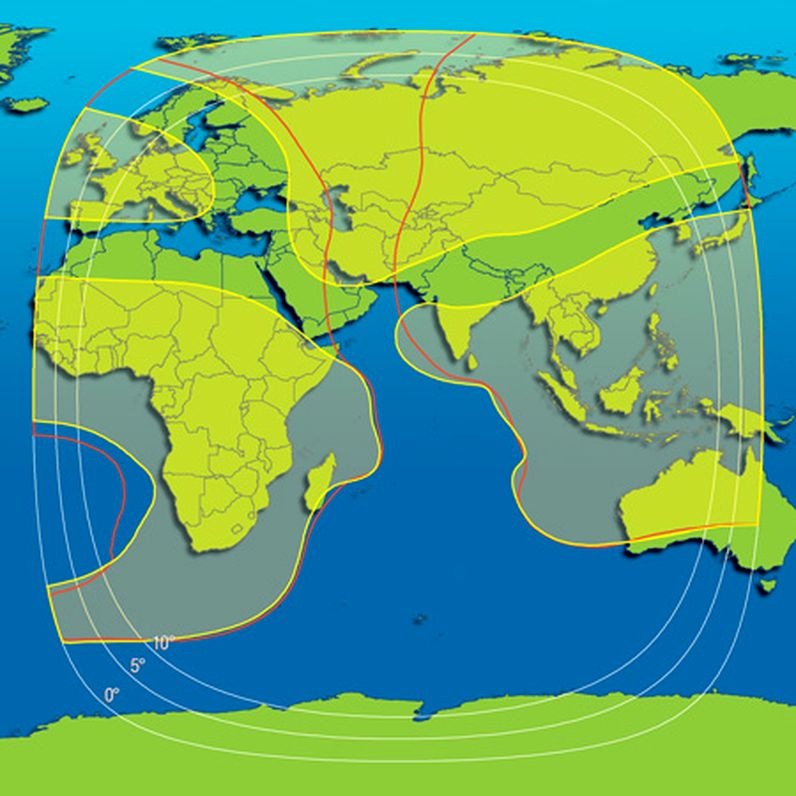

Intelsat 906 at 64.2°E footprint : Global / West hemi / SW zone

                          Intelsat 906 at 64.2 e _ footprint



Intelsat 906 at 64.2°E : Snapshots

Capital TV 01Capital TV 02ITV Tanzania 07
Al Alamia 01capital 01UBC Uganda 02
