►►Inmarsat 5 F1-62.6°E-KA band reception : 4x beacon frequency

Inmarsat 5 F1 - 62.6°E : 3x Beacon frequency in the first part of the LHCP spectrum :  19 700.5 MHz , 19 702.5 MHz , 19 707.5 MHz
                                             1x Beacon frequency in the RHCP spectrum:  20 680.5 MHz

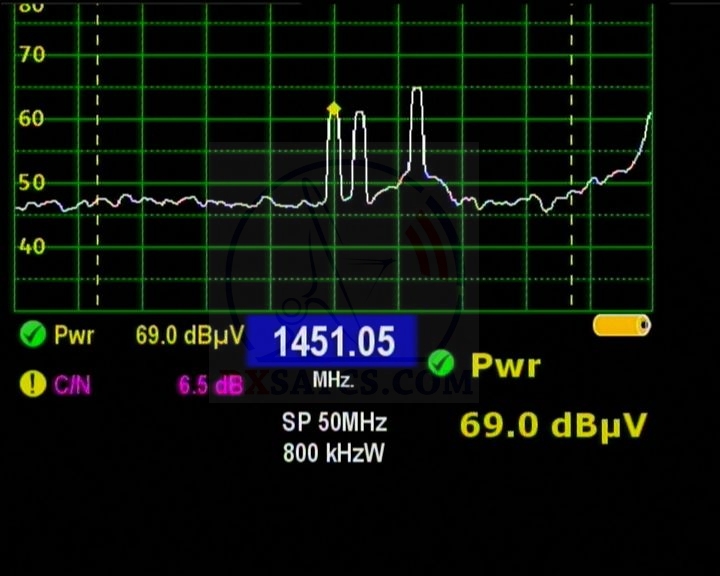

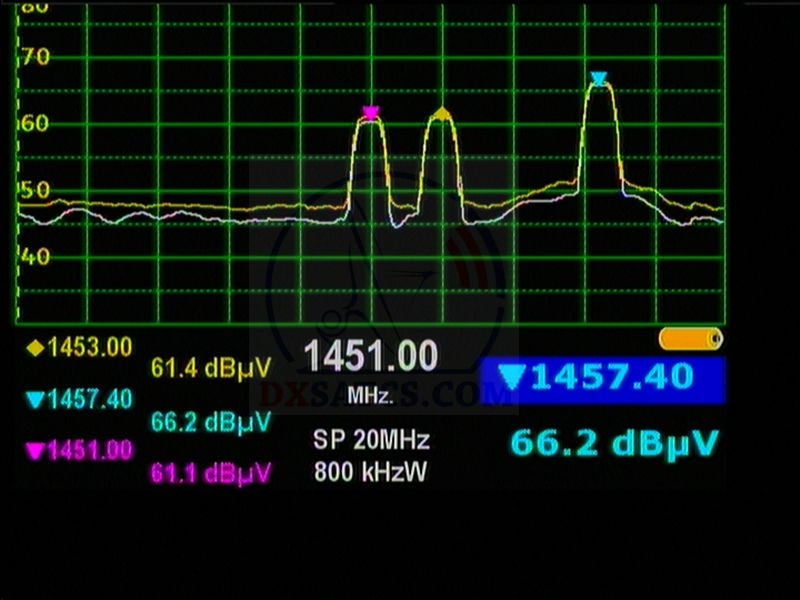

       LHCP spectrum-SPAN 50 MHz                    LHCP spectrum-SPAN 20 MHz                RHCP spectrum-SPAN 0.2 MHz
     19 700.5+19 702.5+19 707.5 MHz          19 700.5+19 702.5+19 707.5 MHz                        20 680.5 MHz
dxsatcs-ka-band-reception-inmarsat-i5-5F1-I5-IOR-62.6-e-3x-beacon-frequency-lhcp-spectrum-01dxsatcs-ka-band-reception-inmarsat-i5-5F1-I5-IOR-62.6-e-3x-beacon-frequency-lhcp-spectrum-02dxsatcs-ka-band-reception-inmarsat-i5-5F1-I5-IOR-62.6-e-1x-beacon-frequency-rhcp-spectrum-03


►►Astra 3B-23.5°E-KA band reception : 1x beacon frequency

Astra 3B-23.5°e-beacon frequency : 20 199 MHz _ 1x Beacon frequency in the part of the -V- spectrum from 19.2 to 20.2 GHz

                                 20 199 MHz -V-pol. : Astra 3B beacon frequency for KA band / SPAN 5 MHz
                                                                               ► Video demo - video demo

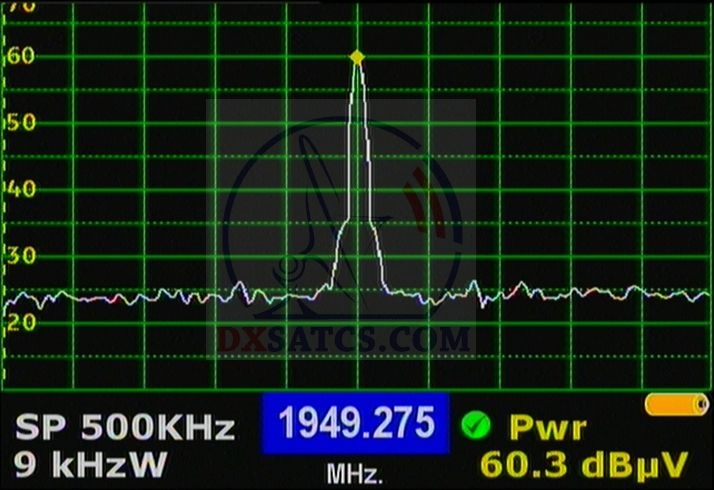

     Astra 3B:KA band beacon frequency        Astra 3B:KA band beacon frequency       Astra 3B:KA band beacon frequency
                   SPAN 200 kHz                                         SPAN 500 kHz                                           SPAN 1 MHz
dxsatcs-ka-band-reception-astra-3b-23-5-east-beacon-frequency-20199-mhz-v-pol-span-200-khz-01dxsatcs-ka-band-reception-astra-3b-23-5-east-beacon-frequency-20199-mhz-v-pol-span-500-khz-02dxsatcs-ka-band-reception-astra-3b-23-5-east-beacon-frequency-20199-mhz-v-pol-span-1000-khz-3
