NSS 10 at 37.5°W : Technical data
satellite : NSS 10 - orbit : 37.5°W - TP : 56 C - lifetime : the end of 2010
NSS 10 at 37.5°W - Europe & Africa footprint : spectral analysis & measuring quality of reception
NSS 10 at 37.5°W - Europe & Africa footprint : measurements at the center Lučenec_central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°

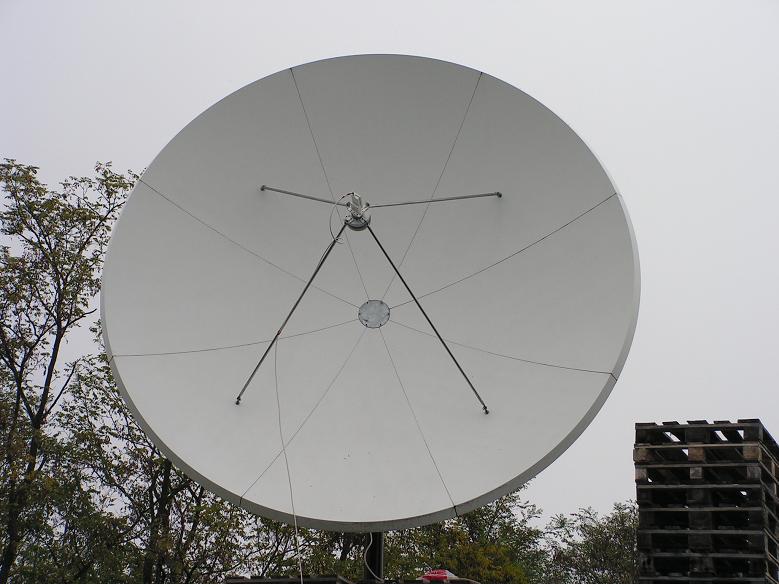

measurement results are derived from the 3.7 m diameter antenna
elevation angle : 12.5°

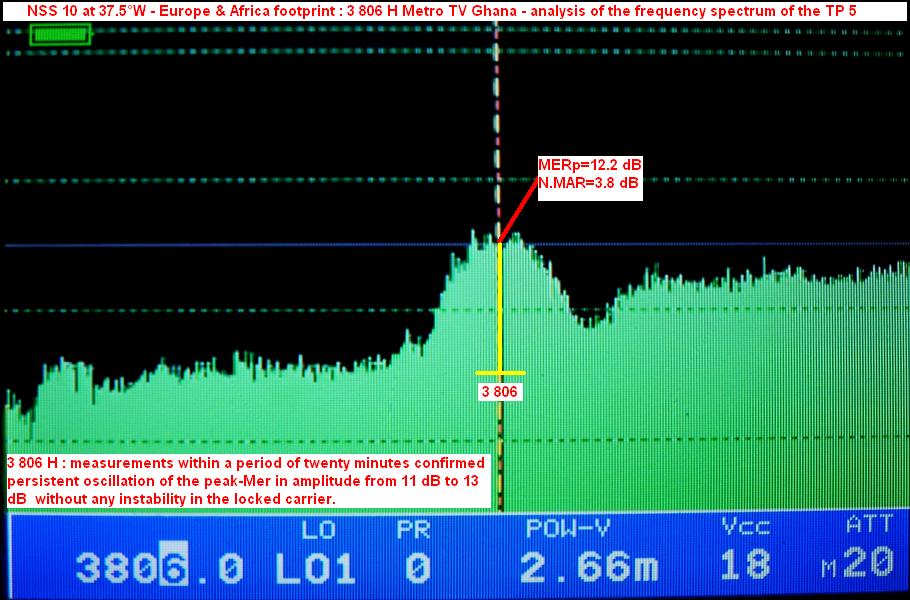

NSS 10 spectral analysis NSS 10 footprint
3 805 H / TP 5 : Metro TV Ghana Europe,Africa,ME,Greenland ...
- time of measurement : 7.3.2010 -
- defining the status of income -
--- NSS 10 at 37.5°W - Europe & Africa footprint: 3 805 H Metro TV Ghana ---
measurements within a period of twenty minutes confirmed persistent oscillation of the peak-MER in amplitude from
11 dB to 13 dB without any instability in the locked carrier.
NSS 10 at 37.5°W - Africa & Europe footprint : 3 775 H Silverbird_DSNG 1

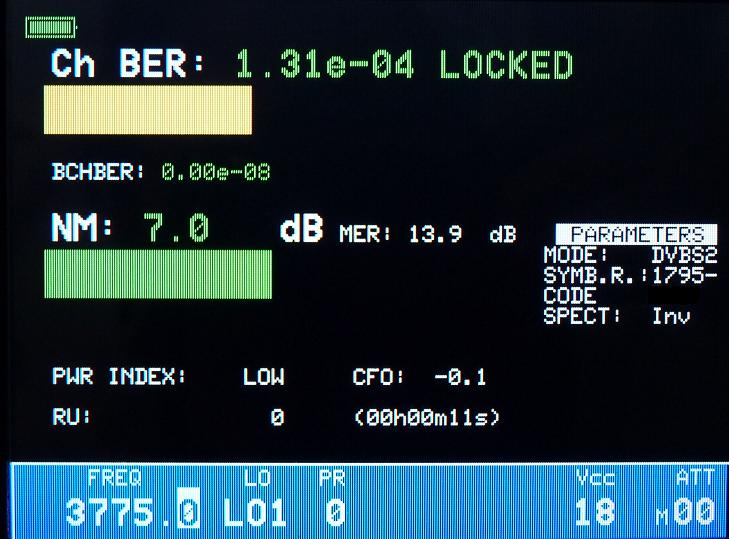

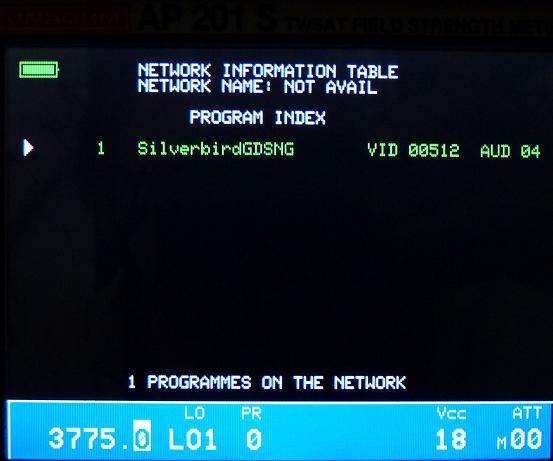

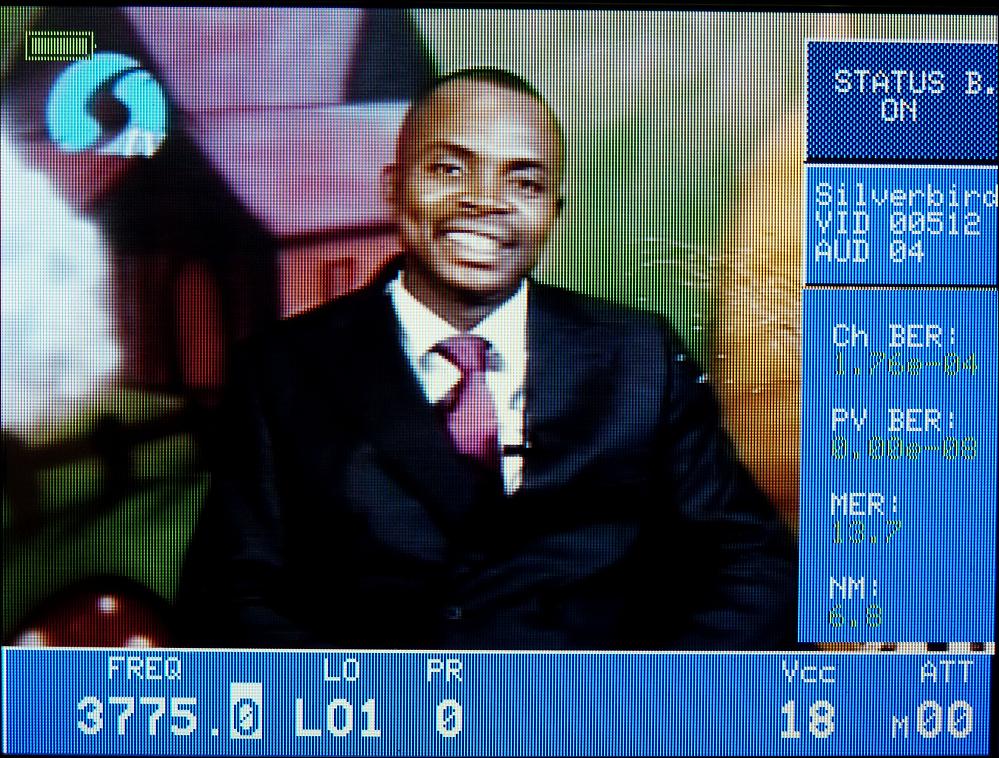

IF data Q data NIT data
NSS 10 at 37.5°W - Africa & Europe footprint : 3 805 H Metro TV Ghana / GS Telecom

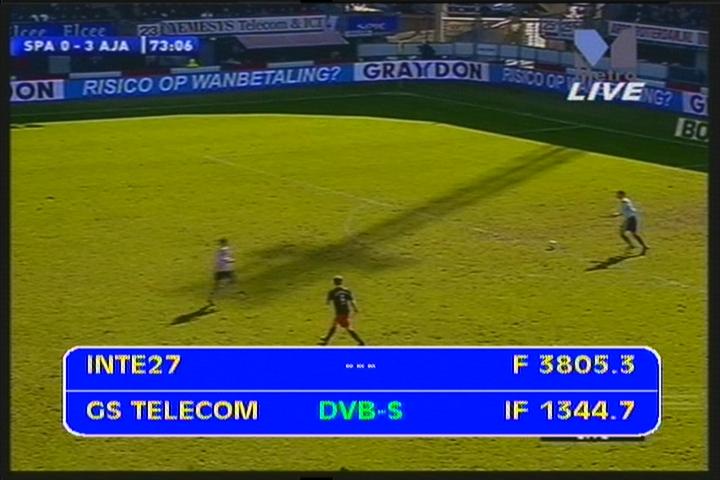

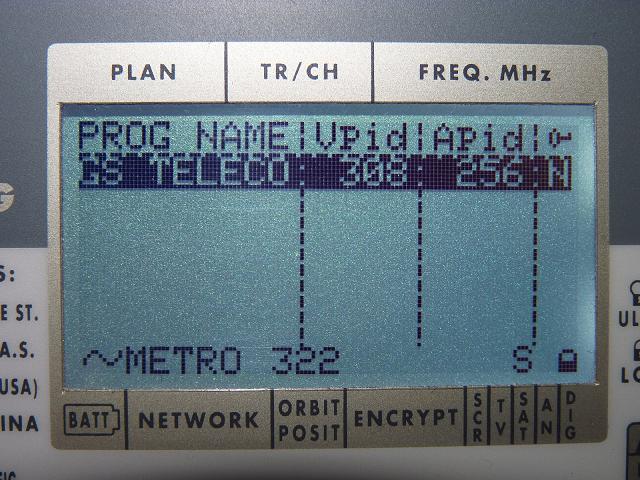

IF data Q data NIT data
NSS 10 at 37.5°W : TV List
---Frequency---
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---Video/Encryption--- |
|
3 775 -H- tp 3 |
Silverbird_DSNG 1 Silverbird Nigeria  |
1 795 | 3/4 | Europe/Africa | 180+ cm | DVB-S2/8PSK/FTA |
|
3 850 -H- tp 5 |
GS Telecom Metro TV Ghana |
2 142 | 7/8 | Europe/Africa | 180+ cm | DVB FTA |
NSS 10 at 37.5°W : relative q
NSS 10 at 37.5°W : Video presentations
Go to Video Section:
NSS 10 at 37.5°W footprint : Europe/Africa
NSS 10 footprint _ C band NSS 10 footprint _ Europe + Africa

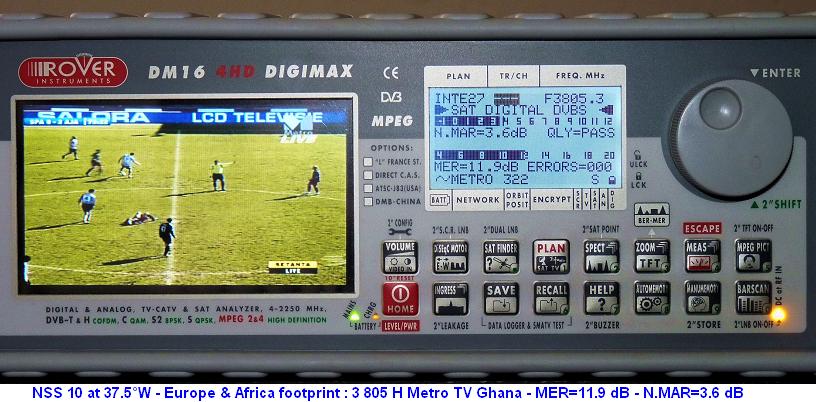

NSS 10 at 37.5°W : Snapshots
