NSS 7 at 22.0°W : Technical data

.

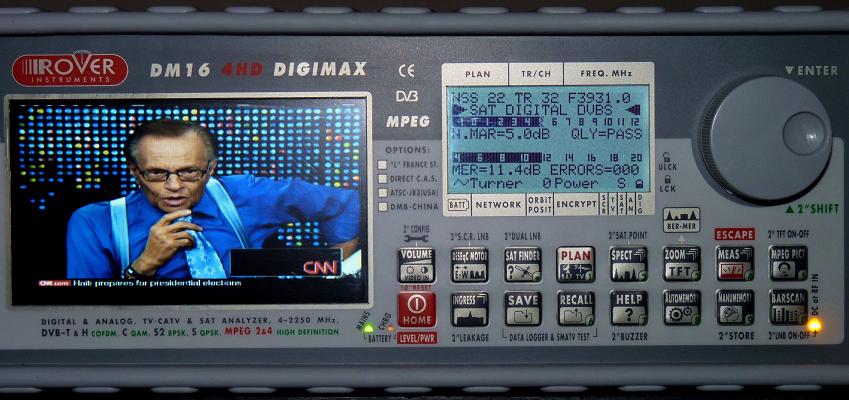

--- NSS 7 at 22.0°W - East Hemi beam : 3 931 L Packet CNN - MERp=11.5 dB ---
satellite : NSS 7 - orbit : 22.0°W - TP : 36 C/36 KU - lifetime : from 16.4.2002 - 12 years

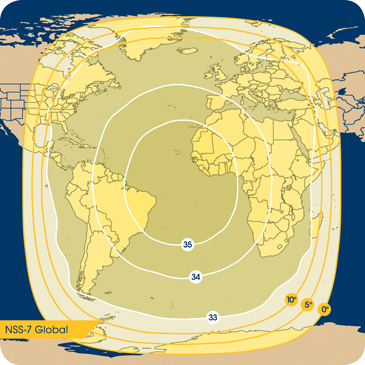

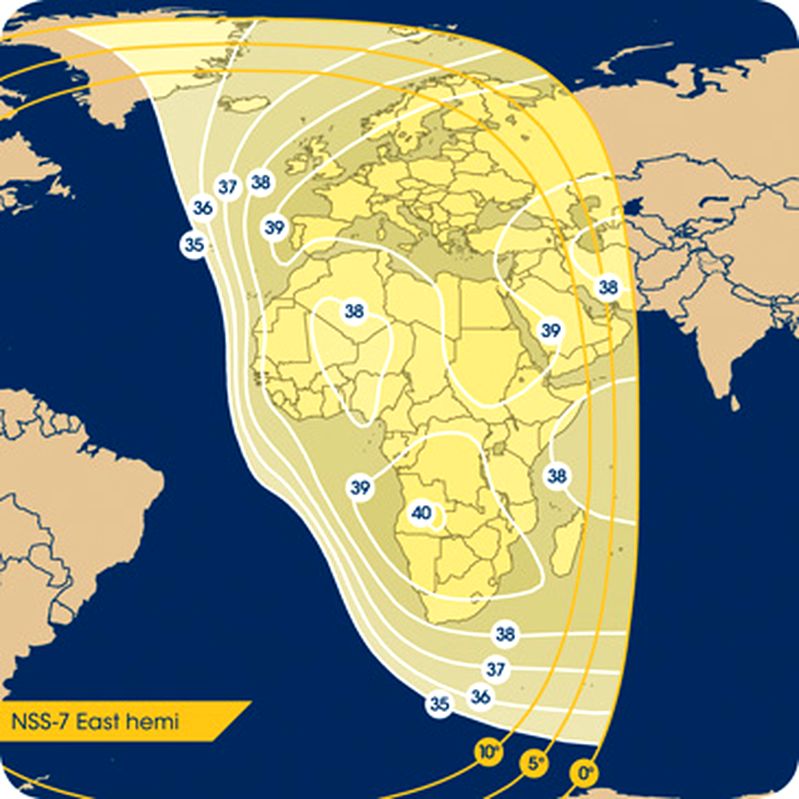

NSS 7 at 22.0°W - Global & East Hemi footprint : spectral analysis & results of measurement

     NSS 7 at 22.0°W - Global & East Hemi footprint : measurements at the center Lučenec_central Slovakia
                        geographical location : Latitude: 48.33° _   Longitude: 19.72°
                                    measurement results are derived from the 3.7 m diameter antenna
                                                             date of measurement : 27.11.2010
                                                                 elevation angle : 22°

.           NSS 7 : installed system    NSS 7 footprint : East Hemisphere          NSS 7 : research point

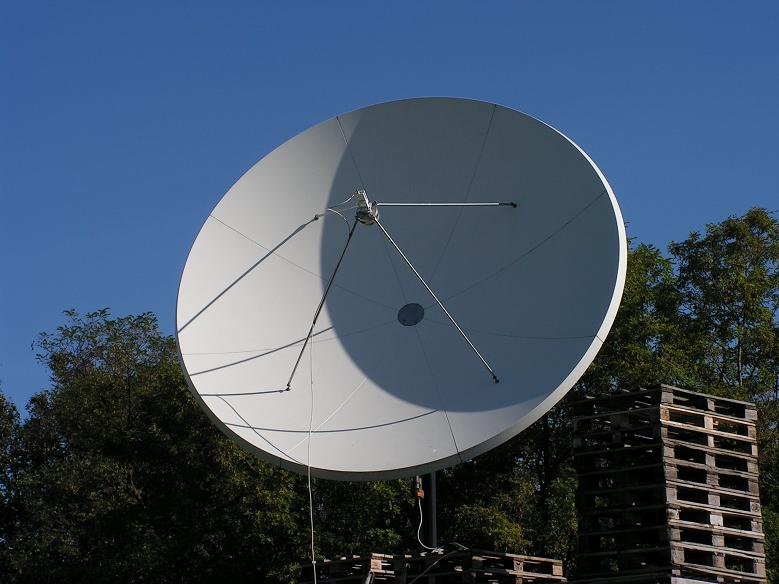

    Prodelin 3.7 m,LNB Norsat 8215 Europe,Africa,ME,part of Asia ...              48.33° _ 19.72°

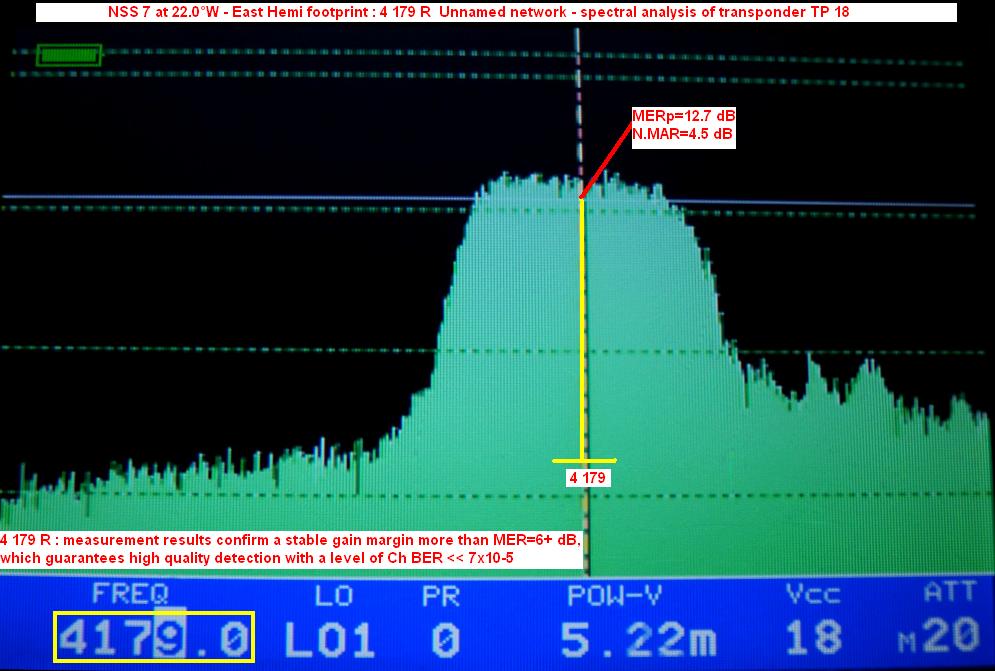

                                          --- NSS 7 spectral analysis : 4 179 R Unn.network ---
                                                              --- MERp=12.7 dB , Ch BER=4x10-5 ---
                                                                     click for enlarge

                                                        - time of measurement : 27.11.2010 -
                                                           - defining the status of reception -

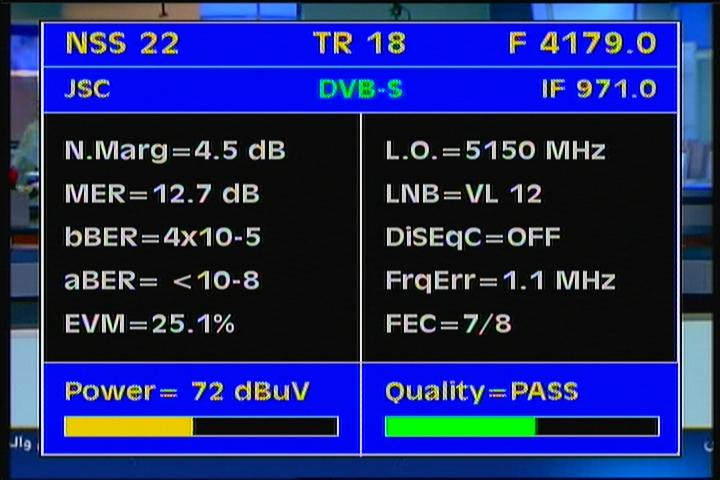

--- NSS 7 at 22.0°W - East Hemi footprint : 4 179 R Unnamed network ---

4 179 R_MERp=12.7 dB : measurement results confirm a stable gain margin more than MER=6+ dB, which guarantees
high quality detection with a level of Ch BER << 7x10-5

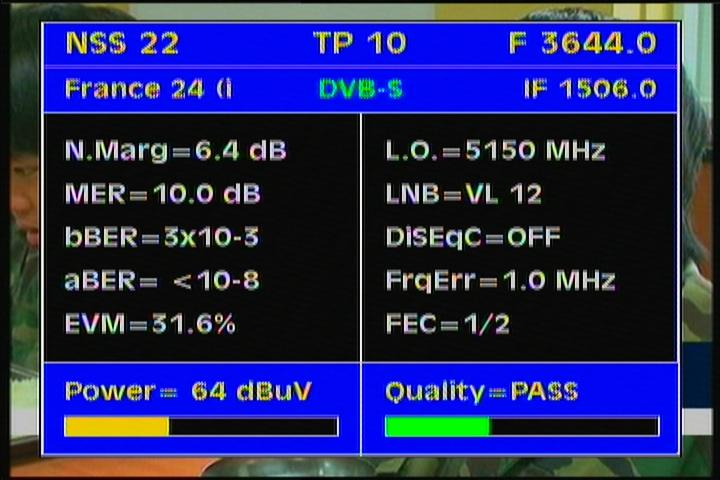

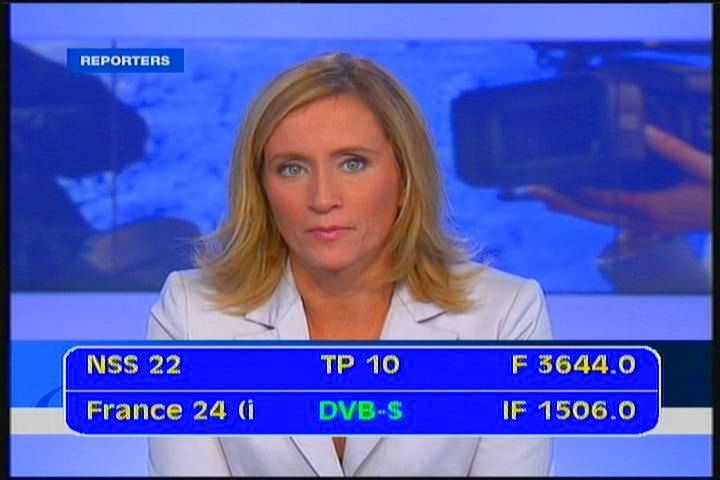

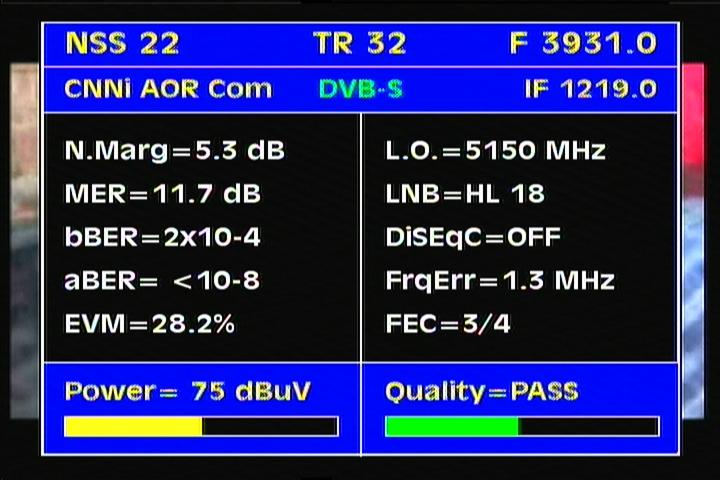

NSS 7 at 22.0°W - East Hemi footprint : 3 644 R Globecast Network
IF data Q data NIT data

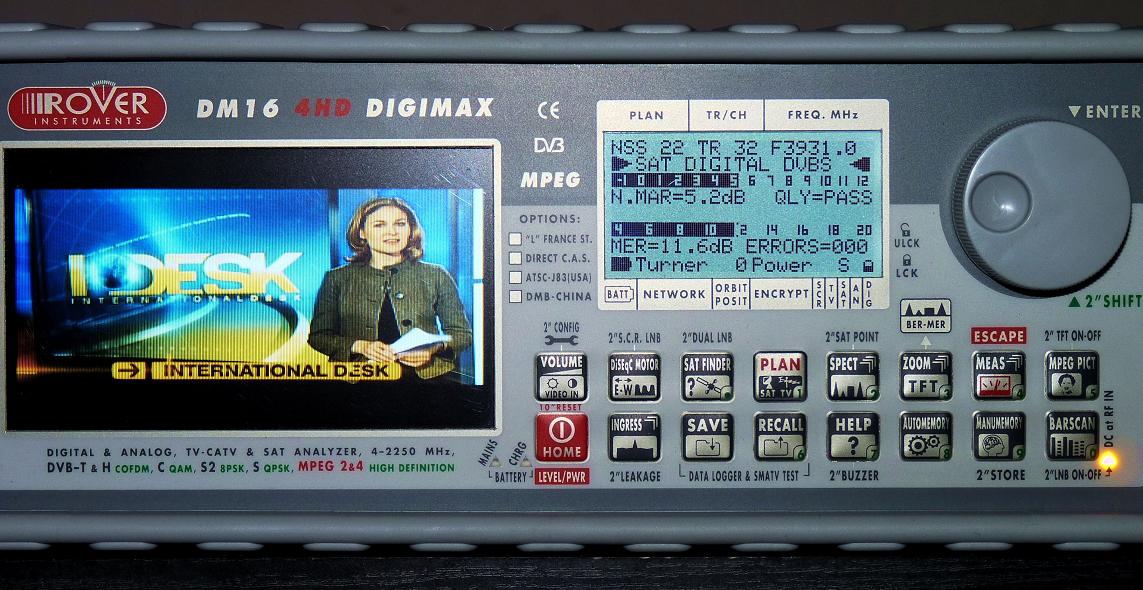

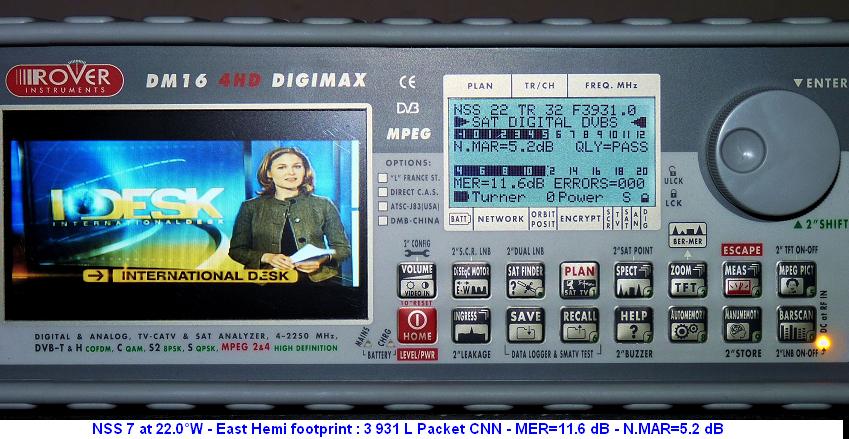

NSS 7 at 22.0°W - East Hemi footprint : 3 696 R VTC repeated sign non stop
A pids Q data NIT data

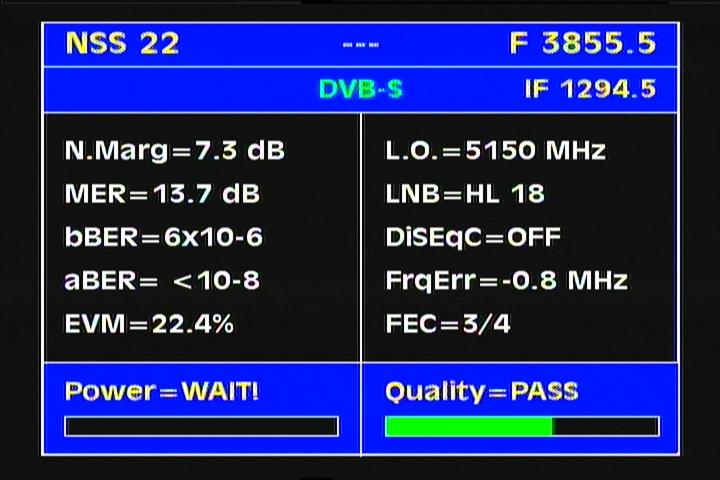

NSS 7 at 22.0°W - East Hemi footprint : 3 855 R DVB-S data
spectral analysis Q data NIT data

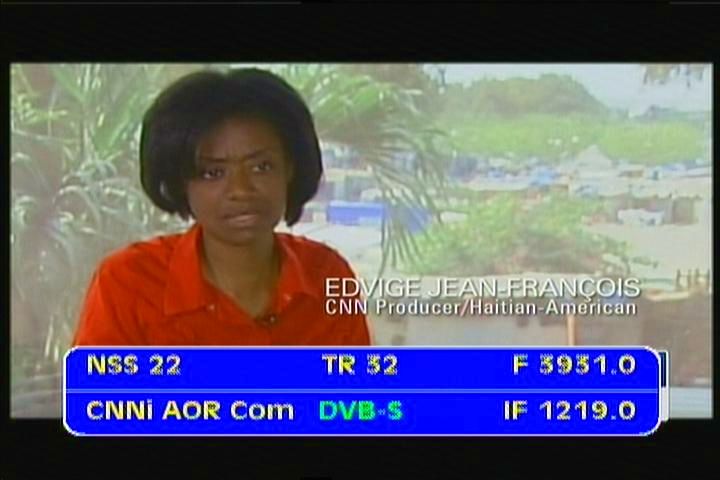

NSS 7 at 22.0°W - East Hemi footprint : 3 913 L CNN Network Europe
IF data Q data NIT data

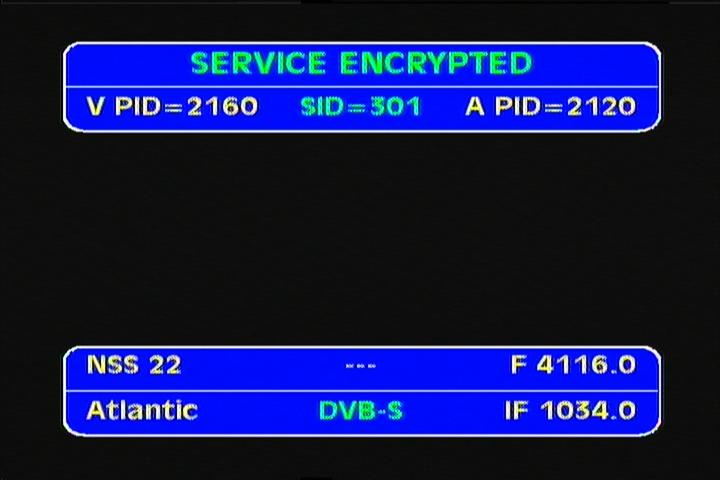

NSS 7 at 22.0°W - Global footprint : 4 116 L AFN Network
VA pids Q data NIT data

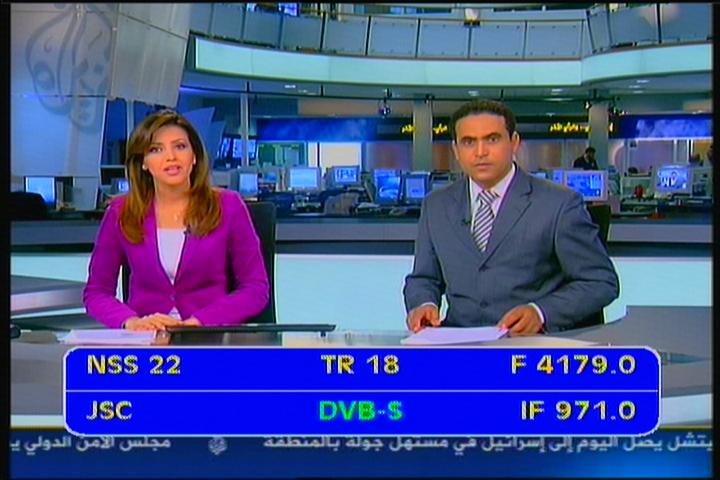

NSS 7 at 22.0°W - East Hemi footprint : 4 179 R Unnamed Network
IF data Q data NIT data

NSS 7 at 22.0°W : TV List

---Frequency---	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---Video/Encryption---
3 645 -R- tp 10	GCP GlobeCast	27 500	1/2	East hemi	180+ cm	DVB
	Canal Algérie					FTA
	Al Maghribiya					FTA
	2M Maroc					FTA
	France 24 English					FTA
	France 24 France					FTA
	Equidia PRO					Mediaguard 2
	Tele Congo					FTA
3 696 -R- tp 2	VTC NSS7 _repeated sign	2 411	1/2	East hemi	140+ cm	DVB FTA
3 855 -R- tp 13	DVB-S data	4 000	3/4	East hemi	140+ cm	data
3 932 -L- tp 32	CNN_Turner Network	25 000	3/4	East hemi	180+ cm	DVB
	CNNi International Europe					FTA
	CNN Spanish & R					test/feeds
	CNNi AOR Turner					test/feeds
	CNN PLUS					test/feeds
	Common Feed					test/feeds
	INS Africa _ V.pid 1360					PowerVu
	Special feed					test/feeds
	D9225					test/feeds
	D9223					test/feeds
4 115 -L- tp 35	AFN Network	3 680	2/3	Global	120-140+ cm	DVB
	AFN Atlantic					PowerVu
	AFN News					PowerVu
	AFN Sports					PowerVu
4 179 -R- tp 18	Unnamed network	27 500	7/8	East hemi	220-240+ cm	DVB
	JSC					FTA
	Syrian TV					FTA
	Southern Sudan					FTA
	Abu Dhabi TV					FTA
	Oman TV					FTA
	Kuwait TV					FTA
	Saudi TV					FTA
	Qatar tv					FTA
	Sharjah TV					FTA
	Saudi Quran					FTA
	Sudan TV					FTA
	Jamahirya TV					FTA
	Saudi Sunnah					FTA
	TVE International					FTA
