A. Simao-Macau S.A.R-Insat 4A at 83°E-C band-PF Vertex 9.0m-PLL LNB Norsat 3220 : 3 725 H NSTPL-Site 1 India-actual results of measurements+QPSK constellation diagram with the Promax TV Explorer HD and analysis of its input/output connectivity
Insat 4A at 83.0°E - 4A wide footprint : measurements location Macau - 60 km west from Hong Kong
geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
antenna tracking : AZ=236,076° and EL=46,299°
measurement results are derived from the 900 cm diameter antenna
date of measurement : 10.7.2013
elevation angle : 46.299°

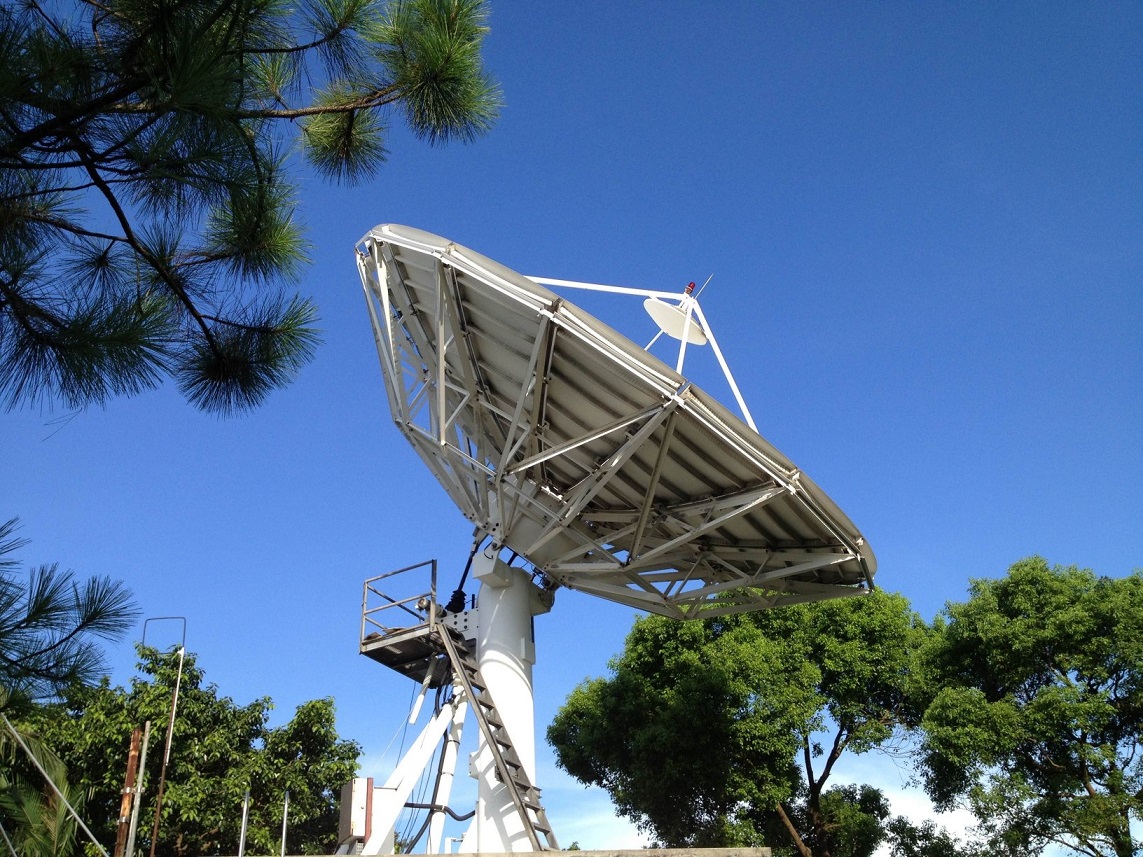

Insat 4A : PF Vertex RSI 9.0 m Insat 4A footprint Insat 4A : measurement location
Insat 4A at 83.0°E-4B wide footprint -C- : 3 725 H NSTPL_installed high frequency chain
Vertex RSI 9.0 m PLL LNB Norsat 3220 Promax TV Explorer HD DTMB

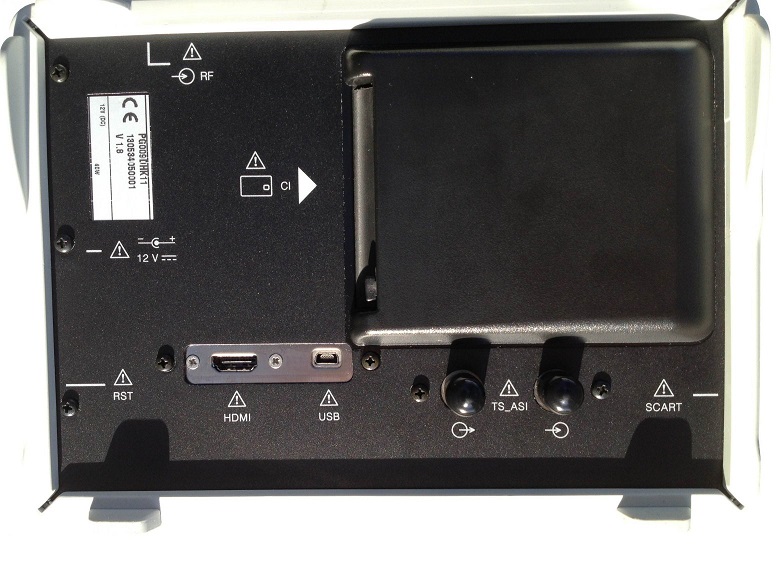

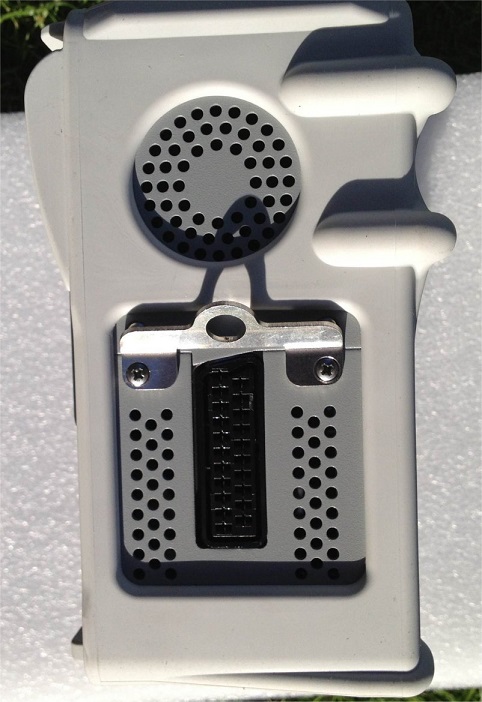

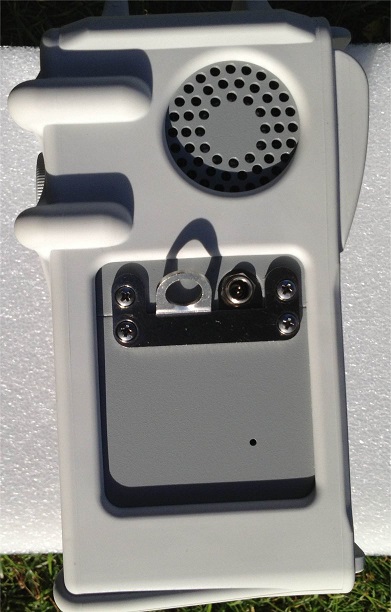

Insat 4A at 83.0°E-4B wide footprint -C- : Promax TV Explorer HD DTMB-inputs+outputs connectivity
Promax TV Explorer HD DTMB-inputs+outputs connectivity

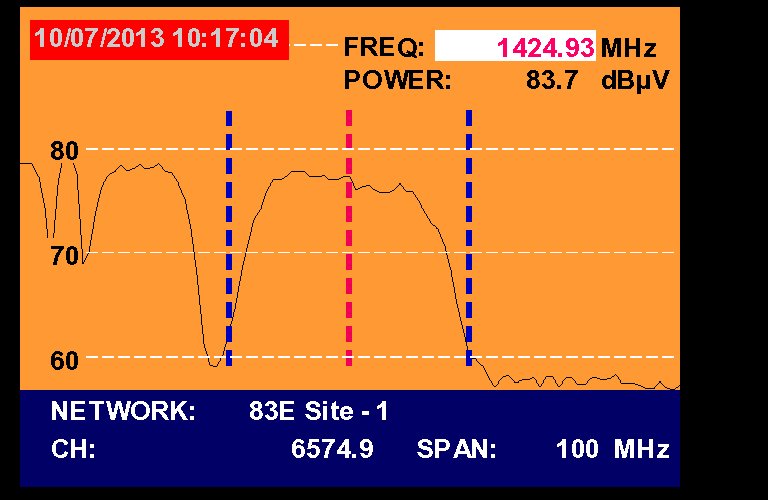

Insat 4A at 83°E-3 725 H NSTPL : Promax TV Explorer HD DTMB-analysis of the spectrum
3 725 @ 1 424.93 MHz @ SPAN 100 MHz : 83°E NSTPL India / Site-1

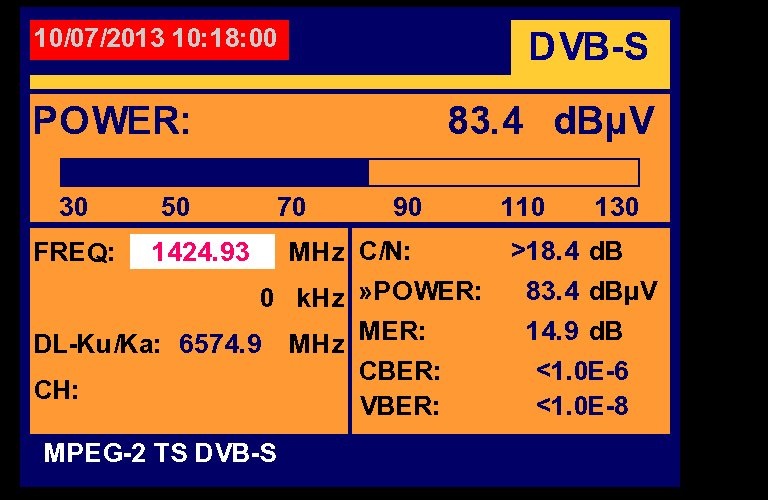

Insat 4A at 83°E-3 725 H NSTPL : Promax TV Explorer HD DTMB-analysis of the quality
power MER ChBER

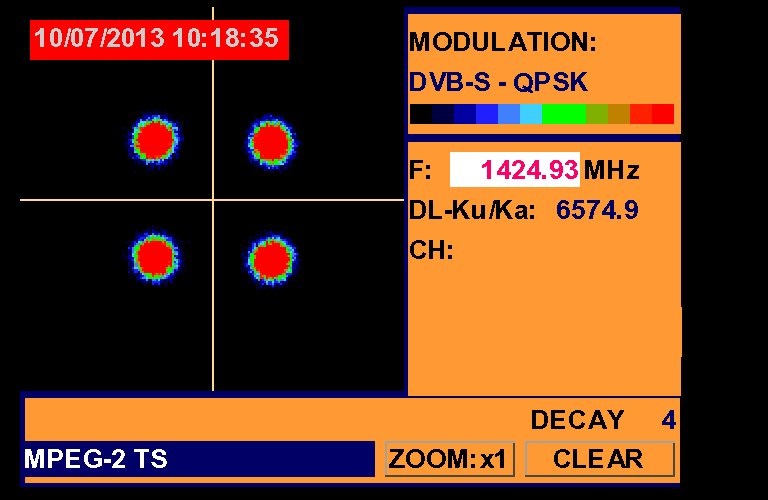

Insat 4A at 83°E-3 725 H NSTPL : Promax TV Explorer HD DTMB-QPSK constellation
DVB-S /QPSK constellation

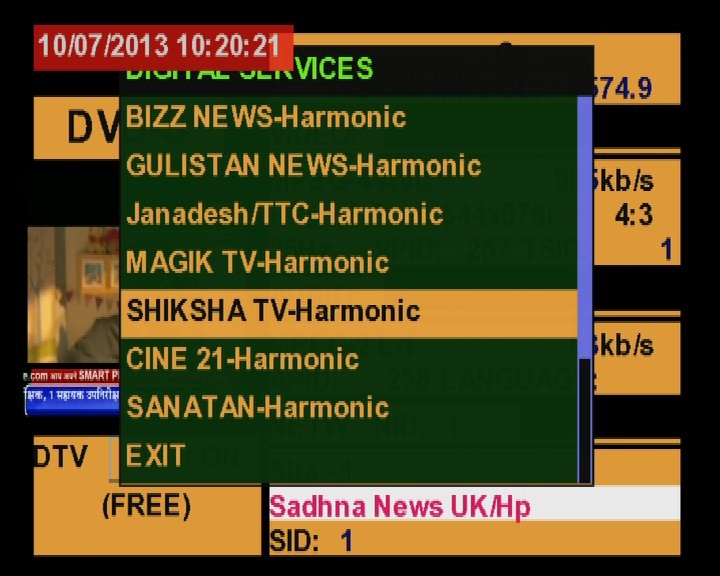

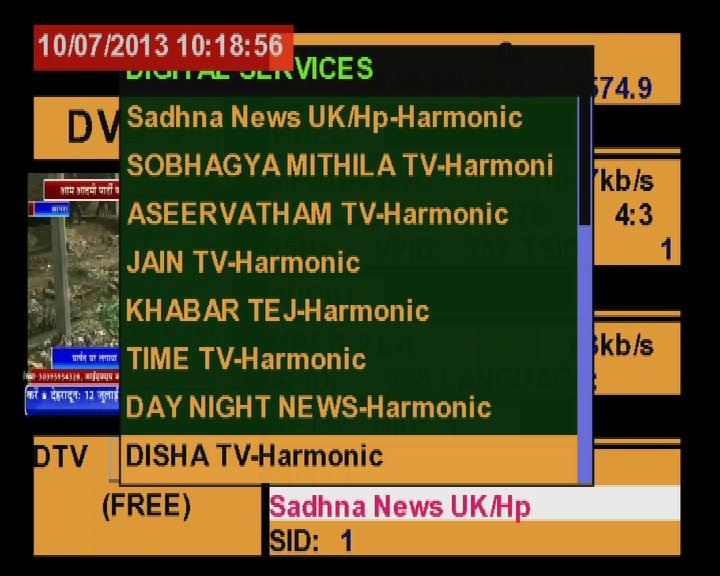

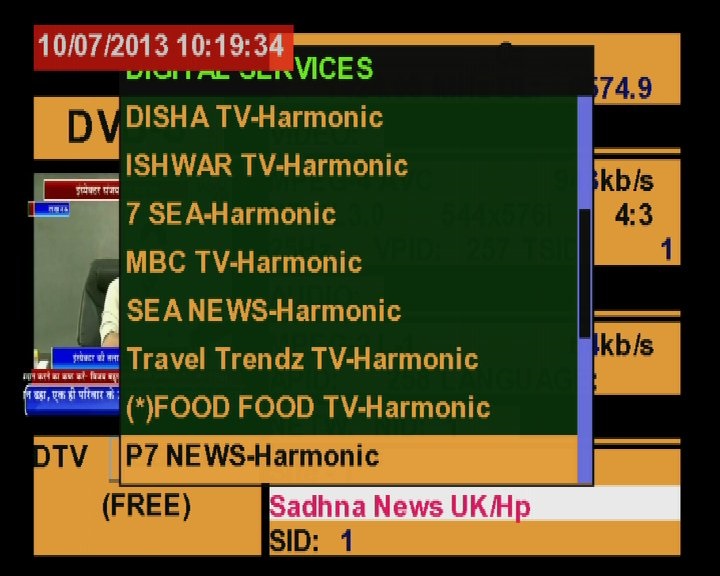

Insat 4A at 83°E-3 725 H NSTPL : Promax TV Explorer HD DTMB-NIT / Network Information Table

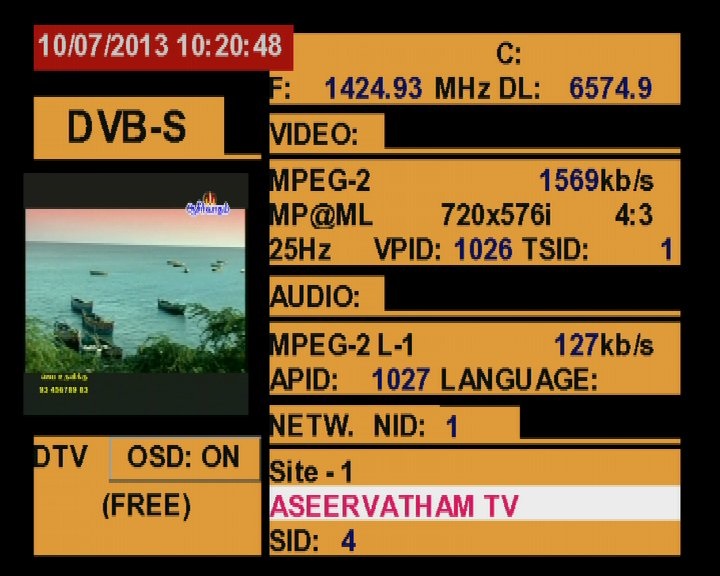

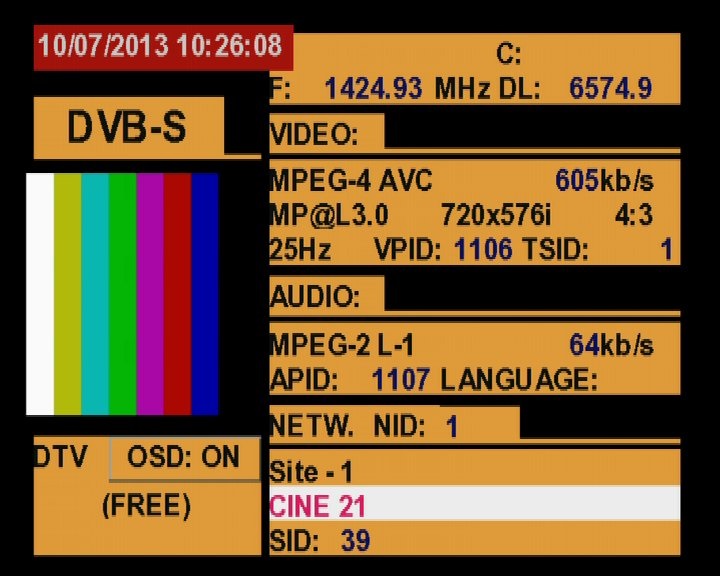

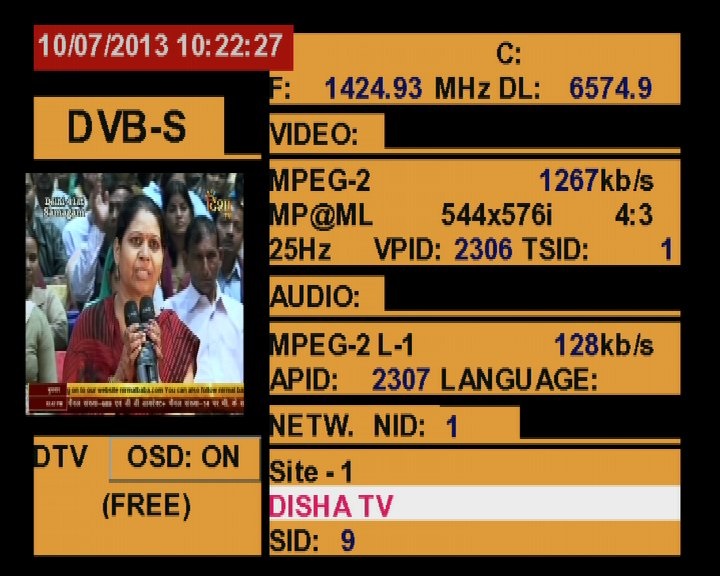

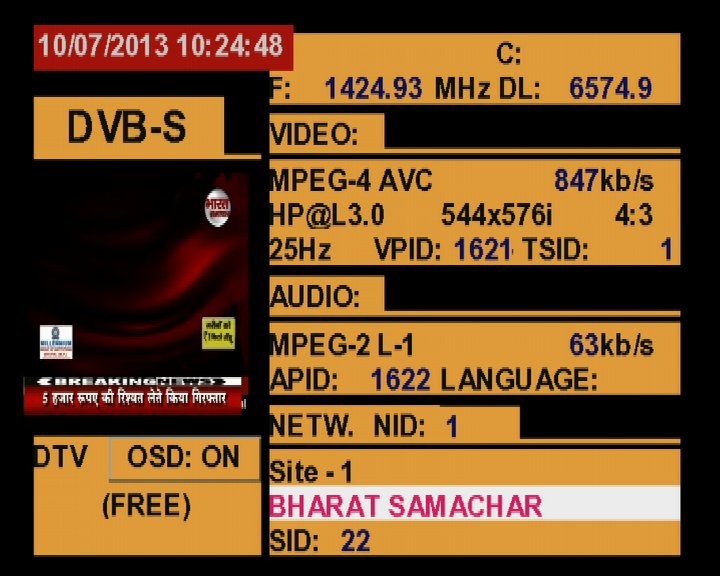

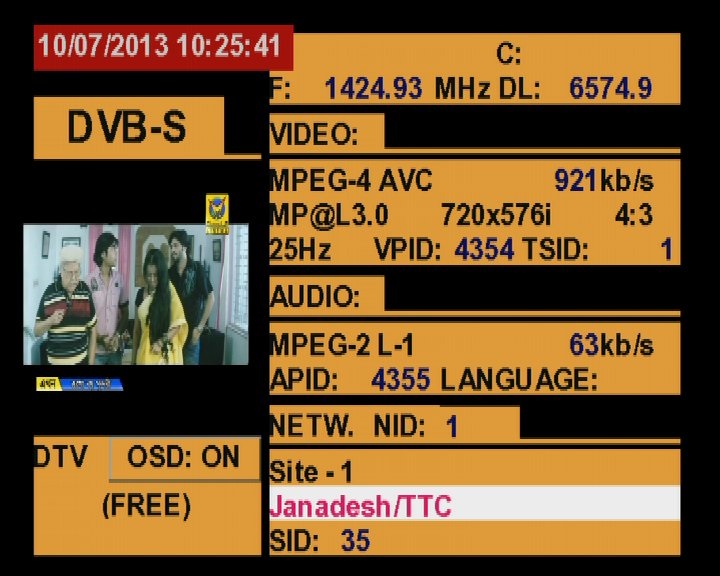

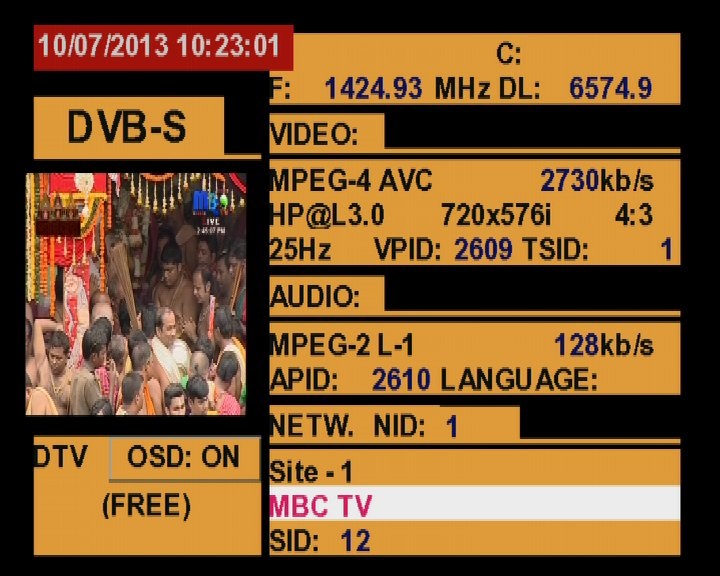

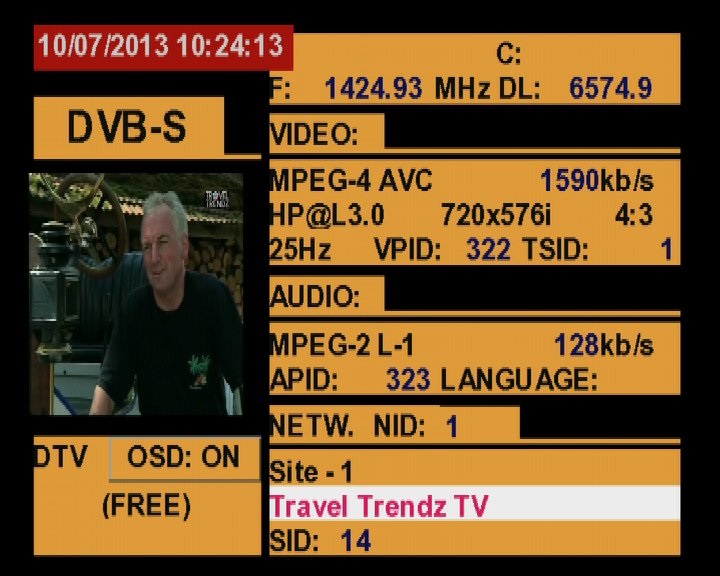

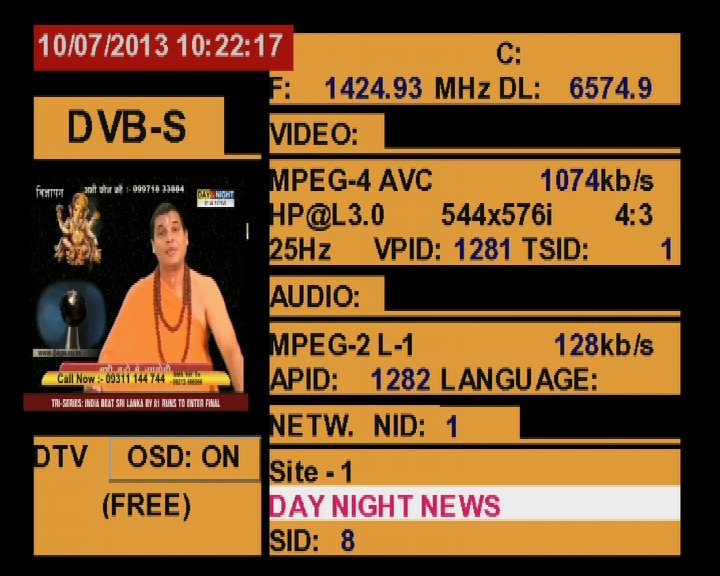

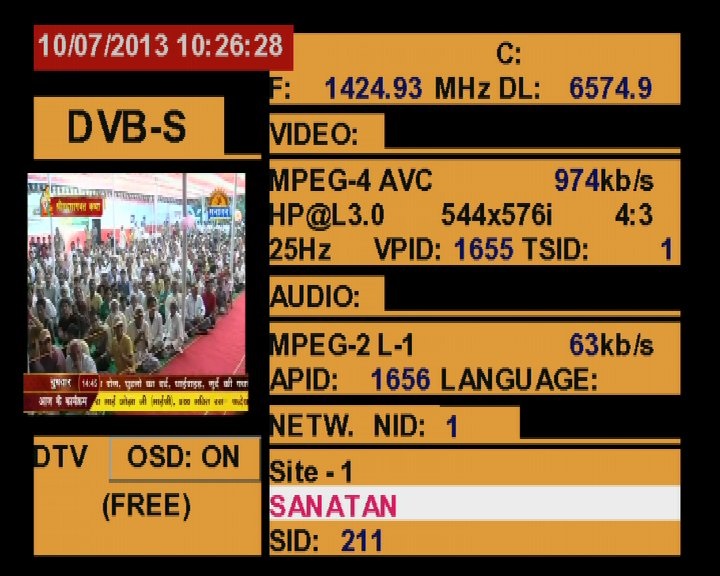

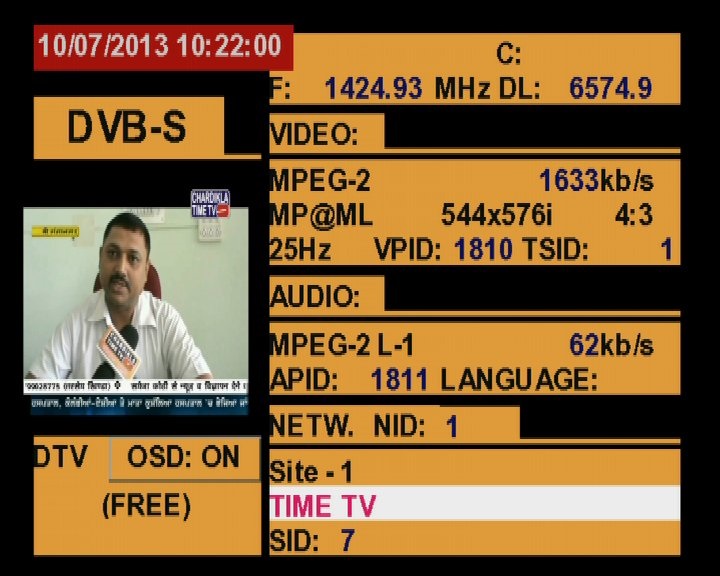

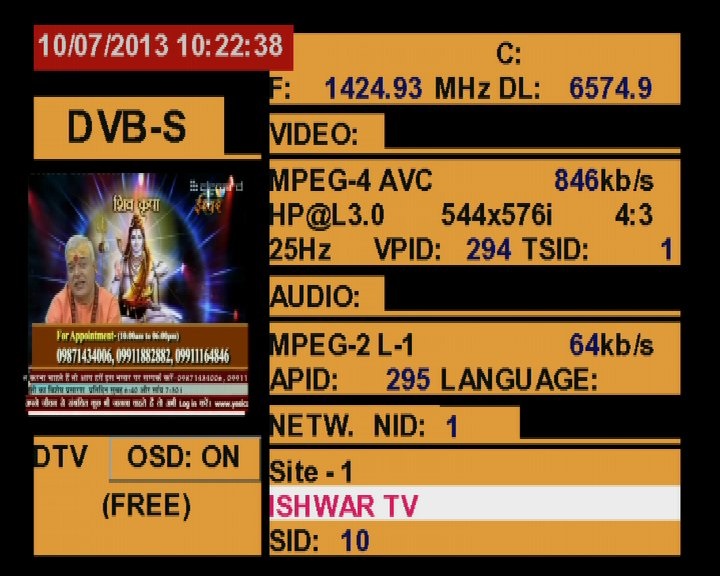

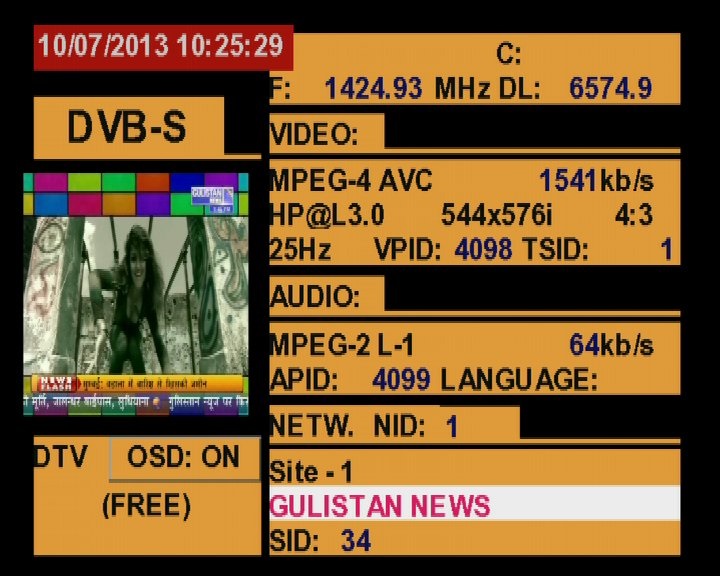

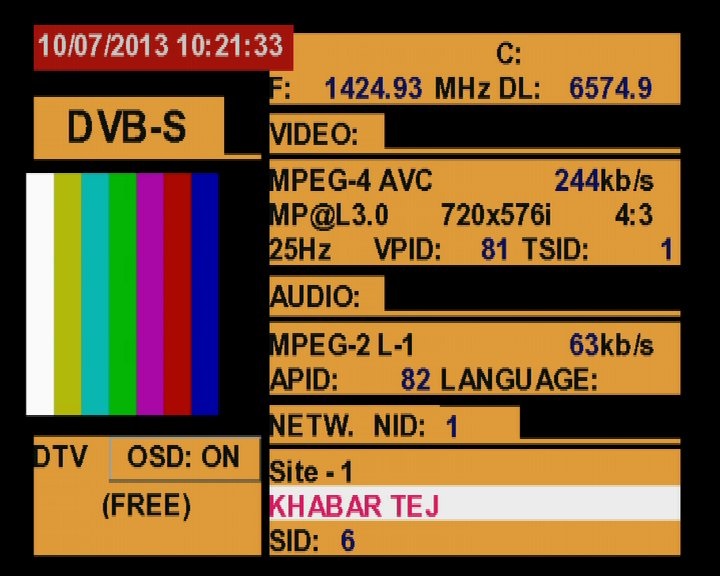

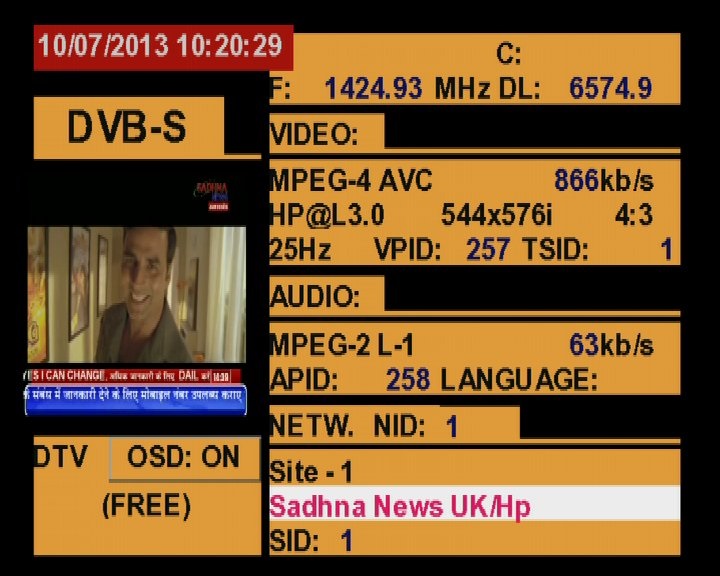

Insat 4A at 83°E-3 725 H NSTPL : Promax TV Explorer HD DTMB-stream+traffic analysis ....
3 725 @ 1 424.93 MHz : 83°E NSTPL India / Site-1
