A. Simao-Macau S.A.R_Insat 4B at 93.5°E-C band : 3 925 H Packet DD Doordarshan India_comprehensive quality measurement and analysis of the spectrum with the measuring apparatus Rohde & Schwarz ETL + Tandberg TT1260 and comparison of results Macau/Slovakia

Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_ 001

Insat 4B at 93.5°E - 4B wide footprint : measurements at the center Macau - 60 km w of Hong Kong
                            geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                                        antenna tracking : AZ=222,513° and EL=54,650°
                           measurement results are derived from the 900 cm diameter antenna
                                                  date of measurement : 11.6.2010
                                                        elevation angle  : 54.650°

Insat 4B at 93.5°E:Vertex RSI 9.0 m              Insat 4B at 93.5°E : footprint        Insat 4B at 93.5°E : measuring point

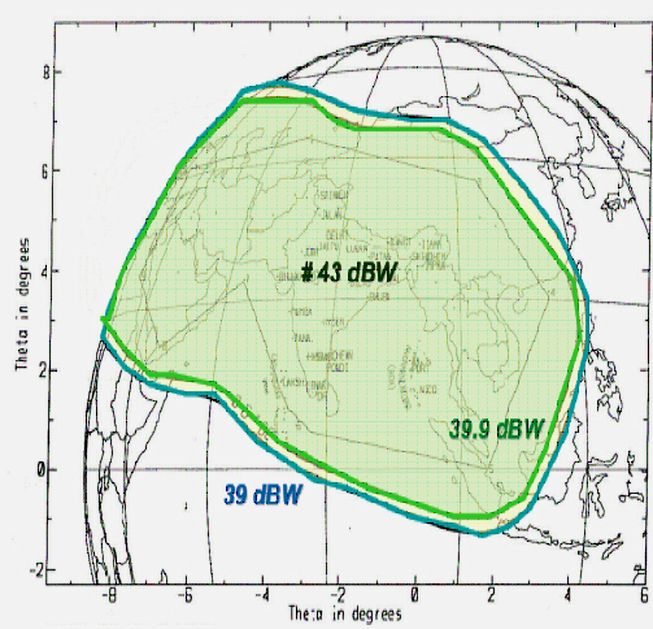

Insat 4B at 93.5 e _PF Vertex RSI  9.0 mInsat 4B at 93.5 e _ 4B footprint from antrix corporation India _ C bandInsat 4B at 93.5 e _ C band footprint_Macau SAR _map

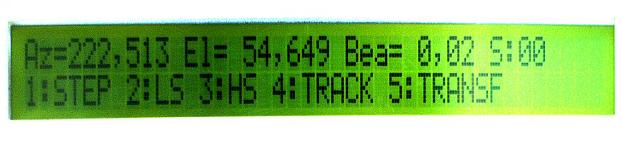

                                                                            Insat 4B : tracking antenna

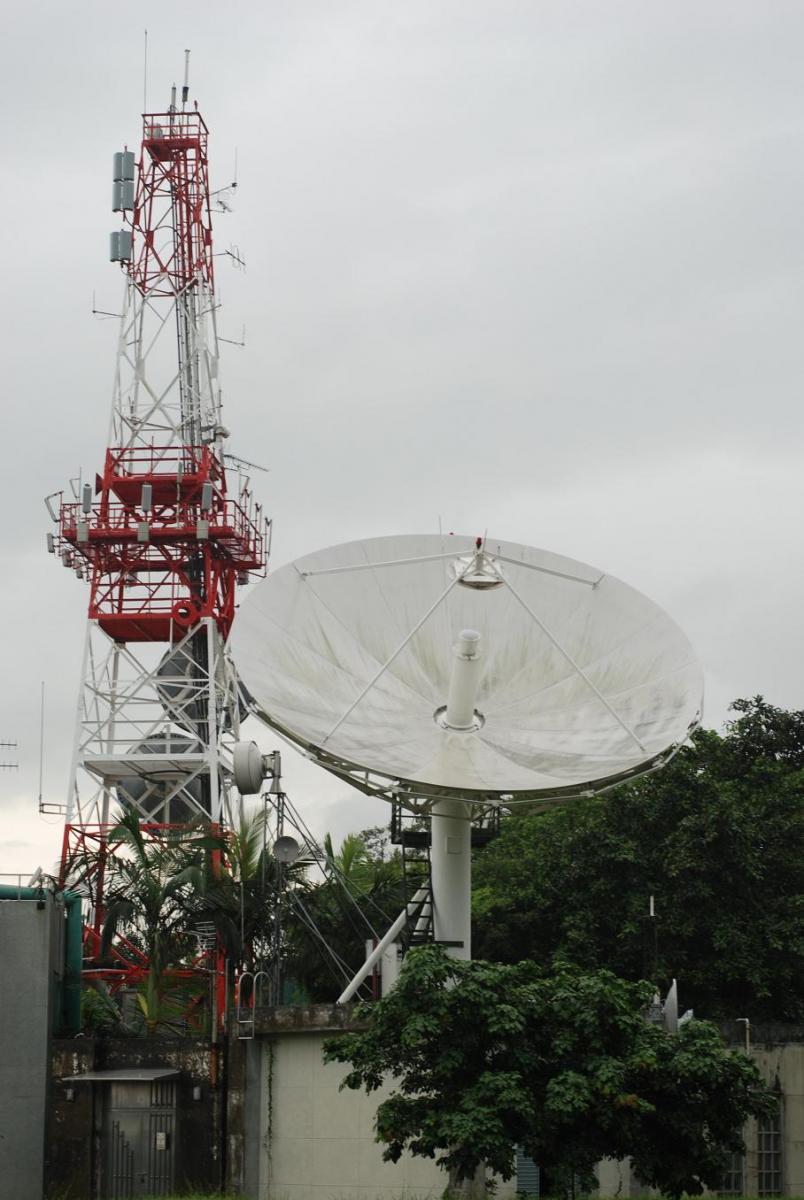

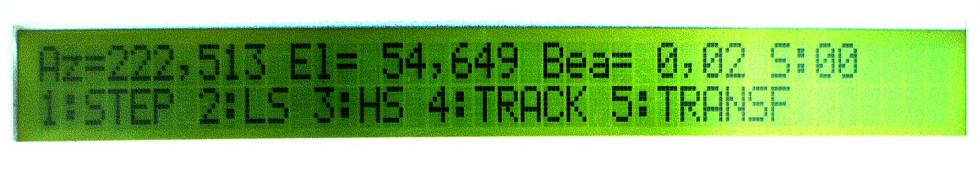

.                Insat 4B at 93.5 e _PF Vertex RSI  9.0 m_tracking n

Insat 4B at 93.5°E - 4B wide footprint in C band : 3 925 H DD Doordarshan /spectral analysis

.

                    a1, 3 925 H-Packet DD Doordarshan India : Rohde & Schwarz ETL / spectral analysis
.
                                3 885 H : SUN Network _ 3 925 H : DD Doordarshan _ 3 951 H Sakshi TV

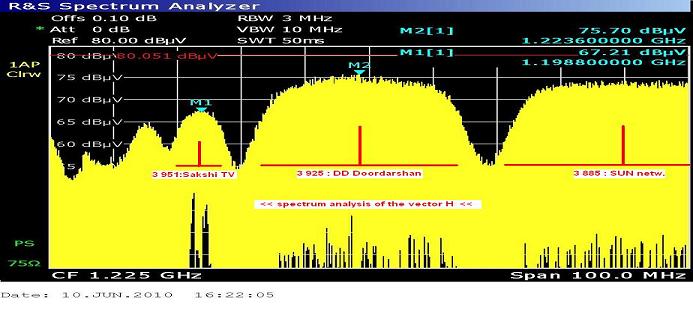

        Insat 4B at 93.5 e_spectral analysis 01_n
.
             a2, The entire range of spectrum analysis of the vector H : Rohde & Schwarz ETL / spectral analysis
.
       Insat 4B at 93.5 e_spectral analysis 02_n
.

Insat 4B at 93.5°E - 4B wide footprint in C band : 3 925 H DD Doordarshan / quality analysis

.
          b, 3 925 H - Packet DD Doordarshan India : quality analysis / Promax Prolink 4C Premium

.

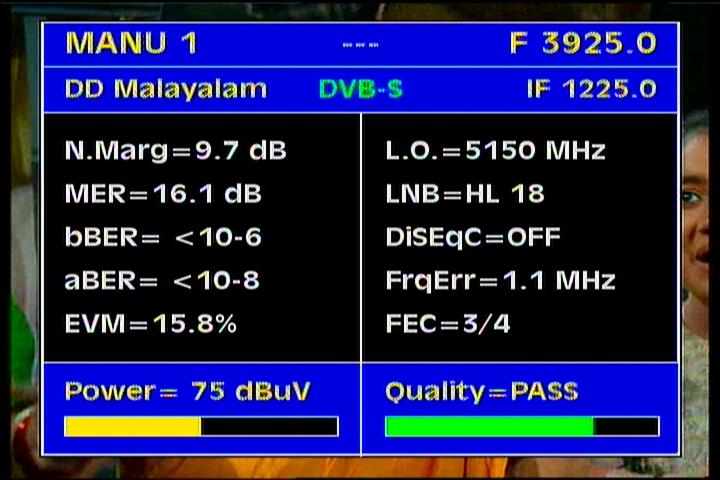

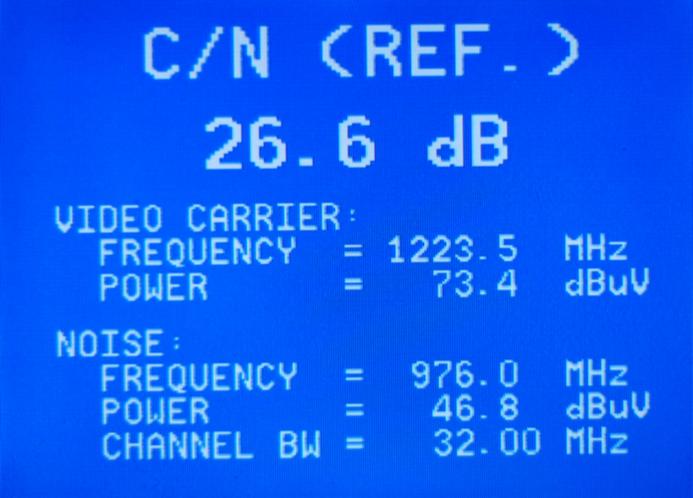

            3 925 H : QPSK-Q data                        3 925 H : Channel Power                            3 925 H : C / N
Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_q 01Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_q 02Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_q 03

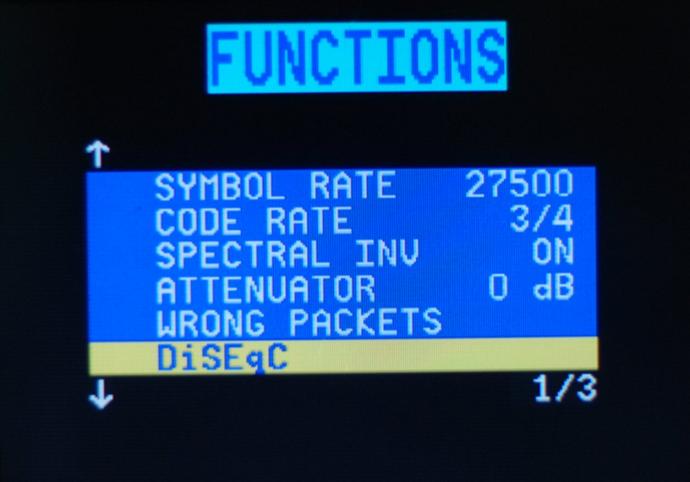

3 925 H : NIT + Functions

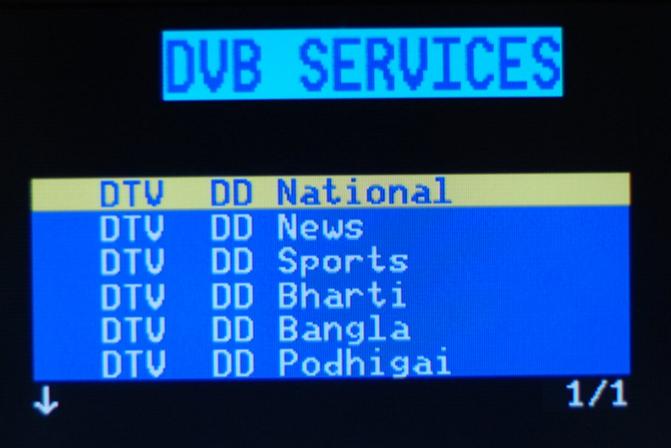

Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_NIT 01Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_NIT 02Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_functions
.

                        c, 3 925 H - Packet DD Doordarshan India : quality analysis + NIT / Tandberg TT 1260

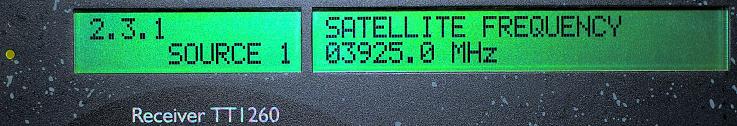

Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_Tandberg TT1260_ q 01 n
.

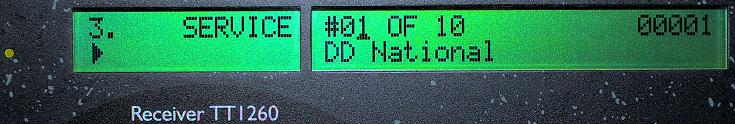

Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_Tandberg TT1260_ nit 02 n

                                                   Tandberg TT1260 : quality analysis + NIT
                                                                    download data

                                                                    download pdf document

.

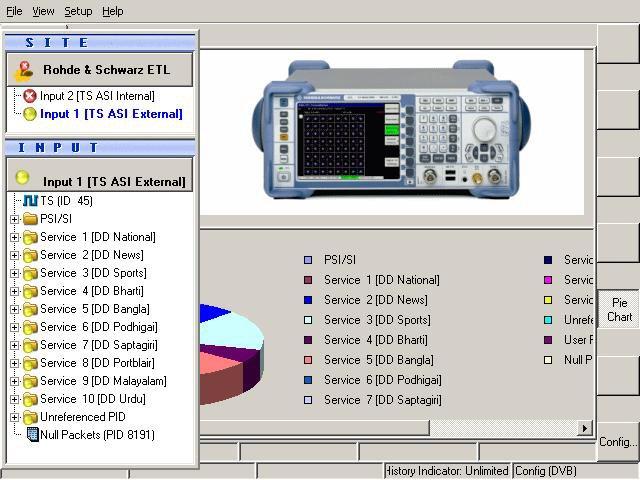

Insat 4B at 93.5°E - 4B wide footprint in C band : 3 925 H DD Doordarshan / TS table

.

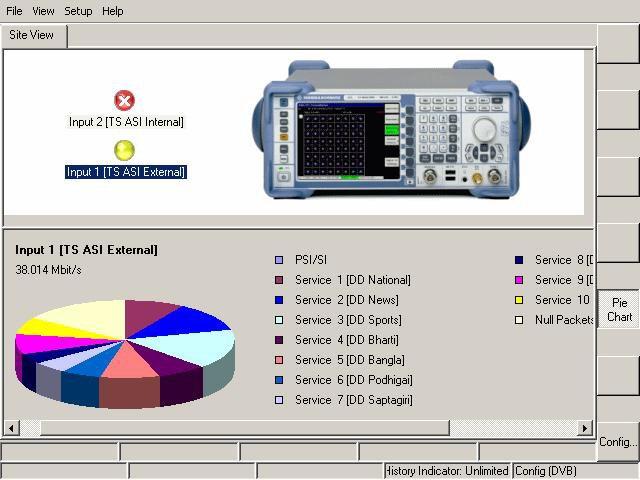

Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_Transport Stream Bit rate 01Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_Transport Stream Bit rate 02Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_Transport Stream Bit rate 03
.

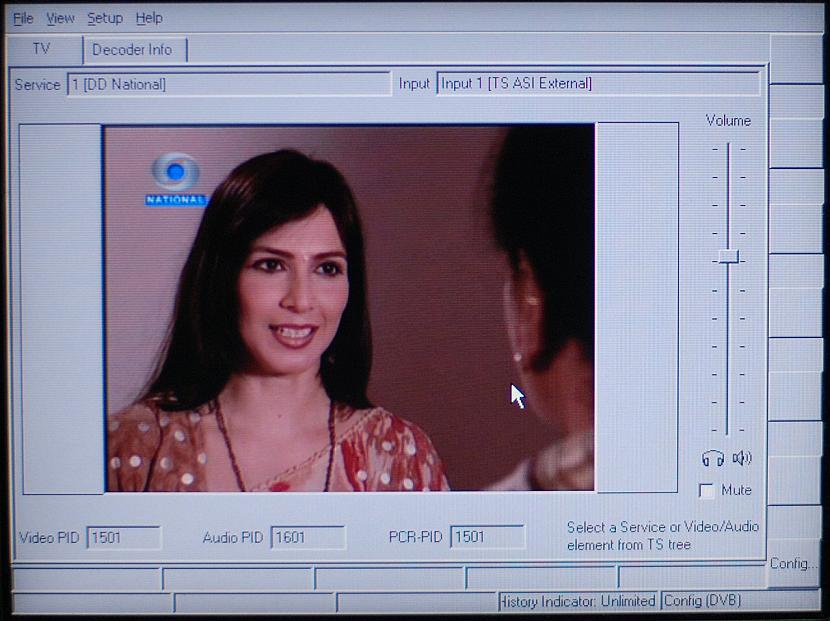

Insat 4B at 93.5°E - 4B wide footprint in C band : 3 925 H DD Doordarshan / VA pids

.

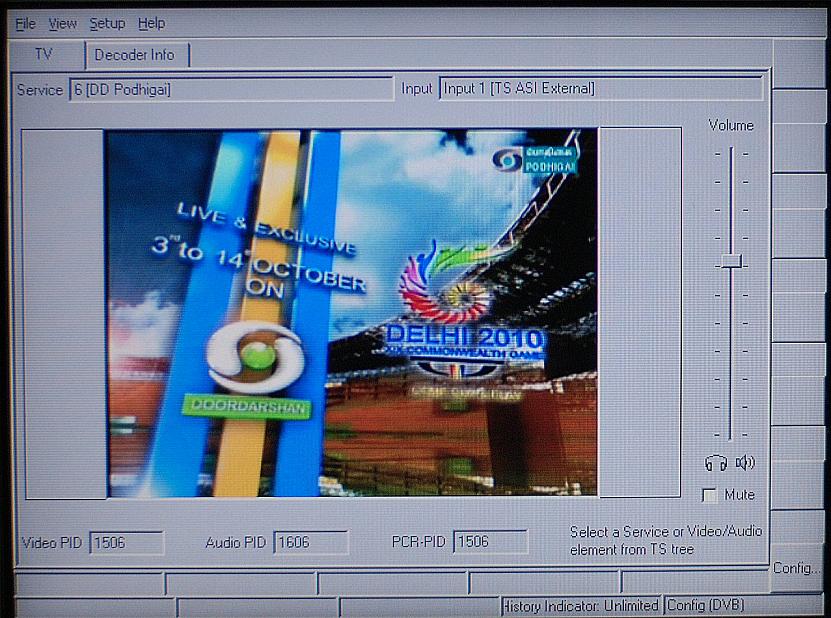

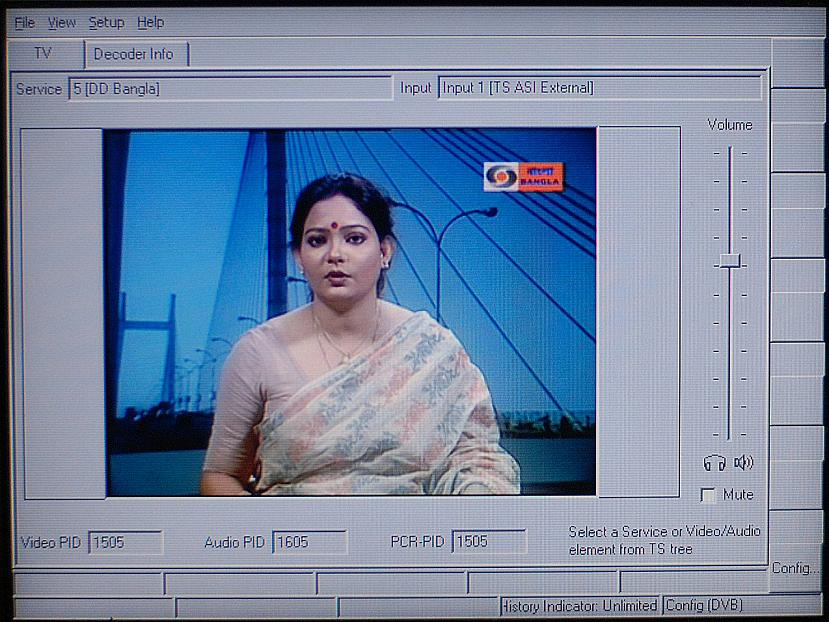

Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD National pids 06Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD Bangla pids 05Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD Podhigai pids 04

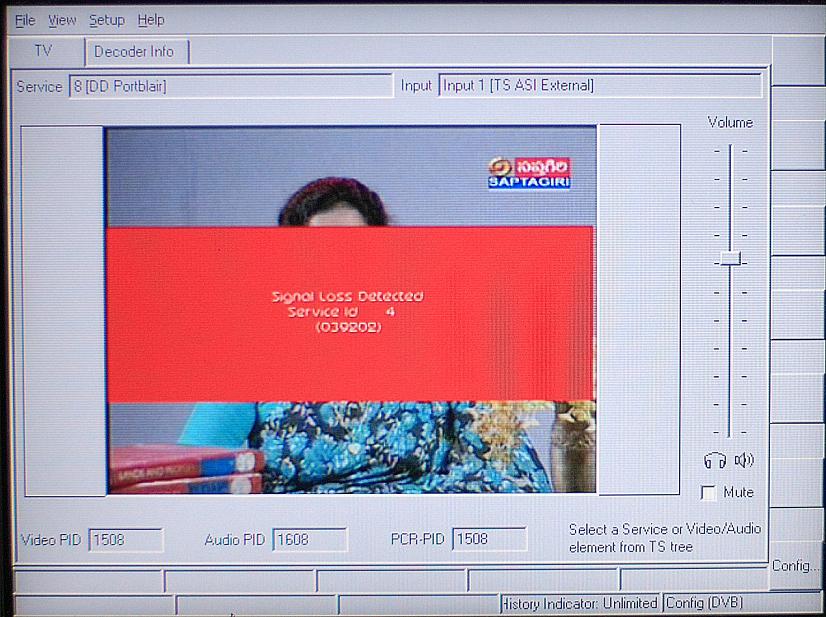

Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD Saptagiri pids 03Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD Portblair pids 02Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD Urdu pids 01
.

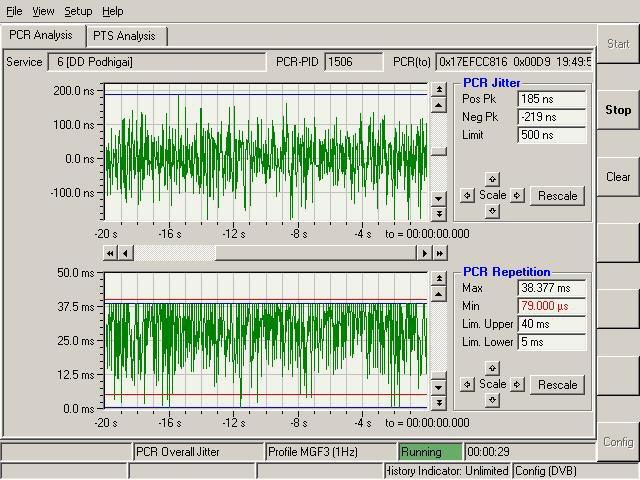

Insat 4B at 93.5°E - 4B wide footprint in C band : 3 925 H DD Doordarshan / PCR analysis

.

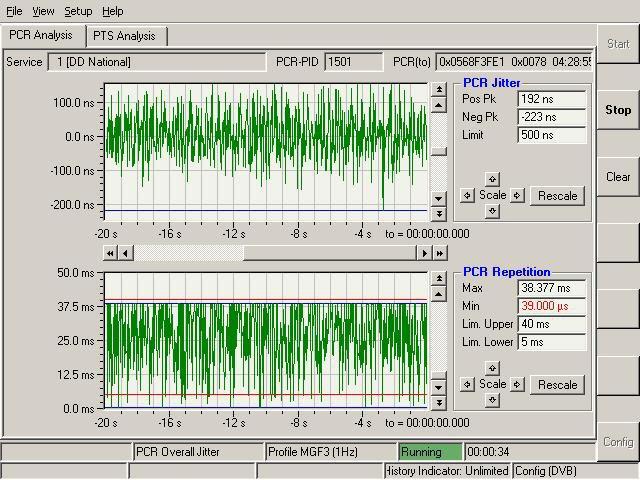

Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD National_PCR analysis 01Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD Sports_PCR analysis 02Insat 4B at 93.5 e _ 3 925 H DD Doordarshan_DD Podhigai_PCR analysis 03
.

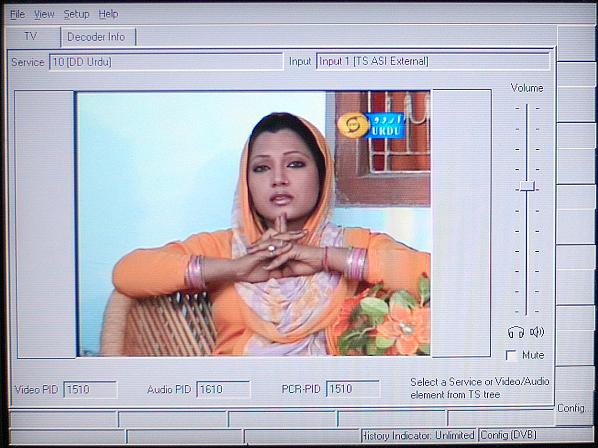

Insat 4B at 93.5°E - 4B wide footprint in C band : 3 925 H DD Doordarshan / snapshots

.
DD_Bangla_002DD_Bharti_003DD_Malaylam_001

DD_National_002DD_National_003DD_News_001
.

Insat 4B at 93.5°E - 4B wide footprint in C band : 3 925 H DD Doordarshan /videos

author : Mr. Alberto Simao / Macau S.A.R.
.

Insat 4B at 93.5°E - 4B wide footprint in C band : 3 925 H DD Doordarshan / compare the quality

.

  Insat 4B at 93.5°E - wide footprint : measurements taken in the town of Lučenec / central Slovakia
                                             geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                          measurement results are derived from the 3.7 m diameter antenna
                                                                            elevation angle  : 2.0°
.

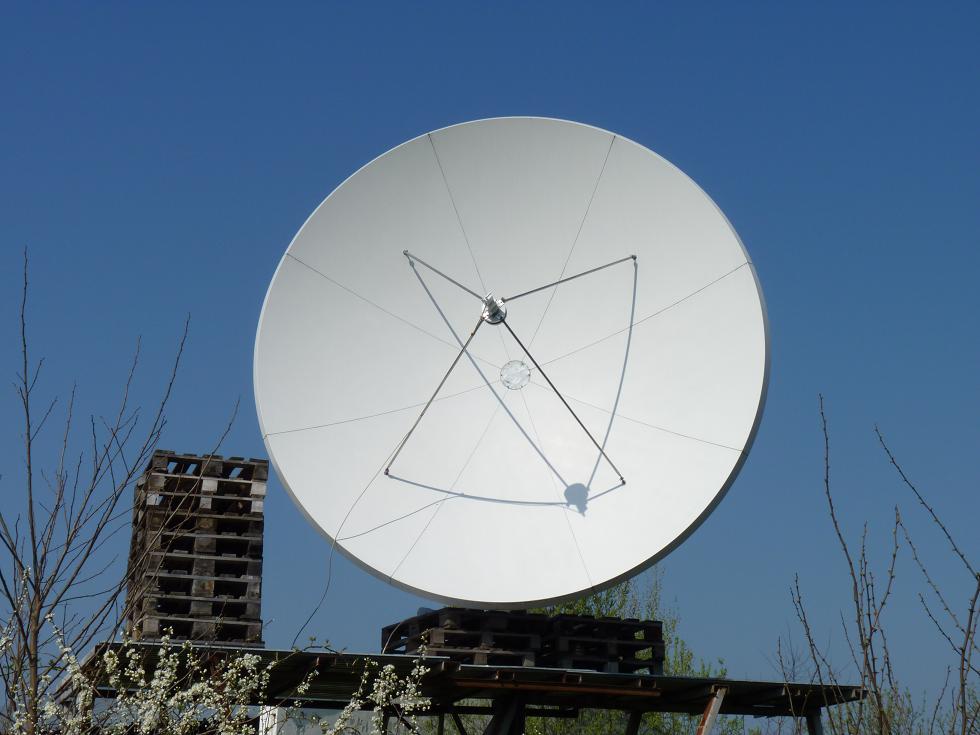

              PF Prodelin 3.7 m                     3 925 H : QPSK constellation diagram       3 925 H : QPSK/Quality analysis
Insat 4B at 93.5 e _ PF Prodelin 3.7 m _ C bandInsat 3A 4B at 93.5 e _ 4B footprint _ 3 925 H Packet DD Doordarshan_QPSK constellation dataInsat 3A 4B at 93.5 e _ 4B footprint _ 3 925 H Packet DD Doordarshan_Q data.
.

Insat 4B at 93.5°E - 4B wide footprint : measurements at the center Macau - 60 km w of Hong Kong
                            geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                                        antenna tracking : AZ=222,513° and EL=54,650°
                           measurement results are derived from the 900 cm diameter antenna
                                                  date of measurement : 11.6.2010
                                                        elevation angle  : 54.650°

           location measurements                              PF Vertex RSI 9.0 m                                   quality analysis
Insat 4A at 83.0 E _ wide footprint_PF Vertex RSi 9.0 m at 83.0e_ measuring poinInsat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_9.0m A Simao 01q analysis
