Yamal 201 at 90.0°E

Yamal 201 at 90.0°E : Technical data

                                                                         click on the picture fot high resolution

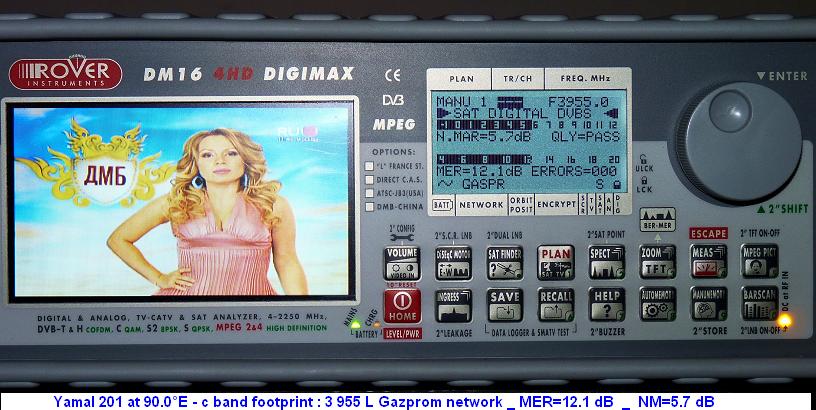

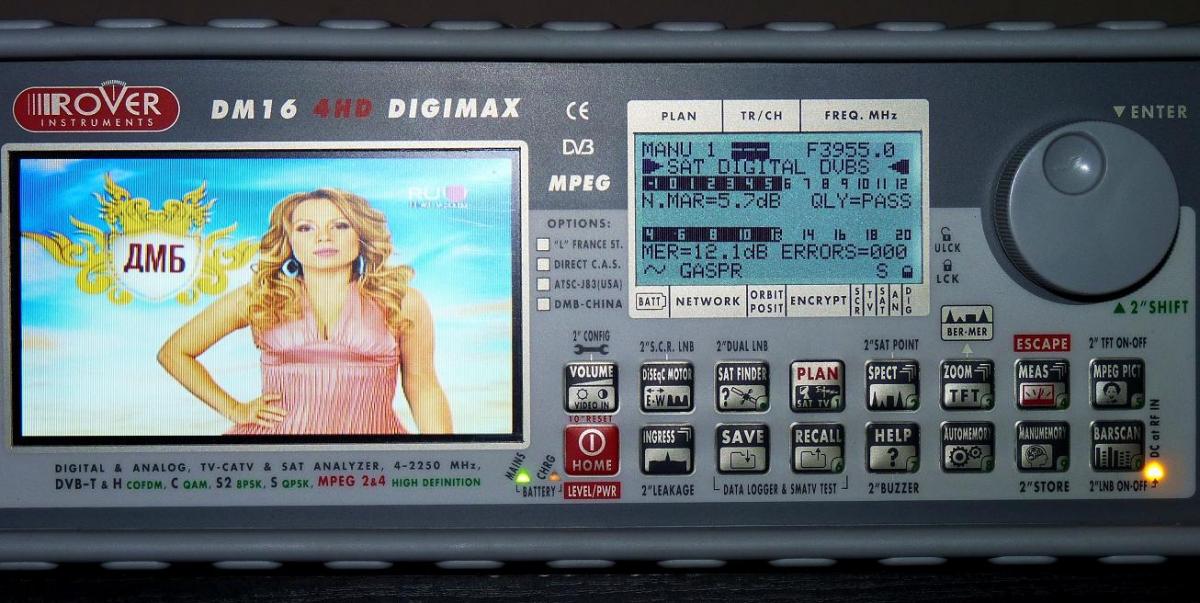

Yamal 201 at 90.0 e _ c band footprint _ first snap 01

                  Satellite : Yamal 201 - Orbit : 90.0°E - TP : 9 C/6 KU - Lifetime : from 24.11.2003 - 12 years

Update : Yamal 201 at 90.0°E - C band footprint : spectral analysis & measurement results



            Yamal 201 at 90.0°E - C band footprint : measurements at the center Lučenec/central Slovakia

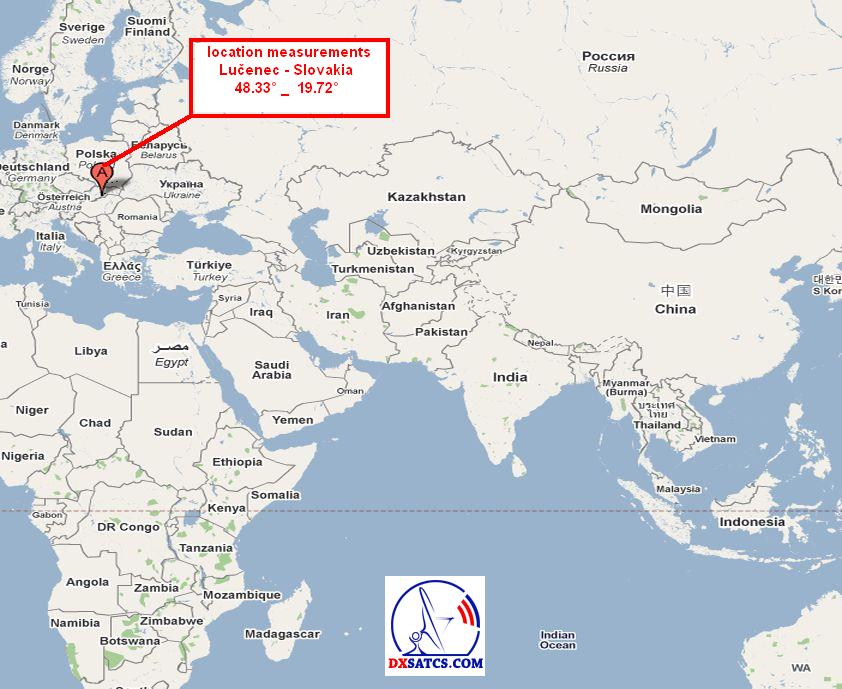

                                          geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                      measurement results are derived from the 3.7 m diameter antenna
                                                                         elevation angle  : 4.1°

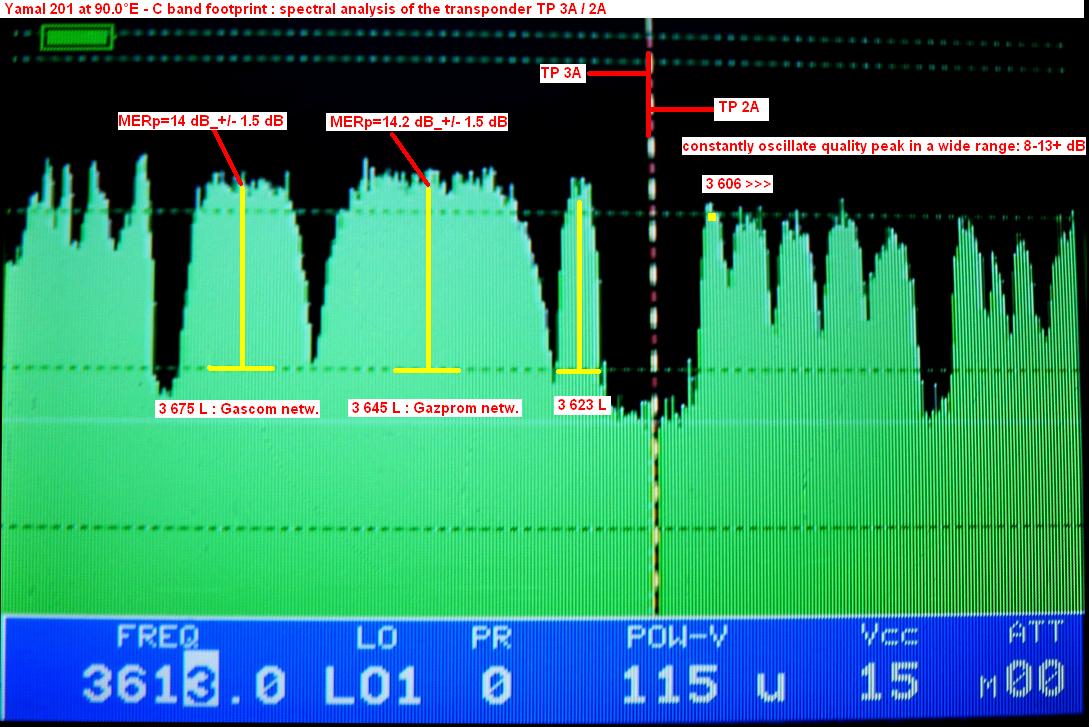

                                  Yamal 201 spectral analysis                           Yamal 201 footprint
                            TP 6A+7A : 3 954 L Gazprom netw.        Asia,Middle East,part of Europe & Africa
                         Yamal 201 at 90.0 e _ c band footprint _ spectral analysis of TP 7A    Yamal 201 at 90.0 e _ c band footprint _
                                                           - time of measurement : 21.2.2010 -
                                     - description of the quality analysis + defining the status of income -

                                                                - description of the quality analysis -
 - qualitative value of MERp indicates the peak, which I measured in the time span of 10 min. /amplitude/
 - the following function defines persistent changing component of gainings growth in the time span of 10 min. at  the
elevation angle of only 4° _ see next explanation
                                                                     - defining the status of income -
- typical phenomenon in the income supporting broadcast via the transponder TP 2A of the Yamal 201 satellite
throughout the term Central Europe is the continuing high level of EIRP oscillating flow, as in the antenna diameter
370 cm and elevation angle only 4.1 degree mean amplitude levels of quality in the drive to MER= +/- 2 dB, depending
on the choice of carrier in the frequency range within a period of 10 minutes.

                             - qualitative diagnosis QPSK carrier in the frequency range of vectors L and R waves -

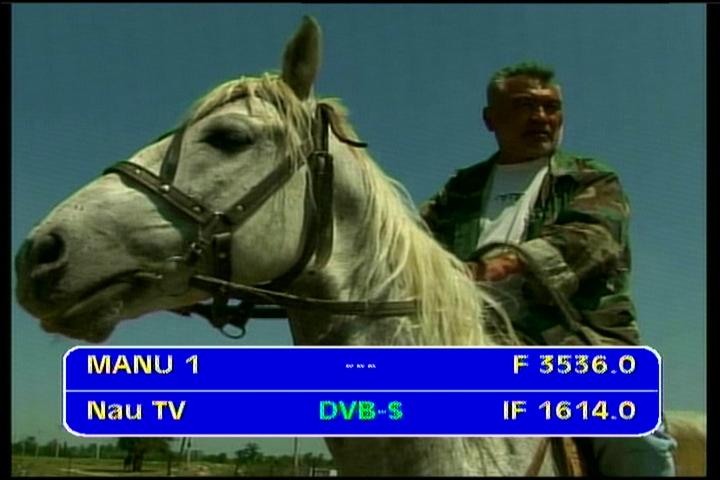

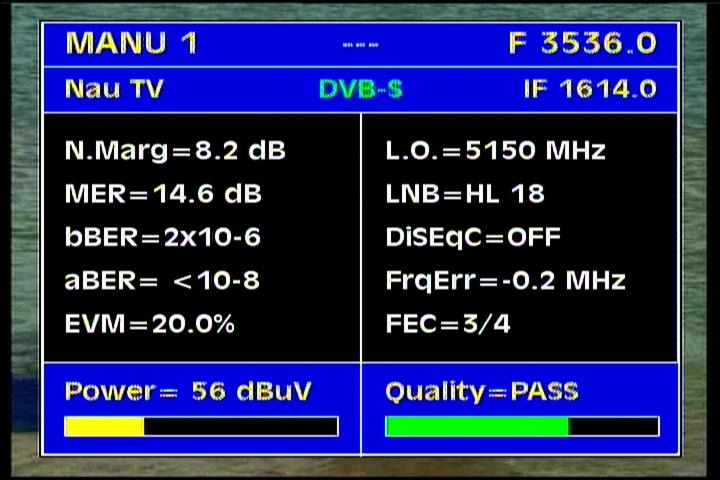

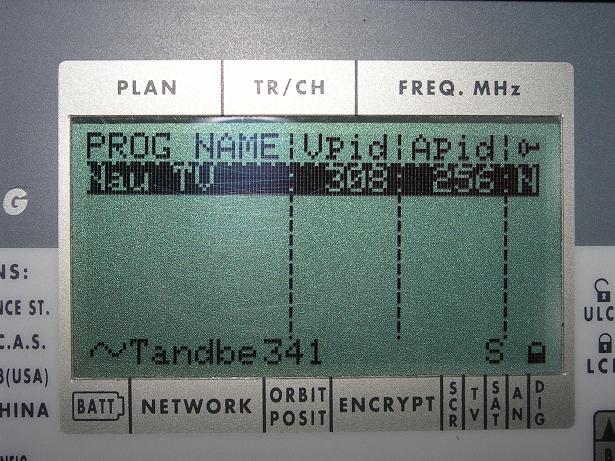

                                                    Yamal 201 at 90.0°E - C footprint : 3 536 L  Nau TV
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 536 L Nau TV _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 536 L Nau TV _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 536 L Nau TV _ NIT data

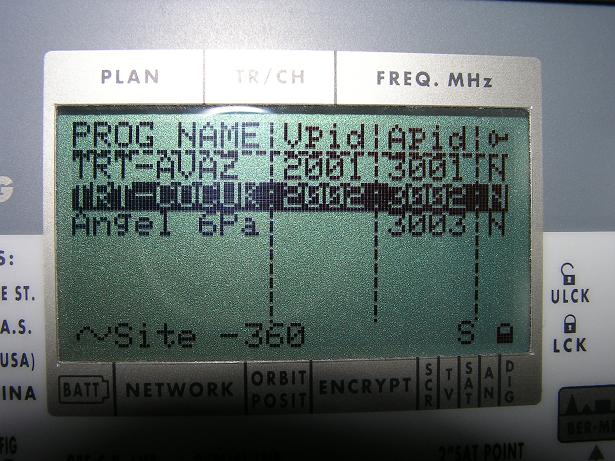

                                           Yamal 201 at 90.0°E - C footprint : 3 552 R Site - 360 network
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 552 R RRSat Global _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 552 R RRSat Global _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 552 R RRSat Global _ NIT data

                                      Yamal 201 at 90.0°E - C footprint : 3 553 L Packet Turkmenistan 90
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 553 L Miras TV _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 553 L Miras TV _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 553 L Miras TV _ NIT data

                                                  Yamal 201 at 90.0°E - C footprint : 3 588 L TV Nord
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 588 L TV Nord _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 588 L TV Nord _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 588 L TV Nord _ NIT data

                                                       Yamal 201 at 90.0°E - C footprint : 3 600 L OTV
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 600 L OTV _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 600 L OTV _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 600 L OTV _ NIT data

                                                    Yamal 201 at 90.0°E - C footprint : 3 605 L CNL Sibir
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 605 L CNL TV _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 605 L CNL TV _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 605 L CNL TV _ NIT data

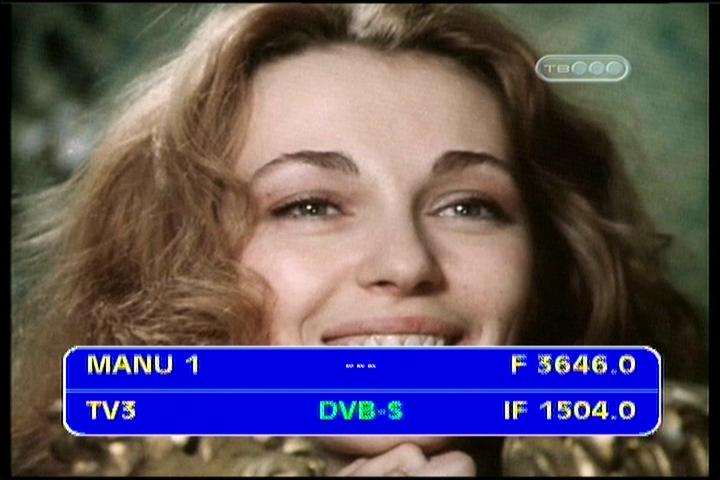

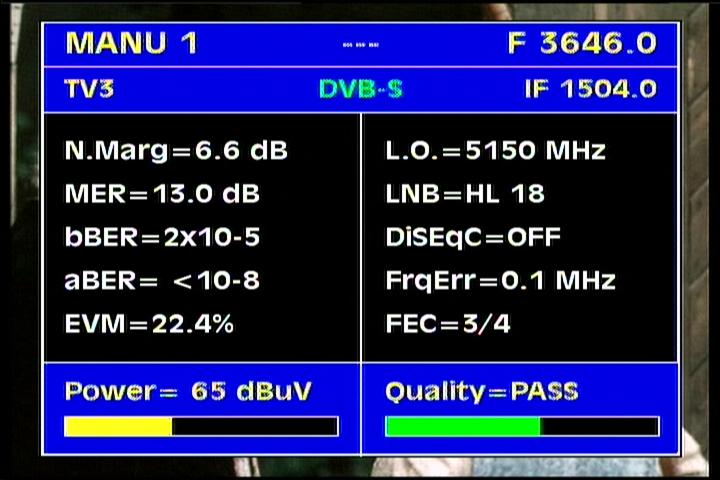

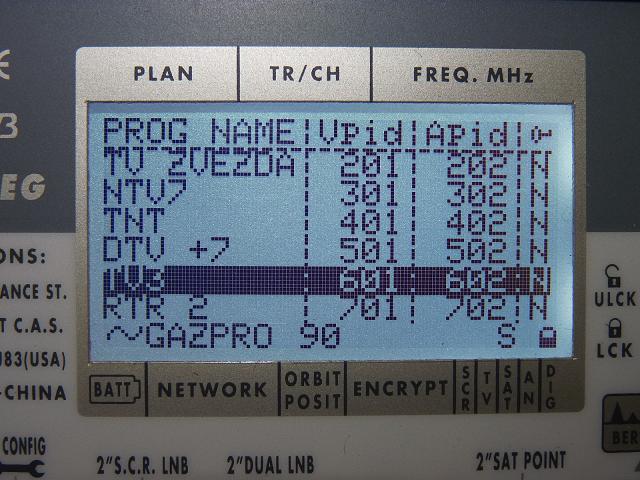

                                          Yamal 201 at 90.0°E - C footprint : 3 645 L Gazprom Network
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ c band footprint _ 3 646 L Gazprom network_IF dataYamal 201 at 90.0 e _ c band footprint _ 3 646 L Gazprom network_Q dataYamal 201 at 90.0 e _ c band footprint _ 3 646 L Gazprom network_NIT data

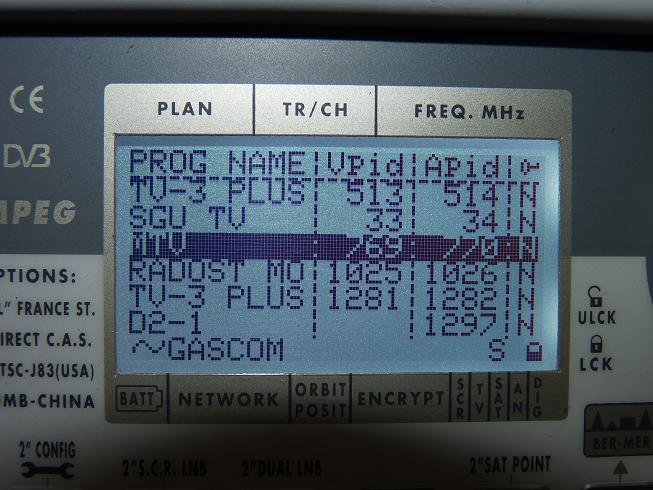

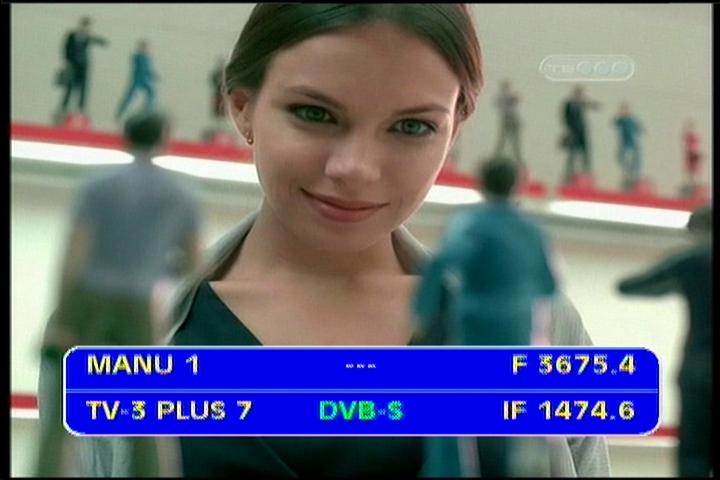

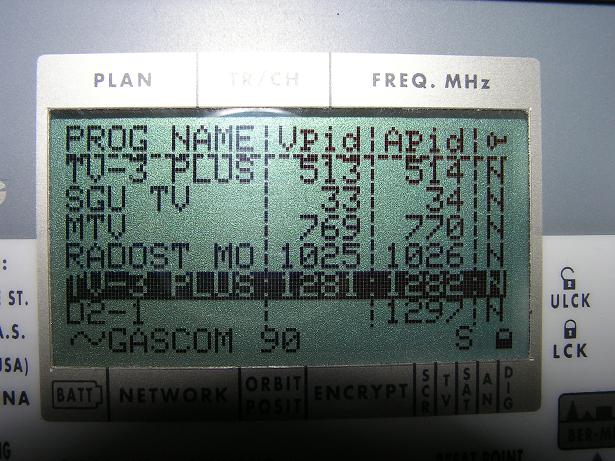

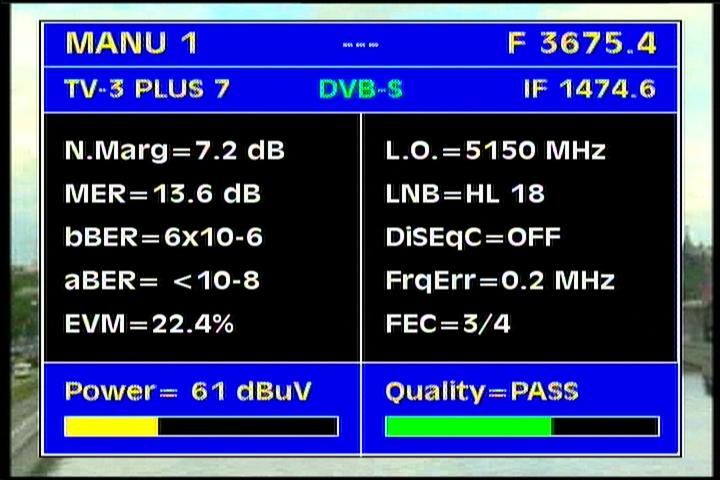

                                         Yamal 201 at 90.0°E - C footprint : 3 675 L Gascom Network 90
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 675 L Gascom Netw _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 675 L Gascom Netw _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 675 L Gascom Netw _ NIT data

                                                   Yamal 201 at 90.0°E - C footprint : 3 725 L Skvortsovo
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 725 L Skvortsovo _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 725 L Skvortsovo _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 725 L Skvortsovo _ NIT data

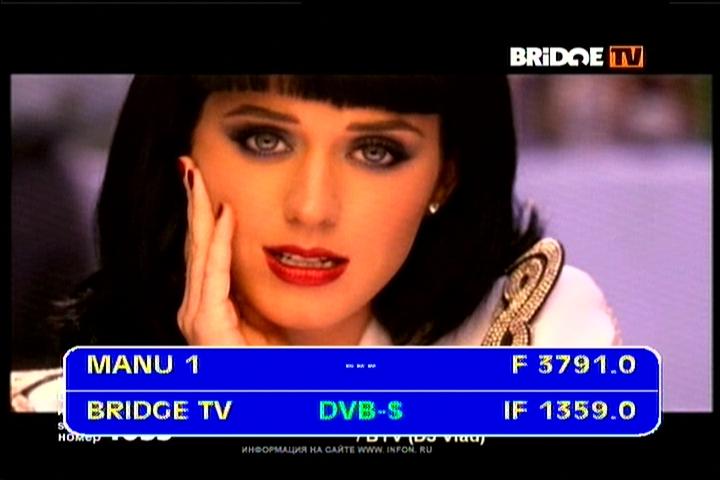

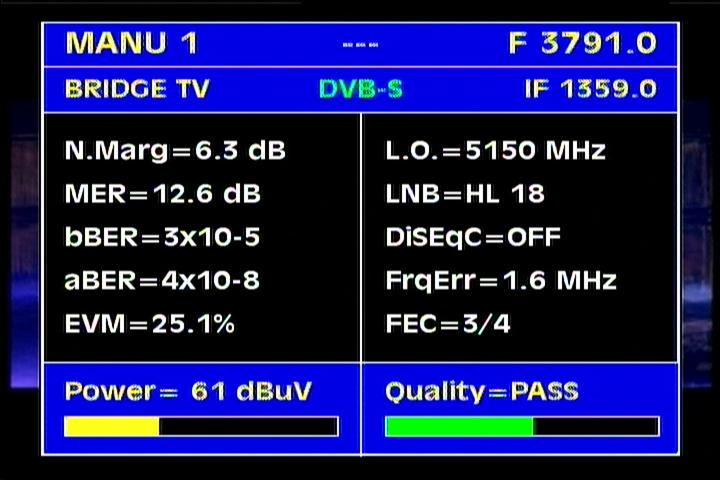

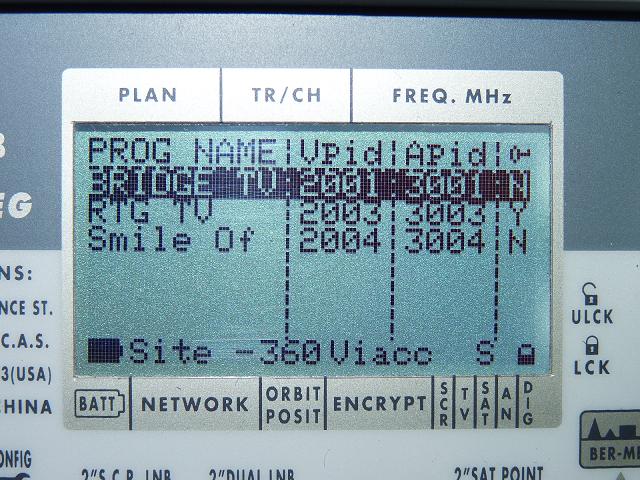

                                           Yamal 201 at 90.0°E - C footprint : 3 791 R Site-360 Viaccess
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ c band footprint _ 3 791 R RRSat Global_IF dataYamal 201 at 90.0 e _ c band footprint _ 3 791 R RRSat Global_Q dataYamal 201 at 90.0 e _ c band footprint _ 3 791 R RRSat Global_NIT data

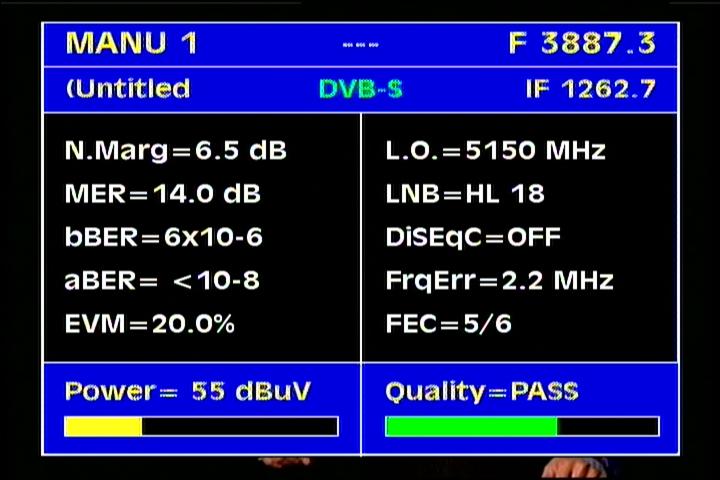

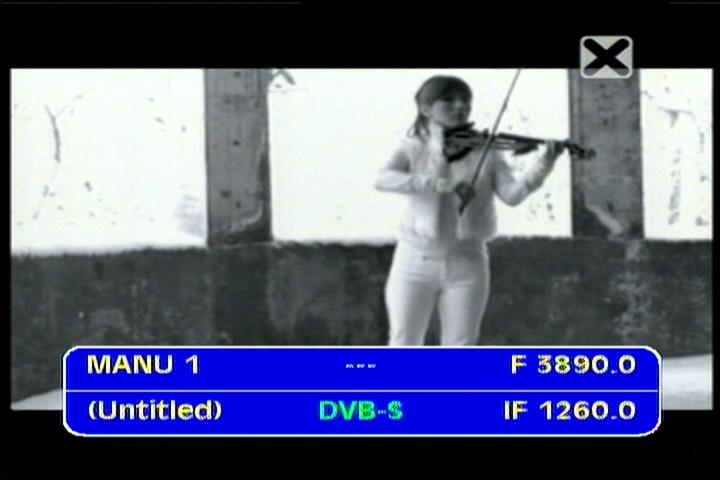

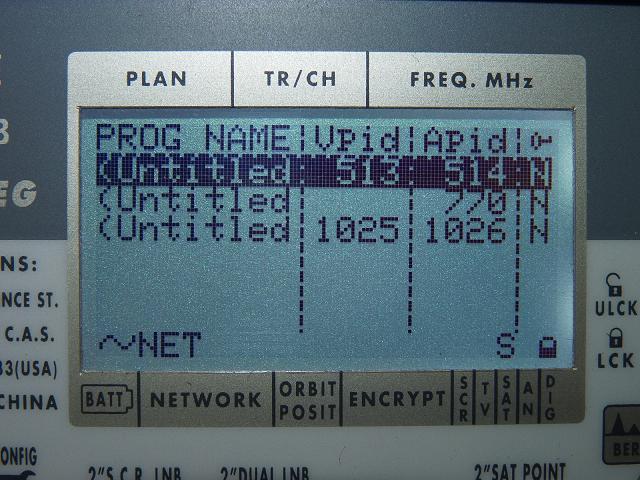

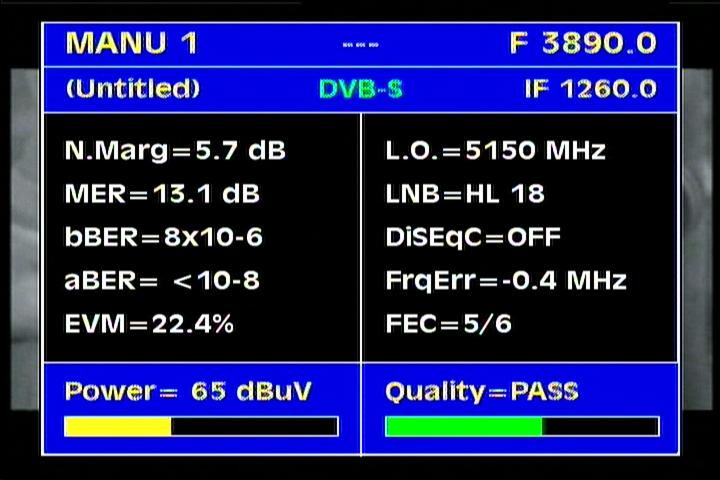

                                              Yamal 201 at 90.0°E - C footprint : 3 890 L NET / Unn. network
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ c band footprint _ 3 890 L Unn. network_IF dataYamal 201 at 90.0 e _ c band footprint _ 3 890 L Unn. network_Q dataYamal 201 at 90.0 e _ c band footprint _ 3 890 L Unn. network_NIT data

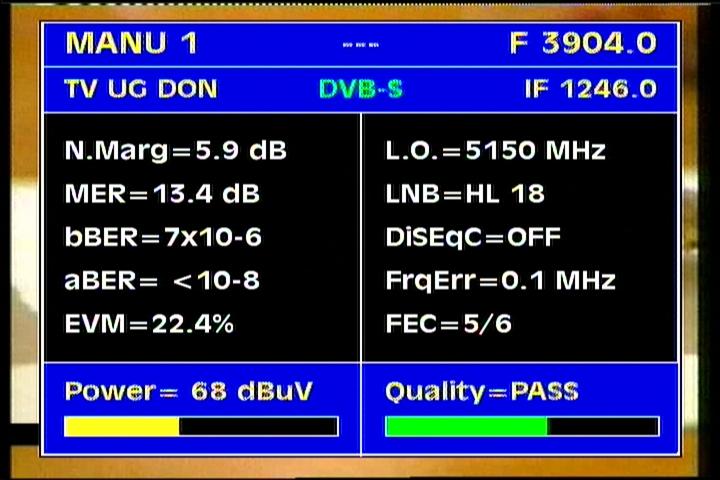

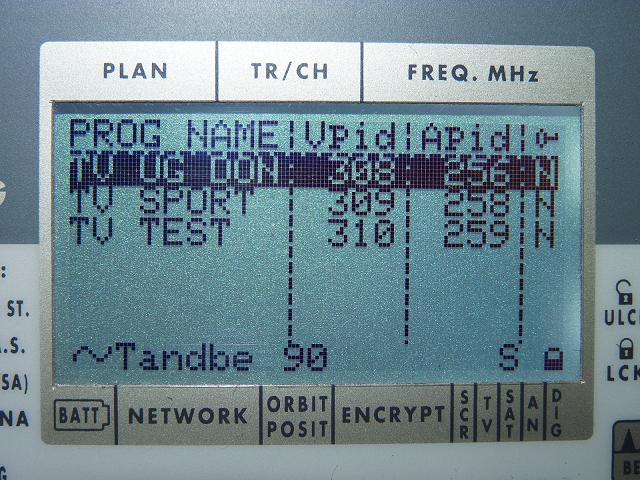

                                               Yamal 201 at 90.0°E - C footprint : 3 903 L Unn. network
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ c band footprint _ 3 904 L Unn. network_IF dataYamal 201 at 90.0 e _ c band footprint _ 3 904 L Unn. network_Q dataYamal 201 at 90.0 e _ c band footprint _ 3 904 L Unn. network_NIT data

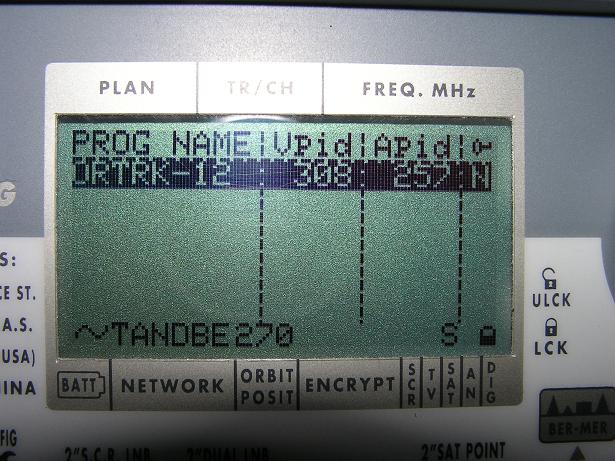

                                                   Yamal 201 at 90.0°E - C footprint : 3 912 L ORTRK 12
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 912 L ORTRK 12 _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 912 L ORTRK 12 _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 912 L ORTRK 12 _ NIT data

                                                        Yamal 201 at 90.0°E - C footprint : 3 924 L TRT Rossiya 1
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ c band footprint _ 3 924 L TRT Rossiya 1_IF dataYamal 201 at 90.0 e _ c band footprint _ 3 924 L TRT Rossiya 1_Q dataYamal 201 at 90.0 e _ c band footprint _ 3 924 L TRT Rossiya 1_NIT data

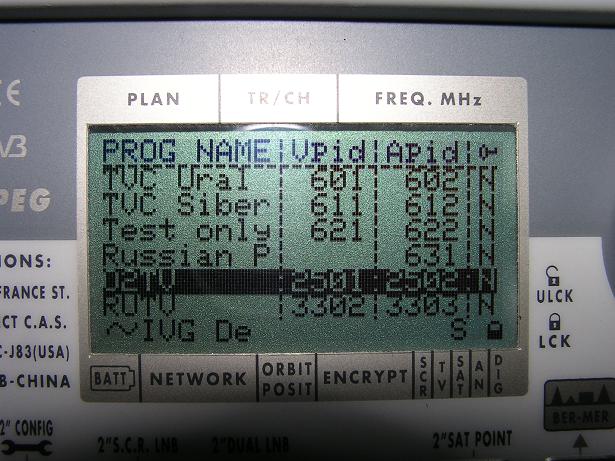

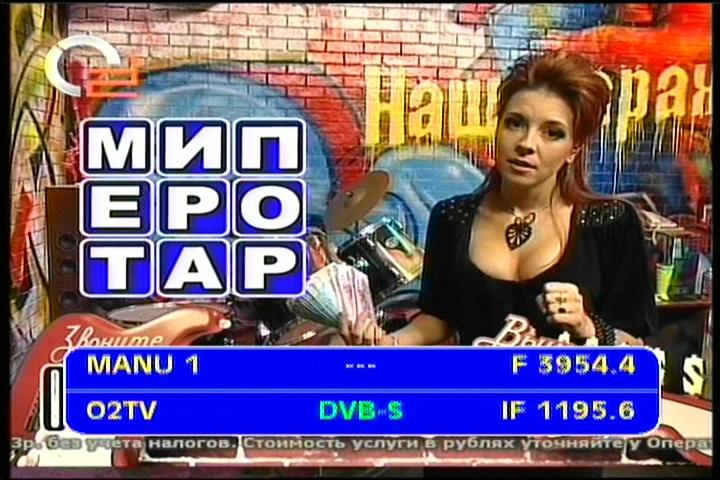

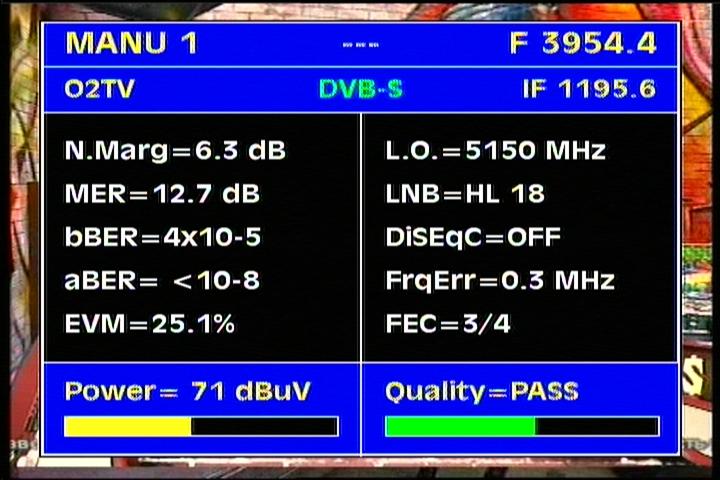

                                         Yamal 201 at 90.0°E - C footprint : 3 954 L IVG Default Network
                          IF data                                                     Q data                                                    NIT data
Yamal 201 at 90.0 e _ C footprint _ 3 954 L O2TV _ IF dataYamal 201 at 90.0 e _ C footprint _ 3 954 L O2TV _ Q dataYamal 201 at 90.0 e _ C footprint _ 3 954 L O2TV _ NIT data

Yamal 201 at 90.0°E : TV List


                         Yamal 201 at 90.0 e _ C footprint _ PF Prodelin 3.7 m


----Frequency----


----------Provider/Channel----------

---SR--- ---FEC--- ----Footprint---- ---Antenna--- ---Video/Encryption---

3 536 -L- tp 2A

 Nau TV     watch video 2 531 3/4 Yamal 201 C 220-270+ cm DVB FTA

3 539 -L- tp 2A

 TBN Rossiya 3 274 3/4 Yamal 201 C 220-270+ cm DVB FTA

3 552 -R- tp 2

 Site - 360 5 180 3/4 Yamal 201 C 220-270+ cm DVB
  TRT Avaz TV      watch video         FTA
  TRT Cocuk / TRT 4         FTA

3 554 -L- tp 2A

 Turkmenistan network 20 000 3/4 Yamal 201 C 220-270+ cm DVB
  Altyn Asyr         FTA
  Yaslyk     watch video         FTA
  Miras         FTA
  TV 4 Turkmenistan         FTA

3 577 -L- tp 2A

 left --- --- --- --- ---

3 583 -L- tp 2A

 Chita TV 4 275 3/4 Yamal 201 C 220-270+ cm Biss

3 589 -L- tp 2A

 TV-Nord     watch video 4 285 3/4 Yamal 201 C 220-270+ cm DVB FTA

3 595 -L- tp 2A

 GTRK-Bira 2 4 275 3/4 Yamal 201 C 220-270+ cm Biss

3 601 -L- tp 2A

 OTV Ekaterinburg    watch video 4 285 3/4 Yamal 201 C 220-270+ cm DVB FTA

3 603 -R- tp 2A

 OTV Bulat      watch video 4 285 3/4 Yamal 201 C 220-270+ cm DVB FTA

3 605 -L- tp 2A

 CNL Sibir       watch video 2 626 3/4 Yamal 201 C 220-270+ cm DVB FTA

3 623 -L- tp 3A

 Turkmen Owazy 4 285 3/4 Yamal 201 C 220-270+ cm DVB FTA

3 645 -L- tp 3A

 Gazprom TV network 28 000 3/4 Yamal 201 C 180-240+ cm DVB
  TV Zvezda +7h         FTA
  TV Zvezda +2h         FTA
  NTV +7h       watch video         FTA
  TNT +7h         FTA
  DTV +7h         FTA
  TV 3         FTA
  RTR 2         Biss

3 674 -L- tp 3A

 Gascom Network 17 500 3/4 Yamal 201 C 180-240+ cm DVB
  TV 3 +2h         FTA
  SGU TV         watch video         FTA
  MTV Russia     watch video         FTA
  Radost Moya         FTA
  TV 3 +7h         FTA
3 694 -L- tp 4A Soyuz
 		 2 430 3/4 Yamal 201 C 180-240+ cm DVB FTA

3 726 -L- tp 4A

  watch video
Skvortsovo
 3 200 3/4 Yamal 201 C 200-240+ cm DVB FTA

3 730 -L- tp 4A

 RTR+DVTRK   4 285 3/4 Yamal 201 C 200-240+ cm Biss

3 746 -L- tp 4A

TLK Spas

 2 890 3/4 Yamal 201 C 200-240+ cm DVB FTA

3 791 -R- tp 5

RRSat Global Communications

 7 900 3/4 Yamal 201 C 180-220+ cm DVB
  Bridge TV         FTA
  RTG TV      watch video         Viaccess 2.6
  Smile of a Child         FTA

3 890 -L- tp 6A		 NET 5 859  5/6 Yamal 201 C 180-240+ cm DVB
  HIT X / No Name         FTA
  Kazachstan TV / No Name         FTA

3 904 -L- tp 6A

 unn.network 8 888 5/6 Yamal 201 C 180-240+ cm DVB
  TV Ug Don         FTA
  TV Sport         Biss
  test card / TV Test         FTA

3 913 -L- tp 6A

 ORTRK 12 4 295 3/4 Yamal 201 C 200-240+ cm DVB FTA

3 919 -L- tp 6A

 GTRK EL Altai 4 275 3/4 Yamal 201 C 200-240+ cm Biss

3 923 -L- tp 6A

 TRT_/ TV Rossiya Tver 3 570 3/4 Yamal 201 C 200-240+ cm DVB FTA

3 928 -L- tp 6A

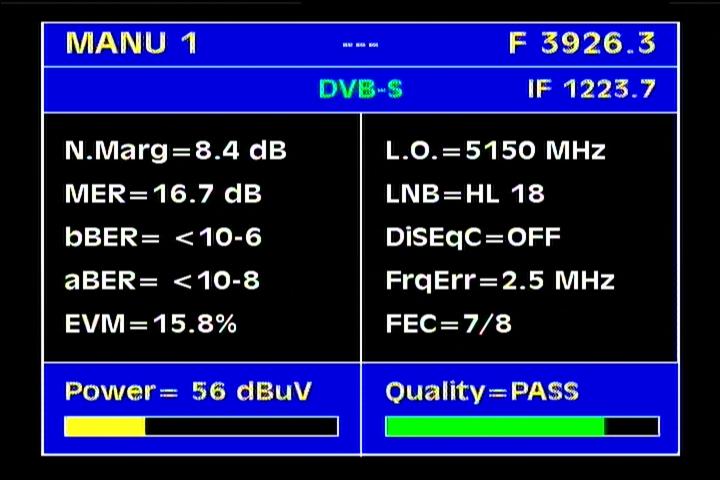

 REN TV-M4     watch video  1 116  7/8  Yamal 201 C 140-180 + cm  MPEG-4/FTA

3 955 -L- tp 7A

 GASCOM Network 29 500 3/4 Yamal 201 C 180-240+ cm DVB
  TV Centr Ural         FTA
  TV Centr Siberia         FTA
  TV Centr D.Vostok         FTA
  O2 tv         FTA
  RU tv         FTA
  TV Zvezda +4h         FTA
  AM Life         FTA
  Style TV         FTA
  TTC    watch video         FTA
  Agro TV         FTA

3 990 -L- tp 7A		 Data network 24 050  3/4 Yamal 201 C 180-240+ cm DVB-S / Data

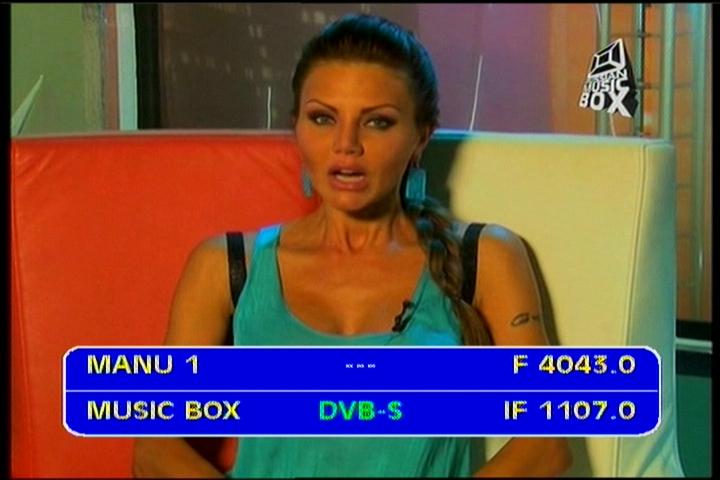

4 043 -R- tp 8

 GASCOM Network 8 681 3/4 Yamal 201 C 180-240+ cm DVB
  Music Box Ru         FTA
  Music Box TV    watch video         FTA
  Humor TV         FTA
4 085 -R- tp 8
 		 Radio packet/NetService 2 500 3/4 Yamal 201 C 180-240+ cm DVB FTA

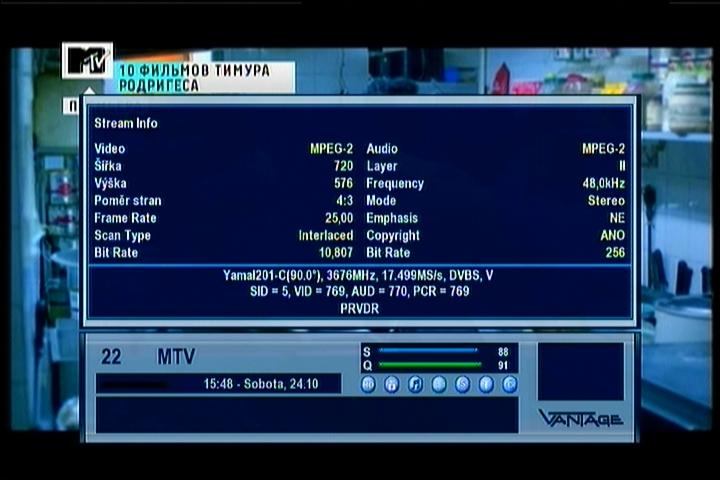

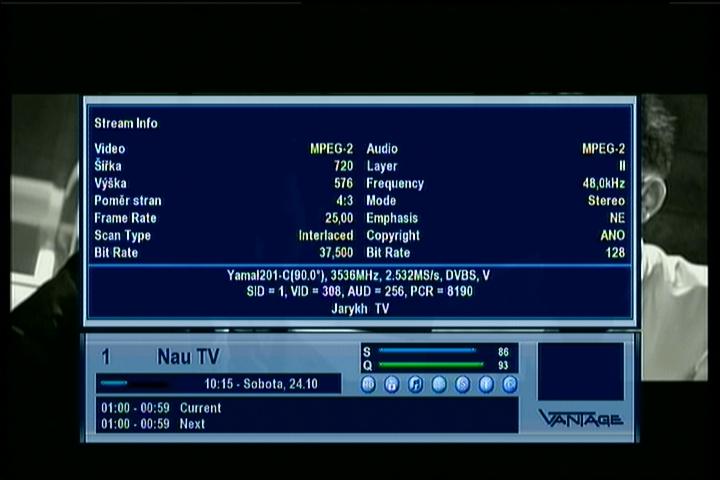

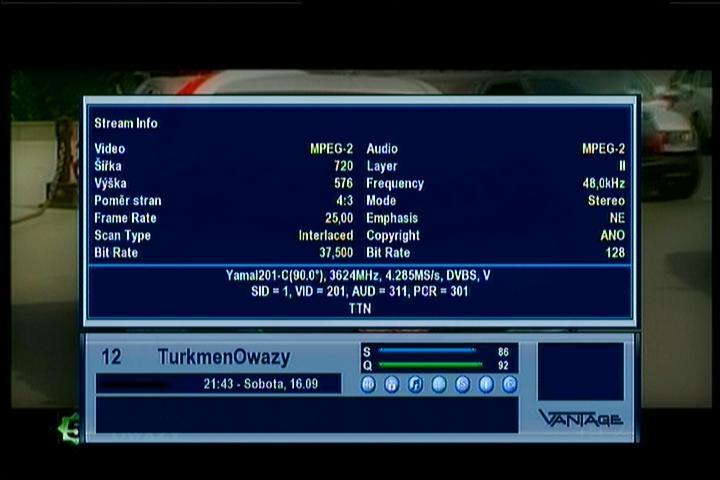

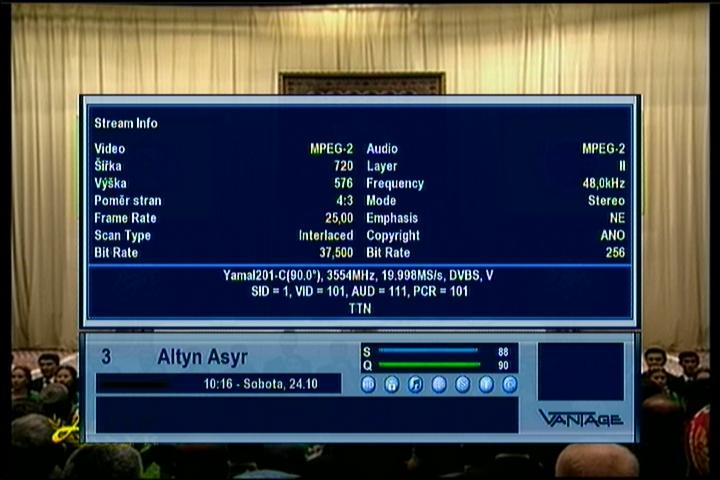

Yamal 201 at 90.0°E : Percent quality

                         3 536 L                                                    3 553 L                                                3 623 L
percent Q 01percent Q 02percent Q 03
                       3 674 L                                                    3 912 L                                                     3 928 L
percent Q 04percent Q 05percent Q 06

Yamal 201 at 90.0°E : Video presentations


   Go to Video Section:
button

Yamal 201 at 90.0°E : Update drawn up


      dxsatcs logo
            CZECH & SLOVAK DX SATELLITE CLUB
               international professional portal
               Roman Dávid - author & founder
               mail : roman.david@dxsatcs.com

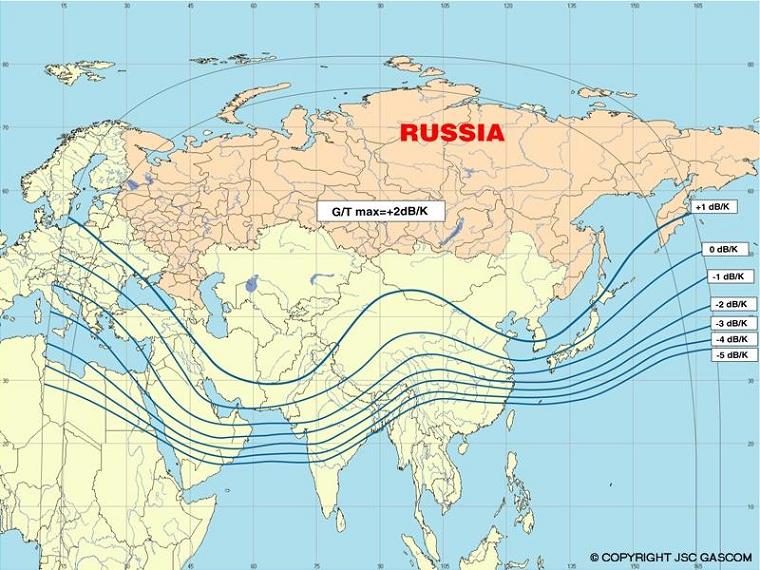

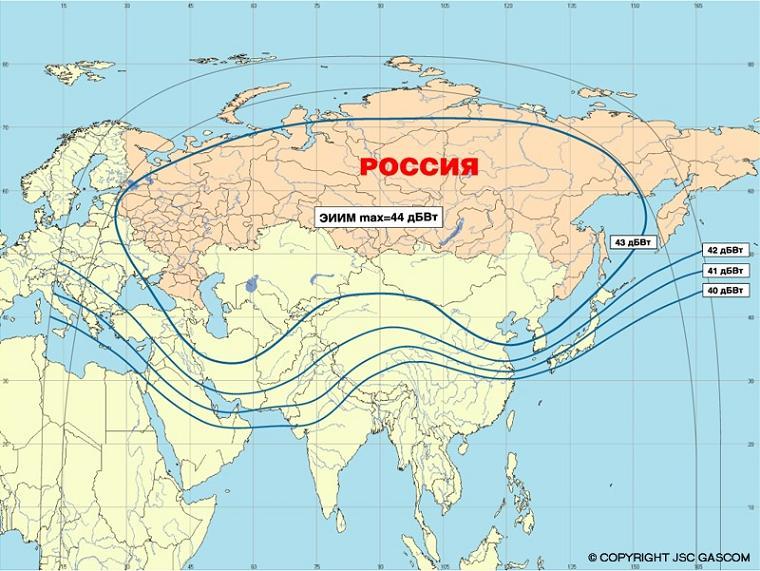

Yamal 201 at 90.0°E footprint : C band

               Yamal 201 footprint                              Yamal 201 footprint
 Yamal 201at 90.0E C band beam EIRPYamal 201at 90.0E C band beam GT


Yamal 201 at 90.0°E : Snapshots


Altyn Asyr 02MTV Russia 03Music Box Russia 05
TBN Russia 01TRT 04TV 3 06
