Yamal 202 at 49.0°E

Yamal 202 at 49.0°E : Technical data

click for higher quality

satellite : Yamal 202 - Orbit : 49.0°E - TP : 18 C - lifetime : from 24.11.2008 - 12 years

Update - Yamal 202 at 49.0°E - global footprint : spectrum analysis and measurement of reception quality

                 Yamal 202 at 49.0°E - global footprint : measurements at the center Lučenec_central Slovakia
                                      geographical location : Latitude: 48.33° _   Longitude: 19.72°
                                    measurement results are derived from the 3.7 m diameter antenna
                                                                    elevation angle : 27.5°

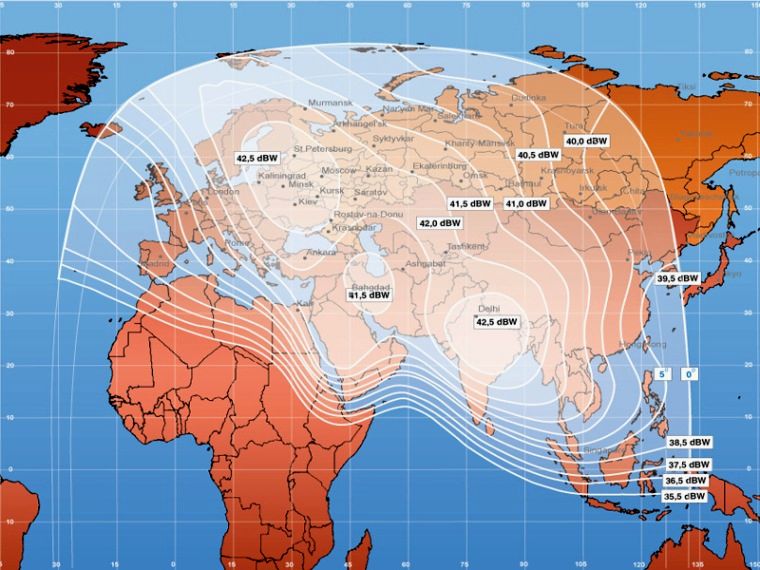

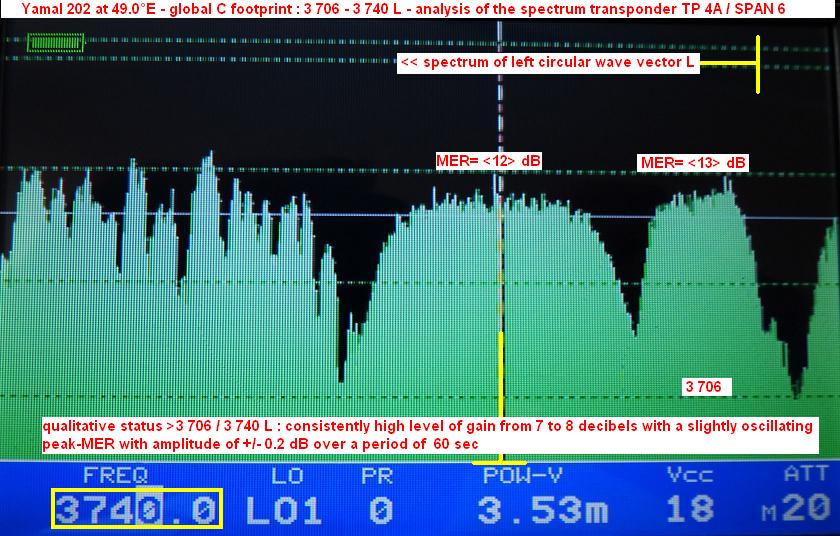

                                     Yamal 202 spectral analysis                  Yamal 202 footprint_global
                                      TP 4A / L : 3 706 > 3 740 MHz         Europe,Asia,Middle East,part of Africa

                                                           - time of measurement : 10.4.2010 -
                                                                          - defining the status of income -

      Quality of reception achieved in the zone with EIRP levels around 42 dBW for following carriers : 3 706 & 3 740 L
>>> consistently high level of gain from 7 to 8 decibels with a slightly oscillating peak-MER with amplitude of +/- 0.2 dB over a
                                                                                          period of 60 sec

Yamal 202 at 49.0°E - global footprint :quality analysis of income

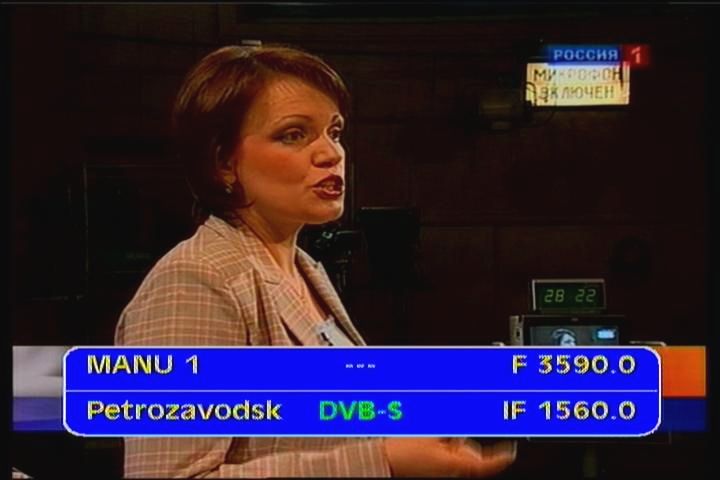

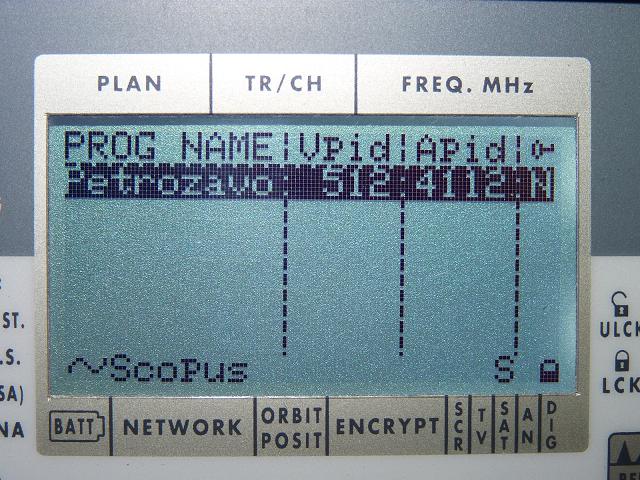

Yamal 202 at 49.0°E - global footprint : 3590 L Petrozavodsk TV / Rossiya 1
IF data Q data NIT data

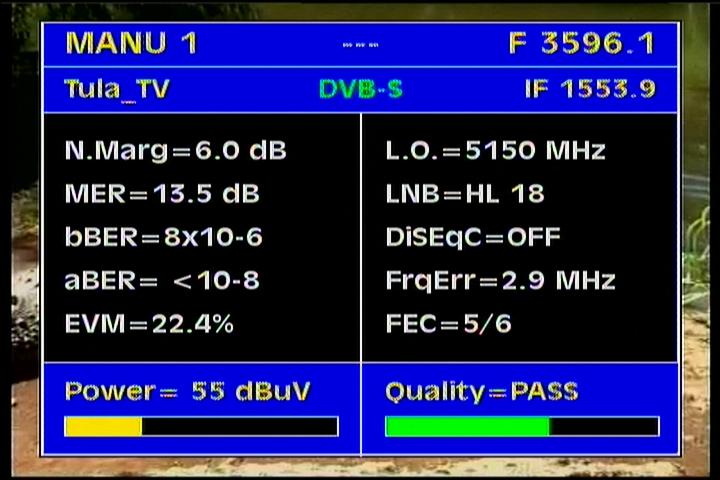

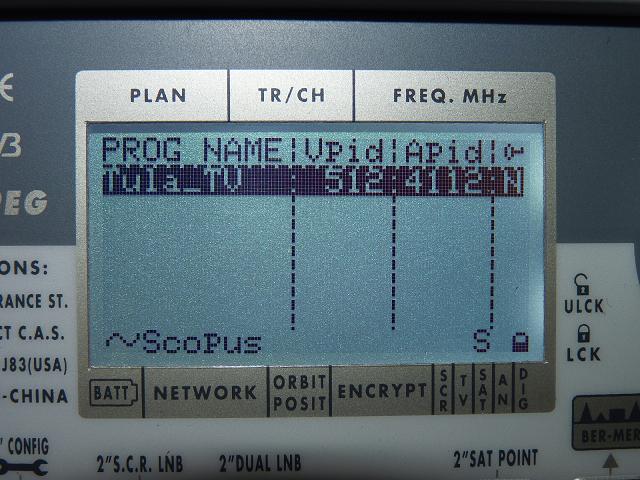

Yamal 202 at 49.0°E - global footprint : 3 596 L MPEG-4 Tula TV
IF data Q data NIT data

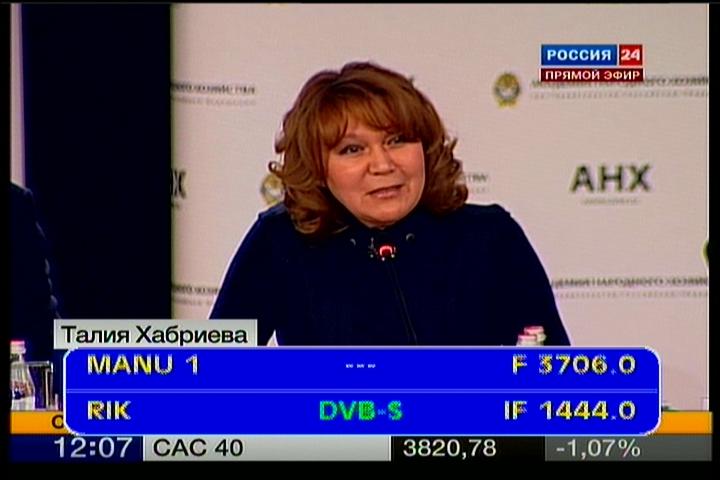

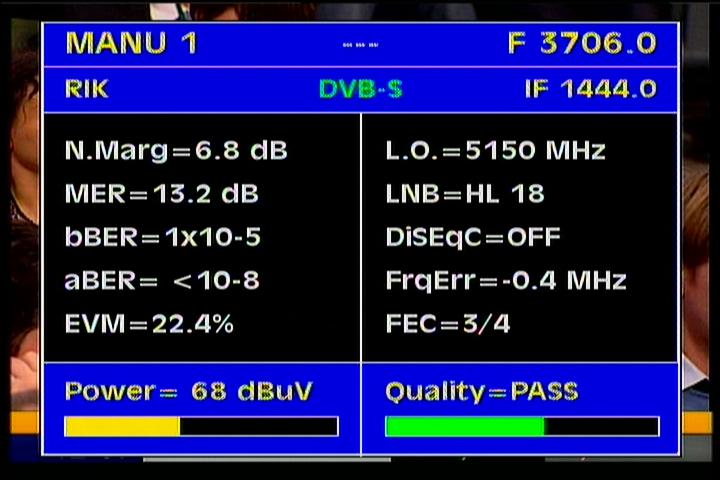

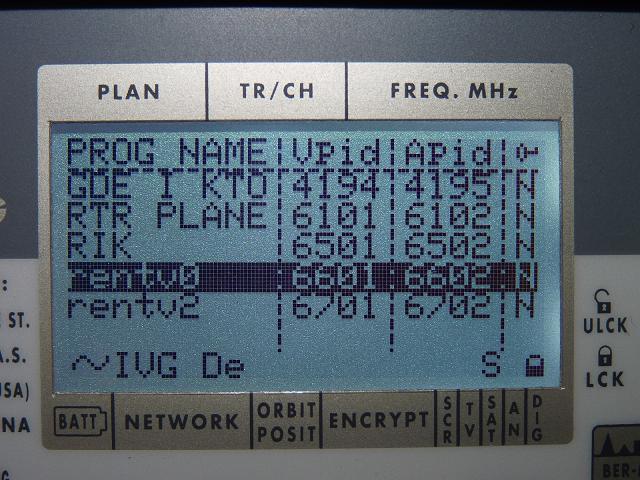

Yamal 202 at 49.0°E - global footprint : 3 706 L Unnamed russian network
IF data Q data NIT data

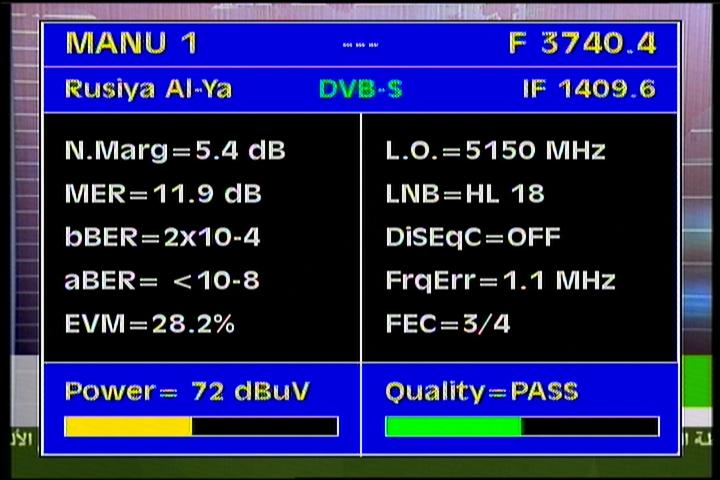

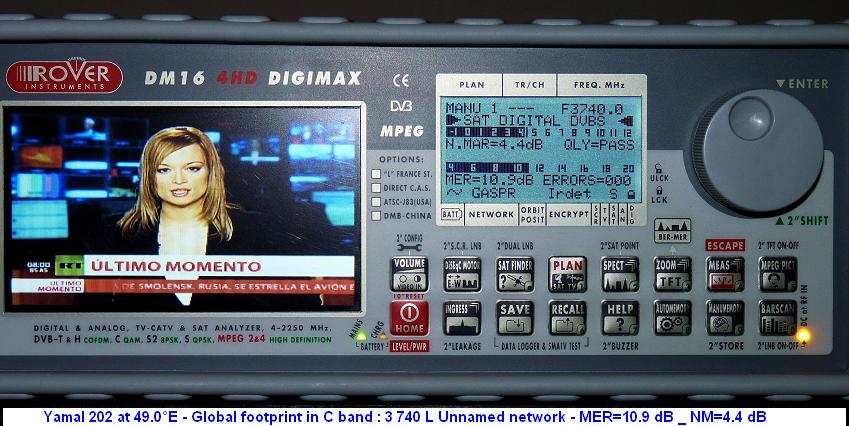

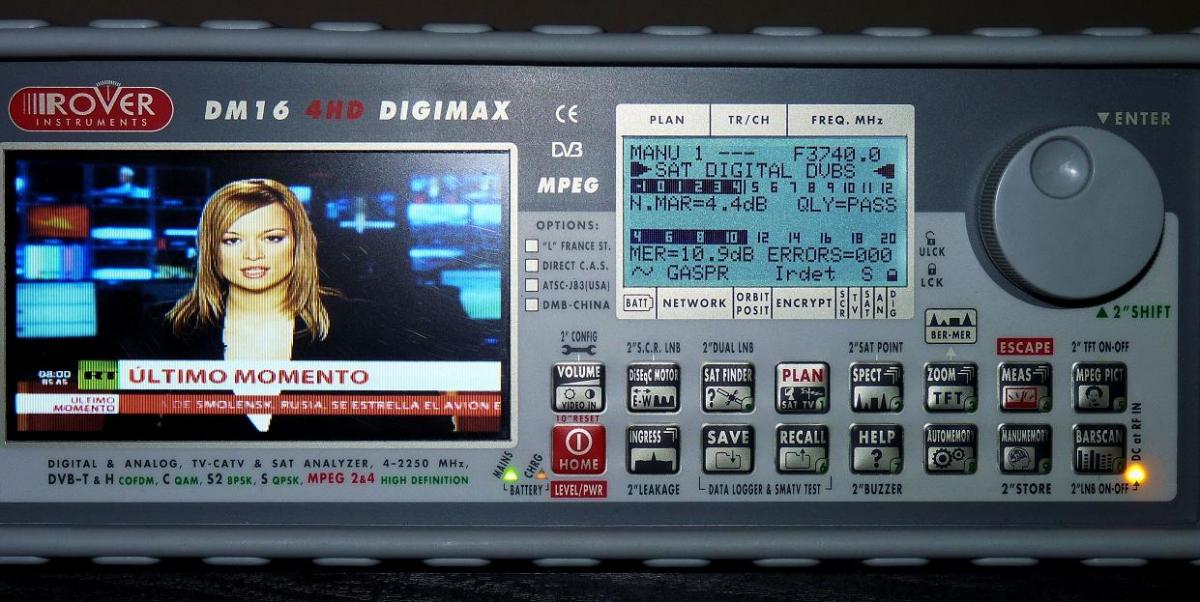

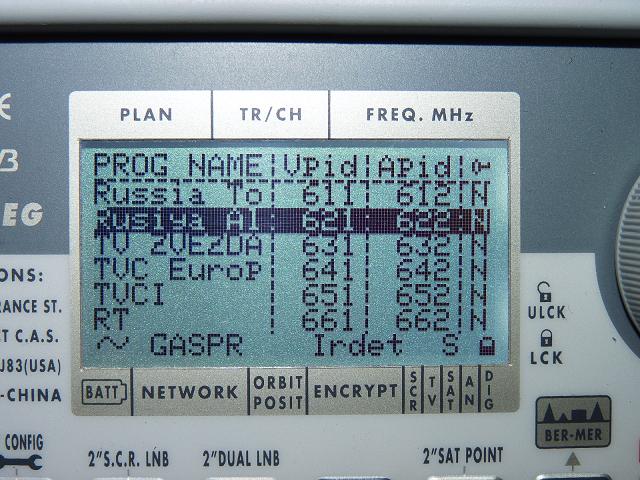

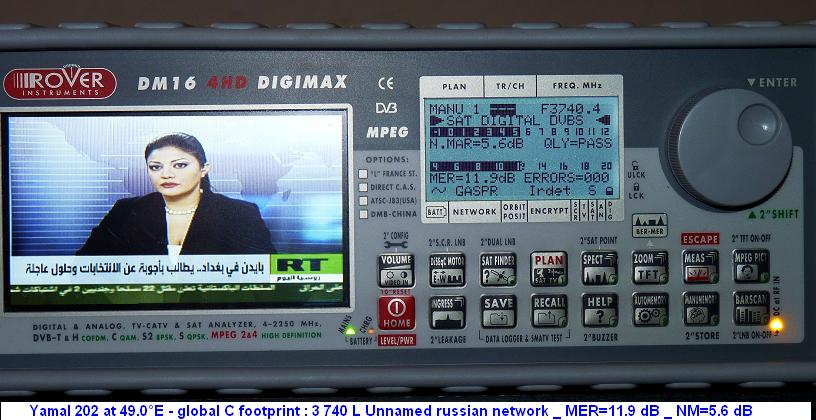

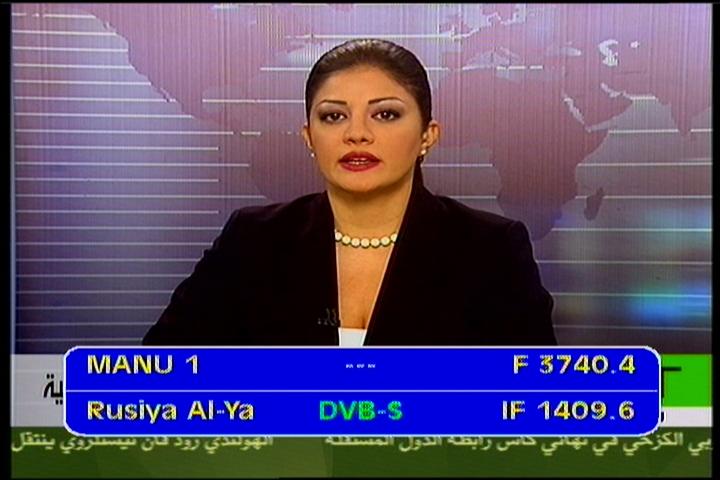

Yamal 202 at 49.0°E - global footprint : 3 740 L Unnamed russian network
IF data Q data NIT data

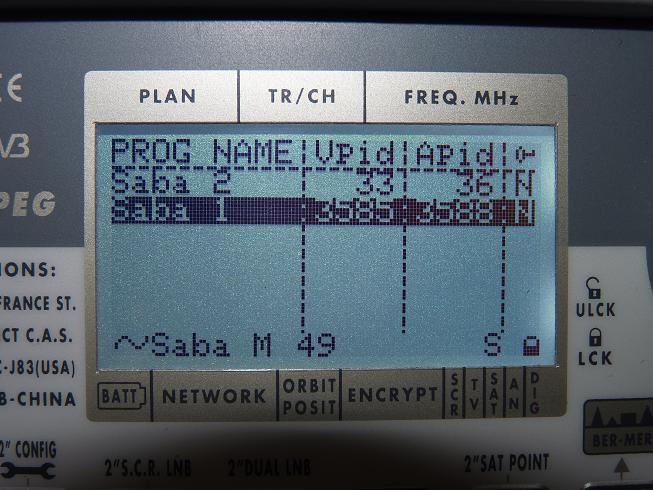

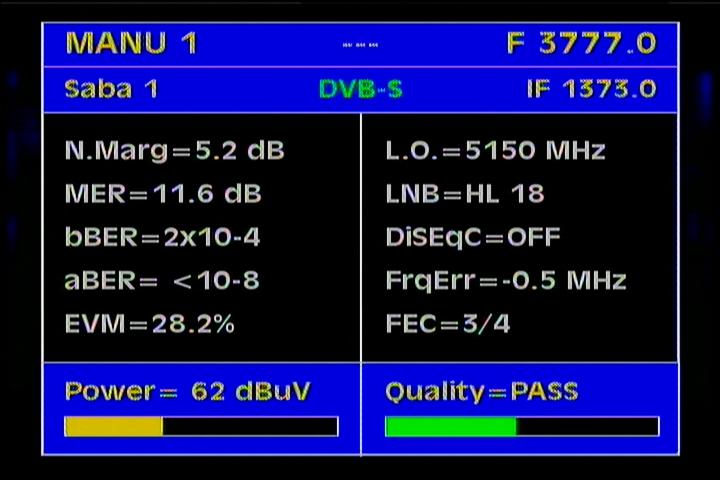

Yamal 202 at 49.0°E - global footprint : 3 777 R Saba tv network
IF data Q data NIT data

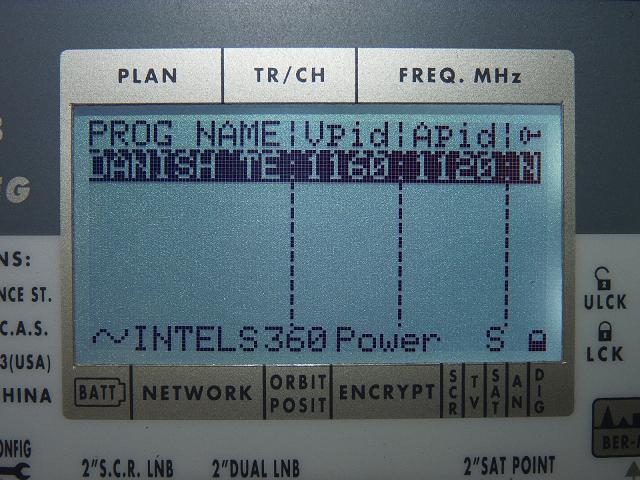

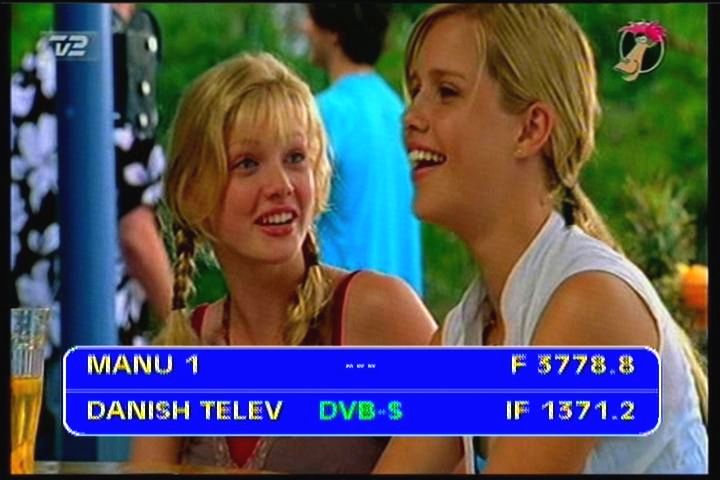

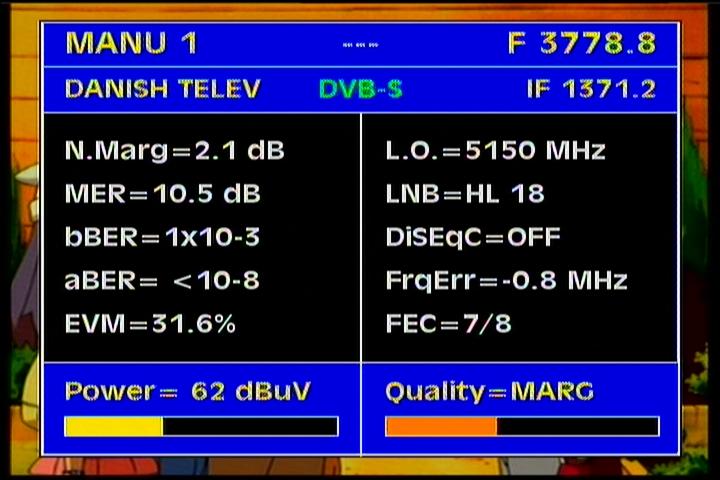

Yamal 202 at 49.0°E - global footprint : 3 778 L TV 2 Lorry / Danish Television
IF data Q data NIT data

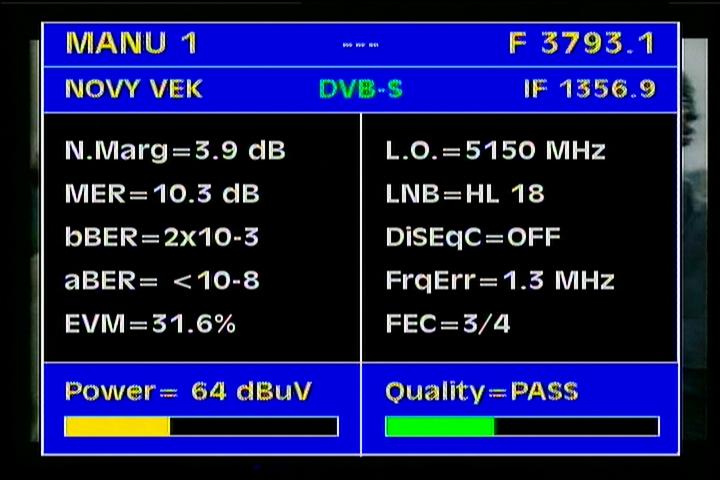

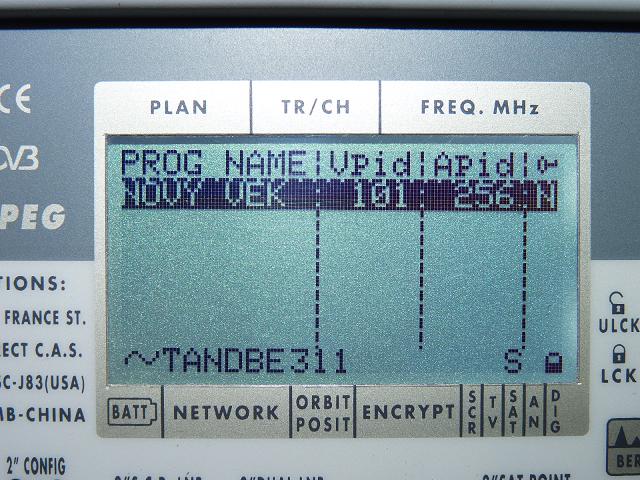

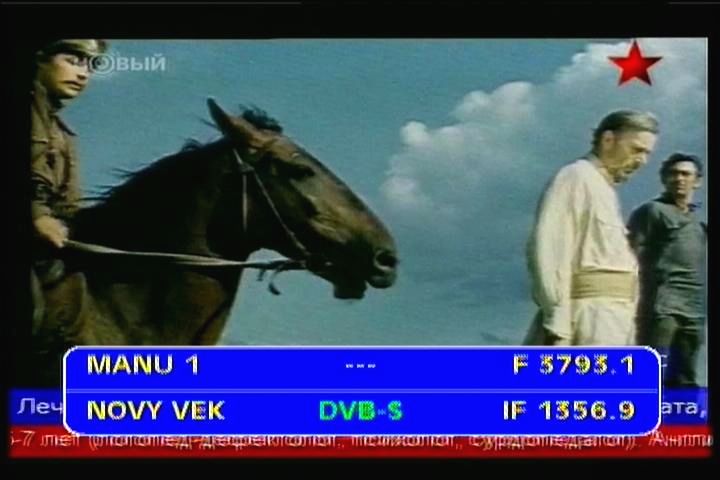

Yamal 202 at 49.0°E - global footprint : 3 793 L MPEG-4 Novy Vek
IF data Q data NIT data

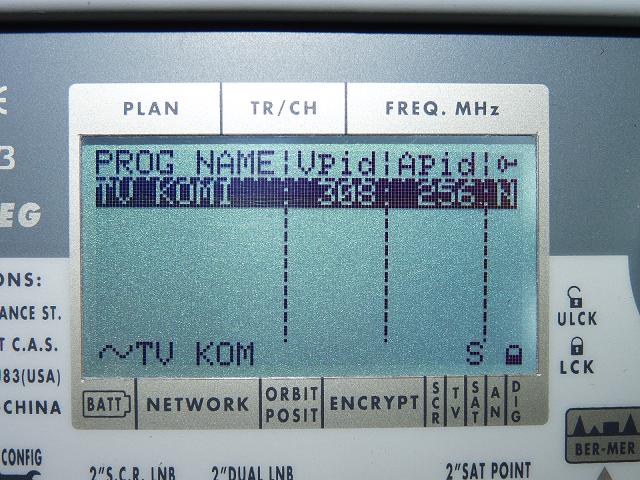

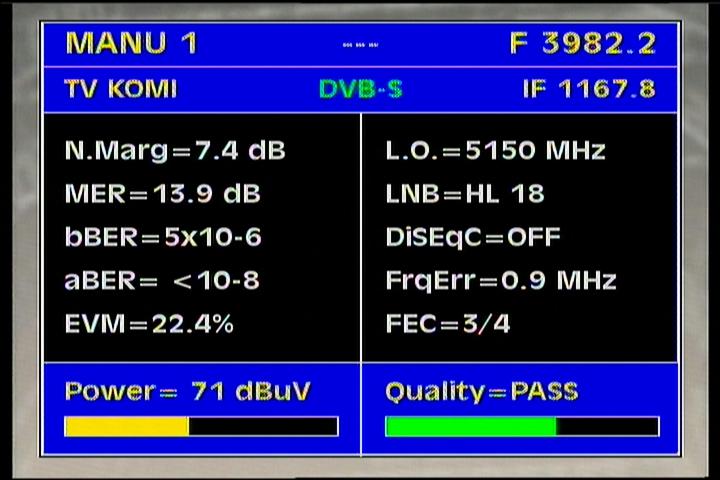

Yamal 202 at 49.0°E - global footprint : 3 982 L TV Komi
IF data Q data NIT data

Yamal 202 at 49.0°E : TV List

---Frequency---	----------Provider/Channel----------	---SR---	---FEC---	---footprint---	---Antenna---	---Video/Encryption---
3 586 -L- tp 2A	TURA TV / Rossiya 2	3 215	3/4	Global	140+ cm	Biss
3 590 -L- tp 2A	Petrozavodsk TV	3 235	3/4	Global	140+ cm	DVB FTA
3 596 -L- tp 2A	Tula TV	1 850	5/6	Global	140+ cm	MPEG-4/FTA
3 706 -L- tp 4A	Unnamed russian network	15 550	3/4	Global	140+ cm	DVB
	Gde i Kto					FTA
	RTR Planeta Ukraina					FTA
	Rik_Vesti					FTA
	Ren TV 0					FTA
	Ren TV +2					FTA
3 740 -L- tp 4A	Unnamed russian network	38 000	3/4	Global	140+ cm	DVB
	Russia Today					FTA
	Rusiya Al-Yaum					FTA
	TV Zvezda +0					FTA
	TVC Europe					FTA
	TVCI					FTA
	RT Espaňol					FTA
3 777 -R- tp 5	SABA Media	3 374	3/4	Global	140+ cm	DVB
	Saba 2					FTA
	Saba 1					FTA
3 779 -L- tp 5A	TV2 Lorry /_Danish Television	1 900	7/8	Global	140+ cm	FTA
3 792 -L- tp 5A	Novy Vek	1 800	3/4	Global	140+ cm	MPEG-4/FTA
3 908 -L- tp 6A	VTC Yamal / radio test carrier	1 356	3/4	Global	140+ cm	DVB
3 940 -L- tp 7A	Unnamed russian network	7 500	3/4	Global	140+ cm	DVB
	TVSG Severnaya D					Biss
	RTR+Pomorie					Biss
3 945 -L- tp 7A	Jaya TV	1 555	7/8	Global	140+ cm	Biss
3 948 -L- tp 7A	ART Prime Sports	2 220	7/8	Global	140+ cm	Biss

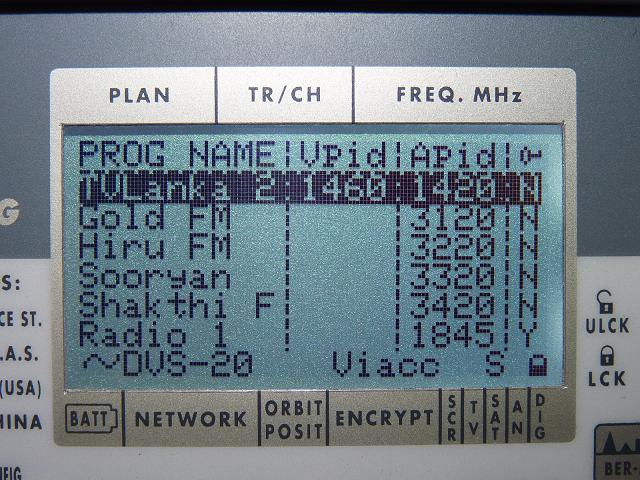

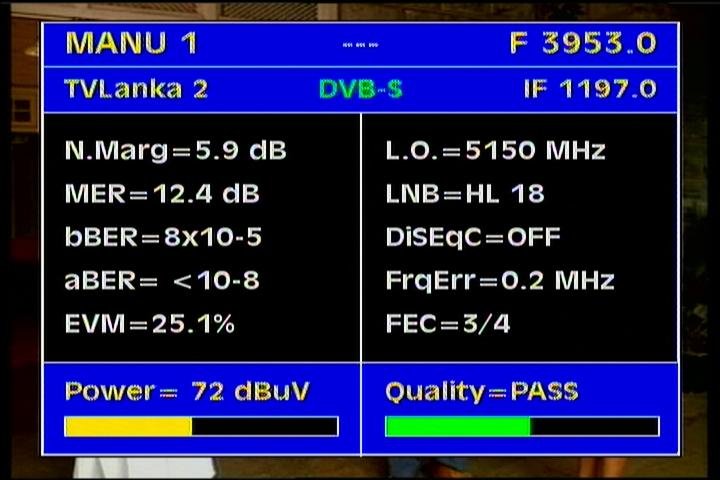

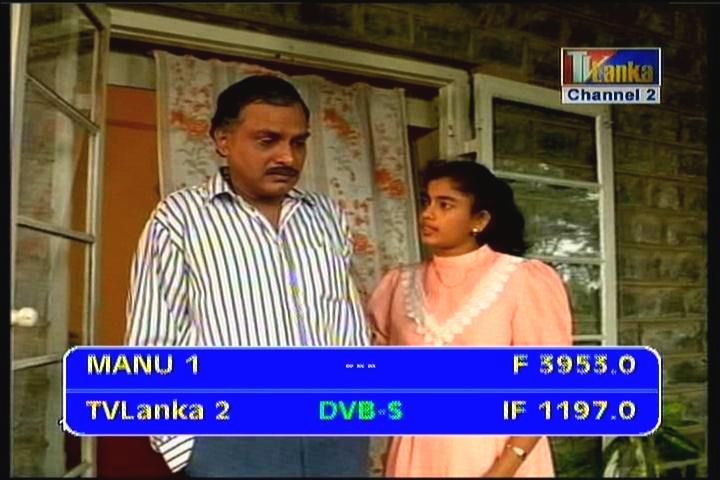

3 953 -L- tp 7A	left
3 961 -L- tp 7A	Tyumen network	8 570	3/4	Global	140+ cm	DVB
	Tyumen Time					FTA
	RTR+Region Tyumen					Biss
3 970 -L- tp 7A	GTRK Yamal	4 275	3/4	Global	140+ cm	Biss
3 976 -L- tp 7A	Tyumen-Yugoria TV	4 285	3/4	Global	140+ cm	DVB FTA
3 982 -L- tp 7A	TV Komi	4 285	3/4	Global	140+ cm	DVB FTA
3 988 -L- tp 7A	TV Univesitet test card	2 150	3/4	Global	140+ cm	DVB FTA
4 067 -L- tp 8A	left

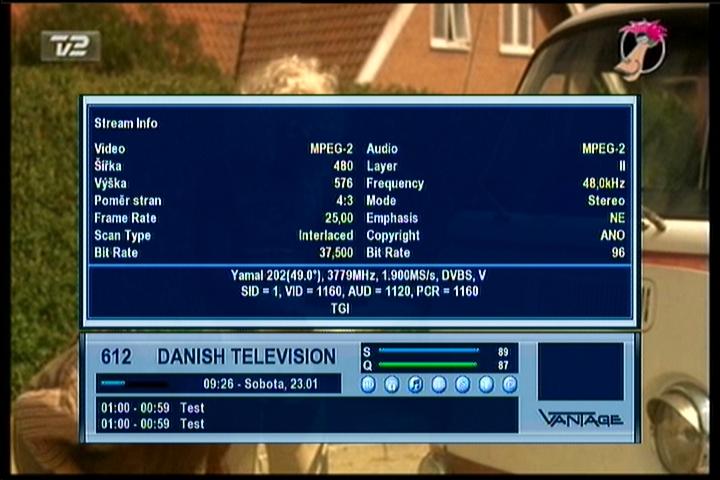

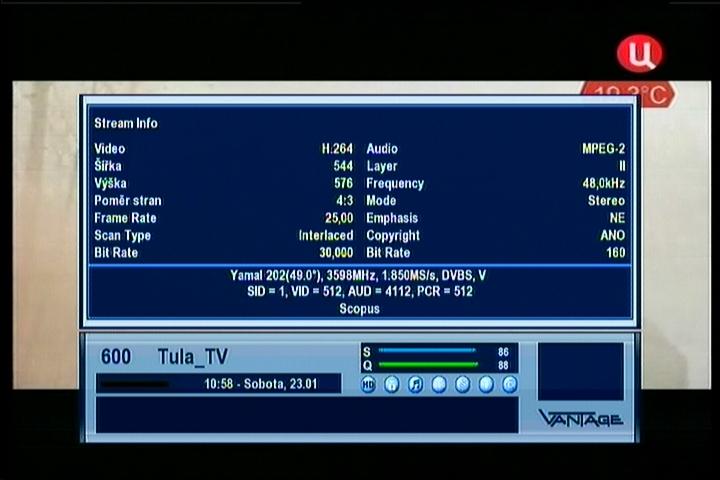

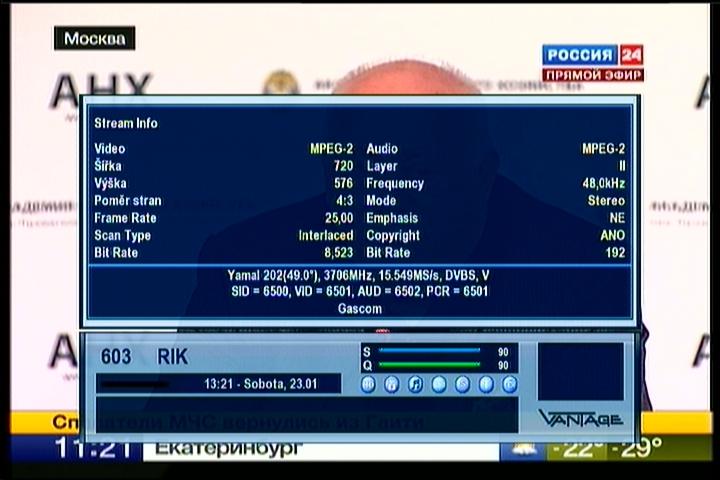

Yamal 202 at 49.0°E : relative Q

Yamal 202 at 49.0°E : Video presentations

Go to video section :

Yamal 202 at 49.0°E : update prepared
