8.3.2010_PREMIERE : Packet Radio Free Europe, which broadcasts from Prague via the Intelsat 907 satellite at 27.5°W in the C band, changing the carrier frequency and quality of reception has increased by 4 dB_followed by measurement results and analysis +

Posted March 8th, 2010 by Roman Dávid.

8.3.2010_PREMIERE : Packet Radio Free Europe, which broadcasts from Prague via the Intelsat 907 satellite at 27.5°W in the C band, changing the carrier frequency and quality of reception has increased by 4 dB


                       Intelsat 907 at 27.5°W - Global footprint in C band : 4 130 R Packet RADIO FREE EUROPE _ Prague Audios
                                                                                    click on image for higher quality

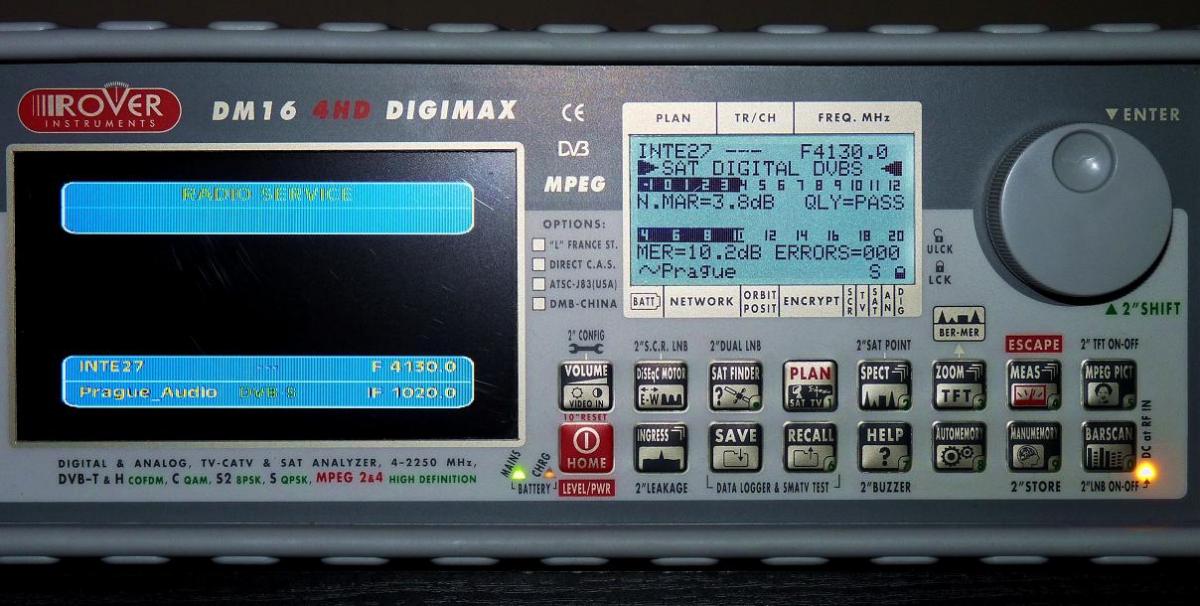

Intelsat 907 at 27.5 w _ Global footprint _ 4 130 H RFE Prague Audios _ first snap

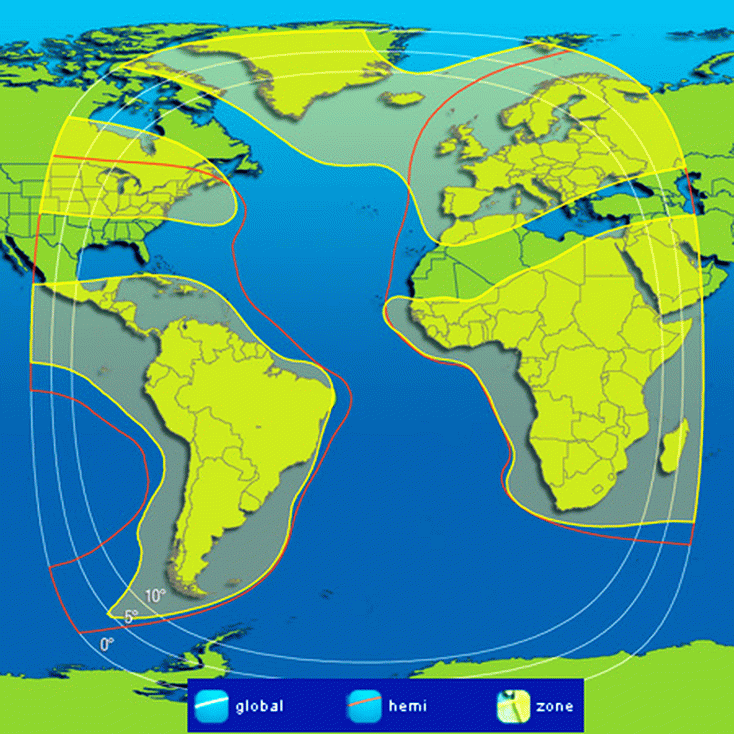

                           1,  packet is broadcast in the global footprint of the satellite Intelsat 907 at 27.5°W in C band

                                                                Intelsat 907 at 27.5 w footprint

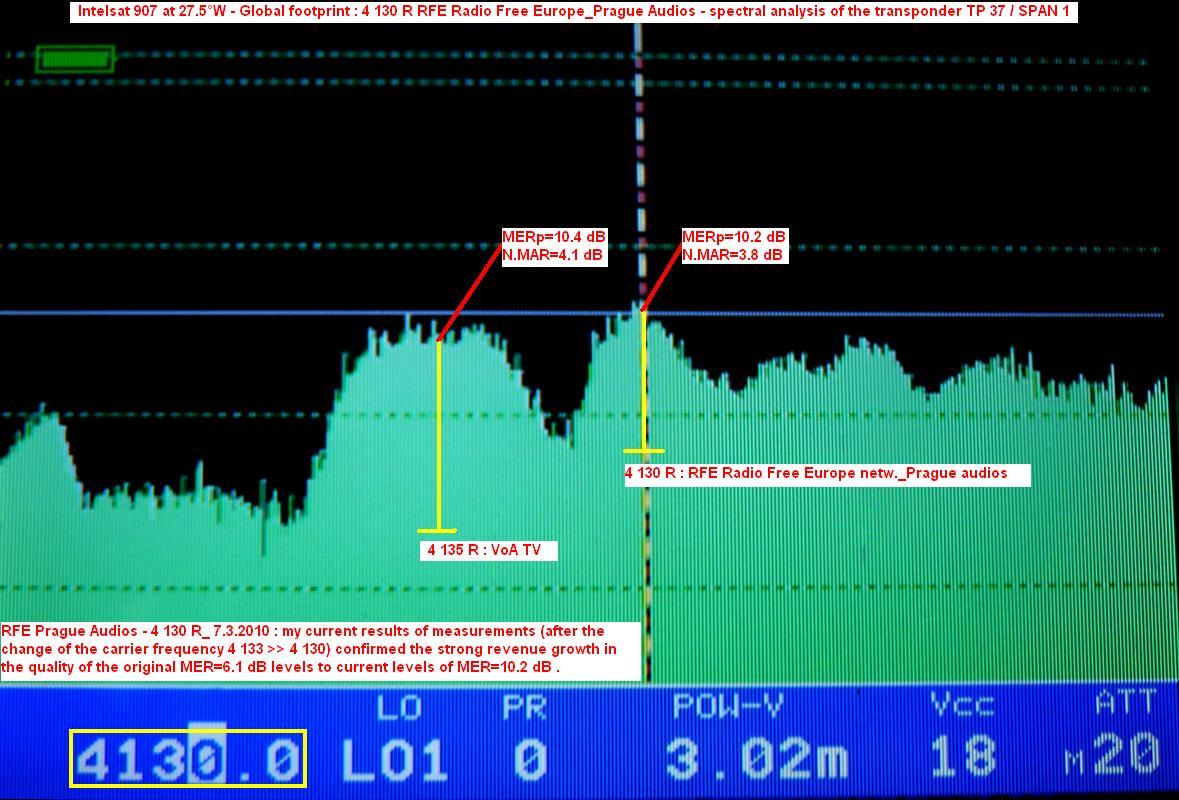

                                                                 2, spectrum analysis of wave vector R

                          spectrum analysis confirms the change in carrier frequency in the packet RFE Prague

     analysis and measurements I made on 7/3/2010                  an analysis of the spectrum of 15.10.09

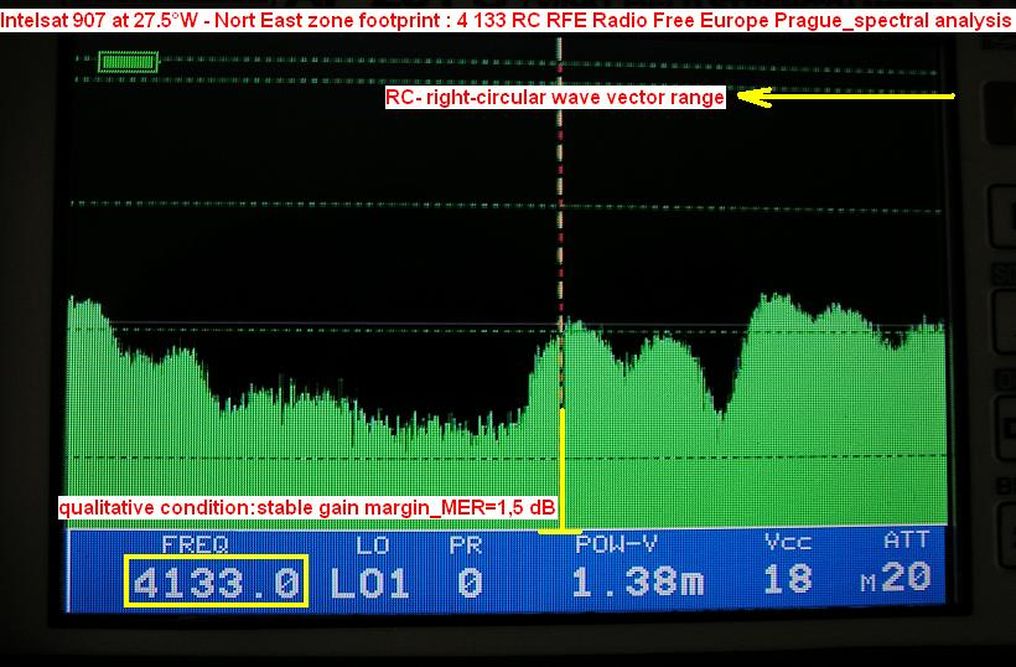

             Intelsat 907 at 27.5 w _ Global footprint _ spectral analysis 01                           Intelsat 907 at 27.5 w _ Global footprint_old

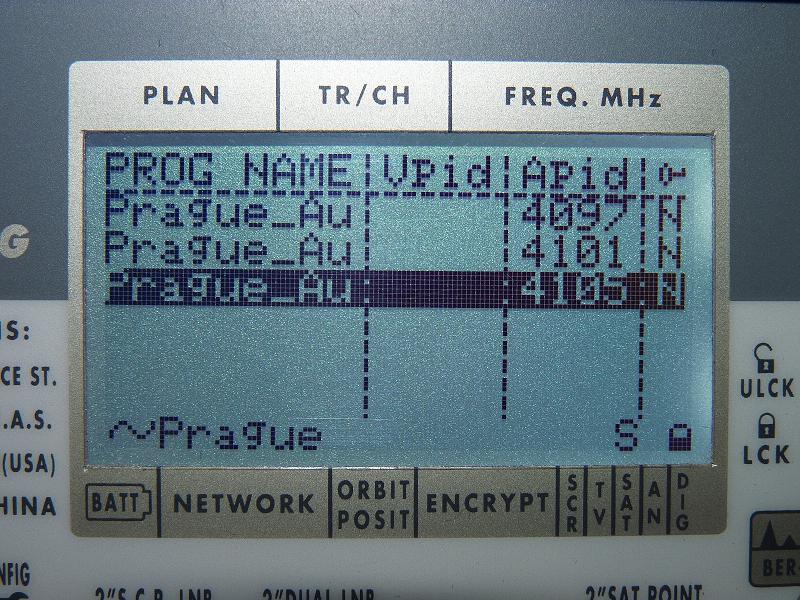

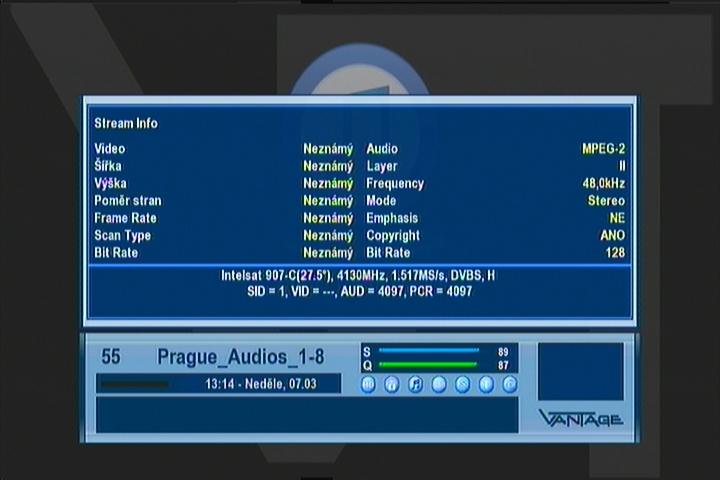

                            3, quality of reception NIT table , relative quality, SR=1 517 KSymb/Sec
Intelsat 907 at 27.5 w _ East Hemi footprint _ 4 130 R RFE Prague Audio_Q dataIntelsat 907 at 27.5 w _ Global footprint _ 4 130 H RFE Prague Audios _ NIT IDIntelsat 907 at 27.5 w _ Global footprint _ 4 130 H RFE Prague Audios _ relative q

                                                                              4,  video presentation

                                          .
