Astra 2D at 28.2°E-2D North footprint-sat dx : Freesat-ITV-BBC-Sky & spectrum analysis of the V vector

Astra 2D at 28.2°E-Freesat-ITV-BBC-Sky : footprint , measurement point , HF system ...

.
     Astra 2D at 28.2°E - 2D North SPOT : measurements taken in the town of Lučenec / central Slovakia
                                   a, geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                   b, measurement results are derived from the 3.7 m diameter antenna
                                   c, date of measurement : 26.2.2011
                                   d, elevation angle : 33.9°
                                   e, weather conditions : sunny and clear sky
                                   f, air temperature : from - 2 at 7.00 o'clock  to +5 °C at 12.00 o'clock
                                   g, altitude : 185 m /asl
                                   h, installation period and aggregation measured data : from 07.00 a.m to 18.00 pm

.
                                              --- Astra 2D at 28.2°E-sat dx & footprint : 2D North  ---

      current status in EIRP levels in East European area : Prevailing local reception disparity in quality in terms of choice
                                                                        of the V or H vector

- in case of receiving satellite Astra 2D in East European level, I can define the following an elementary rule : without
the initial measurements at the antenna installation is not possible to correctly define (with a high degree of probability) the
required diameter antenna to a stable reception of a TP in the plane waves H or V .

- the smallest antenna diameters for unstable carrier lock (in units of minutes to hours), depending on the geographical location
of the antenna installation location in Eastern Europe :

                                             --- for packets broadcast in vertical polarization ---
in my point measurements : unstable from Dmin=140 cm and stable from Dmin=220-240 cm ( V pol sidelobe )
in other Eastern European reception areas : Dmin=90-270 cm

                                             --- for packets broadcast in horizontal polarization ---
in my point measurements : unstable from Dmin=340 cm ....and stable form of reception for all TP from Dmin=???
in other Eastern European reception areas : Dmin=180-500 cm

                                                                click for enlarge

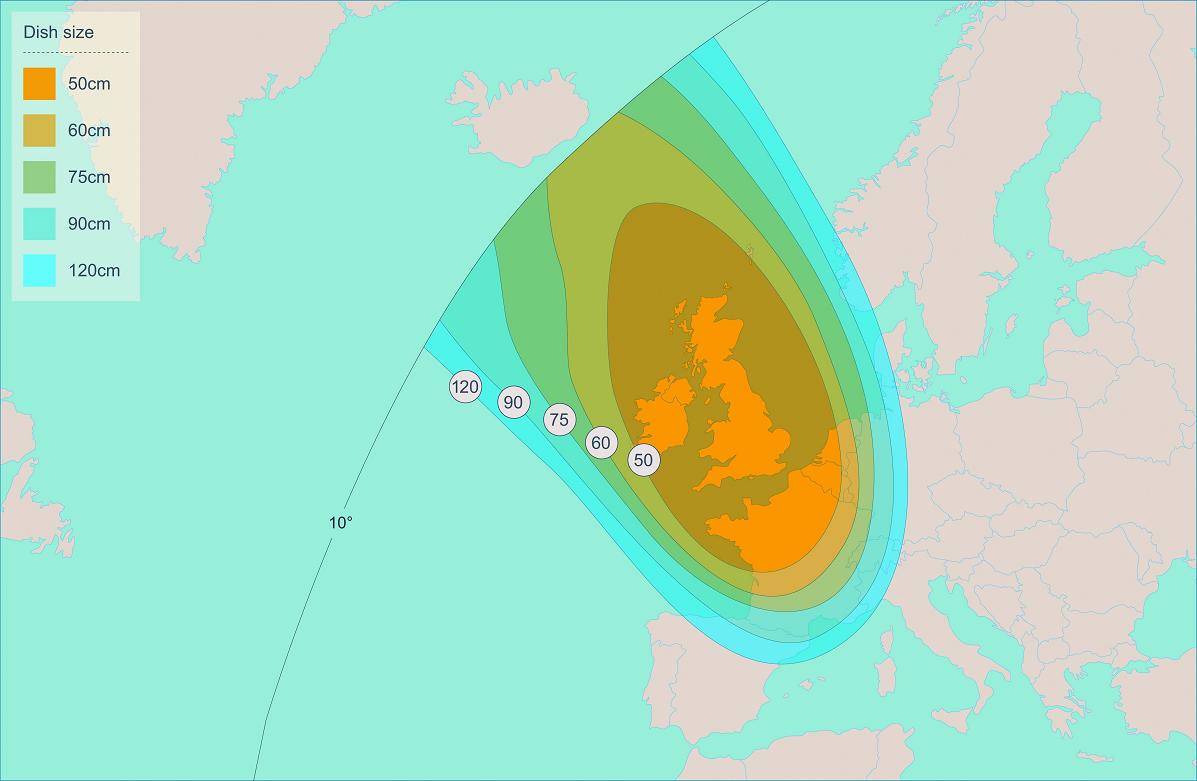

     Astra 2D at 28.2 e-2d north footprint-source ses astra-n
                                             (astra 2D footprint image source : SES Astra S.A )
.
                                  --- Astra 2D-sat dx : HF system , geographical location of measurement ---

- with distance from the zone Beam peak, decreasing the probability that a stable form of reception will be sufficient for
the antenna diameter, which defines the broadcaster in this footprint > 75,90,120 cm ...

                  installed HF system                             theoretical footprint                               research point

    a, PF Prodelin 3.7 m                                                                                                 a, state : Slovak republic / Europe
    b, dxsatcs waveguide line                                                                                        b, town : Lučenec
    c, UNI LNB : NF=0.4-0.6 dB                                                                                       c, altitude : 185 m / asl
    d, cable lenght : 40 m                                                                                              d, geo. location : 48.33°_19.72°
Astra 2D at 28.2 e-2d north spot-freesat-sky-bbc-itv-PF Prodelin 3.7 mAstra 2D at 28.2 e-2d north footprint-source ses astra-wAstra 2D at 28.2 e_2d north spot-ku band_freesat-sky-bbc-itv-reception point at lucenec slovakia
.

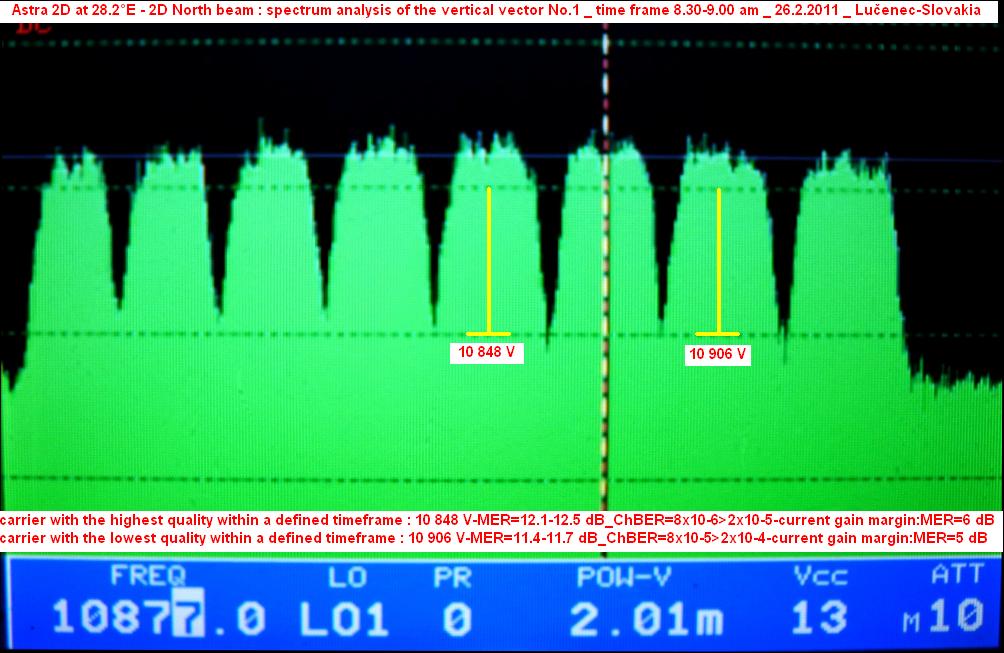

Astra 2D at 28.2°E-sat dx-Freesat-ITV-BBC-Sky : spectrum analysis No.1_10 729-10 936 MHz

.
                                     --- Number of measurement and time frame : No.1 - 8.30 - 9.00 am ---

- carrier with the highest quality within a defined timeframe : 10 848 V - MER=12.1 - 12.5  dB _ ChBER=8x10-6>2x10-5
- carrier with the lowest quality within a defined timeframe : 10 906 V - MER=11.4 - 11.7  dB _ ChBER=8x10-5>2x10-4
                                - range of peak amplitude defines the level of permanent oscillation -
                                                                         click for enlarge
 Astra 2D at 28.2 e-2d north spot-freesat-sky-bbc-itv-V spectrum analysis 01-n
.
                                 --- LIVE video preview No.1 - 8.30 - 9.00 am : 10 719 - 10 936 MHz ---
                  --- current status of quality within a defined timeframe : spectrum analysis,carrier lock,NIT ---

.

Astra 2D at 28.2°E-sat dx-Freesat-ITV-BBC-Sky : spectrum analysis No.2_10 729-10 936 MHz

.
                                     --- Number of measurement and time frame : No.2 - 10.30 - 11.00 am ---

- carrier with the highest quality within a defined timeframe : 10 848 V - MER=12.5 - 13  dB _ ChBER=1x10-6>8x10-6
- carrier with the lowest quality within a defined timeframe : 10 729 V - MER=11.6 - 11.8  dB _ ChBER=2x10-5>4x10-5
                                - range of peak amplitude defines the level of permanent oscillation -
                                                                         click for enlarge
 Astra 2D at 28.2 e-2d north spot-freesat-sky-bbc-itv-V spectrum analysis 02-n
.
                                 --- LIVE video preview No.2 - 10.30 - 11.00 am : 10 719 - 10 936 MHz ---
                  --- current status of quality within a defined timeframe : spectrum analysis,carrier lock,NIT ---


.

Astra 2D at 28.2°E-sat dx-Freesat-ITV-BBC-Sky : spectrum analysis No.3_10 729-10 936 MHz

.
                                     --- Number of measurement and time frame : No.3 - 12.30 - 13.00 pm ---

- carrier with the highest quality within a defined timeframe : 10 848 V - MER=12.9 - 14  dB _ ChBER=0>4x10-6
- carrier with the lowest quality within a defined timeframe : 10 729 V - MER=11.6 - 11.8  dB _ ChBER=1x10-5>4x10-5
                                - range of peak amplitude defines the level of permanent oscillation -
                                                                         click for enlarge
 Astra 2D at 28.2 e-2d north spot-freesat-sky-bbc-itv-V spectrum analysis 03-n
.
                                 --- LIVE video preview No.3 - 12.30 - 13.00 pm : 10 719 - 10 936 MHz ---
                  --- current status of quality within a defined timeframe : spectrum analysis,carrier lock,NIT ---


.

Astra 2D at 28.2°E-sat dx-Freesat-ITV-BBC-Sky : spectrum analysis No.4_10 729-10 936 MHz

.
                                     --- Number of measurement and time frame : No.4 - 14.30 - 15.00 pm ---

- carrier with the highest quality within a defined timeframe : 10 819 V - MER=12.7 - 13.3  dB _ ChBER=0>4x10-6
- carrier with the lowest quality within a defined timeframe : 10 729 V - MER=11.6 - 12.0  dB _ ChBER=1x10-5>4x10-5
                                - range of peak amplitude defines the level of permanent oscillation -
                                                                         click for enlarge
Astra 2D at 28.2 e-2d north spot-freesat-sky-bbc-itv-V spectrum analysis 04-n
.
                                 --- LIVE video preview No.4 - 14.30 - 15.00 pm : 10 719 - 10 936 MHz ---
                  --- current status of quality within a defined timeframe : spectrum analysis,carrier lock,NIT ---

.
