Mr. Alberto Simao-Macau S.A.R_ Insat 2E at 83.0°E-Asian footprint in C band : 3 550 V - TV9 Telegu India actual measurement results in the Asian footprint of the Insat 2E with Vertex RSI 9.0m antenna + spectrum analyzer Rohde & Schwarz ETL + Tandberg TT

Posted May 26th, 2010 by Roman Dávid.

Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu

Insat 2E at 83.0°E - Asian footprint : measurements at the center Macau - 60 km w of Hong Kong
                            geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                           measurement results are derived from the 900 cm diameter antenna
                                               date of measurement : 16.4.2010
                                                         elevation angle  : 47°

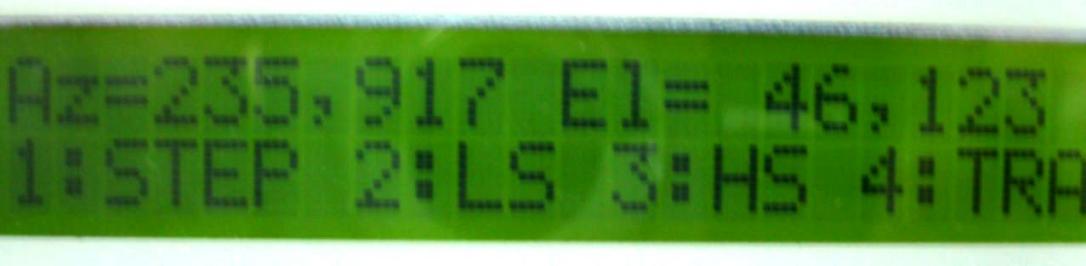

                                                PF Vertex 9.0 m : antenna tracking
Insat 2E at 83.0 E _asian zone footprint in C band_PF Vertex 900 cm_ tracking n.

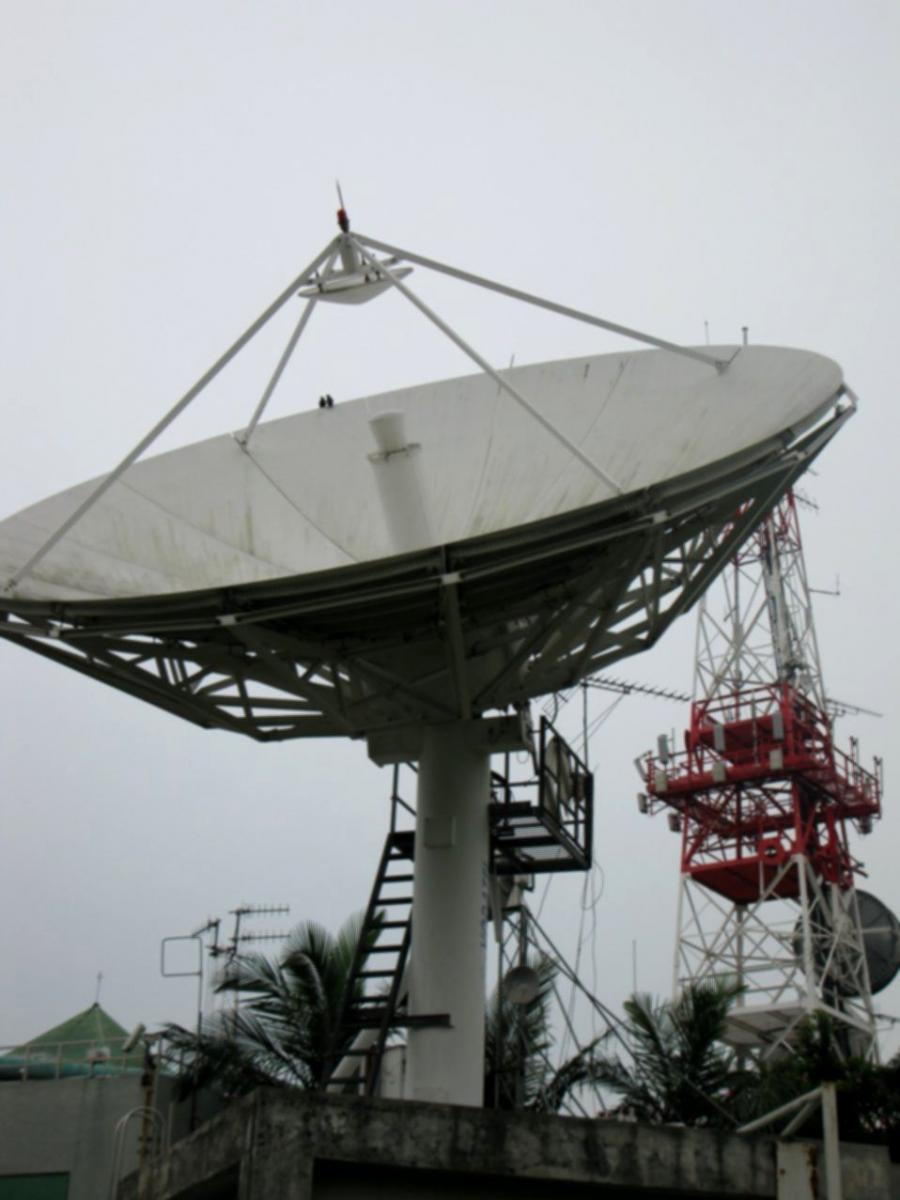

Insat 2E at 83.0°E:PF Vertex 9.0 m          Insat 2E : footprint-asian zone               Insat 2E : measuring point
Insat 2E at 83.0 E _asian zone footprint in C band_PF Vertex 900 cmInsat 2E at 83.0 e _ C band_asian footprintInsat 2E at 83.0 E _asian zone footprint in C band_PF Vertex 900 cm_ measuring poin

.
Insat 2E at 83.0°E - Asian footprint : 3 550 V TV9 Telegu _ spectral analysis with the analyzer Rohde & Schwarz ETL

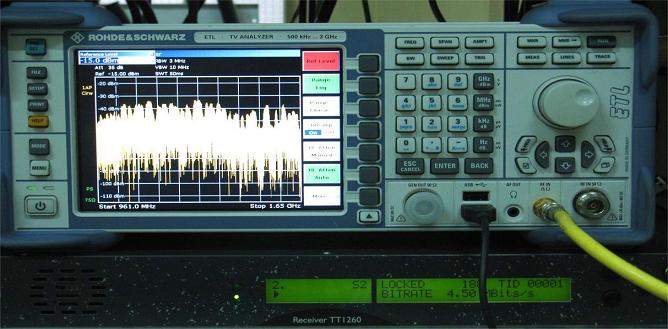

.                                                  Rohde & Schwarz  ETL anaylzer : full spectral range
        Insat 2E at 83.0 E _asian zone footprint_RS analyzer ETL_01

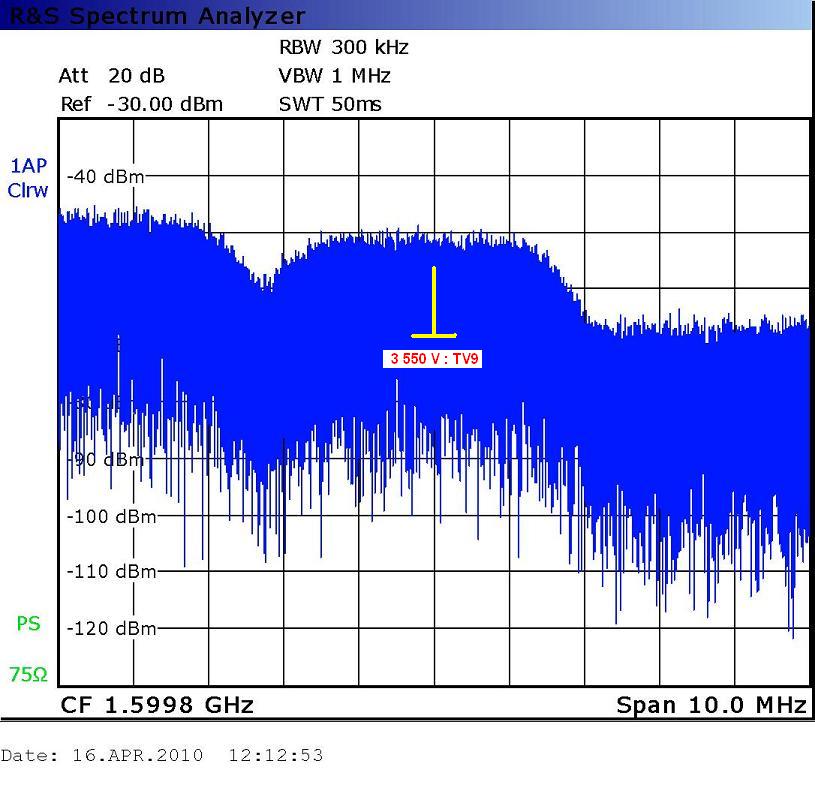

                                           3 550 V : TV9 Telegu                                    SPAN 10 MHz
                             Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_spectral analysis 01Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_spectral analysis 02

.
Insat 2E at 83.0°E - Asian footprint : 3 550 V TV9 Telegu_ quality analysis > Promax Prolink 4C Premium ...

                                                                    3 550 V : TV9 Telegu India
                                                                        download pdf docu

                                                Tandberg TT 1260 : download measurement results

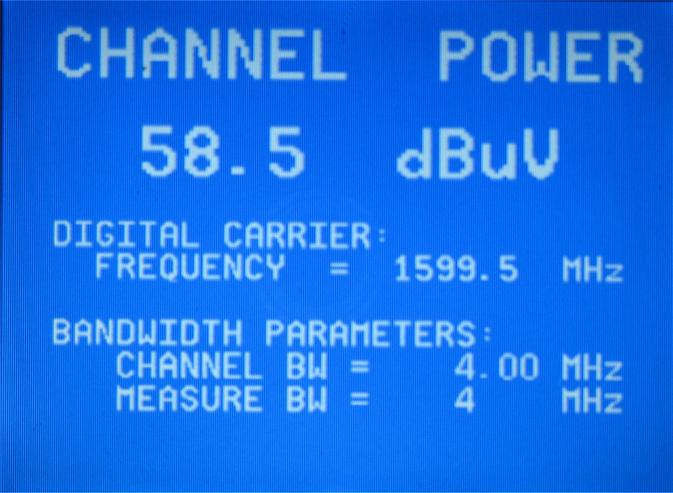

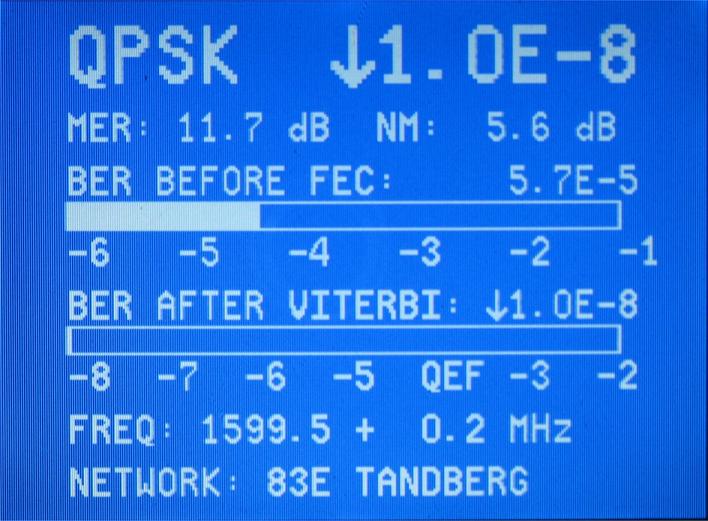

       TV9 Telegu : Channel power                       TV9 Telegu : C / N                             TV9 Telegu : quality analysis
Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_ ch power 01Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_ CN 02Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_ Q analysis 03

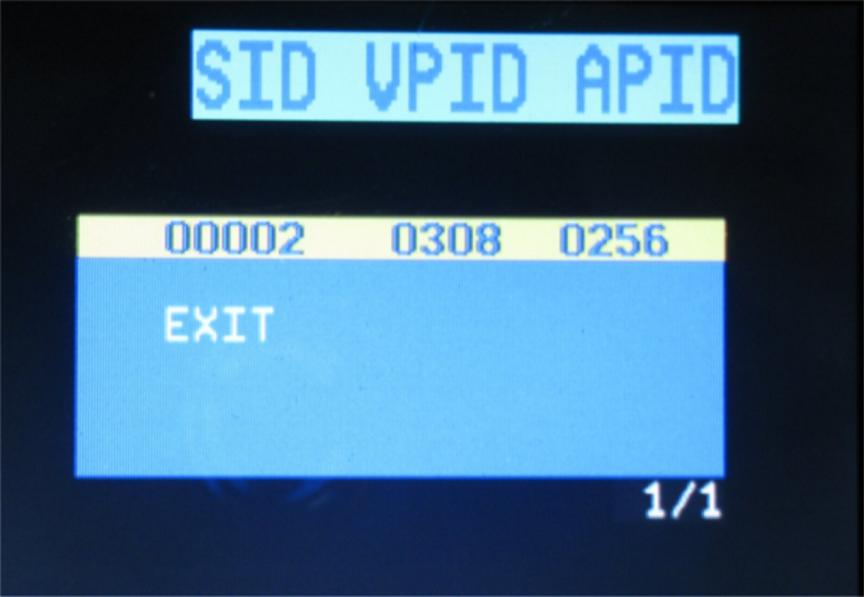

                            NIT                                                SID / VPID / APID                                    Functions
Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_ nit 01Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_ VA pids 02Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_ functions 03

.
Insat 2E at 83.0°E - Asian footprint : 3 550 V TV9 Telegu / Rohde & Schwarz transport stream data

.
Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_TS data 01Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_TS data 02Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_TS data 03

.

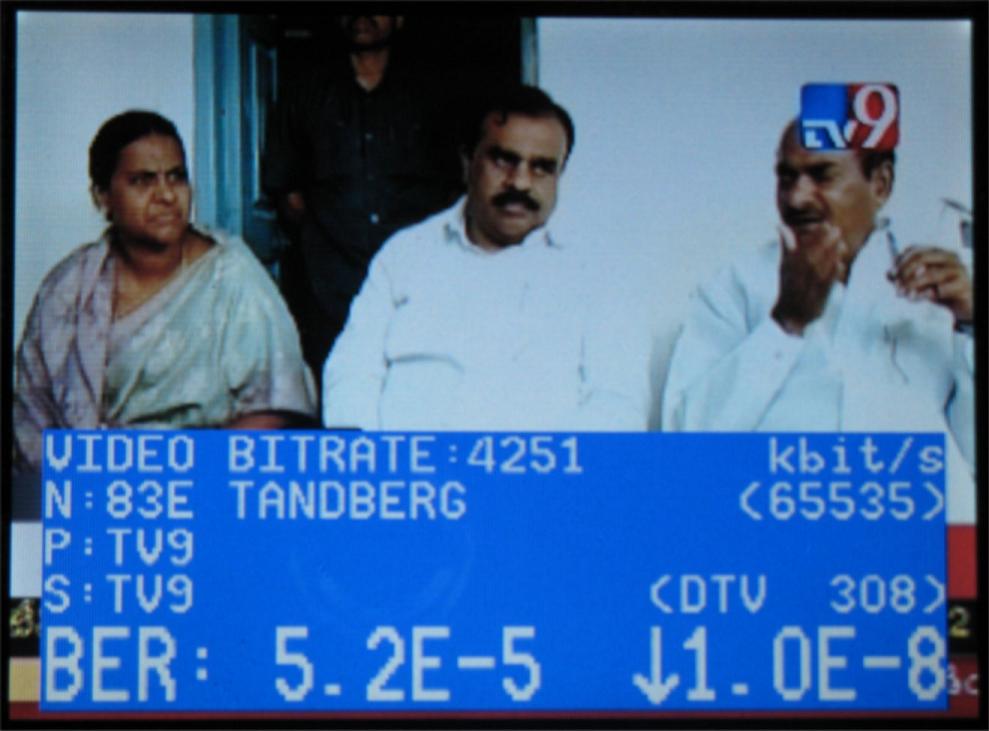

Insat 2E at 83.0°E - Asian footprint : 3 550 V TV9 Telegu / snapshots

.
Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_snapshot 01Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_snapshot 02Insat 2E at 83.0 E _asian zone footprint_3 550 V TV9 Telegu_snapshot 03

.
author : Mr. Alberto Simao / Macau S.A.R.
