A. Simao-Macau S.A.R-NSS 6 at 95.0°E-footprint NorthEast Asia : 12 729 H Onse Network South Korea and presentation of the new offset antenna Jonsa 120x132 cm with LNB Norsat PLL 1509 HB & results of measurements with the analyzer Rohde&Schwarz ETL
NSS 6 at 95.0°E - NorthEast Asia footprint : measurements at the center Macau - 60 km w of Hong Kong
geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
measurement results are derived from the 120x132 cm diameter offset antenna
date of measurement : 27.7.2010
elevation angle : 56,6°

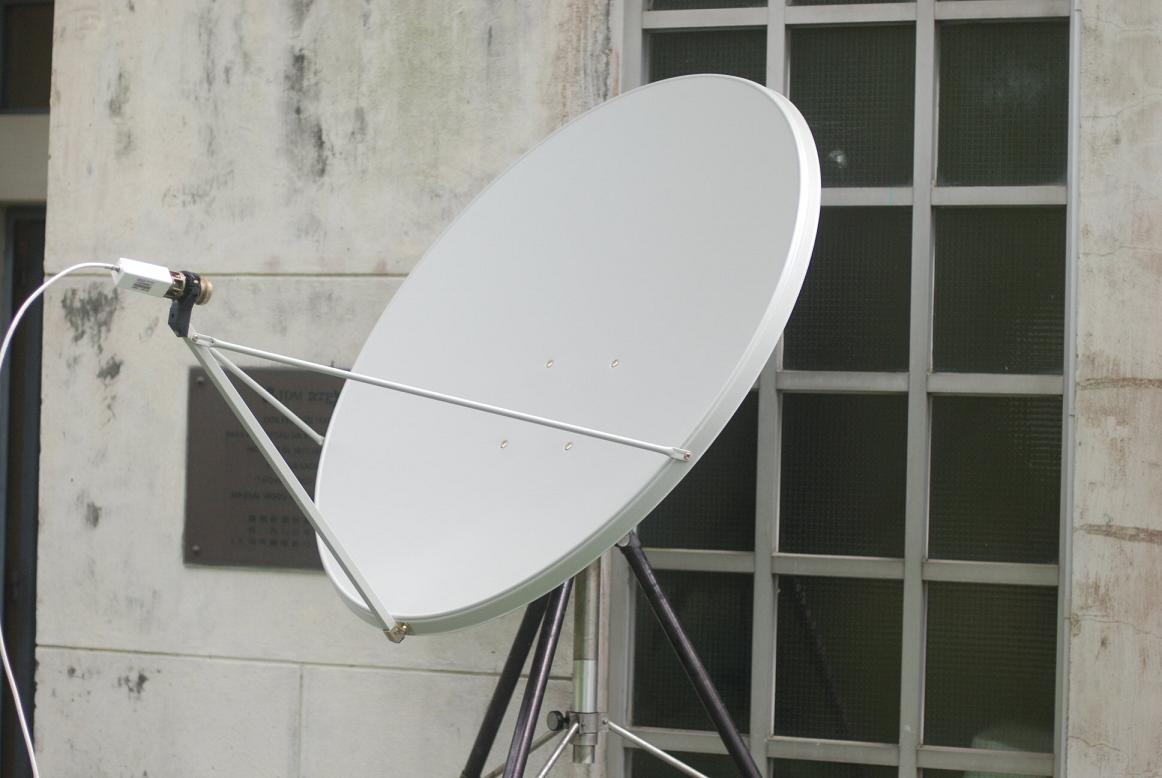

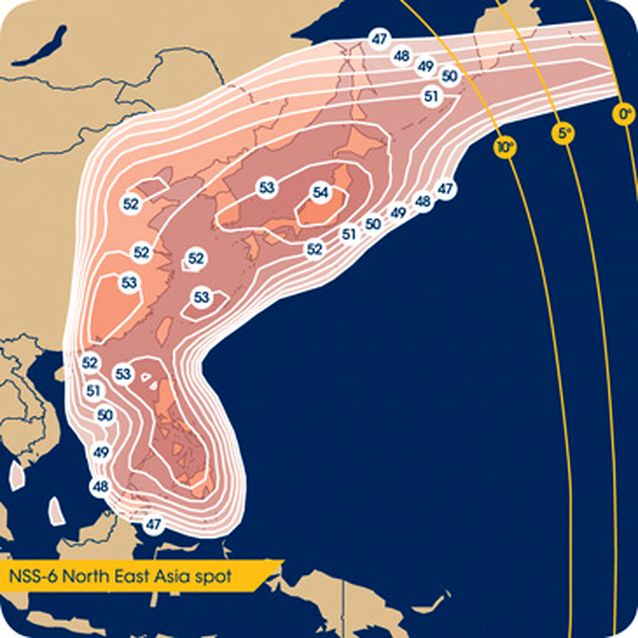

NSS 6 : Offset Jonsa 120x132 cm NSS 6 footprint : North East Asia NSS 6 : measuring moint
NSS 6 at 95.0°E - footprint NorthEast Asia in KU band : KU SETUP
NSS 6 at 95.0°E - footprint NorthEast Asia in KU band : Offset Jonsa 120x132 cm / performance
NSS 6 at 95.0°E - footprint NorthEast Asia: High Frequency unit with PLL LNB Norsat 1509 HB
click to enlarge
coaxial cable : SCP-RG 6U DIGITAL 3.0 GHz
download pdf document

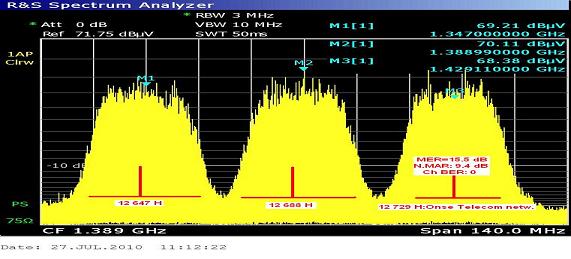

NSS 6 at 95.0°E - footprint NorthEast Asia: 12 729 H Onse Telecom netw./spectral analysis
click to enlarge
12 729 H : Channel Power 12 729 H : quality analysis 12 729 H : NIT table
NSS 6 at 95.0°E - footprint NorthEast Asia: 12 729 H Onse Telecom netw./Tandberg TT 1260
12 729 H : quality analysis & NIT table
download pdf document

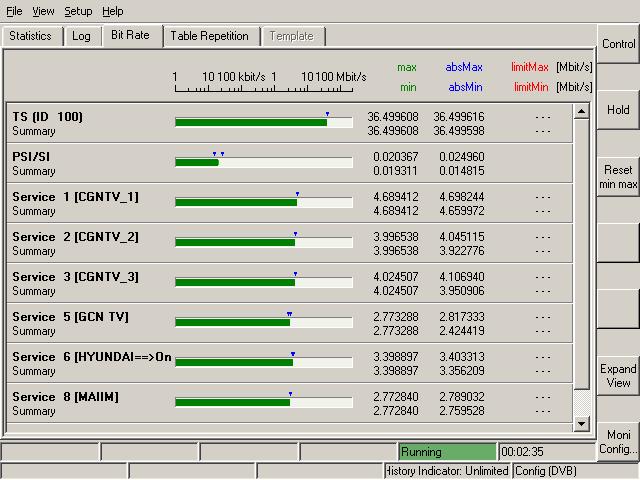

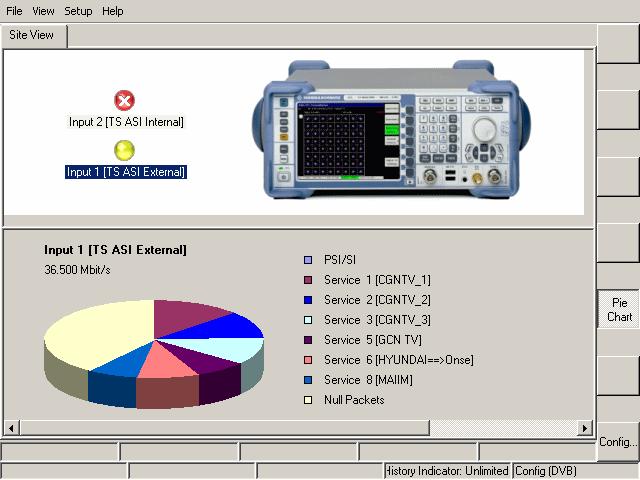

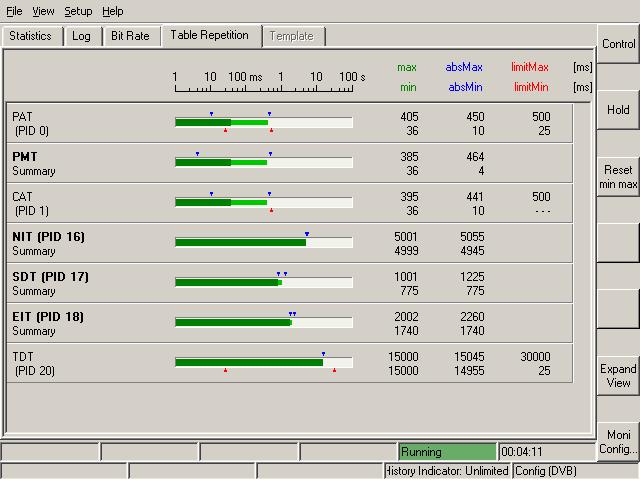

NSS 6 at 95.0°E - footprint NortEast Asia : 12 729 H / Rohde & Schwarz ETL _ TS table
NSS 6 at 95.0°E - footprint NorthEast Asia : 12 729 H / snapshots
NSS 6 at 95.0°E : 12 729 H / Video presentation
.
author : Mr. Alberto Simao / Macau S.A.R.
