►►Thor 7-λ=-0.8°W-KA band : Technical data,general description

a,Ka band services for the Mobility VSAT market : Telenor Satellite Broadcasting’s (TSBc) THOR 7 Ka-band
High Throughput Satellite (HTS) payload offers 6-9 Gbps throughput with up to 25 simultaneously active
spot beams. We will offer services with download speeds in the tens of Mbps, even from small antennas
and deliver uplink speeds anywhere from 2Mbps to 6Mbps (depending upon antenna size).Service reliability
and availa-bility is key: TSBc is implementing a package of solutions to mitigate rain fade on Ka-band,
including a new uplink site in Norway to provide antenna-site diversity. THOR 7 will offer cost effective data
communications solutions and offer high-powered coverage over the North Sea, the Norwegian Sea, the Red
Sea, the Baltic Sea and the Mediterranean.
b, HTS KA BAND-Mainly for maritime customers_MARITIME/VSAT : TSBc’s maritime VSAT payload aggregated
coverage-offering up to 25 simultaneously active spot beams
c, HTS KA BAND STEERABLE BEAM : Can be positioned anywhere over the visible earth-though its likely position
will be over the North Sea. (source : telenorsat.com)

                                         Thor 7-KA band reception : analysis of the LHCP vector


►Thor 7-KA band-technical specification : spacecraft , payload , satellite coverage ....  (source : telenorsat.com)



the spectrum of the horizontal vector in the range from 5 to 50 mh
►Thor 7-KA band-beacon frequency : analysis did not confirm that the beacon frequency is in the range from 19.2 tp 20.2 GHz



►Thor 7-KA band reception :  komentár autora Romana Dávida

14.7.2015 : Prvá analýza rozsahu spektra KA-pásma od 19,7 do 20.2 GHz geostacionárneho objektu Thor 7,ktorý z pozície λ=0,8° zd
zabezpečuje dátovú konektivitu (cez multizväzkovú a simultánne aktívnu vysielaciu architektúru dvadsiatichpiatich bodových škvŕn s
celkovou dátovou priepustnosťou až 9 Gbit/sec s individuálnymi parametrami pre jeden satelitný VSAT terminál rádovo 10-30 Mbit/sec
pre download a od 2 do 10 Mbit/sec pre upload v závislosti od priemeru/zisku inštalovanej antény ) hlavne pre námorných zákazníkov
nachádzajúcich sa v Stredozemnom,Baltickom,Červenom,Nórskom a Severnom mori ale aj v oblasti Perského zálivu,poprípade
"kdekoľvek" inde v dosahu vysielacej antény s takzvaným riadeným/polohovatelným vyžarovacím zväzkom.
Autor v spektre ľavotočivého vektora vlnenia LHCP identifikoval a definuje parametre prenosov pre 5 data nosných.

použité zdroje informácií :

1,Telenor Satellite Broadcasting
4, výskumná činnosť Romana Dávida


►►Thor 7-λ=-0.8°W-KA band : HF string , footprint , geographical location ...

►Installed dish / secondary radiant [D] : PRODELIN 4.5m AZ/EL RxO 1451 (4096-345) _ N48°19719' , E19°40148' , Lučenec , Slovak republic



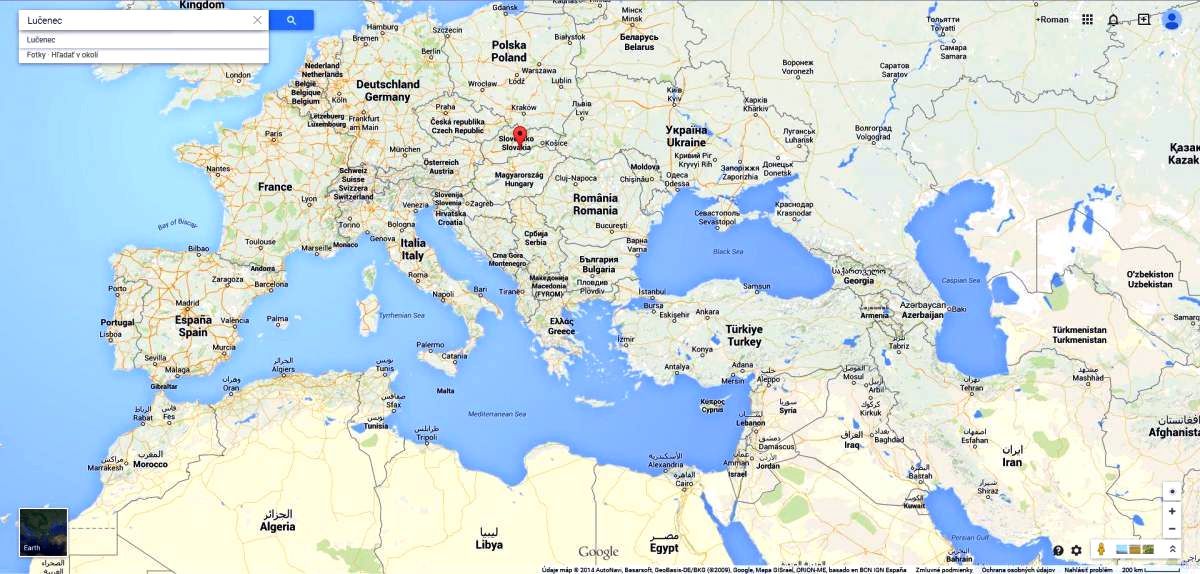

►Thor 7-30°W-KA band footprint-beam-coverage : Fixed beam and Steerable beam , geographical location of the measurement
                                                              (source : telenorsat.com )

                                                                       Ka-Band:
a, 30x forward and return link spot beams covering themaritime areas surrounding Europe including the North Sea, Norwegian Sea,
Red Sea, Baltic Sea, the Persian Gulf, and the Mediterranean
b, 1x Single spot beam for Antarctica
c, 1x Single Steerable Spot Beam

                                     Thor 7 KA band coverage area : Fixed+Steerable beam


   KA band Maritime/Vsat beam                     KA band Steerable beam
   Thor 7 maritime VSAT payload                Can be positioned anywhere over the
aggregated coverage-offering up             visible earth-though its likely position
to 25 simultaneously active spot               will be over the North Sea.
                   beams                                                                                                             author's geographical position



►►Thor 7-λ=-0.8°W-KA band reception : analysis of the LHCP spectrum

►The complete range of the -LHCP- vector in the KA band from 19 700 to 20 200 MHz : quantification of LHCP pectrum

                                19 200-20 200 MHz                                                                      19 700 - 20 200 MHz



►Thor 7-0.8°W-KA band : the analysis of the quality and quantification of packets (current status 2015)

       19 732 MHz/LHCP : ACM Data                19 827 MHz/LHCP : ACM Data             19 922 MHz/LHCP : ACM Data


         20 017 MHz/LHCP : ACM Data            20 110 MHz/LHCP : ACM Data


►►Thor 7-λ=-0.8°W-KA band-reception : a list of the locked carrier frequencies
