►►Hylas 2-λ=31.0°E-KA band-reception-frequencies : Technical information , BEACON frequency ...

   Broadband Internet access across Europe Middle East and Africa which use KA-band technology

                KA band satellite reception and frequencies : part of the LHCP spectrum from 19.7 to 20.2 GHz
dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-spectrum-analysis-000
►Hylas 2-31.0°E-KA band recpetion-frequencies : Hylas 2 general description  /  source : www.avantiplc.com

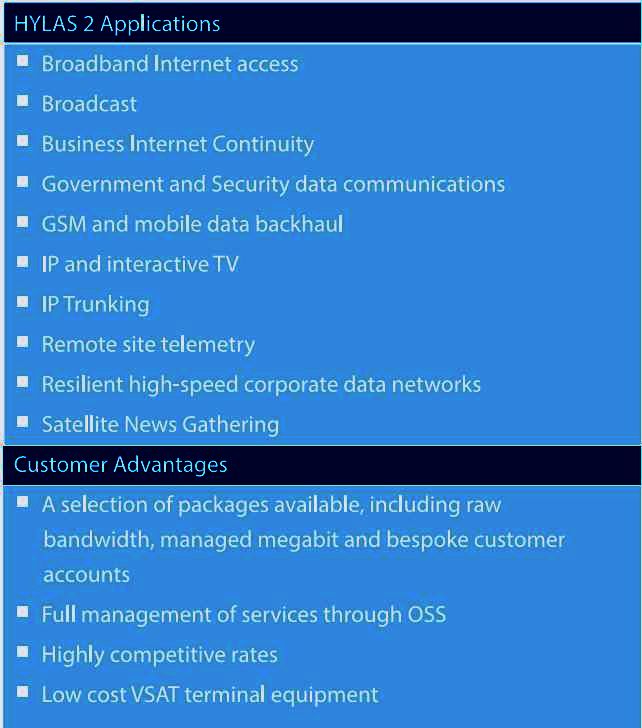

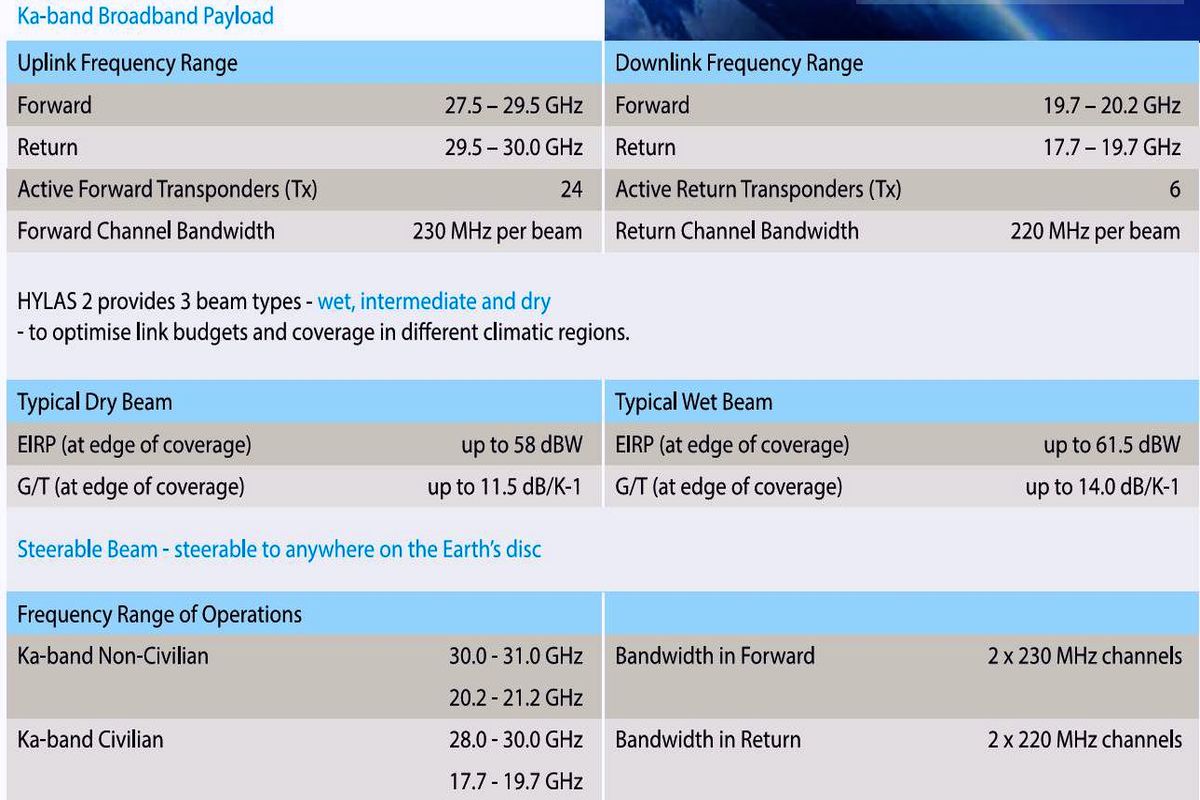

               KA band applications                         KA band broadband payload         Steerable KA-band beams deployed to Libya
dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-general-description-01dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-general-description-02dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-general-description-03

                                                                             download pdf
                                                                download

►Hylas 2-31.0°E-Beacon frequencies-C band :  4 198 MHz , 4 199 MHz _  RHCP


►Hylas 2-31.0°E-KA band recpetion-frequencies :  komentár autora Romana Dávida

Po viac ako roku analýz spektra KA pásma objektu Hylas 2 na λ=31° vd s referenčným radiantom Prodelin 450 cm,ktorý
patrí do výskumného projektu č.1 dnes autor publikuje prvú kvantifikáciu stavu spektra a kvality na nosných frekvenciách
v rozsahu od 19,7 do 20,2 GHz.Obsadenie spektra L+RHCP v mieste analýz mesta Lučenec,ktorému dominujú dátové
streami služieb Broadband/Broadcast/Security data/IP atď provajderov Avanti a American Online AOL ostáva
nemenné v kvalite ale aj v parametroch prenosu .


►►Hylas 2-λ=31.0°E-KA band-reception-frequencies : HF string , footprint , geographical location ...



Hylas 2-Ka band reception data
geographical location of the measurement in the KU band N48°19719' , E19°40148' , Lučenec , Slovak republic
Installed dish / secondary radiant [D] PRODELIN 4.5m AZ/EL RxO 1451 (4096-345)
HF system KU+KA primary radiant with SKEW control
LNB for KU band DRO Norsat 880-9000 B , L.O.stability +/-1 MHz,NF=1,6 dB
Analyzed frequency spectrum + polarisation 19 700-20 200 MHz , LHCP+RHCP
Field strenght meters Televes H60 Advanced , Rover DM16 4HD Digimax , TBS 5925 , Unaohm AP 201 S+

►Installed dish / secondary radiant [D] : PRODELIN 4.5m AZ/EL RxO 1451 (4096-345) _ N48°19719' , E19°40148' , Lučenec , Slovak republic

dxsatcs-ka-band-reception-y1b-yahsat-1b-47-5-east-secondary-radiant-prodelin-450cm

►Hylas 2-31.0°E : KA band coverage-footprint-beam , geographical location of the measurement by Google

            Hylas 2-KA-Band coverage : Europe , Middle East and Africa                 place of measurement: N48°19719' , E19°40148'

dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-coverage-footprint-beam-01dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-coverage-footprint-beam-02dxsatcs-sat-dx-ku-ka-band-prodelin-450-cm-location-of-the-measurements-geographical-location-w

                         Libia                                                       Afghanistan                                                   Iraq
dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-libia-coverage-footprint-beam-01dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-afghanistan-coverage-footprint-beam-02dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-iraq-coverage-footprint-beam-03

►►Hylas 2-λ=31.0°E-KA band-reception-frequencies : analysis of the L+RHCP spectrum and the identified packets

►The curent range of the -LHCP- vector in the KA band from 19 700 to 20 200 MHz : quantification of LHCP spectrum


                      LHCP wave vector SPAN=500 MHz                                                                2x Lock
dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-lhcp-spectrum-analysis-19700-20200-mhz-01-ndxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-lhcp-spectrum-analysis-19700-20200-mhz-02-n

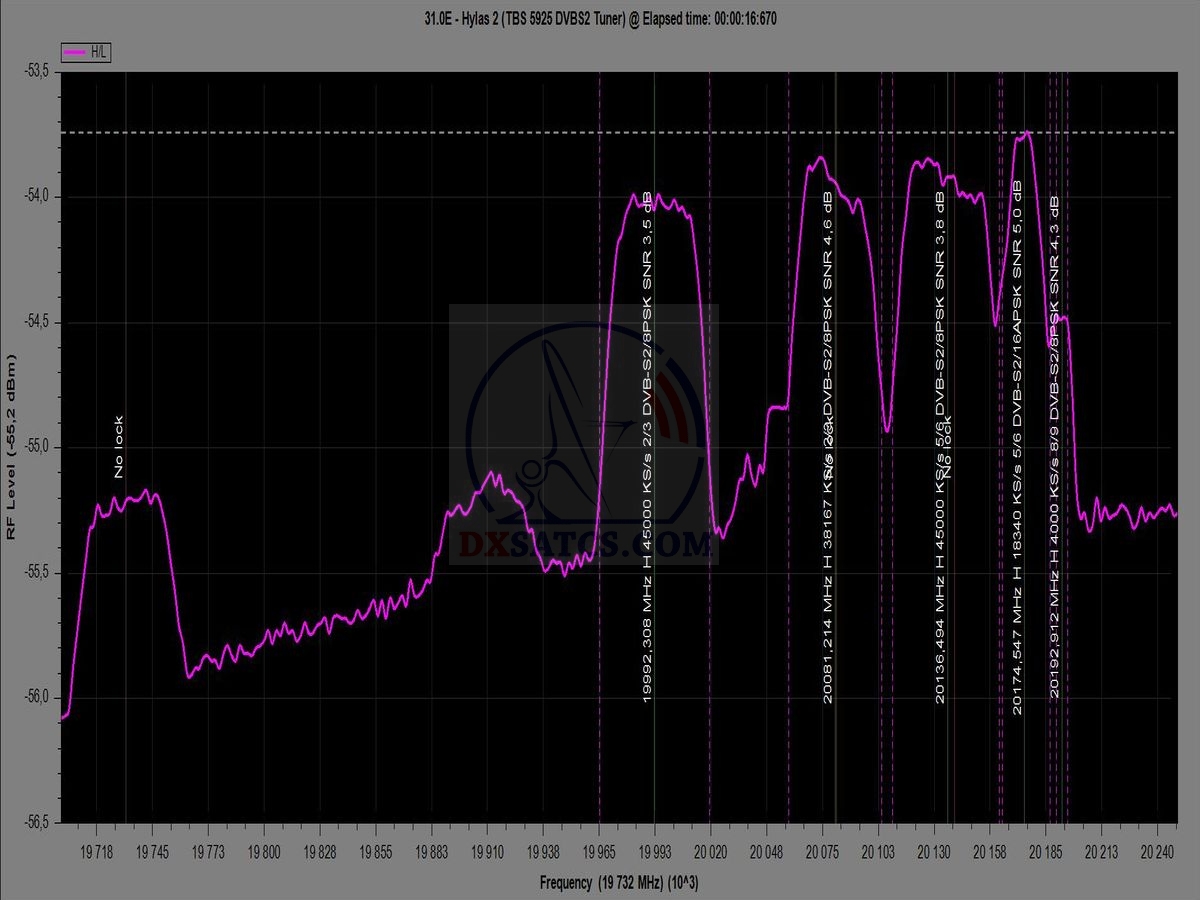

►The curent range of the -RHCP- vector in the KA band from 19 700 to 20 200 MHz : quantification of RHCP spectrum


                      RHCP wave vector SPAN=1000 MHz                                                                 5x Lock
dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-rhcp-spectrum-analysis-19700-20200-mhz-01-ndxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-rhcp-spectrum-analysis-19700-20200-mhz-02-n



►Hylas 2-31.0°E-KA band-reception-frequencies :  the analysis of the quality and quantification of packets (current status)

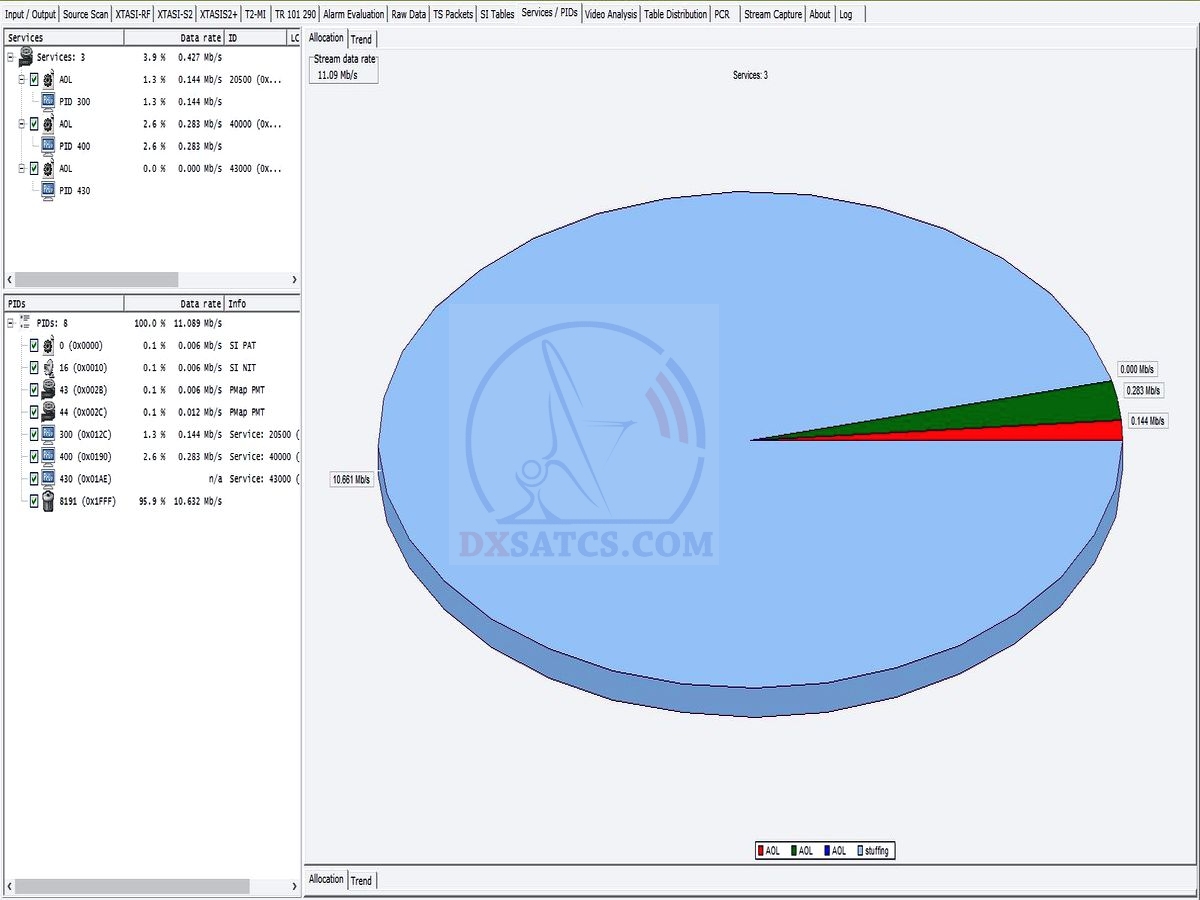

►19 714 MHz_LHCP : DVB-S2/ACM-VCM _ AOL  DATA

dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-lhcp-quality-analysis-19714-mhz-aol-data-01dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-lhcp-quality-analysis-19714-mhz-aol-data-02

►19 863 MHz_LHCP : DVB-S2/ACM-VCM _ DATA

dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-lhcp-quality-analysis-19863-mhz-data-01-n

►19 992 MHz_RHCP : DVB-S2/ACM-VCM _ DATA

dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-rhcp-quality-analysis-19992-mhz-data-n

►20 081 MHz_RHCP : DVB-S2/ACM-VCM _ DATA

dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-rhcp-quality-analysis-20081-mhz-data-n

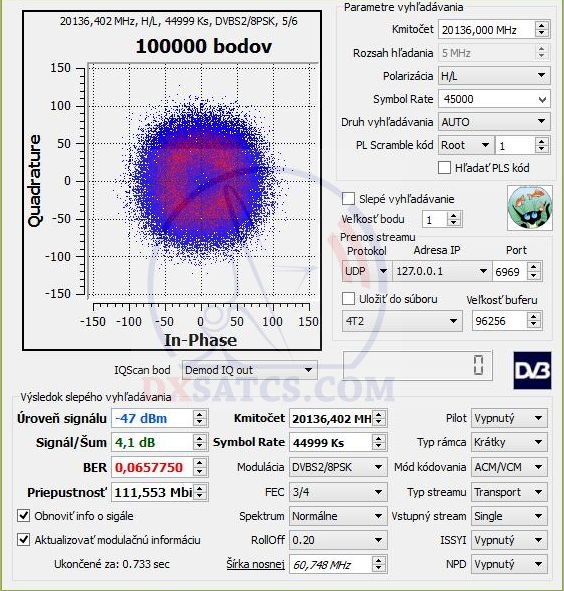

►20 136 MHz_RHCP : DVB-S2/ACM-VCM _ DATA

dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-rhcp-quality-analysis-20136-mhz-data-n

►20 174 MHz_RHCP : DVB-S2/ACM-VCM _ DATA

dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-rhcp-quality-analysis-20174-mhz-data-n

►20 192 MHz_RHCP : DVB-S2/ACM-VCM _ DATA

dxsatcs-hylas-2-31-e-satellite-broadband-internet-ka-band-reception-frequencies-rhcp-quality-analysis-20192-mhz-data-n

►►Hylas 2-λ=31.0°E-KA band-reception-frequencies : a list of the locked carrier frequencies




-Frequency/Polarisation


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---DVB/Encryption---
19 714 MHz_LHCP
AOL DATA
 		 15 000 --- Hylas 2 KA-band depending on the geo. location DVB-S2/ACM-VCM
19 724 MHz_LHCP ?
 		 ? --- Hylas 2 KA-band depending on the geo. location
19 732 MHz_RHCP ?
 		 ? --- Hylas 2 KA-band depending on the geo. location
19 741 MHz_LHCP ?
 		 ? --- Hylas 2 KA-band depending on the geo. location
19 784 MHz_LHCP ?
 		 ? --- Hylas 2 KA-band depending on the geo. location
19 816 MHz_LHCP ?
 		 ? --- Hylas 2 KA-band depending on the geo. location
19 863 MHz_LHCP DATA
 		 34 285 --- Hylas 2 KA-band depending on the geo. location DVB-S2/ACM-VCM
19 992 MHz_RHCP DATA
 		 45 000 --- Hylas 2 KA-band depending on the geo. location DVB-S2/ACM-VCM
20 081 MHz_RHCP DATA
 		 38 166 --- Hylas 2 KA-band depending on the geo. location DVB-S2/ACM-VCM
20 136 MHz_RHCP DATA
 		 45 000 --- Hylas 2 KA-band depending on the geo. location DVB-S2/ACM-VCM
20 174 MHz_RHCP DATA
 		 18 340 --- Hylas 2 KA-band depending on the geo. location DVB-S2/ACM-VCM
20 192 MHz_RHCP DATA
 		 4 000 --- Hylas 2 KA-band depending on the geo. location DVB-S2/ACM-VCM
