Mr. Alberto Simao - Macau S.A.R_ Yamal 202 at 49.0°E-Global footprint in C band : 3 740 L-packet Gazprom_results of measurements with the antenna Vertex RSI 9.0m and a comparison of quality within the area of Central Europe and South Asia
Yamal 202 at 49.0°E - Global footprint : measurements at the center Macau - 60 km w of Hong Kong
geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
measurement results are derived from the 900 cm diameter antenna
date of measurement : 20.4.2010
elevation angle : 15.0°

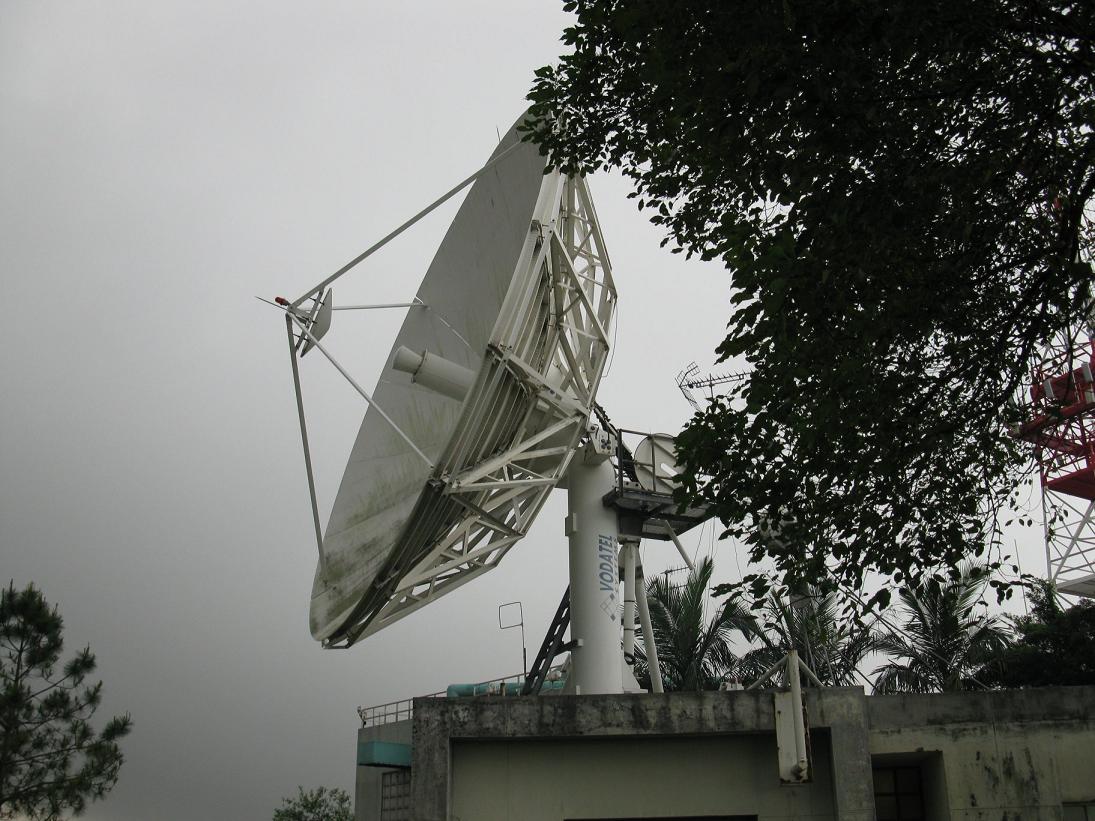

Yamal 202 : PF Vertex RSi 900 cm Yamal 202 Global footprint Yamal 202 : measurement point

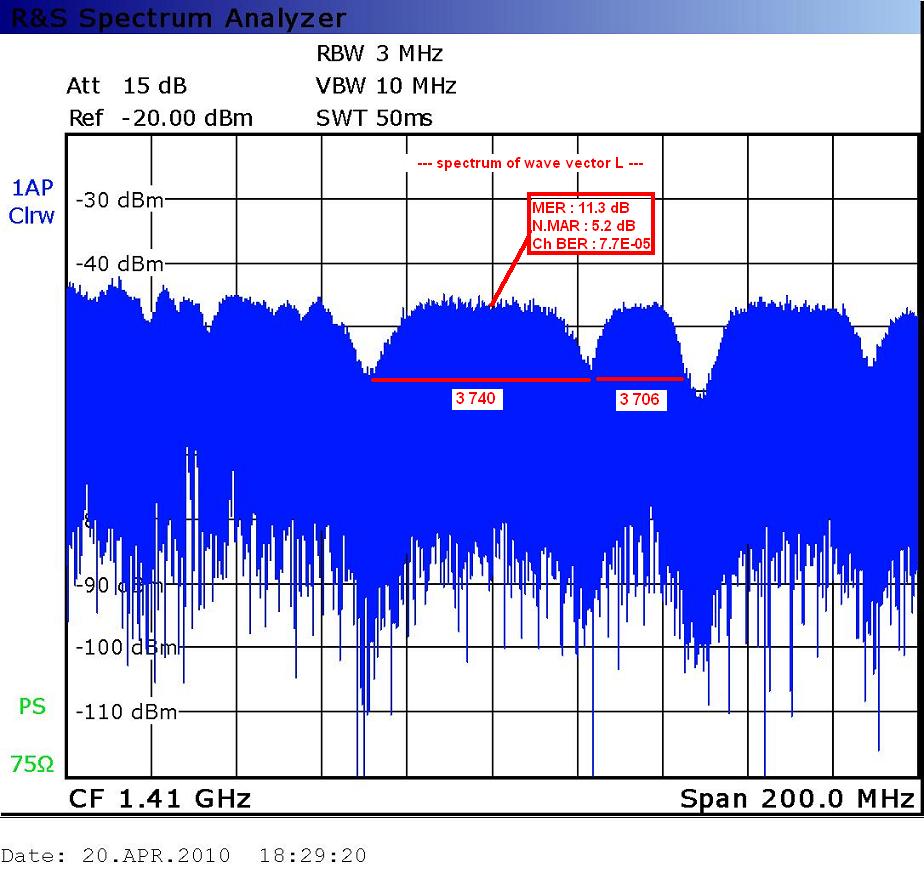

Yamal 202 at 49.0°E_Global footprint : 3 740 L _spectral analysis with the analyzer Rohde & Schwarz ETL
click for higher quality

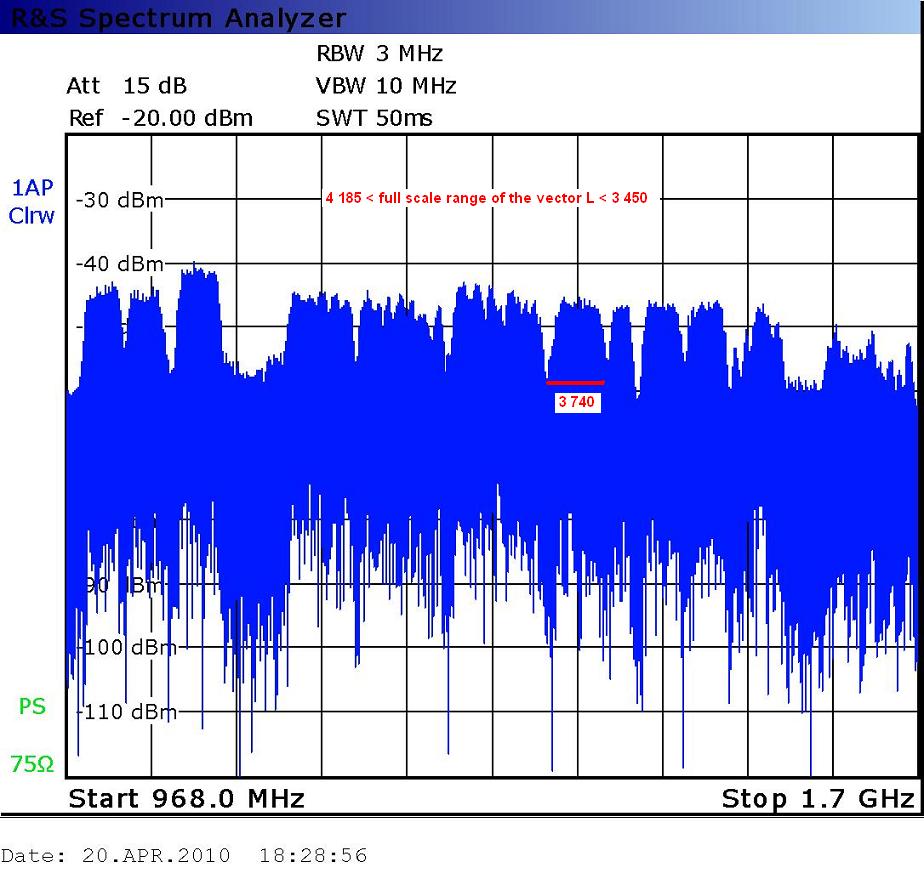

4 185 < full scale range < 3 450 3 740 L : channel power

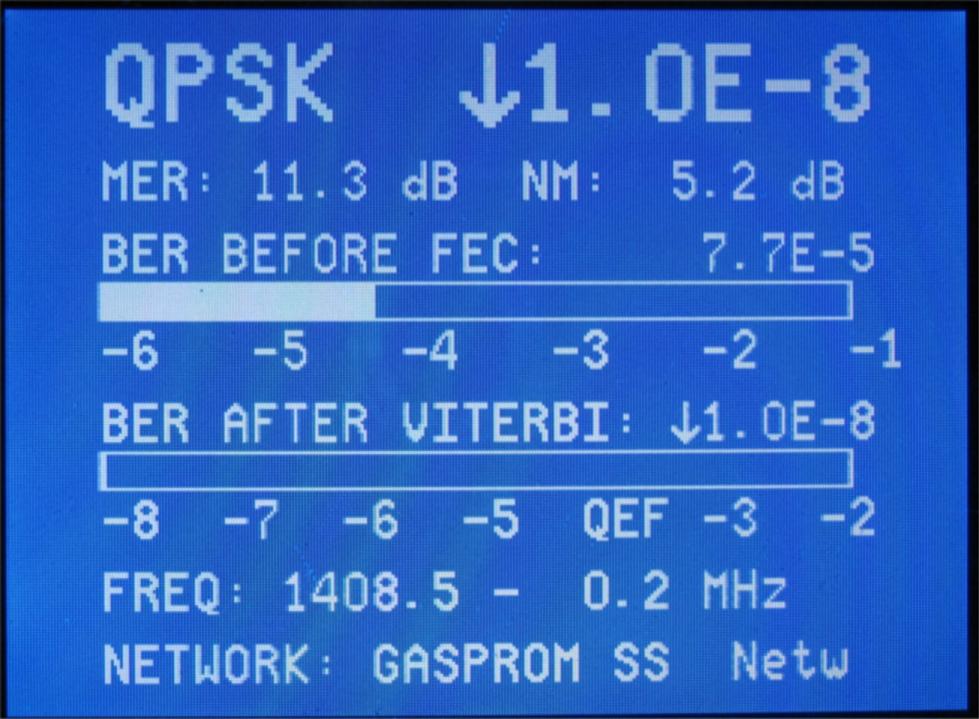

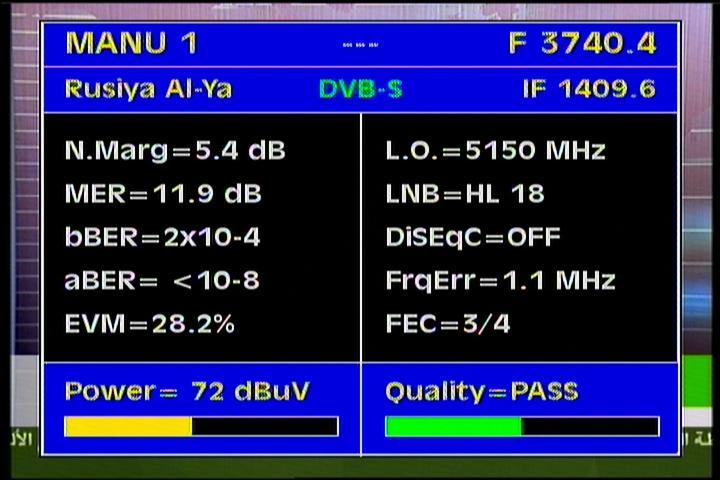

Yamal 202 at 49.0°E_Global footprint : 3 740 L - Packet Gazprom_quality analysis + NIT

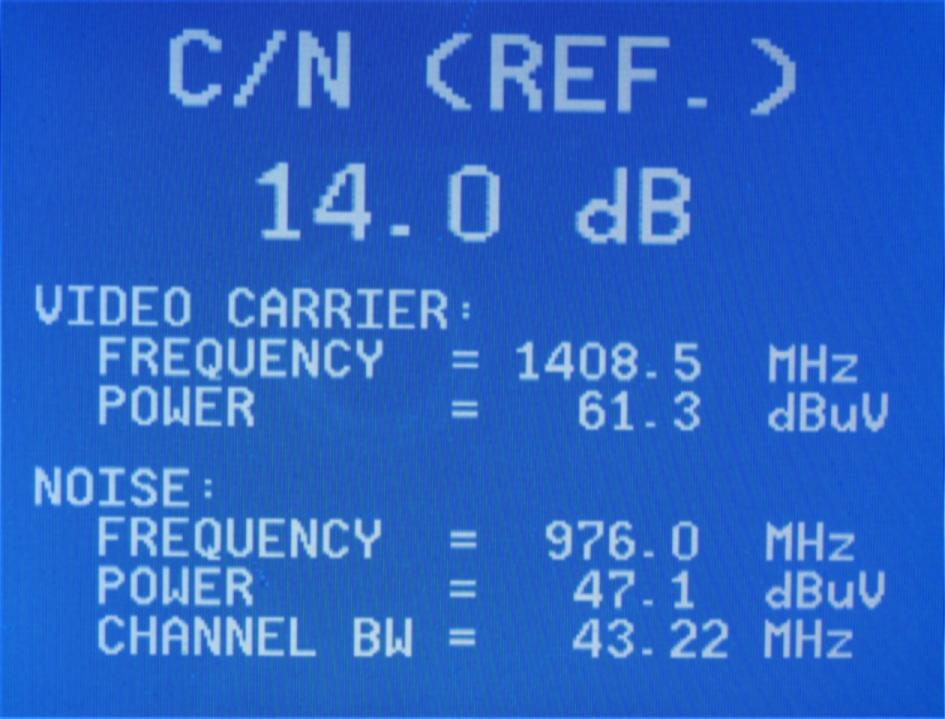

Channel Power C/N quality table

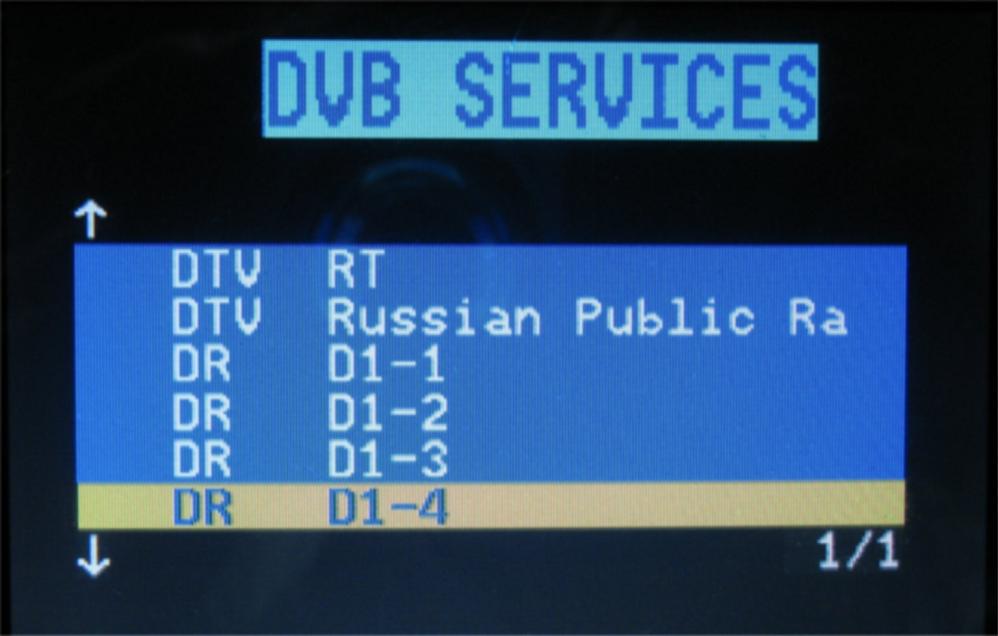

NIT 01 NIT 03
Tandberg TT 1260 : 3 740 L Network information table
download NIT

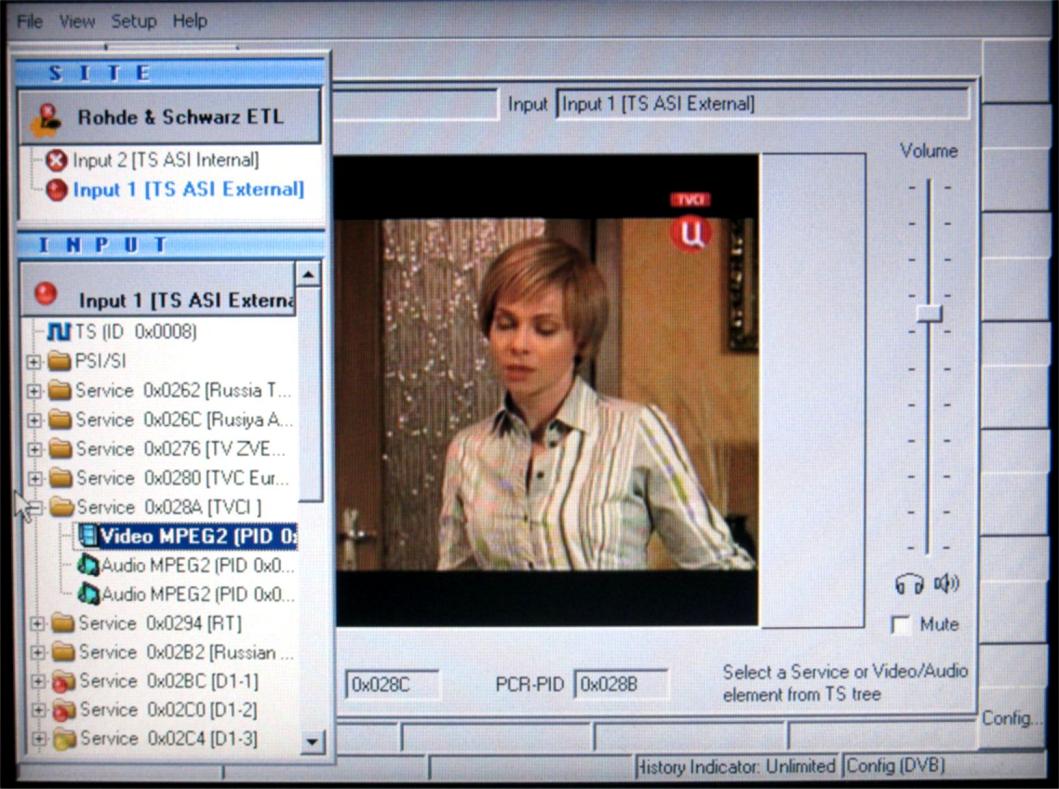

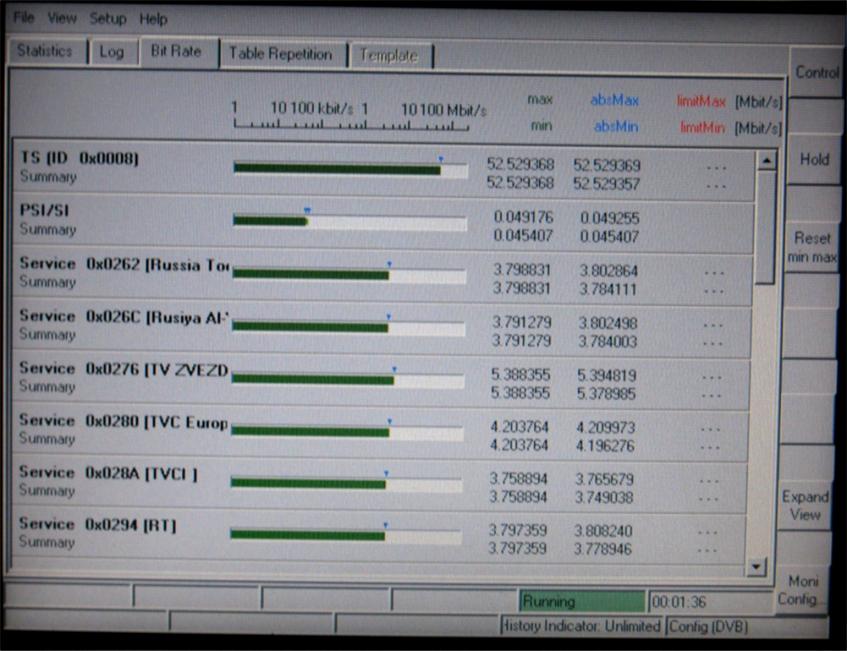

Yamal 202 at 49.0°E_Global footprint : 3 740 L - Packet Gazprom_ TS ASI table / Rohde & Schwarz ETL
pids TS ASI table TS ASI

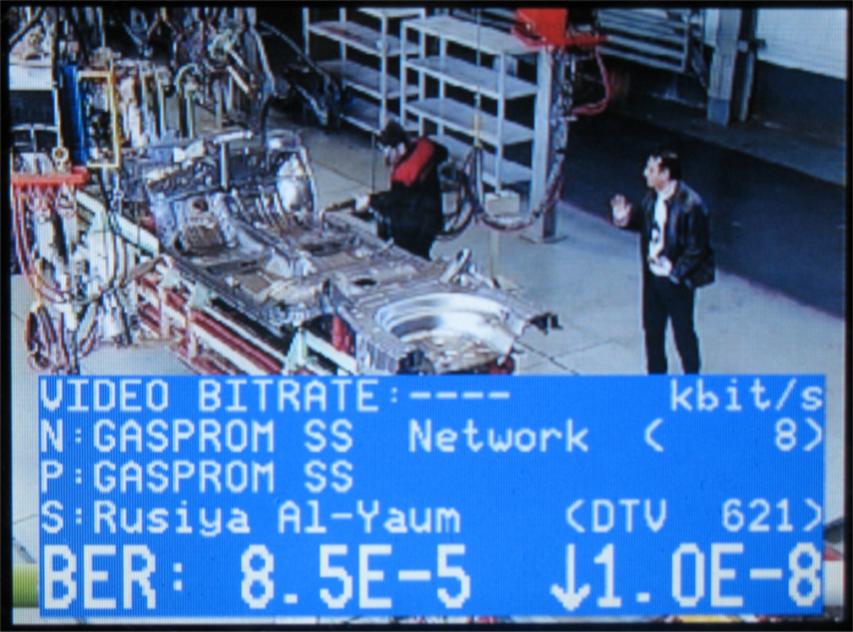

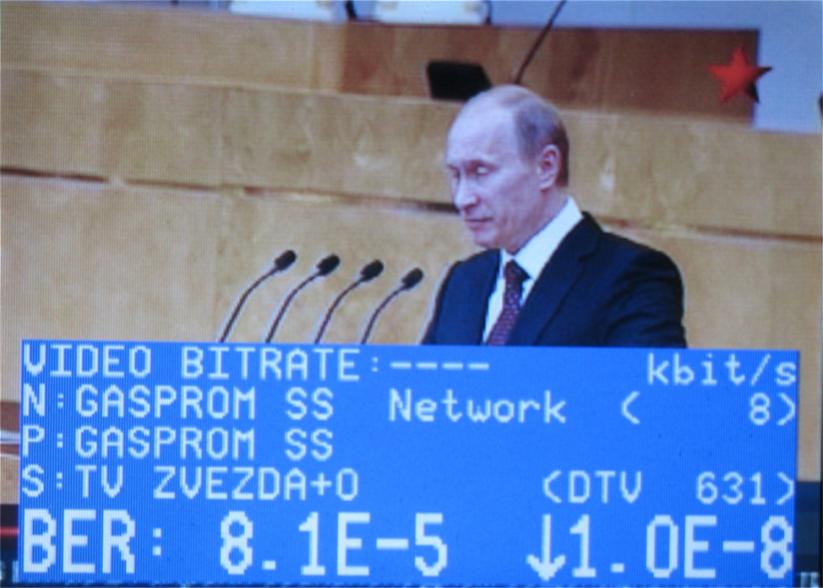

Yamal 202 at 49.0°E_Global footprint : 3 740 L - Packet Gazprom_ snapshots
Yamal 202 at 49.0°E_Global footprint : 3 740 L - Packet Gazprom_ video presentation
Yamal 202 at 49.0°E_Global footprint : measurement results_Lučenec Slovakia <>Macau S.A.R.
click for higher quality
Yamal 202 at 49.0°E - global footprint : measurements at the center Lučenec_central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
elevation angle : 27.5°
Yamal 202 at 49.0°E - Global footprint : measurements at the center Macau - 60 km w of Hong Kong
geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
measurement results are derived from the 900 cm diameter antenna
elevation angle : 15.0°
resulting position : nearly identical qualitative state of reception
author : Mr. Alberto Simao / Macau S.A.R.
