NSS 12 at 57.0°E : Technical data

                  NSS 12 at 57.0°E-middle east & europe beam : 11 465 H Live broadcasts from Eastern and Central Africa
                          transfers are identified under different NIT name : Kenya TV,KTN SNG 01,Ericsson Service ...
                                                                                  click for enlarge

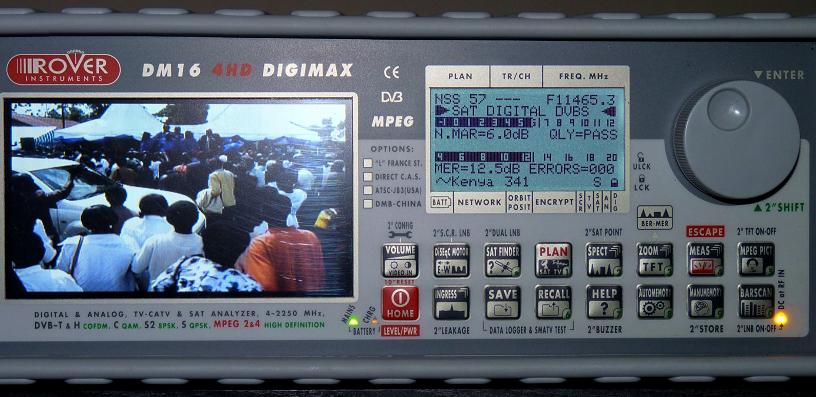

NSS 12 at 57.0 e-middle east and europe beam-11 465 H feeds Kenya 341-n

                       satellite : NSS 12 - orbit : 57.0°E - TP : 40 C/48 KU - launched 2009 & lifetime 2024
.

NSS 12 at 57.0°E - East Africa & Middle East beam : spectral analysis & measuring the quality

.
NSS 12 at 57.0°E - Footprint East Africa and the Middle East  : measurements at the center Lučenec/central Slovakia
                                                geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                            measurement results are derived from the 3.7 m diameter antenna
                                                                       date of measurement : 9.10 2010
                                                                                 Elevation angle : 24°

          NSS 12 : installed system                      NSS 12 : all active beam                       NSS 12 : research point
dxsatcs waveguide line+Norsat 4206CF                  coverage area                           town Lučenec / Slovak republic
                  Prodelin 3.7 m                        Middle East & Europe,Asia,East Africa                   48.33° _ 19.72°
NSS 12 at 57.0 e-PF Prodelin 3.7 mNSS 12 at 57.0 e-middle east and asia and african footprint-allNSS 12 at 57.0 e_ reception point at lucenec slovakia

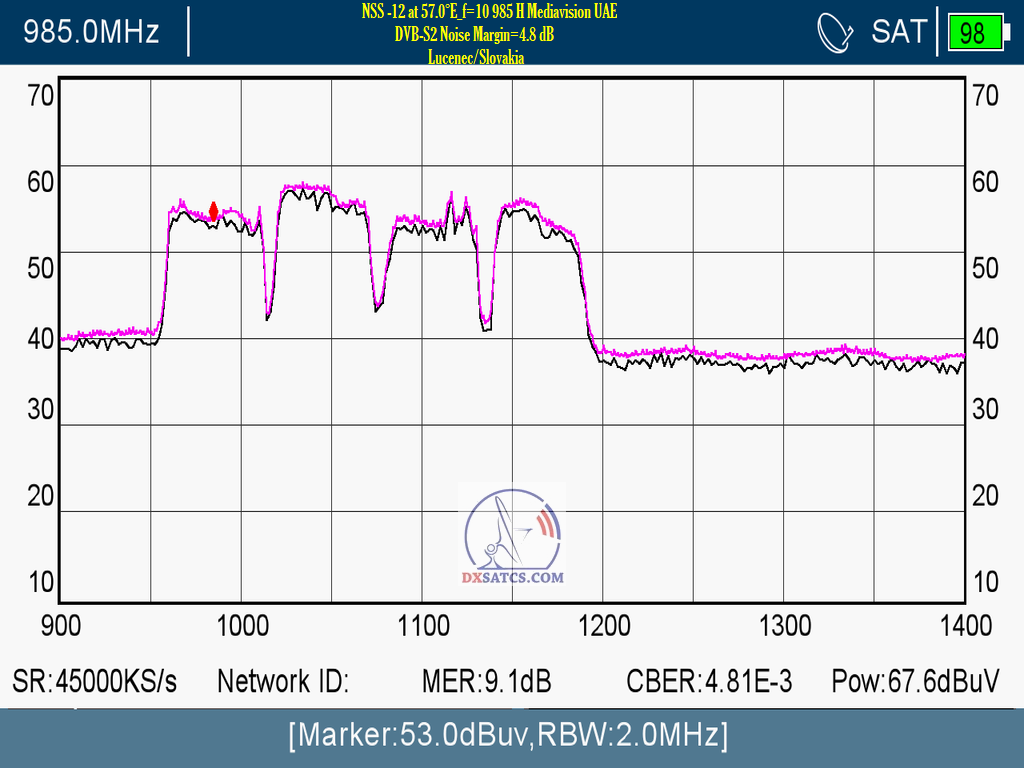

            --- NSS 12 - east africa & middle east beam : spectral analysis and curent status of reception in central europe ---
.

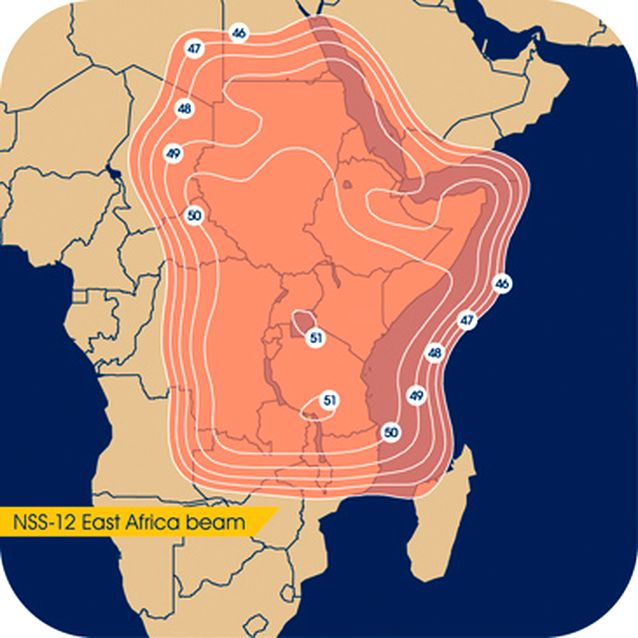

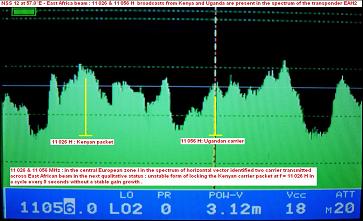

                   NSS 12 east africa beam in KU band                                           NSS 12 : spectral analysis
                                     coverage area                                   >                      spectral analysis of the TP EAH2
                   Africa , Middle East , southern europe ...                    11 026 H : Kenyan packet / 11 056 H : Ugandan carrier
                                   click for enlarge                                                                      click for enlarge
  NSS 12 at 57.0e-east africa beam in KU band-nNSS 12 at 57.0e-east africa beam-spectral analysis-n

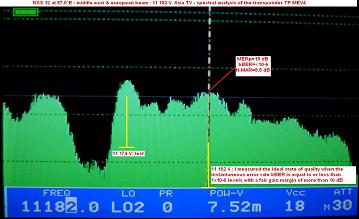

         NSS 12 middle east and european beam in KU band                            NSS 12 : spectral analysis
                                     coverage area                                      >                       spectral analysis of the TP
                  Middle East , Europe , Africa , west Asia ...                                            11 182 V : Asia TV ...
                                   click for enlarge                                                                       click for enlarge
   NSS 12 at 57.0e-middle east and europe beam in KU band-nNSS 12 at 57.0e-middle east and european beam-spectral analysis-n
                                                                          - time of measurement :9.10.2010 -
                                                                            - defining the status of reception -


                                                                                 --- H / horizontal vector ---
east africa beam _11 026 & 11 056 MHz : in the central European zone I in the spectrum of horizontal vector identified
two carrier transmitted across East African beam in the next qualitative status : unstable form of locking the Kenyan carrier
packet at f = 11 026 H in a cycle every 5 seconds without a stable gain growth

                                                                                   --- V / vertical vector ---
middle east beam_11 180  MHz : I measured the ideal status of quality when the instantaneous error rate bBER is equal to
or less than 1x10-6 levels with a fair gain margin of more than 10 dB

                                                                        --- nss 12 : measurement results ---

                                        NSS 12 at 57.0°E - middle east and european beam : 11 171 H Data
                         Q data                                                       data                                                     EVM FEC data
NSS 12 at 57.0 e-middle east and europe beam-11 171 H data-Q dataNSS 12 at 57.0 e-middle east and europe beam-11 171 H data-dataNSS 12 at 57.0 e-middle east and europe beam-11 171 H data-EVB FEC data

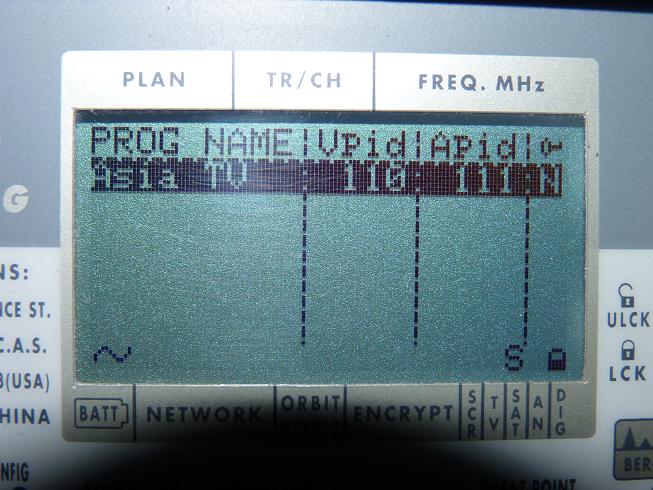

                                      NSS 12 at 57.0°E - middle east and european beam : 11 181 V Asia TV
                         IF data                                                        Q data                                                 NIT data

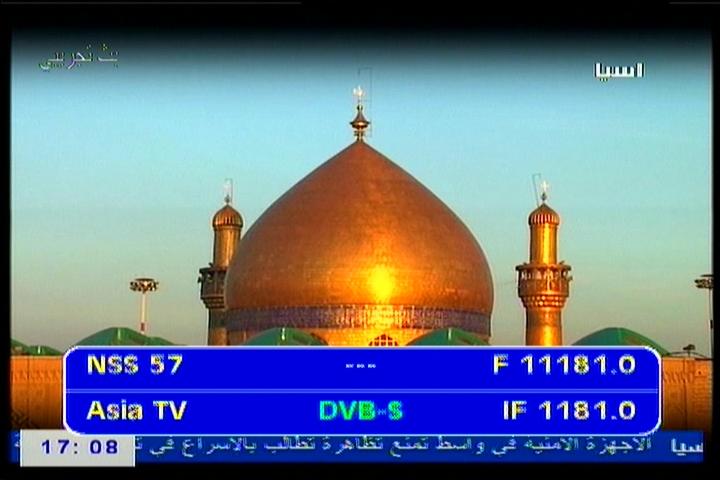

NSS 12 at 57.0 e-middle east and europe beam-11 181 V ASia tv-IF dataNSS 12 at 57.0 e-middle east and europe beam-11 181 V ASia tv-Q dataNSS 12 at 57.0 e-middle east and europe beam-11 181 V ASia tv-NIT data

                              NSS 12 at 57.0°E - middle east and european beam : 11 465 H feeds KTN ...
                         IF data                                                        Q data                                                 NIT data

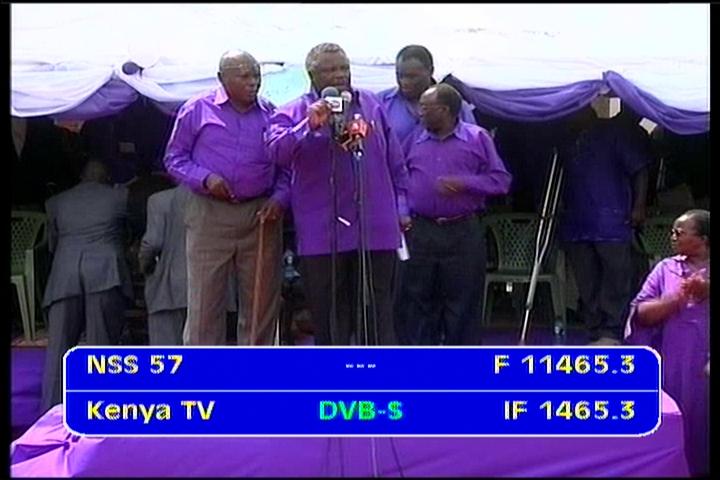

NSS 12 at 57.0 e-middle east and europe beam-11 465 H feeds Kenya tv-IF dataNSS 12 at 57.0 e-middle east and europe beam-11 465 H feeds Kenya tv-Q dataNSS 12 at 57.0 e-middle east and europe beam-11 465 H feeds Kenya tv-NIT data

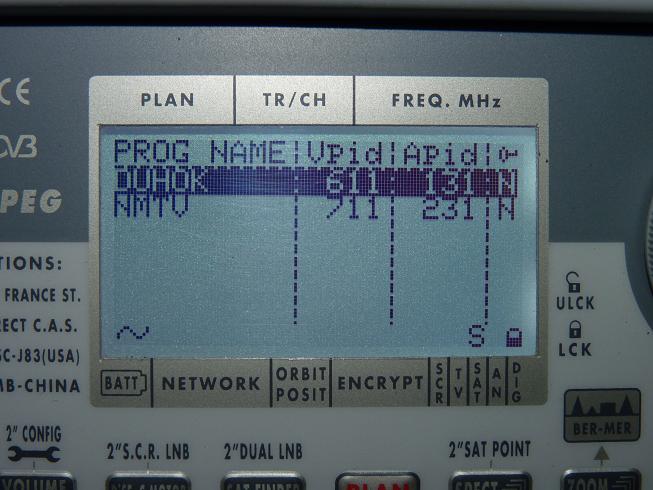

                         NSS 12 at 57.0°E - middle east and european beam : 11 568 V DVB-S2 Unn network
                         IF data                                                        Q data                                                 NIT data
NSS 12 at 57.0 e-middle east and europe beam-11 568 V dvb s2 Duhok tv-IF dataNSS 12 at 57.0 e-middle east and europe beam-11 568 V dvb s2 Duhok tv-Q dataNSS 12 at 57.0 e-middle east and europe beam-11 568 V dvb s2 Duhok tv-NIT data

NSS 12 at 57.0°E : TV List

NSS 12 at 57.0 e-PF Prodelin 3.7 m


-Frequency-


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---DVB/Encryption---

11 026 -H- tp EAH2

Kenyan packet

 8 681  3/4  East Africa  400-500+ cm  DVB-S
  KBC Channel 1         FTA
  Family TV 1         FTA
  K24         FTA

11 056 -H- tp EAH2

WBS TV Uganda

2 447 3/4 East Africa 400-500+ cm DVB-S / FTA

11 063 -V- tp MEV3

DVB-S Data

2 500 7/8 Middle East &
     Europe
120+ cm DVB-S data

11 140 -V- tp MEV3

feeds Duhok tv

2 600 7/8 Middle East &
     Europe
80-140+ cm DVB-S / feeds

11 171 -H-

DVB-S Data

1 627 1/2 Middle East &
     Europe
80+ cm DVB-S data

11 174 -V- tp MEV4

test Qellat

1 250 3/4 Middle East &
     Europe
80+ cm DVB-S2/8PSK
MPEG-4/FTA


11 181 -V- tp MEV4

Asia TV

2 590  3/4 Middle East &
     Europe
 80+ cm  DVB-S / FTA

11 465 -H-

feeds from Kenya....

3 100 3/4 Middle East &
     Europe
80-140+ cm DVB-S / feeds

11 568 -V- tp MEV6

unn. network

2 500 3/4 Middle East &
     Europe
80+ cm DVB-S2/8PSK
MPEG-4/FTA
  Duhok TV         MPEG-4/FTA
  Mosul tv test         MPEG-4/FTA

.

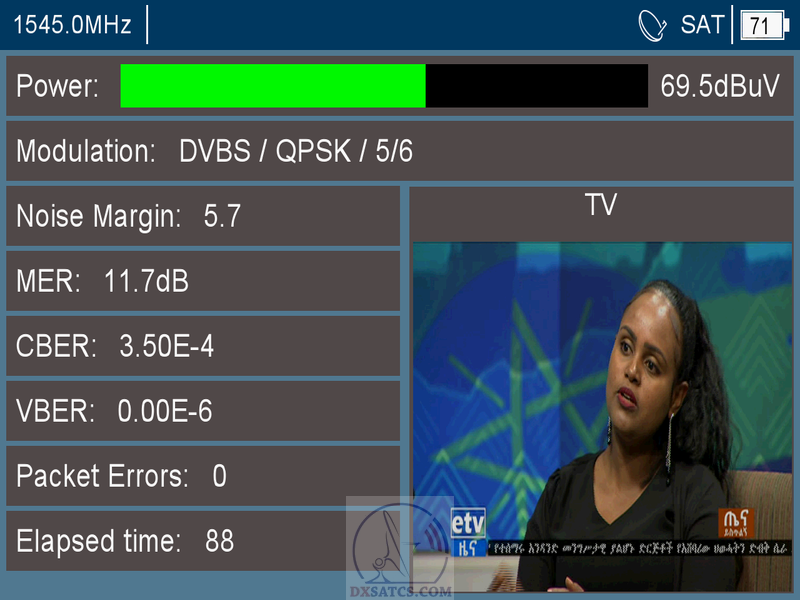

NSS 12 at 57.0°E : lock of the east african footprint & relative quality


11 026 H lock the carrierrelative q 01relative q 02


NSS 12 at 57.0°E : video presentation

          watch video

NSS 12 at 57.0°E : update prepare


                     dxsatcs logo
               CZECH & SLOVAK DX SATELLITE CLUB

international professional portal
                                    think-tank
                    Roman Dávid - author & founder
                    mail :
roman.david@dxsatcs.com

NSS 12 at 57.0°E footprint

                 Middle East & Europe                                    East Africa                                              central Asia

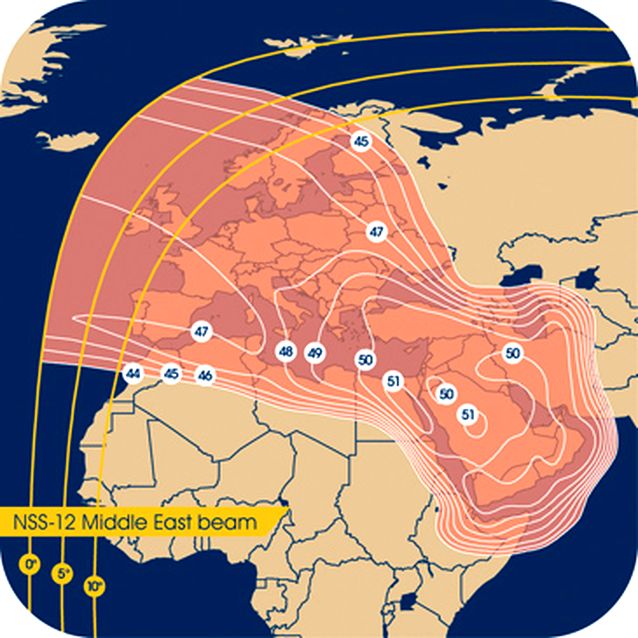

NSS 12 at 57.0e-middle east and europe beam in KU band-01NSS 12 at 57.0e-east africa beam in KU band-02NSS 12 at 57.0e-central asia beam in KU band-03
