NSS 12 at 57.0°E

NSS 12 at 57.0°E : Technical data

                NSS 12 at 57.0°E - global footprint : 4 055 R Packet Voice of America-qualitative peak MER=11.9 dB

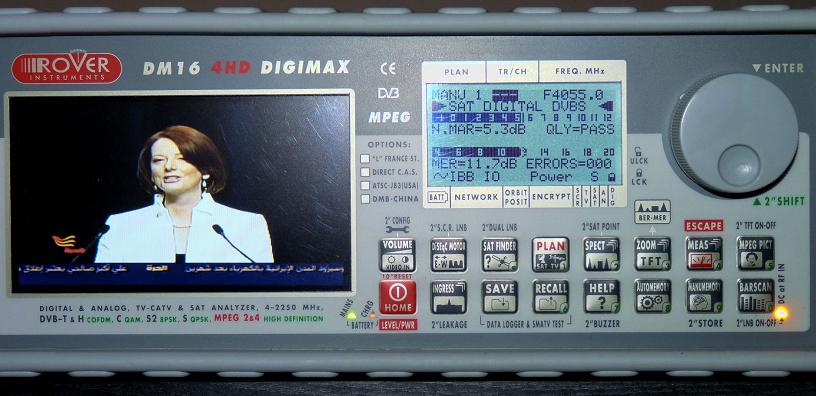

NSS 12 at 57.0 E-global footprint in the C band-4 055-01 n
                        satellite : NSS 12 - orbit : 57.0°E _ TP:C-40/ KU-48 _lifetime : from 30.10.2009 15 years

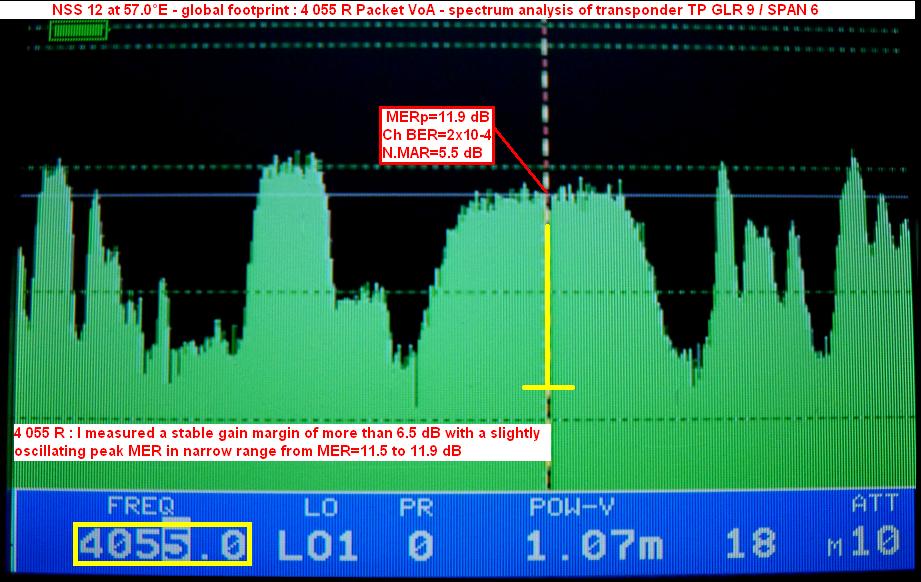

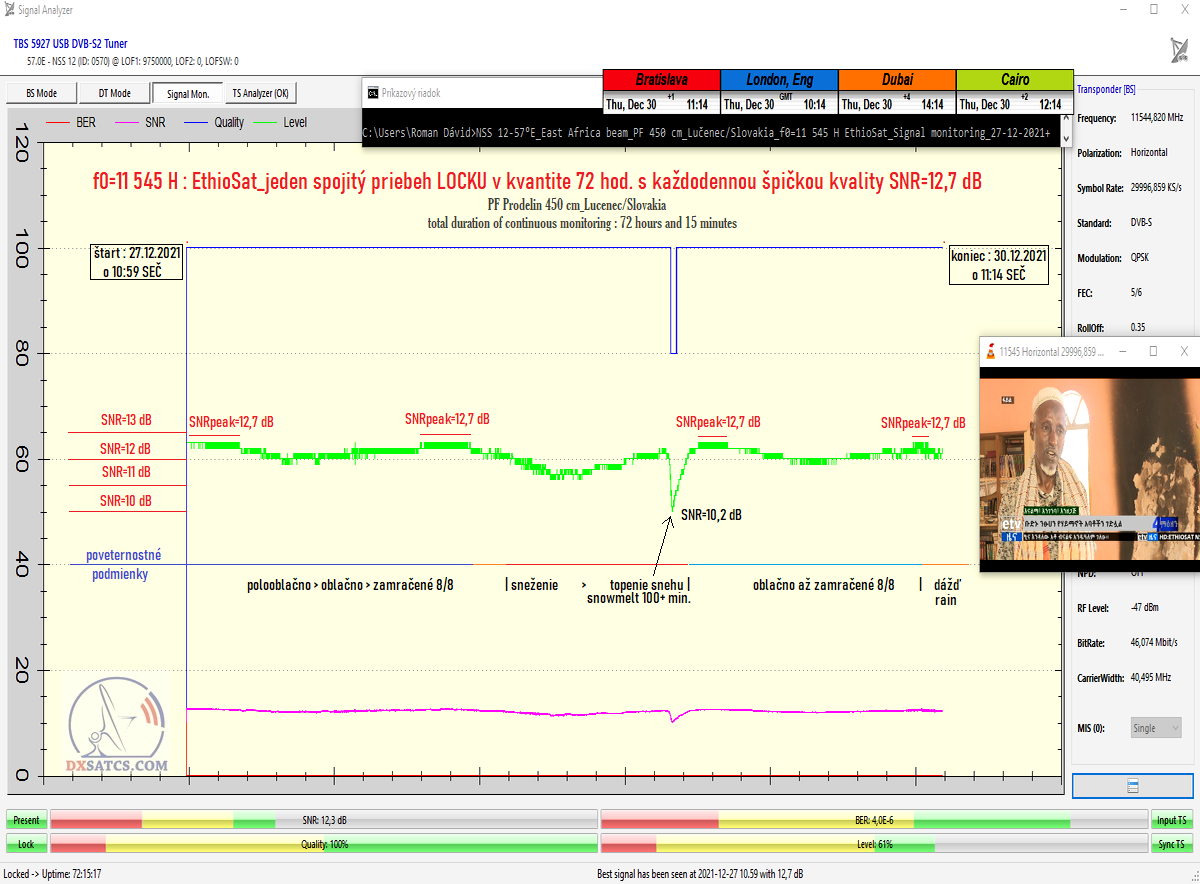

Update - NSS 12 at 57.0°E - Global & West Hemi footprint : spectral analysis & measuring the quality


           NSS 12 at 57.0°E - Global & West Hemi  footprint : measurements at the center Lučenec/central Slovakia
                                                geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                            measurement results are derived from the 3.7 m diameter antenna
                                                                       date of measurement : 22.8 2010
                                                                                  Elevation angle : 24°

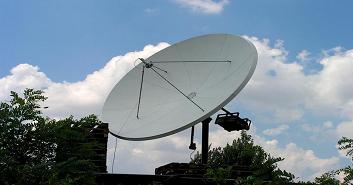

                         NSS 12 : installed system                                             NSS 12 : measurement point
                    PF Prodelin 3.7 m+Norsat 8215                                                   48.33° _ 19.72°
PF Prodelin 3.7m at NSS 12 at 57.0E  C band-okNSS 12 at 57.0 E-footprint in the C band-measurement point-ok

                                                            --- NSS 12 : global footprint in the C band ---

                                    NSS 12 footprint : Global                       NSS 12 : spectral analysis 01
                                             coverage zone                                            wave vector R
                              Europe , Asia , Africa , Australia                     4 055 R : Voice Of America
                         NSS 12 at 57.0 e _ global footprint     NSS 12 at 57.0 E-global footprint in the C band-4 055 Packet VoA-spectral analysis

                                                         --- NSS 12 : west hemi footprint in the C band ---

                                  NSS 12 footprint : West Hemi                   NSS 12 : spectral analysis 02
                                              coverage zone                                            wave vector L
                                   Africa , Europe , Middle East                           3 662 L : ETV network
                         NSS 12 at 57.0 e _ west hemi footprint     NSS 12 at 57.0 E-west hemi footprint in the C band-3 662 L ETV netw-spectral analysis
                                                                    - time of measurement : 22.8.2010 -
                                                                       - defining the status of reception -

3 662 L_ETV network : I've identified an ideal state of quality with absolutely zero error rate bBER<10-6 which is related to
real gain growth of more than MER=12 dB _ MERp=17 dB

4 055 R_Voice of America : I measured a stable gain margin of more than 7 dB with a slightly oscillating peak MER in narrow
range from MER=11.5 to 11.9 dB

 - Transition to packet-satellite NSS 12 is strongly reflected in the measured quality of income as follows.Simple description
of the relationship between radiant relied diagram and the resulting quality of the intake mention at the beginning
: >>>

My experience has confirmed to me that the sat.providers defined levels emitted flux is often significantly different from the
real situation of the measuring point.Based on this experience, I declare that the footprint diagrams are not the major factor
in the design of the external high fequency unit,because they are not precise and often introduced.The following measurement
results confirm this fact from the current practice that each transponder on the same footprint diagram / Global or West Hemi .../
we can propose another radiant chart , in which to achieve the same quality of income in two different packets in the same
footprint is to install the antenna with different average 200-400+ cm.

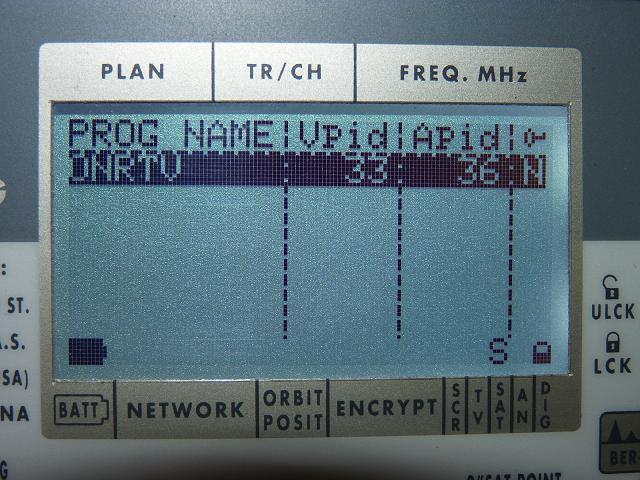

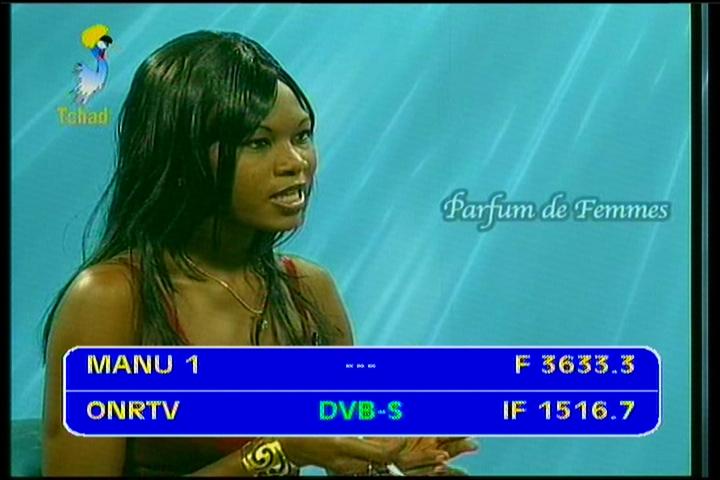

                                          NSS 12 at 57.0°E - West Hemi footprint : 3 633 R Télé Tchad

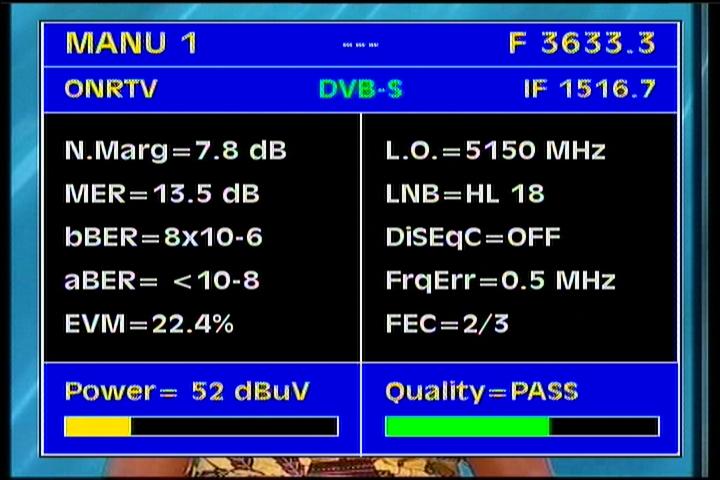

                             IF data                                                 Q data                                                 NIT data
NSS 12 at 57.0 e _ West Hemi footprint _ 3 633 R Tele Tchad _IF dataNSS 12 at 57.0 e _ West Hemi footprint _ 3 633 R Tele Tchad _Q dataNSS 12 at 57.0 e _ West Hemi footprint _ 3 633 R Tele Tchad _NIT data

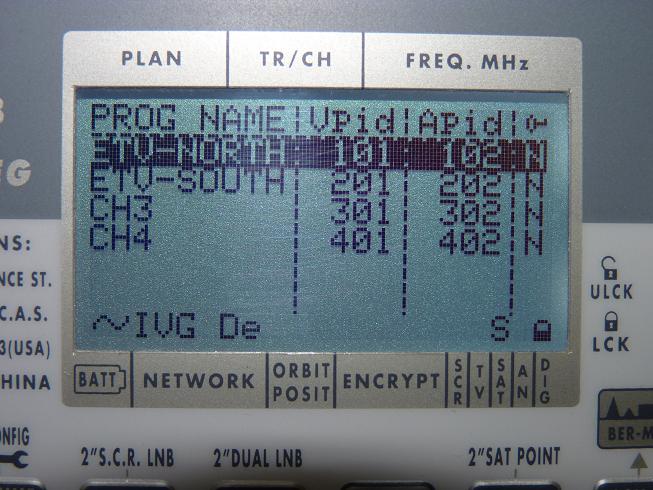

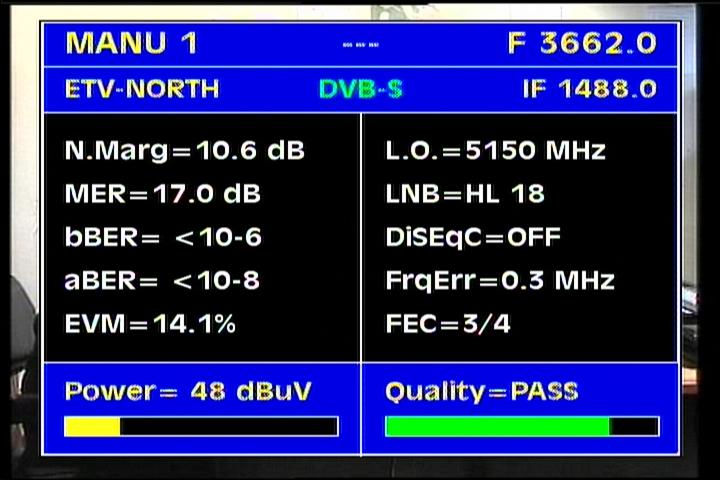

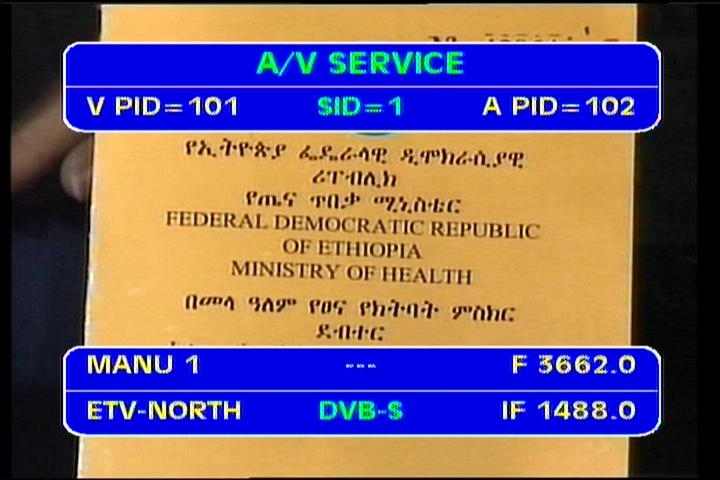

                                     NSS 12 at 57.0°E - West Hemi footprint : 3 662 L ETV Ethiopia network
                             IF data                                                 Q data                                                 NIT data
NSS 12 at 57.0 E-west hemi footprint in the C band-3 662 L ETV network-IF dataNSS 12 at 57.0 E-west hemi footprint in the C band-3 662 L ETV network-Q dataNSS 12 at 57.0 E-west hemi footprint in the C band-3 662 L ETV network-NIT data

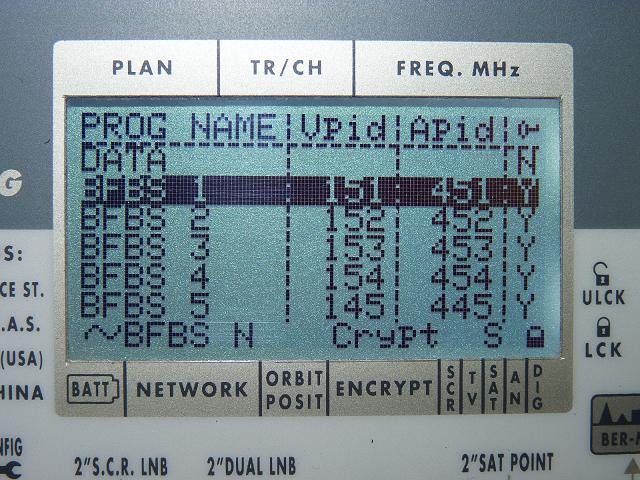

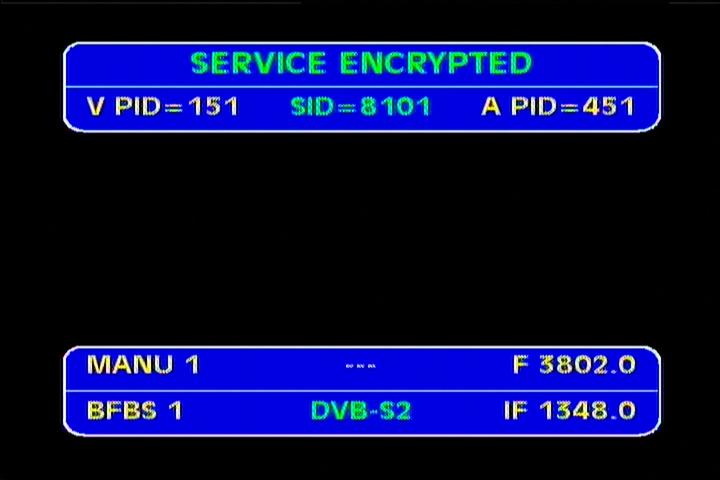

                                               NSS 12 at 57.0°E - West Hemi footprint : 3 802 R BFBS UK

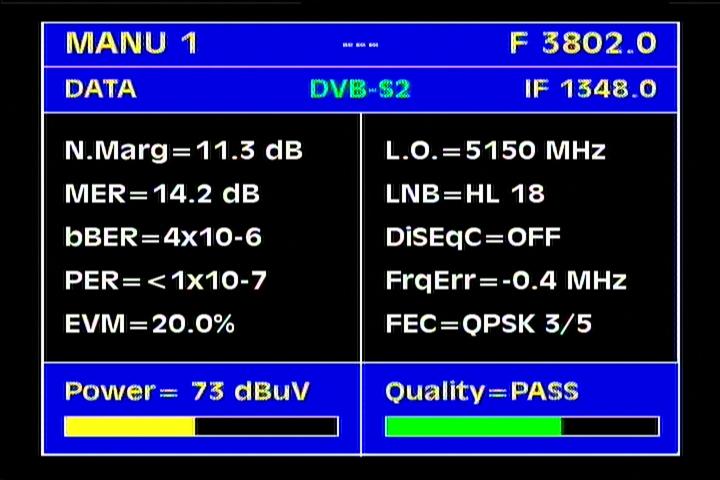

                    VA pids data                                                 Q data                                                 NIT data
NSS 12 at 57.0 e _ West Hemi footprint _ 3 802 R BFBS UK netw_IF dataNSS 12 at 57.0 e _ West Hemi footprint _ 3 802 R BFBS UK netw_Q dataNSS 12 at 57.0 e _ West Hemi footprint _ 3 802 R BFBS UK netw_NIT data

                                              NSS 12 at 57.0°E - West Hemi footprint : 3 913 R feed SATV
                   VA pids data                                                   Q data                                                 NIT data
NSS 5 at 57.0 e _ West Hemi footprint _ 3 913 R feed SATV _ VA pids dataNSS 5 at 57.0 e _ West Hemi footprint _ 3 913 R feed SATV _ Q  dataNSS 5 at 57.0 e _ West Hemi footprint _ 3 913 R feed SATV _ NIT data

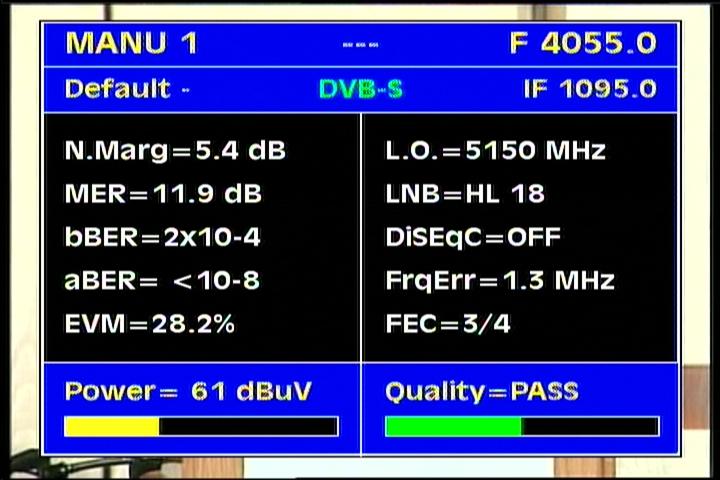

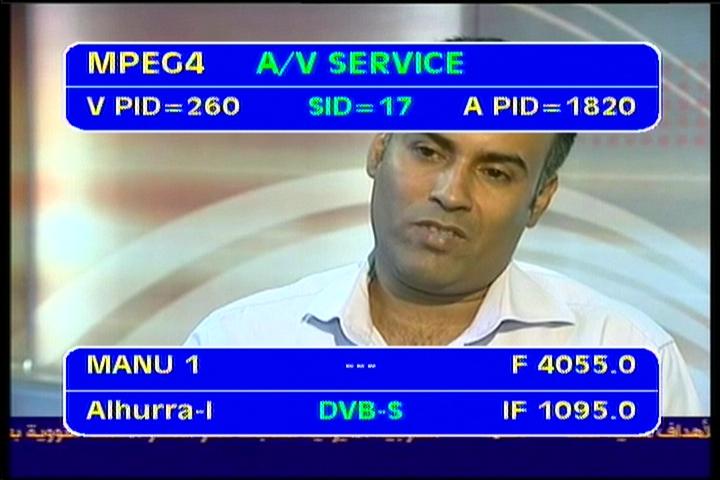

                                  NSS 12 at 57.0°E - Global footprint : 4 055 R  Packet VoA Voice of America
                         IF data                                                        Q data                                                 NIT data

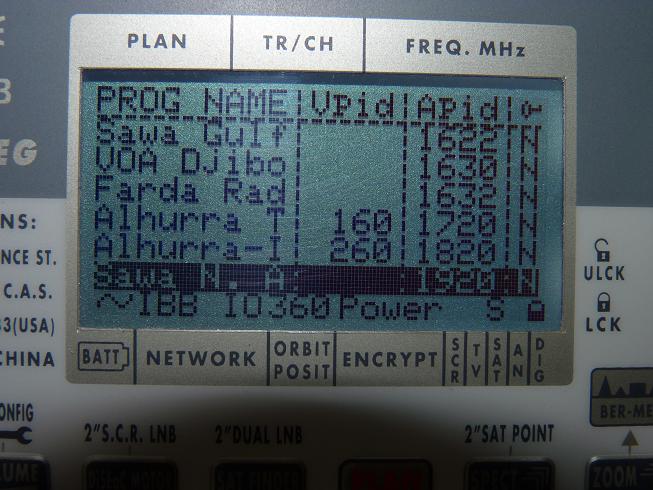

NSS 12 at 57.0 E-global footprint in the C band-4 055 R VoA-IF dataNSS 12 at 57.0 E-global footprint in the C band-4 055 R VoA-Q dataNSS 12 at 57.0 E-global footprint in the C band-4 055 R VoA-NIT data

                               NSS 12 at 57.0°E - Global footprint : 4 062 L feeds MPEG-4 Cairo Video Return
                      VA pids data                                                 Q data                                                 NIT data
NSS 5 at 57.0 e _ Global footprint _4 062 L MPEG 4 feed Cairo Video return _ VA pids dataNSS 5 at 57.0 e _ Global footprint _4 062 L MPEG 4 feed Cairo Video return _ Q dataNSS 5 at 57.0 e _ Global footprint _4 062 L MPEG 4 feed Cairo Video return _ NIT data

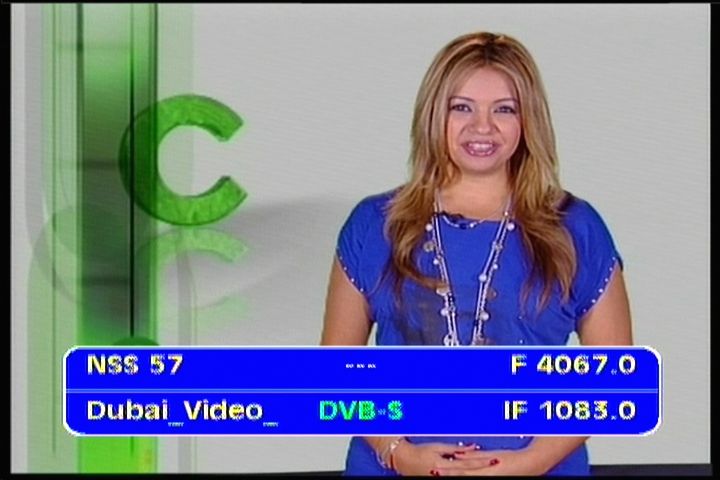

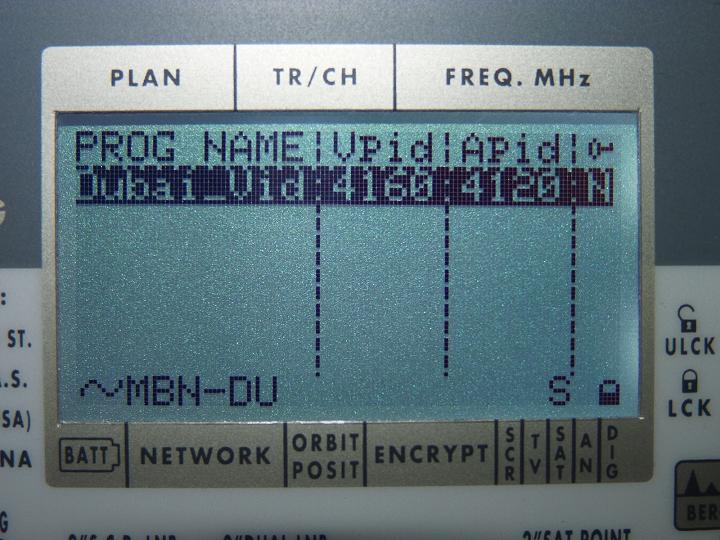

                              NSS 12 at 57.0°E - Global footprint : 4 067 L feeds MPEG-4 Dubai Video Return
                      VA pids data                                                 Q data                                                 NIT data
NSS 12 at 57.0 e _ global footprint _ 4 067 L feed PHT Dubai video return_IF dataNSS 12 at 57.0 e _ global footprint _ 4 067 L feed PHT Dubai video return_Q dataNSS 12 at 57.0 e _ global footprint _ 4 067 L feed PHT Dubai video return_NIT data

                             NSS 12 at 57.0°E - Global footprint : 4 072 L feeds MPEG-4 Al Hurra Video Return
                      VA pids data                                                 Q data                                                 NIT data

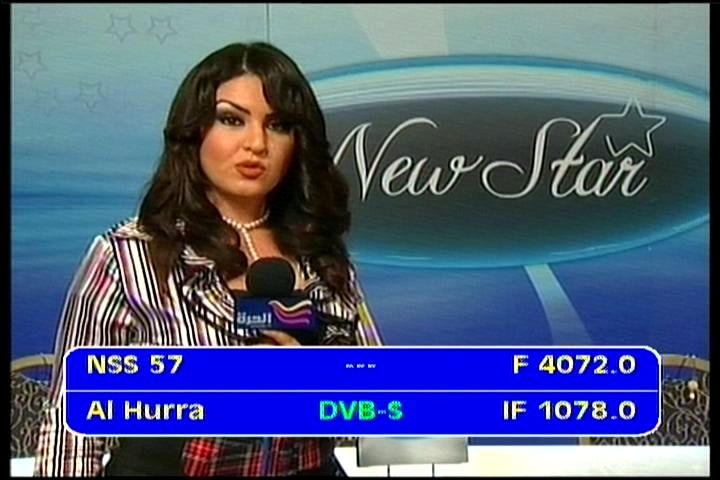

NSS 12 at 57.0 e _ global footprint _ 4 072 L MPEG 4 feed Al Hurra _ IF dataNSS 12 at 57.0 e _ global footprint _ 4 072 L MPEG 4 feed Al Hurra _ Q dataNSS 12 at 57.0 e _ global footprint _ 4 072 L MPEG 4 feed Al Hurra _ NIT data

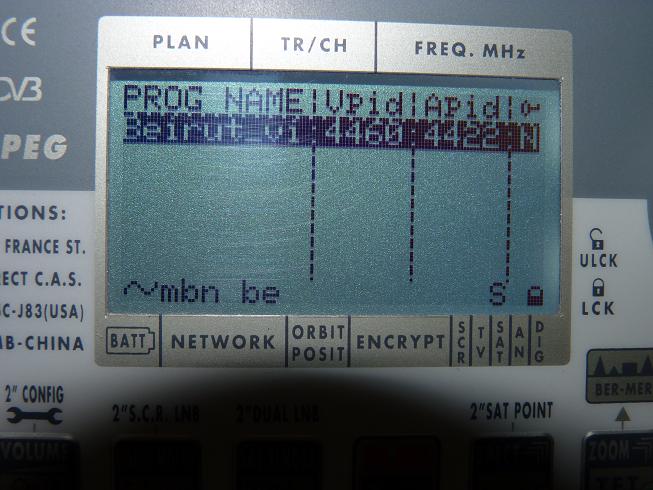

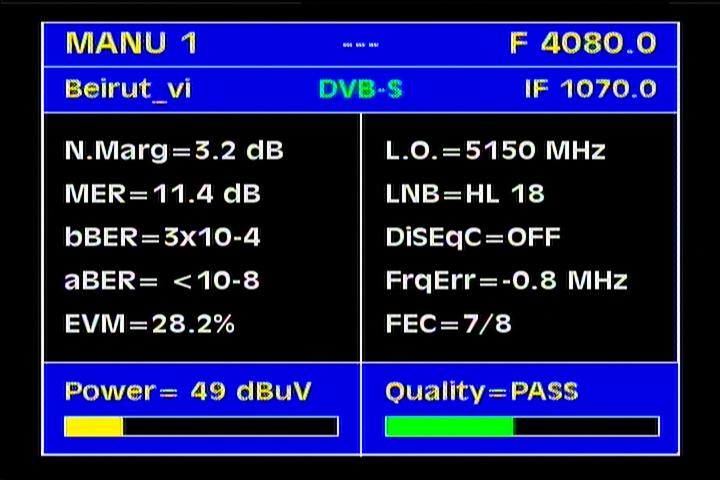

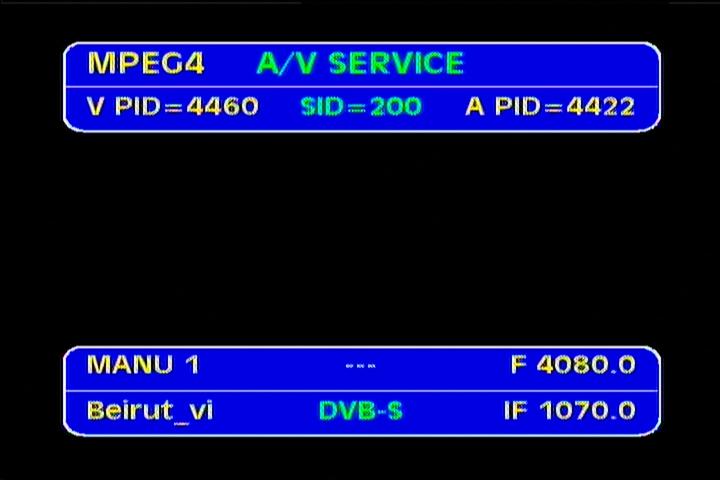

                          NSS 12 at 57.0°E - Global footprint : 4 080 L feeds MPEG-4 Beirut video return
                      VA pids data                                                 Q data                                                 NIT data
NSS 12 at 57.0 E-global footprint in the C band-4 080 L Beirut video return-IF dataNSS 12 at 57.0 E-global footprint in the C band-4 080 L Beirut video return-Q dataNSS 12 at 57.0 E-global footprint in the C band-4 080 L Beirut video return-NIT data

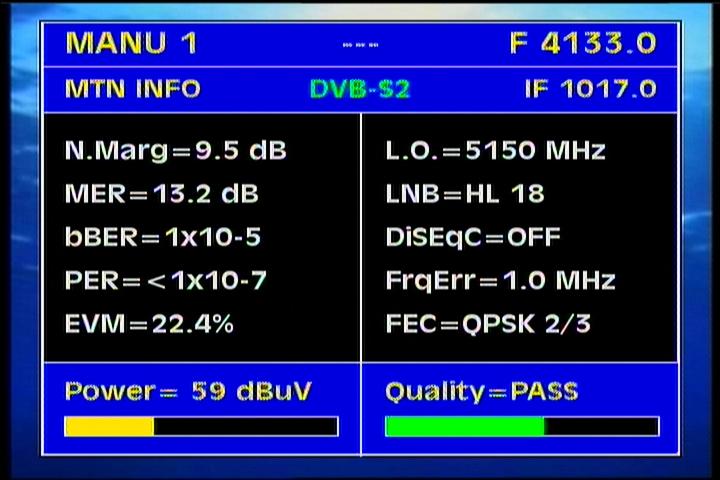

                             NSS 12 at 57.0°E - Global footprint : 4 133 R Packet MTN for Indian ocean region
                             IF data                                                 Q data                                                 NIT data

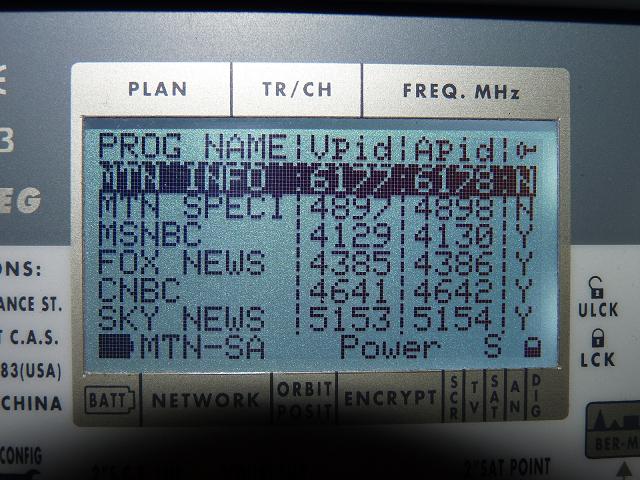

NSS 12 at 57.0 e _ West Hemi footprint _ 4 133 R MTN network _IF dataNSS 12 at 57.0 e _ West Hemi footprint _ 4 133 R MTN network _Q dataNSS 12 at 57.0 e _ West Hemi footprint _ 4 133 R MTN network _NIT data

NSS 12 at 57.0°E : TV List

PF Prodelin 3.7m at NSS 12 at 57.0E  C band


---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 632 -R- tp WHRO

Télé Tchad  / ONRTV    watch video   2 625 2/3 West Hemi 120+ cm DVB FTA

3 656 -L- tp WHLO

feeds ETV _ first Service

2 894 3/4 West Hemi 140+ cm feeds/occasional

3 660 -L- tp WHLO

ETV Ethiopia network

5 800 3/4 West Hemi 140+ cm DVB
  ETV-NORTH         FTA
  ETV-SOUTH         FTA
  CH-3 test card         FTA
  CH-4 test card         FTA

3 802 -R- tp WHR3

BFBS 20 000 3/5 West hemi 140+ cm DVB-S2/QPSK/MPEG-4
  Data         data
  BFBS 1         MPEG-4/Cryptoworks
  BFBS 2         MPEG-4/Cryptoworks
  BFBS 3         MPEG-4/Cryptoworks
  BFBS 4         MPEG-4/Cryptoworks
  BFBS 5         MPEG-4/Cryptoworks
  BFBS 6         MPEG-4/Cryptoworks
  BFBS 7         MPEG-4/Cryptoworks
  BFBS 8         MPEG-4/Cryptoworks
  BFBS 11         MPEG-4/Cryptoworks
  BFBS 12
        MPEG-4/Cryptoworks
  BFBS 13         MPEG-4/Cryptoworks

3 913 -R- tp WHR3

feeds SATV    watch video

2 221 2/3 West Hemi 180+ cm DVB FTA

4 055 -R- tp GLR9

IBB IOR_Voice of America 26 000 1/2 Global 140+ cm DVB
  VoA Africa_Default - Ch 1         MPEG-2/FTA
  American Embassy Network_AETN 340         MPEG-2/FTA
  Alhurra_Alhurra TV 15 (H.264)  watch video         MPEG-4/FTA
  Alhurra Iraq_Iraq (H.264)         MPEG-4/FTA
  MBN Quad video mosaic_PHT feeds         MPEG-4/FTA

4 062 -L- tp GLL9

feeds Cairo Video Return

3 500 1/2 Global 240-300+ cm MPEG-4/FTA

4 067 -L- tp GLL9

feeds Dubai Video Return   watch video

 3 500  1/2 Global  240-300+ cm  MPEG-4/FTA

4 072 -L- tp GLL9

feeds Alhurra Video return

 3 500  1/2 Global  240-300+ cm  MPEG-4/FTA

4 079 -L- tp GLL9

feeds Beirut Video return

 2 000  7/8 Global  240-300+ cm  MPEG-4/FTA

4 082-L- tp GLL9

feeds Jerusalem Video return

 2 000  7/8 Global 240-300+ cm MPEG-4/FTA

4 133 -R- tp GLR 11

MTN Network for Indian ocean region

6 050 2/3 Global 140-180+ cm DVB-S2/QPSK
  MTN Info  watch video          MPEG-4/FTA
  MTN Special Event_not broadcast         ---
  MTN Future Program_not broadcast         ---
  MSNBC         MPEG-4/PowerVu
  FOX News         MPEG-4/PowerVu
  CNBC         MPEG-4/PowerVu
  Sky News         MPEG-4/PowerVu
  BBC News         MPEG-4/PowerVu
  Sky Sports         MPEG-4/PowerVu

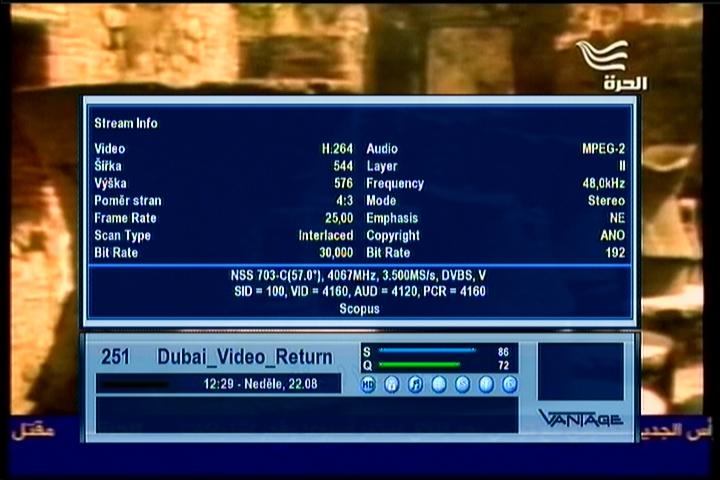

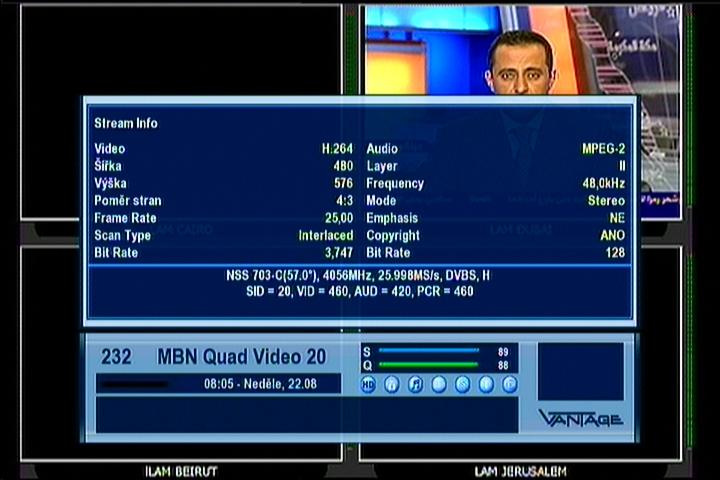

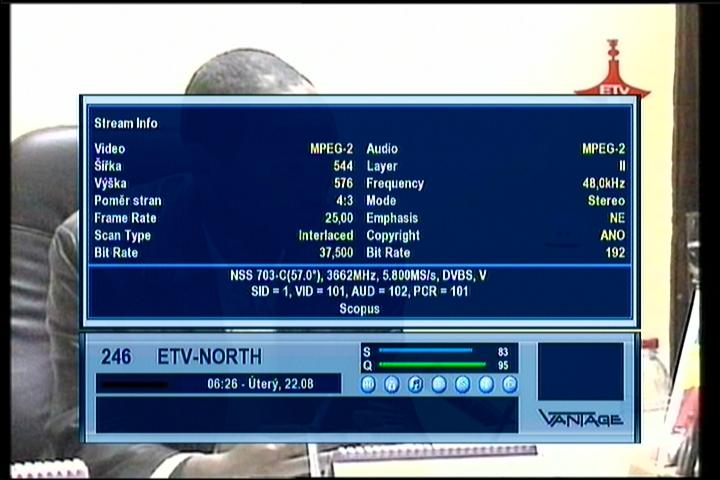

NSS 12 at 57.0°E : relative quality & stream infos

relative q 01relative q 02relative q 03

NSS 12 at 57.0°E : video presentations

  Go to Video Section:
button

NSS 12 at 57.0°E : update drawn up

                   dxsatcs logo

              CZECH & SLOVAK DX SATELLITE CLUB

international professional portal
                                    think-tank
                    Roman Dávid - author & founder
                    mail :
roman.david@dxsatcs.com

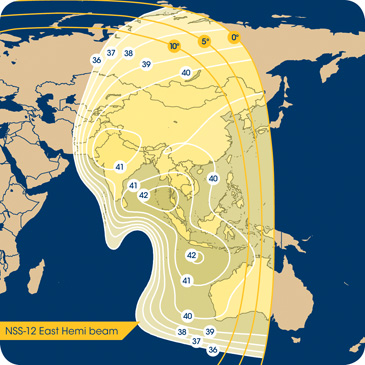

NSS 12 at 57.0°E footprint : Global/East hemi/West hemi

         NSS 12 footprint : Global                      NSS 12 footprint : West Hemi                NSS 12 footprint :East Hemi
NSS 12 at 57.0 e _ global footprintNSS 12 at 57.0 e _ west hemi footprintNSS 12 at 57.0 e _ east hemi footprint

NSS 12 at 57.0°E : Snapshots

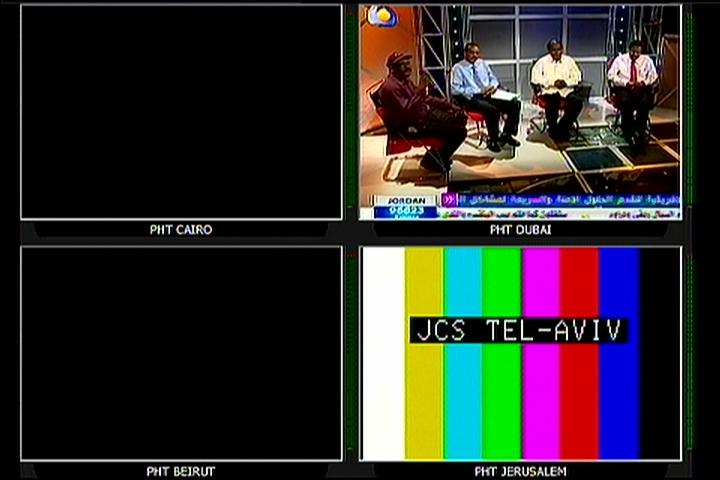

Tele Tchad  001Tele Tchad  002MBN quad video mosaic  003
